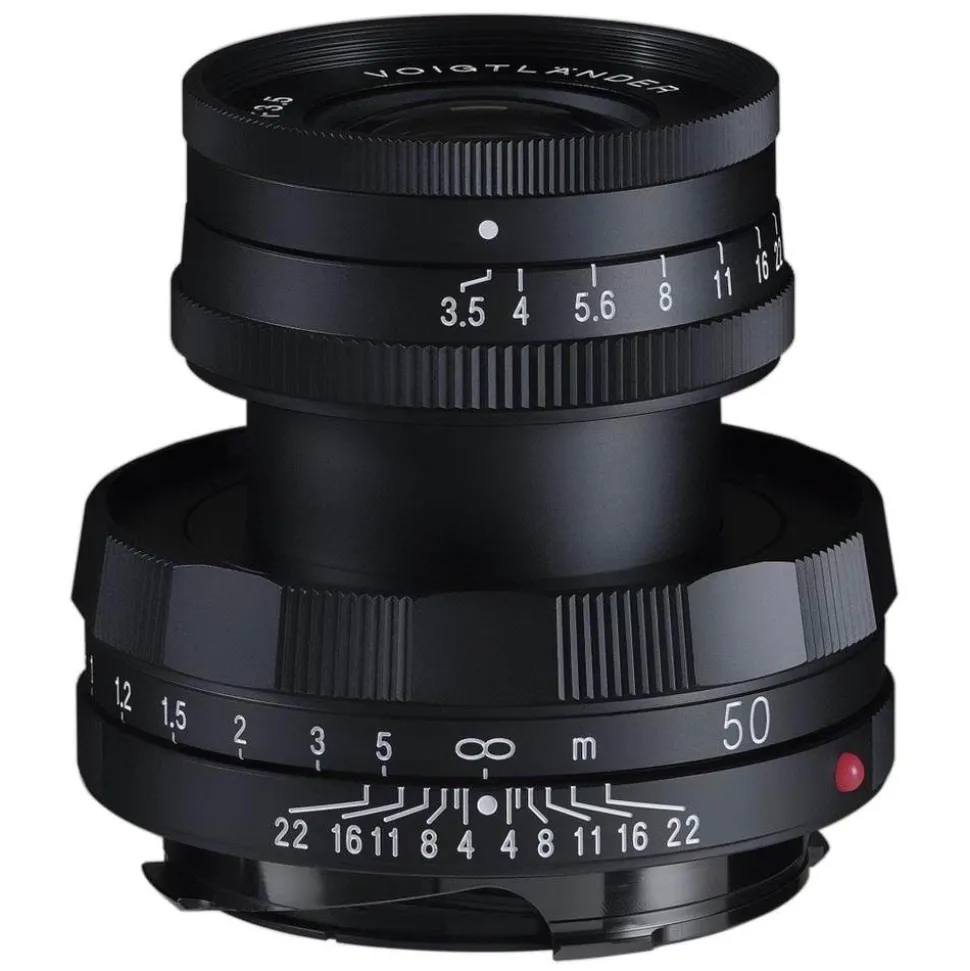

Voigtlander 50mm f/3.5 Apo-Lanthar VM Type I Matt Black Paint Lens

The apochromatic design of the manual focus prime Voigtlander 50mm f/3.5 Apo-Lanthar VM Type I Matt Black Paint Lens eliminates chromatic aberrations with full frame VM mount rangefinder cameras.



Voigtlander 50mm f/3.5 Apo-Lanthar VM Type I Matt Black Paint Lens Summary

APO-LANTHAR is a title given to particularly high-performance products among Voigtländer lenses, and APO is derived from the apochromatic design. The APO-LANTHAR 50mm F3.5 Type I is an extremely high performance manual focus standard lens optimized for full size VM-mount sensors. The apochromatic design thoroughly eliminates chromatic aberration on axis and other aberrations, while pursuing ultimate performance in terms of resolution and contrast reproduction (see attached MTF chart). While adopting a maximum aperture of F3.5, the lens is composed of eight elements in six groups, four of which are made of anomalous partial-dispersion glass to achieve uncompromising optical performance.

The Voigtländer APO-LANTHAR 50mm F3.5 Type I VM lens combines ultimate optical performance with easy handling and classic vintage rangefinder lens styling. As a tribute to classic rangefinder lenses that appeared in the mid-20th century, the more expensive vintage style straight slot screw heads were chosen instead of less expensive modern Phillips head.

Equipped with a high-precision rangefinder-linked mechanism, and the silky feel of the all-metal helicoid allowing the photographer to experience the true joy of focusing using a traditional rangefinder. The minimum focusing distance of the Type Ⅰ is 0.45m. The rangefinder close focus is 0.7m (depending upon camera capability), which is linked to the rangefinder. A mechanism is provided to recognize the junction point of the rangefinder-linked range by a clicking sensation during focusing operation.

The filter diameter is a retro-inspired φ34mm. Two versions of Type I are available: a two-tone black paint and chrome model with a heavy feel using brass materials (body weight: 245g) and a lightweight model with a matte black paint and aluminum construction (body weight: 150g). Each version includes a metal hood and a metal cap with the same finish as the lens body.

• Apochromatic design eliminates chromatic aberration
• Optimized optical design for digital VM image sensors
• All-metal lens barrel for high rigidity and durability
• Manual focus for reliable focusing operation
• Bayonet VM mount
• High-precision rangefinder linkage mechanism
• Minimum focusing distance of 0.45m
• Rangefinder linkage range junction click at 0.7m
• Extremely High Optical Performance
• Classic Retro styling

Specifications

• Focal Length : 50mm
• Maximum Aperture : 1:3.5
• Minimum Aperture : F22
• Lens Construction : 6 Groups 8 Elements
• Angle of View : 45.7°
• Aperture Blades : 10
• Minimum Focus : 0.45m (With Rangefinder linkage range junction click)
• Range Finder Coupling : ∞～0.7m(depend on camera body used)
• Maximum Diameter : Φ52.0mm
• Maximum Length : 45.0mm
• Filter Size : Φ34
• Weight : 245g (Two-tone) / 150g (Matte Black Paint)
• Hood : Dedicated screw-in hood included
• Supplied Accessory : Front Cap, Lens Hood, Hood Cap

Offers: N/A

Offer Category: N/A

Offer Product Type: N/A

Autofocus: N/A

Aperture ring: N/A

Constant Aperture: Yes

Lens CIPA Image stabilization rating: N/A

Colour: N/A

Diameter (mm): N/A

Length (mm): N/A

Weight (g): N/A

Distance scale: N/A

DoF scale: N/A

Elements: N/A

Environmental Sealing: N/A

Focus distance limiter: N/A

Focal length: 50 mm

Focus method: N/A

Filter Thread: N/A

Full time manual: N/A

Groups: N/A

Hood supplied: N/A

Lens Image stabilization: N/A

Lens mount: N/A

Lens Materials: N/A

Maximum focal length: 50.0

Maximum magnification: N/A

Maximum aperture (number): 3.5

Maximum aperture (text): N/A

Max Format size: N/A

Minimum focal length: 50.0

Lens Minimum focus distance (m): N/A

Minimum aperture (number): N/A

Minimum aperture (text): N/A

Motor type: N/A

Number of diaphragm blades: N/A

Power zoom: N/A

Special elements / coatings: N/A

Tripod collar: N/A

Lens type: N/A

Wide/Tele: N/A

Lens Level: N/A

Best For: N/A

Best For Holiday and Landscape: N/A

Best For Interior and Architecture: N/A

Best For Fashion and Portrait: Yes

Best For Macro and Still Life: N/A

Best For Astro: N/A

Best For Street: Yes

Best For Wildlife and Sport: N/A

Zoom lock: N/A

Zoom method: N/A

Notes: N/A
