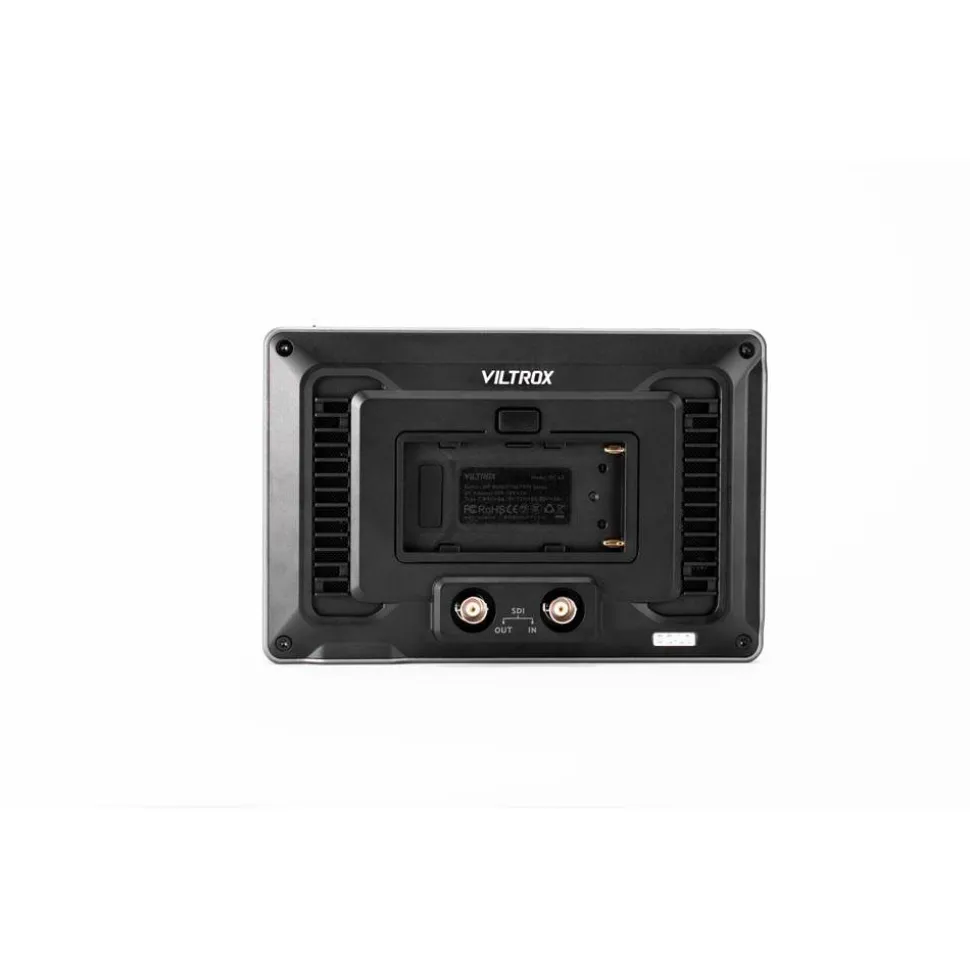

Viltrox DC-L2 7-inch Touchscreen Monitor

The Viltrox DC-L2 7-inch Touchscreen Monitor is a professional realtime camera monitor with a 1280 x 800 pixel resolution, which accepts high-definition signals from HDMI and SDI sources.



Viltrox DC-L2 7-inch Touchscreen Monitor Summary

The DC-L2 is a 7-inch professional photographic monitor with a resolution of1280X800 pixels. It’s suitable for digital cameras with interchangeable lenses or digital HD camcorders, providing real-time display of high-definition signals from HDMI or SDI sources. This powerful monitor offers a monitoring assistance system for photographers and meets their high-definition image quality needs in photography.

Features:

3D LUT function: With the 3D LUT, it’s possible to control the full three-dimensional color space, significantly expanding the monitor’s color display potential. This feature also serves as a solid backbone for achieving hardware calibration’s ‘what you see is what you get’ capability. The device can load up to 20 3D LUT files via a USB interface.
 Audio column: Monitors the audio signals within the HDMI high-definition signals, performing real-time waveform switching to reflect different highs and lows.
Gyroscope functions: This device has gyroscope detection function to adjust the screen up and down and automatically flip the image without manual adjustment, optimize and improve the user experience,and thus better meet the needs of photographers.
Brightness histogram: Monitors the brightness of images transmitted by HDMI or SDI high-definition signals, capturing and displaying real-time changes in brightness values according to image variations
False color function: It can achieve more precise exposure and lighting control through image conversion, with red for excessive lighting, blue for insufficient lighting and green for appropriate lighting conditions.
Focusing function: Set the focus on the screen area.
De-squeeze function: Restores the compressed and deformed image of the camera, displaying the original proportion ofthe physical object.
Shortcut keys: Allows setting different shortcut keys according to customer preferences for one-touch settings without the need to enter menu configurations.
Signal: This device features input capabilities: HDMI IN, SDI IN; and output functionalities: HDMI OUT, SDI OUT, facilitating connections to other monitors or devices on-site and satisfying the extended display needs of various enthusiasts.
USB interface: Supports USB interface for upgrades and loading 3D LUT function files.
Touch screen: 7-inch sensitive touch screen is provided to facilitate different photographers to operate the device.

Specifications:
Display Screen: 7-inch IPS Touch Screen
Resolution:1280×800
Aspect Ratio:16:10
Contrast: 1000:1
Refresh Rate: 60Hz
Screen Brightness: 600cd/m²
Viewing Angle: 170°
Pixel Density: 215PPI
Color Gamut: SRGB
Color Depth: 8Bit
Input Interface: HDMI 1.4 IN
Output Interface: HDMI 1.4 OUT
Weight: ≈392g
Dimensions: 178.7×119.7×30.5mm
USB Interface: Support of USB upgrade and 3D Lut file input
Audio Output: Headphone Jack Φ3.5mm
Power Interface: DC 10V-18V=2A; Type-C≥9V=3A，(9V/12V/15V/20V=3A)
Applicable Battery: Lithium Battery NP-F550/F750/F970
Working Temperature: 0℃~40℃
Storage Temperature: -20°C~60℃

Package Contents:
1x Viltrox DC-L2 7-inch Professional Photographic Monitor
