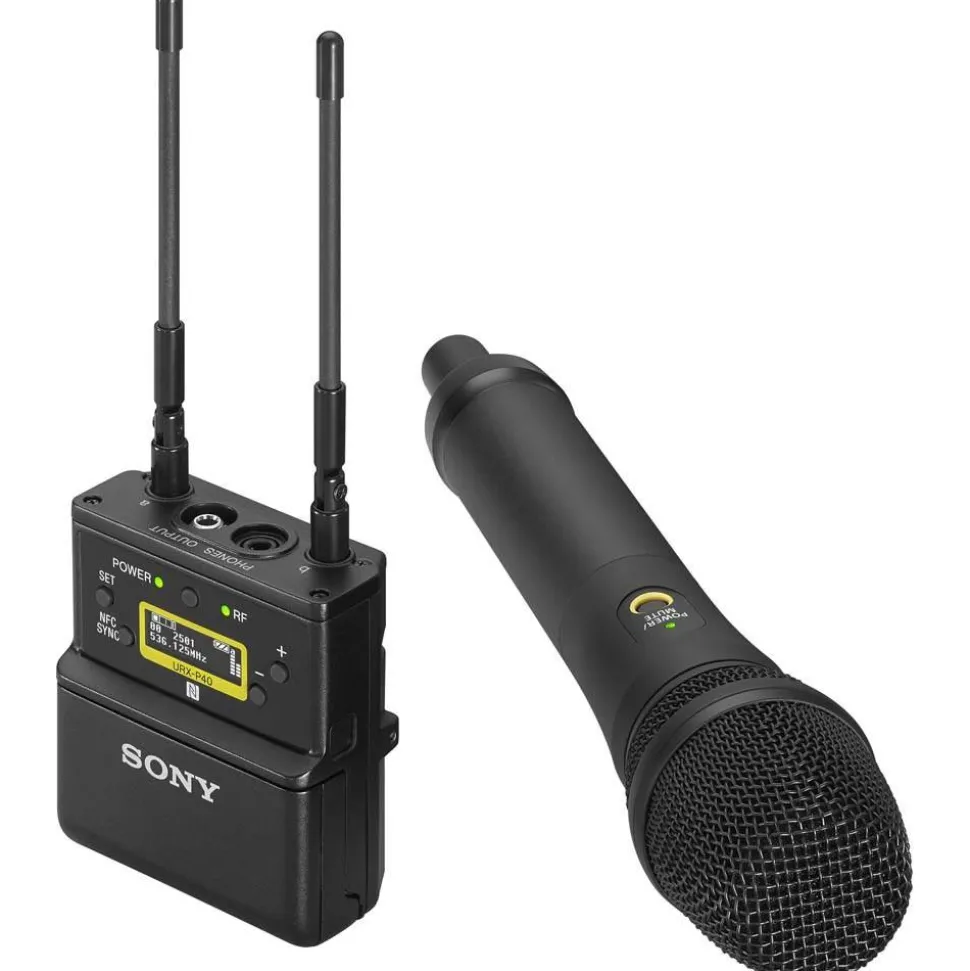

Sony UWP-D22/K33 Handheld Wireless Microphone Kit

• Easy to set-up and use wireless mic kit for field recording, interviews, vlogging and more
• Wide range of capsules interchangeable capsules available for the handheld microphone
• New easy to implement NFC SYNC function for quick and easy secure channel setting
• High quality audio guaranteed from Sony’s digital audio processing
• Bright OLED screen ideal for use either indoors or outside along with a host of pro features

Sony UWP-D22/K33 Handheld Wireless Microphone Kit Summary

The Sony UWP-D22/K33 Wireless Mic Kit includes the UTX-M40 handheld microphone with unidirectional capsule ideal for ENG/EFP jobs. Advanced digital audio processing technology from Sony has an improved transient response performance with high quality audio in an easy to set-up package. True double tuner diversity provides stable signal reception and the wireless mic accepts a wide range of capsules, even from third parties with a standard threading of 1.25”/28. The UWP-D22 connects to  via the Multi Interface MI shoe as well as with  using an optional SMAD-P5 Multi Interface (MI) Shoe Adaptor. This eliminates cables and allows you to monitor URX-P40 settings via the camera’s viewfinder, including low battery alert, RF Quality meter and audio mute status.

Features at a glance

• High quality sound with Sony digital audio processing
• NFC SYNC function for quick and easy secure channel setting
• True double tuner diversity for stable signal reception
• Interchangeable Mic head with a wide choice of microphone capsules
• Auto gain mode volume control
• +15 dB gain volume boost mode for off-mic audio
• Channel memory for fast switching between receiver frequencies
• Headphone output for monitoring
• Monitor mode for using a receiver as an ear monitor
• Variable muting function
• Compatibility with Sony WL-800/UWP/UWP-D series
• High visibility OLED display ideal for indoor/outdoor use
• URX-P40 features a USB connector for power supply
• Digital audio interface support with  (optional)

Sony UWP-D22/K33 Handheld Wireless Microphone Kit In More Detail

Auto Gain Mode

You won’t always know the volume of your talent’s voice in advance, so Auto Gain mode has you covered, which sets the gain moderately high, then uses a limiter to help prevent distortion.

+15 dB off-mic Audio Boost

The +15 dB boost resets the gain when the microphone is not near the person’s mouth, helping to avoid insufficient audio levels during interviews.

Line Input

Set the appropriate input levels with MIC/LINE switching levels and adjustable attenuators.

Channel Memory

The Channel Memory function excels when you’re using one receiver in combination with two transmitters, where you can instantly switch between the previously set channel and the current channel.

Transmitter Frequency Sent to Receiver

NFC communication relays transmitter settings such as frequency and compander mode directly to the receiver, making it easy to set up multiple receivers in combination with one transmitter.

Reduced Size and Weight

A new lighter design helps to avoid heavy receivers weighing down your camera or bulky transmitters getting in the way of your talent. The UTX-B40 bodypack transmitter and UTX-P40 plug-on transmitter are both 20% smaller than previous models. The combined URX-P40 receiver/SMAD-P5 adaptor is much shorter than the prior generation, making for a better fit with  and digital interchangeable lens cameras.

URX-P40 Portable Receiver

• High quality sound with Sony Digital Audio Processing
• NFC SYNC function for quick and easy secure channel setting
• True double tuner diversity for stable signal reception
• Channel memory function for fast switching between two receiver frequencies
• Headphone output for monitoring
• Monitor mode for using a receiver as an ear monitor
• Compatible with Sony’s WL-800/UWP series
• Output level control for receiver
• High visibility OLED display (indoor/outdoor use)
• USB connector for power supply
• Digital/analog switchable audio interface support using SMAD-P5 Multi-Interface Shoe Adaptor (option)

UTX-M40 Handheld Wireless Microphone

• High quality sound with Sony Digital Audio Processing
• NFC SYNC function for quick and easy secure channel setting
• (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
• Interchangeable head for wide choice of microphone capsules
• Auto gain mode volume control
• +15 dB gain volume boost mode for off-mic audio
• Transmitter frequency sent to receiver for matching multiple receivers to one transmitter Variable muting function
• Compatibility with Sony WL-800/UWP/UWP-D series
• High visibility OLED display (indoor/outdoor use)

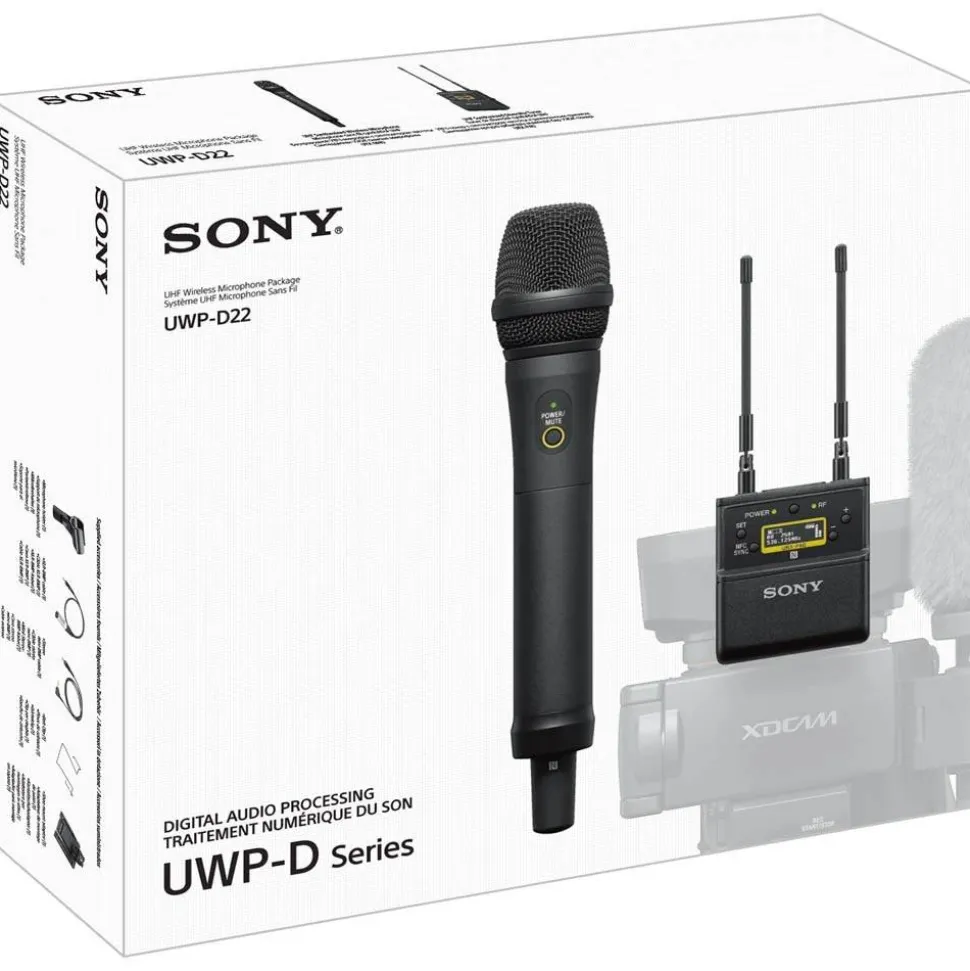

What’s in the box

• UTX-M40 handheld microphone
• URX-P40 receiver
• Microphone holder
• Shoe Mount adapter
• XLR-BMP cable
• Stereo Mini-BMP Cable
• Belt Clip
