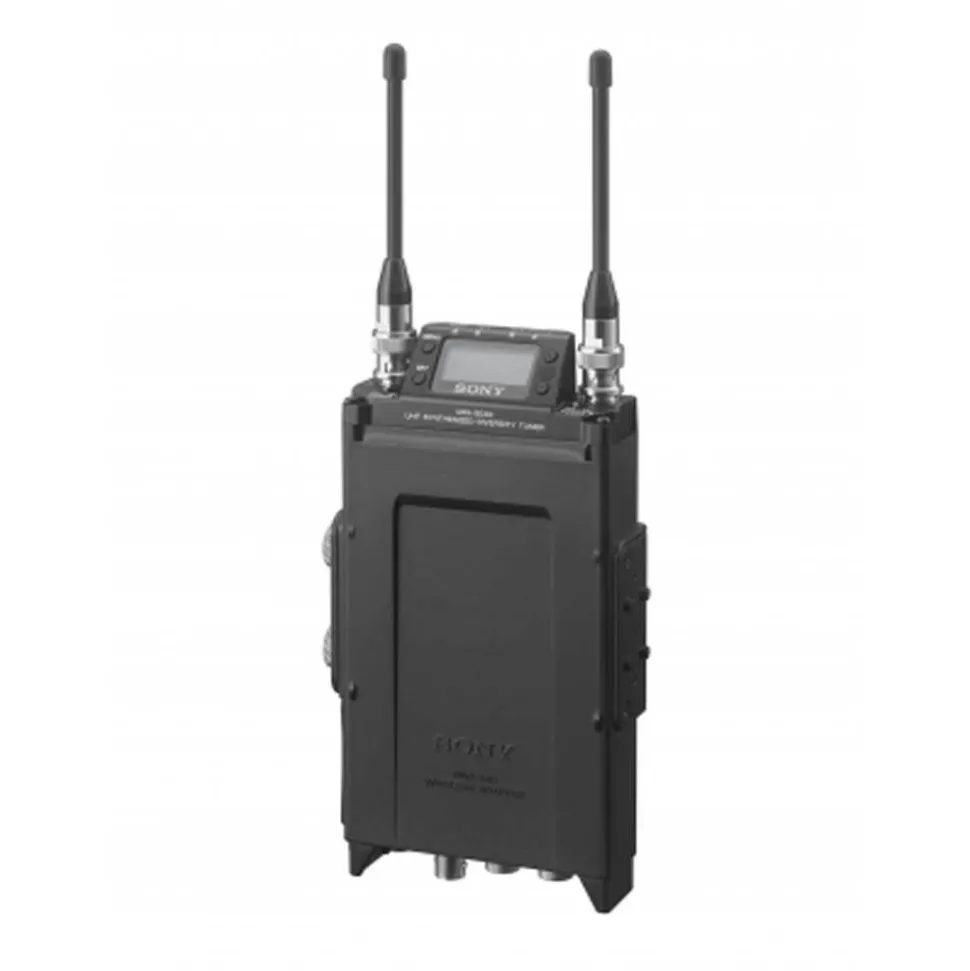

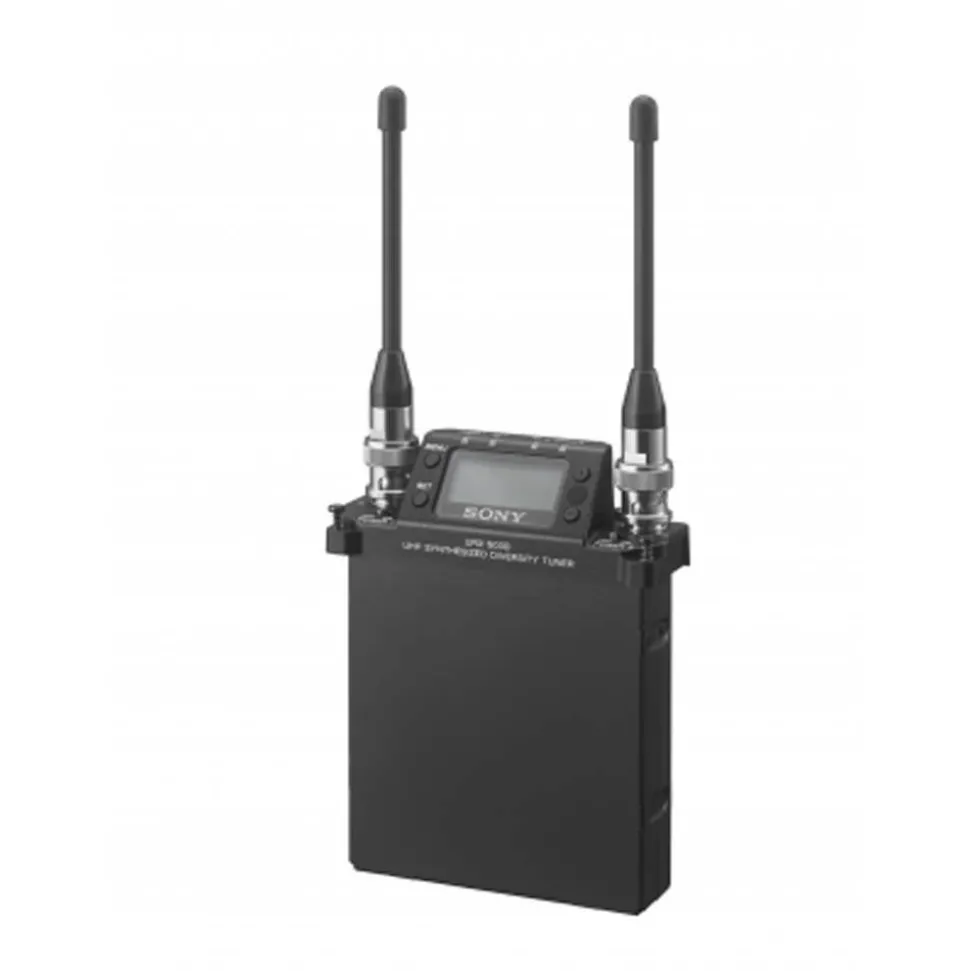

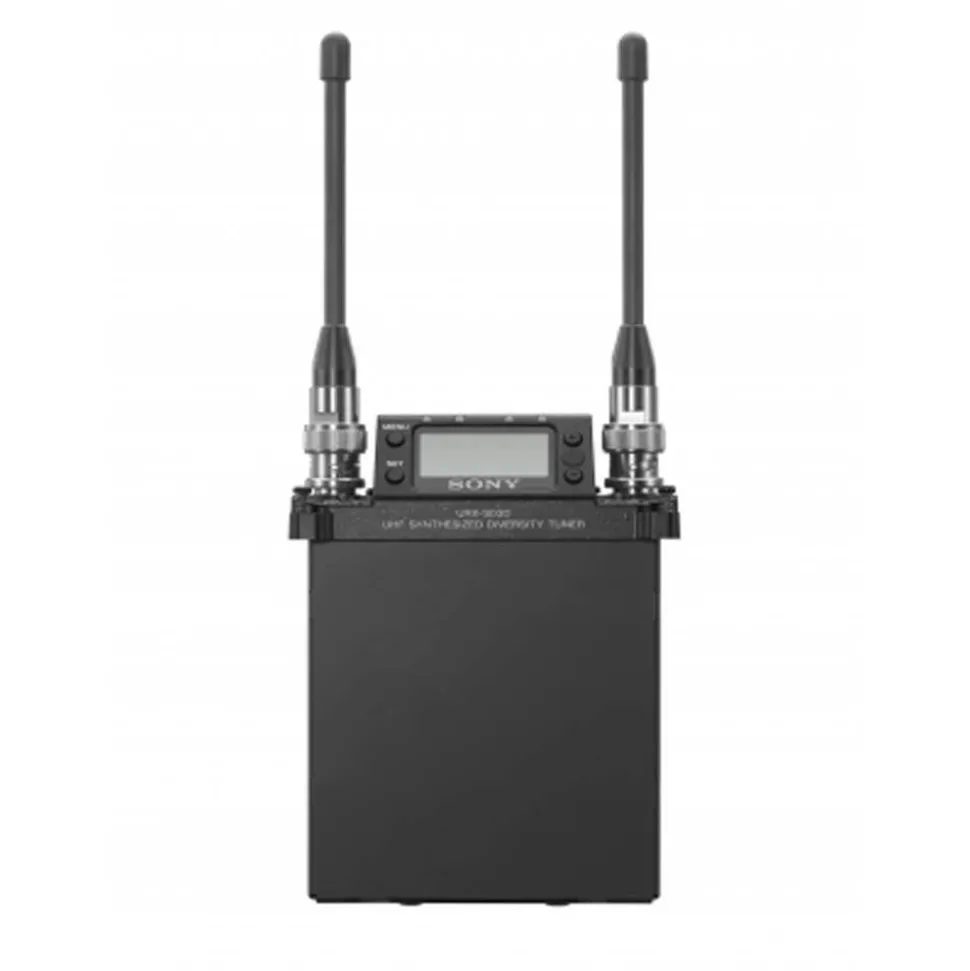

Sony URX-S03D/K33 Two Channel Slot-In Receiver

• High quality natural sound from a portable slot in receiver for Sony camcorders
• Stable RF transmission with true diversity reception system and wide frequency coverage
• Compatible with a broad range of XDCAM and HDCAM camcorders, transmitters and mics
• Lightweight and weatherproof construction for outdoor film makers
• Easy to use features deliver fast workflows including automatic channel setting function

Key Features

• Sony’s Digital Audio Processing
• High quality audio ampli?er adopted
• Wireless receiver for Sony shoulder camcorders and accessory buckets Direct digital connection to XDCAM, DWA-01D or DWA-F01D
• Easy to use Automatic Channel Setting mode
• True Diversity Reception System for stable reception
• Compatibility with Sony WL-800/UWP/UWP-D series
• Robust metal body
• Weatherproof structure
• Selectable squelch
• Works with  , .

Sony URX-S03D Two Channel Slot-In Receiver Summary

The Sony URX-S03D/K33 Two Channel Slot-In Receiver fits directly in the slot of Sony XDCAM and HDCAM camcorders. It provides impressive natural sound with true diversity from highly stable reception from two adjustable antennas. It is backwards compatible with Sony 800 and UWP Series transmitters whilst offering advanced usability with Sony XDCAM and HDCAM camcorders. The URX-S03D incorporates a sophisticated amplifier featuring an oversized electrolytic capacitor to deliver ample power for even higher audio fidelity.

Features at a glance

• True diversity reception system for stable reception
• Direct digital connection to camcorders
• Compatible with Sony 800 and UWP Series
• Sony Digital Audio Processing for high quality sound
• Automatic channel setting mode
• Fast and easy channel scan
• Wide frequency coverage

Sony URX-S03D/K33 Two Channel Slot-In Receiver in More Detail

Features with XDCAM® Camcorders

• 2-channel digital connection directly from the DSP digital output of the URX-S03D via a D-sub 15-pin interface
• Camcorder can show each wireless microphone’s RF/AF level in the viewfinder
• Camcorder corrects for audio delay (0.725m sec) for perfect lip sync

Features with HDCAM® Camcorders

• Single-channel analog connection from the URX-S03D via a D-sub 15-pin interface
• Two audio signals from two transmitters can be mixed and output as a single channel
• Camcorder can show each wireless microphone’s RF/AF level in the viewfinder

Digital Audio Processing for high quality sound

Improves transient response performance between the UWP-D transmitter and receiver, providing impressive natural sound quality compared to conventional analogue wireless systems.

Stable RF transmission

True diversity reception system achieves highly stable reception from two adjustable receiving antennas, each with its own RF circuits.

Great usability with Sony XDCAM and HDCAM camcorders

The URX-S03D fits in the slot of Sony’s XDCAM camcorder with 2-channel digital audio connections directly from the DSP. It can also be matched with the slot of an HDCAM camcorder with single channel audio connection.

Easy to use features

Automatic channel setting function, headphone output, USB connection for power supply and line input availability.

Robust metal body

The URX-P03 portable receiver is made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.

Weatherproof structure

Waterproof structure of the URX-S03D makes it safe to use in extreme conditions

Selectable squelch

The squelch can be easily turned on or off in the menu.

Compatible with a wide range of Sony camcorders

PXW-X320, PXW-X400, PDW-850/750, PXW-X500, PMW-400/580, PDW-510/510P, PDW-530/530P, PDW-700/740/F800,PMW-TD300, PMW-500/350, PMW-320, (PMW-F5/F55 with CBK-55BK), HDW-F900R, HDW-650/680/800P, MSW-930P, DSR-400/400P, DSR-450WS/450WSP

What’s in the Box
