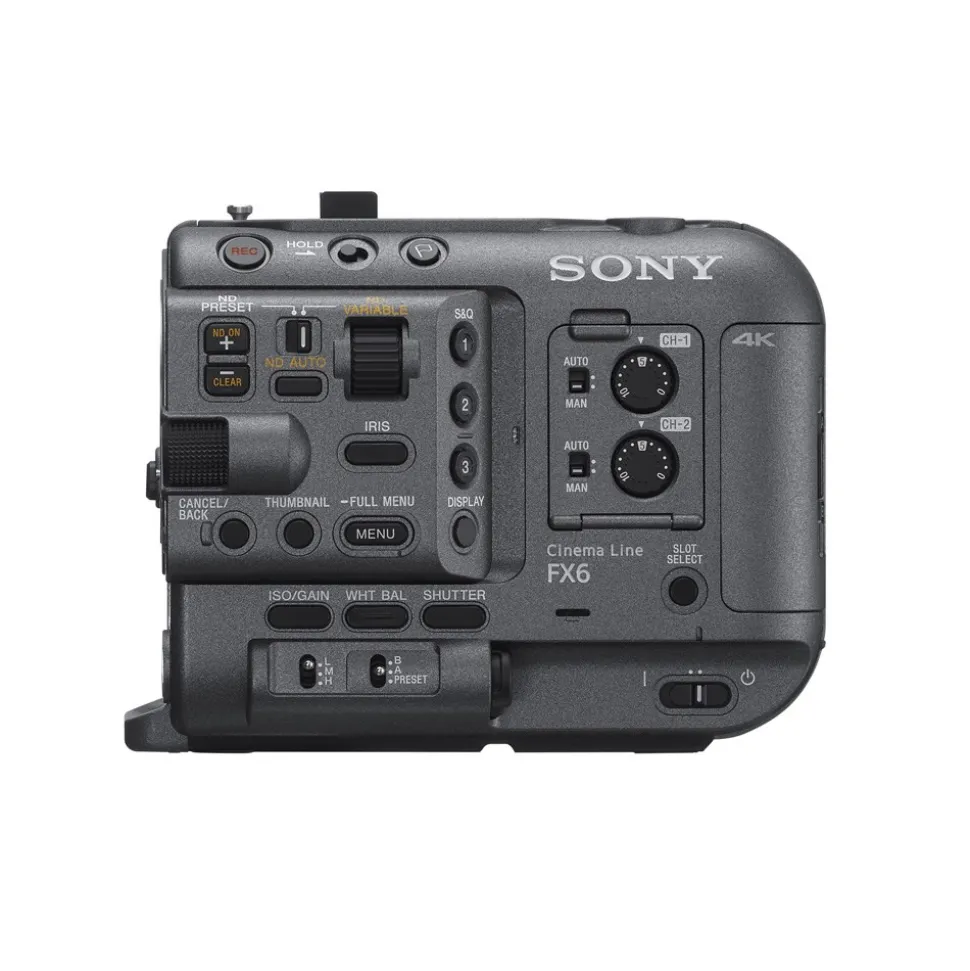

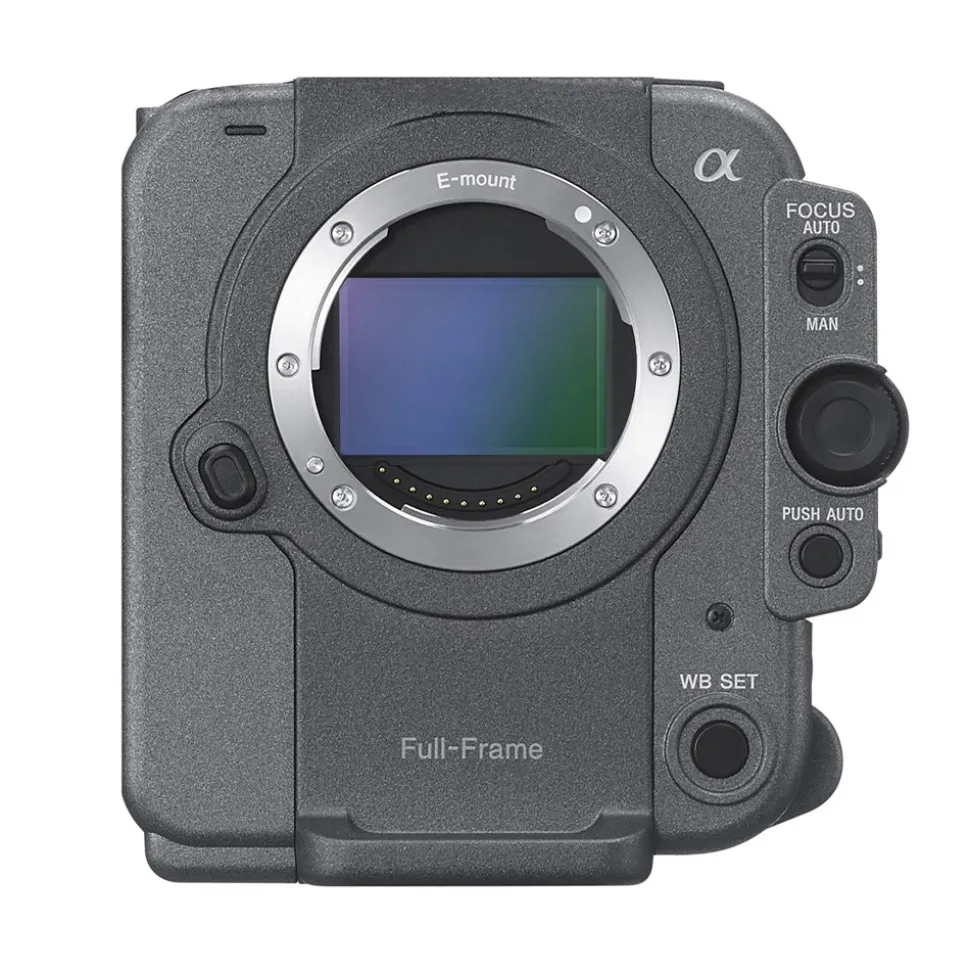

Sony FX6 Cinema Line Video Camcorder
$159.00
- Compact, lightweight yet extremely rugged weather sealed magnesium alloy chassis
- Internal fan for longer recording times, crucial with up to 240fps in Full HD
- Varied professional recording formats including DCI 4K in XAVC Intra 422 10bit Class 300 with SDI Raw at 60fps
- Dedicated Metadata button along with stabilisation and orientation data for quicker processing times
- Comprehensive professional inputs including XLR, HDMI, SDI and nine LCD input options
Sony FX6 Summary
Â
Sony is firmly established in broadcast circles with a number of  available and the FX6 Cinema Line ILMEFX6VDI.EU is the first of a new breed of compact full frame video camcorders to join the range. The FX6 camera has been developed to cater for advanced workflows with professional recording formats including DCI 4K in XAVC Intra 422 10bit Class 300 with SDI Raw at 60fps. The FX6 is compatible with  including the new cine line  allowing the camera to record image stabilisation data for reduced processing requirements.
Key features
- 10.2 megapixel full frame Exmor R sensor with BIONZ XR processor
- S-Log3 with base ISO 800
- 15+ stops of dynamic range
- Focal plane phase detection from 627 AF points with latest Eye and Face AF systems
- 120fps QHFD and 240fps Full HD
- Electronically controlled ND filter system
- Durable lightweight magnesium alloy chassis with modular grip and handle
- Internal recording for DCI 4K with 10-bit / 4.2.2 colour sampling
- New S-Cinetone with accurate skin colour and softer tones
- Remote control from a smartphone
The new compact camera module weighs 890g and measures just 116mm x 153mm which is even smaller than the , yet is versatile enough for mounting onto camera drones. High / low angle recording is simple thanks to nine attachment points for a high resolution LCD.
S ony FX6 Cinema Line Video Camcorder In Detail
In-house development seeks to set new standards across Sony broadcast video cameras with new compatible E mount lenses starting to appear. These are being matched throughout through the optical design, lens actuator through to the image sensor and processor.
Meta data can be flagged with a new dedicated OK flag button along with OK/NG/KEEP marks which appear in editing thumbnails in Catalyst. Camera rotation meta data is also recorded which is automatically rotated when playing a clip.
ILMEFX6VDI.EU
Inputs include:
- HDMI
- SDI
- TC
- XLR x2
- LANC
- Power
- Â USB-C
What ’ s in the box
- Handle (1)
- LCD monitor( 1)
- Grip remote control (1)
- AC Adaptor (1)
- Power cord (1)
- USB-C cable( 1)
- LCD hood (1)
- Cold shoe kit (1)
- Lens mount cap (1)
- Handle connector cap (1)
- Before Using This Unit (1)
- Warranty booklet (1)
Optional accessories
- U batteries including Â
- Â
- Â
- Â
Sony FX6 Specifications
| General | Mass | Approx 890g (1lb15oz) (body only) |
| General | Mass | Approx. 2.59kg (5lb11oz) (with Viewfinder, Grip Remote Control, BP-U35 battery, SEL24105G LENS, Lens Hood, Handle, MIC holder) |
| General | Dimensions (W x H x D)[[F_WI0001]] | 114 x 116 x 153 mm(4 1/2 x 4 5/8 x 6 1/8 inch) (body without protrusions) |
| General | Power Requirements | DC 19.5V |
| General | Power Consumption | Approx. 18.0 W (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device) |
| General | Operating Temperature | 0°C to 40°C |
| General | Operating Temperature | 32°F to 104°F |
| General | Storage Temperature | -20°C to +60°C |
| General | Storage Temperature | -4°F to +140°F |
| General | Battery Operating Time | Approx. 105min. with BP-U35 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device) |
| General | Battery Operating Time | Approx. 215min. with BP-U70 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device) |
| General | Recording Format (Video) | [XAVC Intra] |
| General | Recording Format (Video) | XAVC-I DCI4K 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I DCI4K 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I DCI4K 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I DCI4K 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I DCI4K 24p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I DCI4K 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I QFHD 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I QFHD 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I QFHD 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I QFHD 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I QFHD 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I HD 59.94p mode:CBG, MAX bit rate 222 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I HD 50p mode:CBG, MAX bit rate 223 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I HD 29.97p mode:CBG, MAX bit rate 111 Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I HD 25p mode:CBG, MAX bit rate 112Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | XAVC-I HD 23.98p mode:CBG, MAX bit rate 89Mbps, MPEG-4 AVC/H.264 |
| General | Recording Format (Video) | [XAVC Long] |
| General | Recording Format (Video) | XAVC-L QFHD 29.97p/25p/23.98p mode:VBR, MAX bit rate 100 Mbps, MPEG-4 H.264/AVC |
| General | Recording Format (Video) | XAVC-L QFHD 59.94p/50p mode:VBR, MAX bit rate 150 Mbps, MPEG-4 H.264/AVC |
| General | Recording Format (Video) | XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 50 Mbps, MPEG-4 H.264/AVC |
| General | Recording Format (Video) | XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 35 Mbps, MPEG-4 H.264/AVC |
| General | Recording Format (Audio) | LPCM 24 bits, 48 kHz, 4 channels |
| General | Recording Frame Rate | [XAVC Intra] |
| General | Recording Frame Rate | XAVC-I DCI4K mode:4096 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P, 24P |
| General | Recording Frame Rate | XAVC-I QFHD mode:3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P |
| General | Recording Frame Rate | XAVC-I HD mode:1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P |
| General | Recording Frame Rate | [XAVC Long] |
| General | Recording Frame Rate | XAVC-L QFHD mode:3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P |
| General | Recording Frame Rate | XAVC-L HD 50 mode:1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P |
| General | Recording Frame Rate | XAVC-L HD 35 mode:1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P |
| General | Recording/Playback Time | [XAVC Intra] |
| General | Recording/Playback Time | XAVC-I DCI4K/QFHD 59.94p When using CEA-G160T (160 GB) Approx. 30 minutes When using CEA-G80T (80 GB) Approx. 15 minutes |
| General | Recording/Playback Time | XAVC-I DCI4K/QFHD 50p When using CEA-G160T (160 GB) Approx. 36 minutes When using CEA-G80T (80 GB) Approx. 17 minutes |
| General | Recording/Playback Time | XAVC-I DCI4K/QFHD 29.97p When using CEA-G160T (160 GB): Approx. 60 minutes When using CEA-G80T (80 GB) Approx. 29 minutes |
| General | Recording/Playback Time | XAVC-I DCI4K/QFHD 25p When using CEA-G160T (160 GB): Approx. 71 minutes When using CEA-G80T (80 GB) Approx. 35 minutes |
| General | Recording/Playback Time | XAVC-I DCI4K 24p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes |
| General | Recording/Playback Time | XAVC-I DCI4K/QFHD 23.98p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes |
| General | Recording/Playback Time | XAVC-I HD 59.94p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB) Approx. 38 minutes |
| General | Recording/Playback Time | XAVC-I HD 50p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB) Approx. 38 minutes |
| General | Recording/Playback Time | XAVC-I HD 29.97p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB) Approx. 74 minutes |
| General | Recording/Playback Time | XAVC-I HD 25p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB) Approx. 74 minutes |
| General | Recording/Playback Time | XAVC-I HD 23.98p When using CEA-G160T (160 GB): Approx. 185 minutes When using CEA-G80T (80 GB) Approx. 91 minutes |
| General | Recording/Playback Time | [XAVC Long] |
| General | Recording/Playback Time | XAVC-L QFHD 29.97p/25p/23.98p When using CEA-G160T (160 GB): Approx. 170 minutes When using CEA-G80T (80 GB) Approx. 86 minutes |
| General | Recording/Playback Time | XAVC-L QFHD 59.94p/50p When using CEA-G160T (160 GB): Approx. 115 minutes When using CEA-G80T (80 GB) Approx. 57 minutes |
| General | Recording/Playback Time | XAVC-L HD 50 /29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 320 minutes When using CEA-G80T (80 GB) Approx. 155 minutes |
| General | Recording/Playback Time | XAVC-L HD 35 29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 430 minutes When using CEA-G80T (80 GB) Approx. 210 minutes |
| General | Recording Format (Proxy Audio) | XAVC Proxy: AAC-LC, 128 kbps, 2 channels |
| General | Recording Format (Proxy Video) | XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR 1920×1080, 9Mbps |
| Lens | Lens Mount | E-mount |
| Camera Section | Imaging Device (Type) | 35 mm full-frame, single-chip CMOS image sensor |
| Camera Section | Number of pixels (total) | Approx. 12.9 megapixels |
| Â | Number of pixels (effective) | Approx. 10.2 megapixels |
| Camera Section | Built-in Optical Filters | Clear, linear variable ND(1/4ND to 1/128ND) |
| Camera Section | ISO Sensitivity | ISO 800/12800 (Cine EI mode, D55 Light source) |
| Camera Section | Shutter Speed | 64F to 1/8000 sec |
| Camera Section | Slow and Quick Motion Function | XAVC-I 4096×2160 1 to 60 frames (59.94/50/29.97/25/24/23.98) |
| Camera Section | Slow and Quick Motion Function | XAVC-I/L 3840 x 2160 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98) 1920 x 1080 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98) |
| Camera Section | White Balance | Preset, Memory A, Memory B (2000K-15000K)/ATW |
| Camera Section | Gain | -3 to 30dB (every 1dB), AGC |
| Camera Section | Gamma Curve | SDR Mode :S-Cinetone, Standard, Still, ITU709 HDR mode : HLG_Live, HLG_Natural |
| Camera Section | Latitude | 15+ stop |
| Input/Output | Audio Input | XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable Mic Reference: -30 to -80 dBu |
| Input/Output | SDI Output | SDI OUT: BNC, 12G-SDI, 6G-SDI, 3G-SDI(Level A/B) |
| Input/Output | USB | USB Type-C(x1), Multi/Micro-B (x1) |
| Input/Output | Headphone Output | Stereo mini jack (x1) -16 dBu 16 Ω |
| Input/Output | Speaker Output | Monaural |
| Input/Output | DC Input | DC jack |
| Input/Output | Remote | Stereo mini-minijack (Φ2.5 mm) |
| Input/Output | HDMI Output | Type A (x1) |
| Â | TC Input/TC Output | BNC, TC IN/OUT Switchable |
| Input/Output | Grip | Mini jack (Φ3.5 mm/4pin) |
| Monitoring | LCD | 8.8 cm (3.5 type) Approx. 2.76M dots |
| Built-in Microphone | Built-in Microphone | Omni-directional monoral electret condenser microphone (body) (x1) Stereo electret condenser microphone (handle) (x1) |
| Media | Type | CFexpress Type A / SD card (x2) |
| Media | Type | Slot B can be used for saving configuration data. |
| Wi-Fi/NFC | Supported Format | IEEE 802.11 a/b/g/n/ac |
| Wi-Fi/NFC | Frequency Band[[F_WI0007]] | 2.4 GHz bandwidth 5.2/5.3/5.6/5.8 GHz bandwidth |
| Wi-Fi/NFC | Security | WEP/WPA-PSK/WPA2-PSK |
| Wi-Fi/NFC | NFC | NFC Forum Type 3 Tag compliant |
