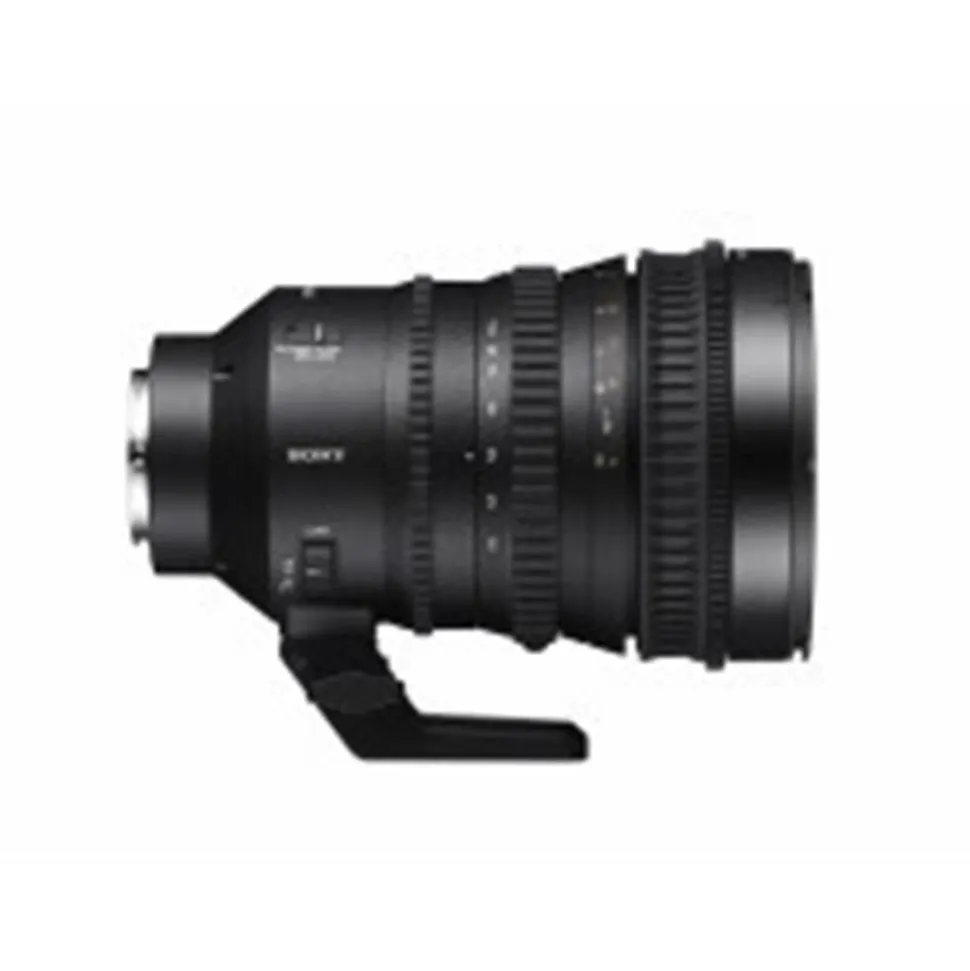

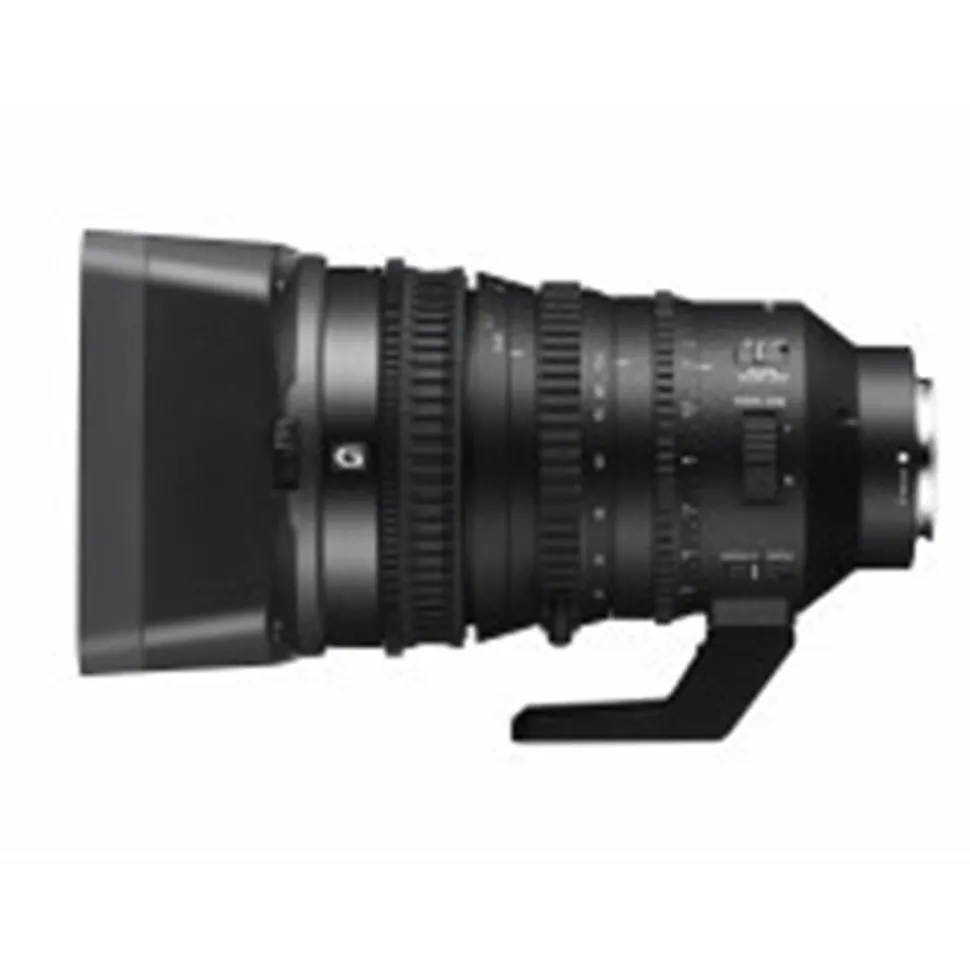

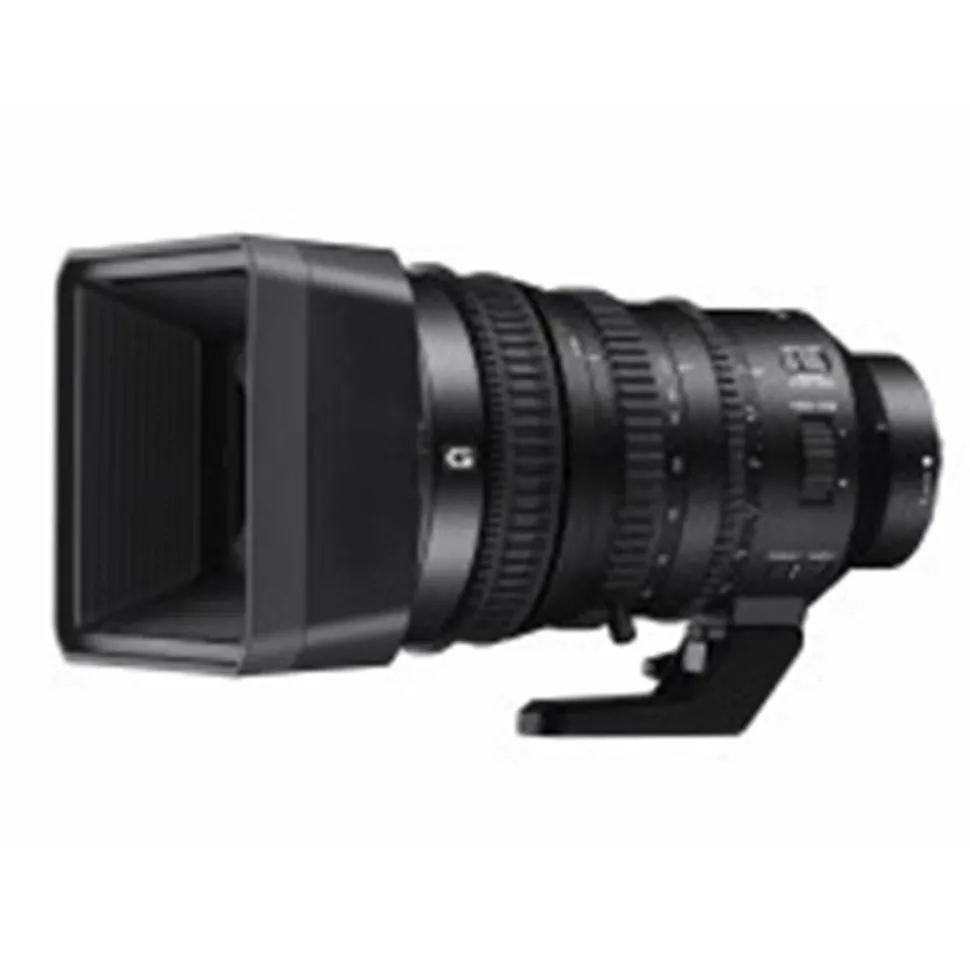

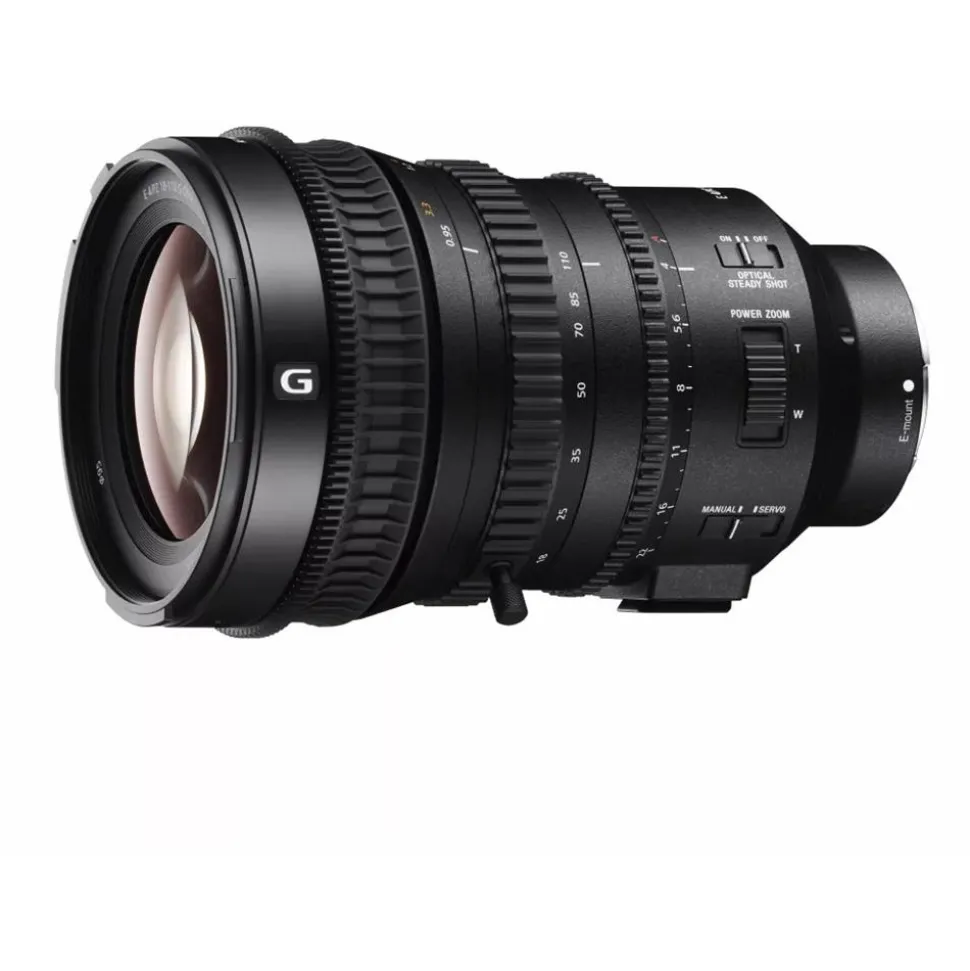

Sony E PZ 18-110mm f/4 G OSS Cine Lens

Sony has developed the advanced E PZ 18-110mm f/4 G OSS cine lens, with built-in Smooth Motion Optics offering videographers and moviemakers a powerful creative tool for Super 35mm & APS-C formats.



Sony E PZ 18-110mm F4 G OSS Lens Summary

• E PZ 18-110mm F4 G OSS (SELP18110G) with 6.1x high zoom ratio
• High resolution suited to professional 4K movie production
• Smooth Motion Optics (SMO) design and construction to minimise unwanted focus and image shifts whilst focusing or zooming
• advanced operability including three separate focus, iris and zoom rings for professional operation
• Optical SteadyShot in-lens image stabilisation
• Compact, lightweight design with dust and moisture resistance

Sony E-mount PZ 18-110mm F4 G OSS Lens Features in Detail

Offering moviemakers a powerful new creative tool, Sony has developed a new advanced Super 35mm / APS-C format power zoom lens that starts at 18mm wide angle and extends to 110mm at the telephoto end (27mm 165mm equiv. in 35mm format), with 6.1x high zoom ratio, even with inner focus, and maintains a constant F4 aperture throughout for beautiful depth of field effects and stable exposure control across the entire standard zoom range.

An ideal companion to Mount System camera s, from the PXW-FS7 professional camcorder to interchangeable-lens camera s such as the a7 series and , this top quality G Lens delivers image quality that will satisfy the most demanding of professional users. It consists of 18 elements in 15 groups, including 6 aspherical elements and 3 ED (extraa-low Dispersion) glass elements and features a 7 blade circular aperture design. This highly intricate design delivers extremely high resolution image quality and is particularly suited to professional 4K movie shooting.

The SELP18110G is only the second lens to benefit from Sony’s Smooth Motion Optics (SMO) design and construction which has been developed to eliminate unwanted image shifts whilst operating the lens during movie shooting.

SMO addresses three particular aspects on lens operation that can have a significant impact on movie quality: Focus Breathang, where shifts in angle of view during focusing are minimised by an internal focus mechanism. Focus shift, where small shifts in focus that can occur whilst zooming, are eliminated by precise focus tracking adjustiment and Axial shift, where axial image shifts whilst zooming, are minimised by a constant length design.

The high level of operability and quiet operation of the new lens makes it a compelling proposition for its integration into professional movie production environments. Its three separate rings give control over focus, zoom and aperture, with optimal torque for a satisfyingly responsive, professional feel.

Both servo and responsive manual mechanical zoom are fully supported and the zoom ring direction is switchable to match individual user preferences. The lens length remains constant during any changes making it easy to use with matte boxes and other lens accessories and in a first for lenses, a 0.8mm pitch focus gear is built right onto the lens, providing direct compatibility with standard focusing accessories.

Optimum optical performance and operability is complemented by a dust and moisture-resistant designi, making the lens ideal for location use. extraa versatility is afforded by Optical SteadyShot technology that provides in-lens image stabilisation during handheld shooting and it’s compact and lightweight[iv] design means that it is a truly mobile solution.

Additional flexibility is afforded when used with the  (SEL14TC) and  (SEL20TC) for added extension of focal range.

Full Details

For professional Super 35mm/APS-C production

This powered zoom lens delivers optimum performance in Super 35mm/APS-C moviemaking applications, starting at 18mm wide-angle and extending through an impressive 6.1x zoom range with a constant F4 maximum aperture. G Lens optical performance delivers image quality that is suitable for 4K throughout the zoom range, right out to the image periphery.

Smooth Motion Optics meet pro cinema needs

Sony’s original SMO (Smooth Motion Optics) design and construction minimises optical shifts that can have a negative impact on movie quality. Focus breathing is minimised by an internal focus mechanism, focus shift is eliminated by precise focus tracking adjustment, and axial shift is minimised by a constant-length design.

High-level, versatile zoom control

In addition to smooth powered zoom, mechanical manual zoom ensures control with no lag. The desired angle of view can be accurately reached without overshoot or undershoot. Zoom ring direction can be easily switched as required, smooth, slow powered zoom is supported, and an inner zoom mechanism means that the lens’s length remains constant.

Optical SteadyShot

Built-in Optical SteadyShot image stabilisation helps to keep captured images stable and blur-free in a wide range of shooting conditions. It can be a huge advantage when shooting in low light, minimising the need to boost ISO and possibly introduce noise, as well as when moving around with the camera.

Ideal size and weight for active shooting

Compact, lightweight design contributes to the kind of mobility that active movie shooting demands. Small size and low weight can be advantageous when using gimbals and other types of support too.

Refined focus operation and features

The focus ring slides to switch between auto and manual focus, so the switchover can be made with no break or change in shooting posture. A 0.8 mm pitch focus gear is built right into the lens, providing direct compatibility with standard focusing accessories.

Reliable in challenging conditions

A sealed dust and moisture resistant design provides extra protection and ensures reliable operation in challenging environments. Shoot with confidence in light rain or windy conditions.

Offers: Price Drop

Offer Category: Camera Lenses

Offer Product Type: Sony Lenses E Mount

Autofocus: Yes

Aperture ring: N/A

Constant Aperture: Yes

Lens CIPA Image stabilization rating: N/A

Colour: N/A

Diameter (mm): 78

Length (mm): 110

Weight (g): 482

Distance scale: N/A

DoF scale: N/A

Elements: 16

Environmental Sealing: N/A

Focus distance limiter: N/A

Focal length: 18 – 105 mm

Focus method: N/A

Filter Thread: N/A

Full time manual: Yes

Groups: 10

Hood supplied: Yes

Lens Image stabilization: Yes

Lens mount: N/A

Lens Materials: N/A

Maximum focal length: 105

Maximum magnification: 0.11

Maximum aperture (number): 4

Maximum aperture (text): N/A

Max Format size: N/A

Minimum focal length: 18

Lens Minimum focus distance (m): 0.45

Minimum aperture (number): 22

Minimum aperture (text): N/A

Motor type: N/A

Number of diaphragm blades: N/A

Power zoom: Yes

Special elements / coatings: Two ED glass elements, three aspherical elements

Tripod collar: N/A

Lens type: N/A

Wide/Tele: N/A

Lens Level: N/A

Best For: N/A

Best For Holiday and Landscape: N/A

Best For Interior and Architecture: N/A

Best For Fashion and Portrait: N/A

Best For Macro and Still Life: N/A

Best For Astro: N/A

Best For Street: N/A

Best For Wildlife and Sport: N/A

Zoom lock: N/A

Zoom method: N/A

Notes: N/A
