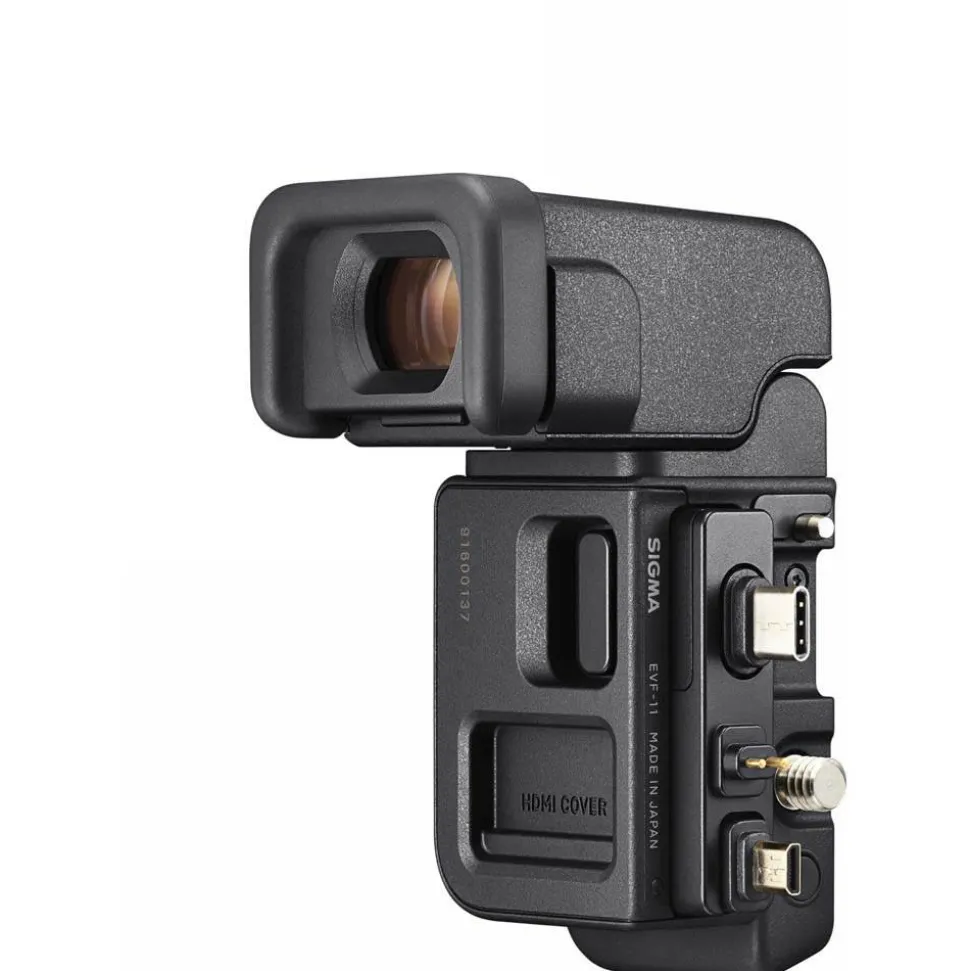

Sigma Electronic Viewfinder EVF-11 For fp Cameras

• Gorgeous high resolution EVF which improves the shooting experience of the fp L camera
• Flexible shooting including top-down for a classic style of composing images
• Versatile unit which can accepts external microphone and external recording when making videos

Sigma Electronic Viewfinder EVF-11 Summary

The Sigma EVF-11 is an external EVF designed exclusively for use with the SIGMA fp series such as the new . With its 0.5-inch, 3.68 million-dot organic electro-luminescent panel this high-resolution, high-luminance viewfinder will help users feel more deeply immersed in their photography and make creating photos a more enjoyable experience.

A tilting mechanism is incorporated into the design, so that the EVF-11 can be used as a top-down viewfinder. The user interface has been designed to ensure convenience and comfort during use.

Sigma Electronic Viewfinder EVF-11 For fp Cameras in More Detail

90-degree upward tilting mechanism

The tilting mechanism of the EVF-11, which angles upwards to 90 degrees, enables users to shoot from a low angle more comfortably.

User interface designed for superb visibility and convenience

The EVF-11 has an eyepoint set at 21mm to ensure a full field-of-view without a dark vignette around the viewfinder. This helps photographers see the entire scene with complete clarity, even when wearing glasses. It has a wide diopter adjustment of-4.0 to +3.0 dpt, and comes with two different-sized eyecups.

Audio monitoring during video capture

A 3.5mm stereo mini jack on the EVF-11 allows users to monitor audio using headphones while shooting video. It is designed so as not to block the camera’s microphone input, meaning users can connect an external mic and monitor audio at the same time.

External recording to portable SSD

Users can record to an external SSD drive via the dedicated USB plug (Type-C) on the side of the EVF-11.

Specifications

• Panel I 0.5in I organic EL panel I approx. 3.68 million dots (Viewfinder Coverage: approx. 100%)
• Magnification I approx. 0.83x (50mm lens at infinity, -1 dpt)
• Eyepoint I approx. 21 mm (from the back of the eyepiece lens)
• Diopter adjustment I -4.0 to +3.0 dpt
• Angle adjustment I O to 90°
• LCD/LVF switch
• Camera connecting plug (detects USB, HDMI and EVF)
• External output terminals: USB (Type-C) and headphone (3.5mm jack)
• The EVF-11 does not supply power or charge the camera via USB. The EVF-11 receives power from the camera. The EVF-11 and the HU-11 cannot be used together
• 3.5mm stereo mini jack: headphone output
• Weight: 114g (including Eyecup EC-31)
• Dimensions (WxHxD) : 44.6×91.7×56.1mm (including Eyecup EC-31
