Rycote OM-8 SP Stereo Pair Omni Microphones

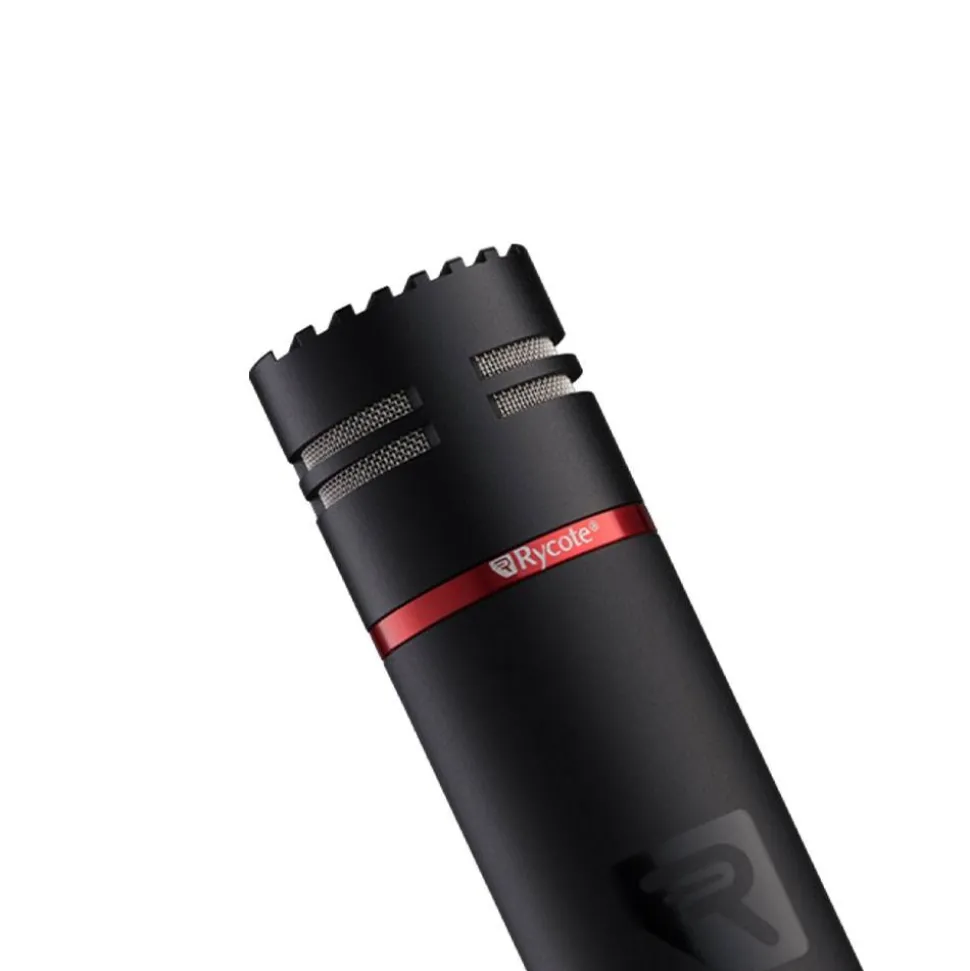

The Rycote OM-08 is an omnidirectional pencil condenser microphone designed for a range of applications in studio and field recording.

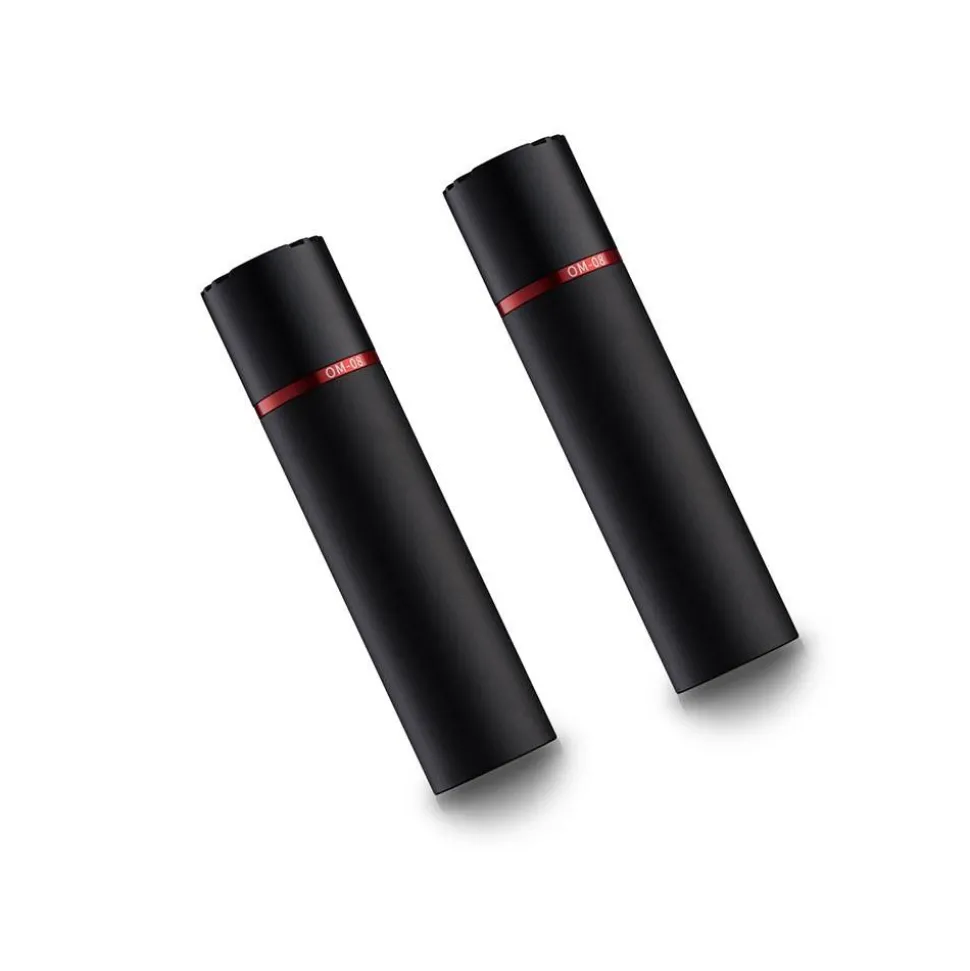

Rycote OM-08 Omni-Directional Condenser Microphone – Stereo Pair

The OM-08 microphones provide solid low frequency response with virtually no drop off at 20Hz. The mics are built on Rycote’s low self-noise preamp design and capsules which offer a consistent sonic signature that mixes well when cut together with other Rycote microphones in the range. The OM-08 mics can be used individually or in matched stereo pairs.

Features:

Capsule

• Professional broadcast quality and individually fine-tuned back electret capsule
• Excellent low frequency response

Preamp

• Compact design
• Ultra low noise circuitry
• Sophisticated RF shielding
• Low power consumption

Connector

• Gold-plated Neutrix XLR connector

RF-Protection

• Active in-line filtering
• Fine-tuned mechanical RF shielding
• Thoroughly tested against digital wireless systems and walkie talkies

Materials

• Preamp made from non-corrosive machined brass – low impedence to ensure best possible and longest lasting RF shielding
• Capsule made from lightweight machined aluminium

Frequency Range	10 Hz – 20 kHz
Self Noise	11.0 dB-A (+/- 2 dB)
Polar Pattern	Omnidirectional
Capsule Type	Back Electret Condenser
Output Sensitivity	23.0 mV/Pa (-32.7 dB)
Max. Output Voltage	4 Vp
Output Impedence	100 Ω
Min. Load Impedance	1 k Ω
Signal / Noise Ratio	81 dB typical (@ 1 kHz/Pa A-weighted)
CMRR (@ 1 kHz)	> 60 dB
Max. Cable Length	100 m
Powering	P-48
Powering Valid Range	48-24V (Max SPL reduced at 24V)
Current Consumption	3.0 mA
Max. SPL	133 dB SPL (at 1 kHz 1.0% THD Typical) 127 dB SPL (at 1 kHz 0.5% THD Typical)
RFI Shield	Yes
Connector	XLR-3M
Weight	69 g
Colour	Matte Black
