Rycote Nano-Shield Kit NS4-DB

Rycote Nano-Shield Kit NS4-DB

Please Note: Microphone NOT included

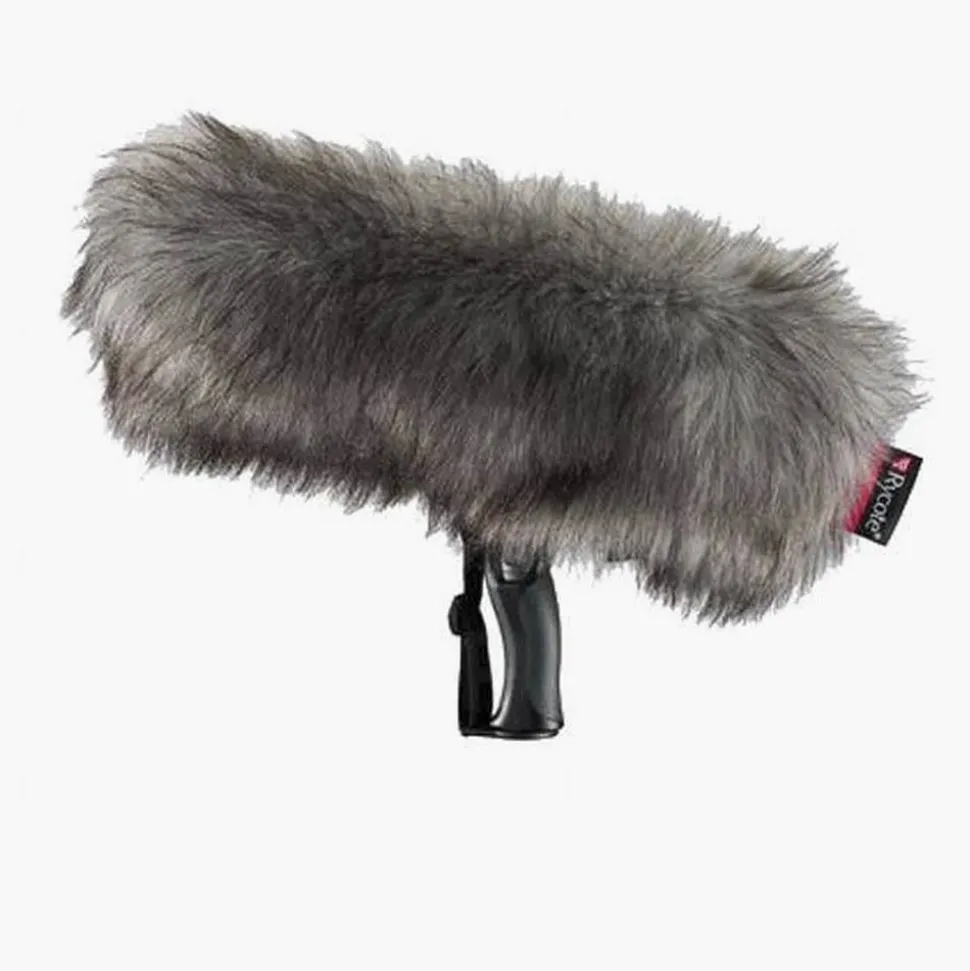

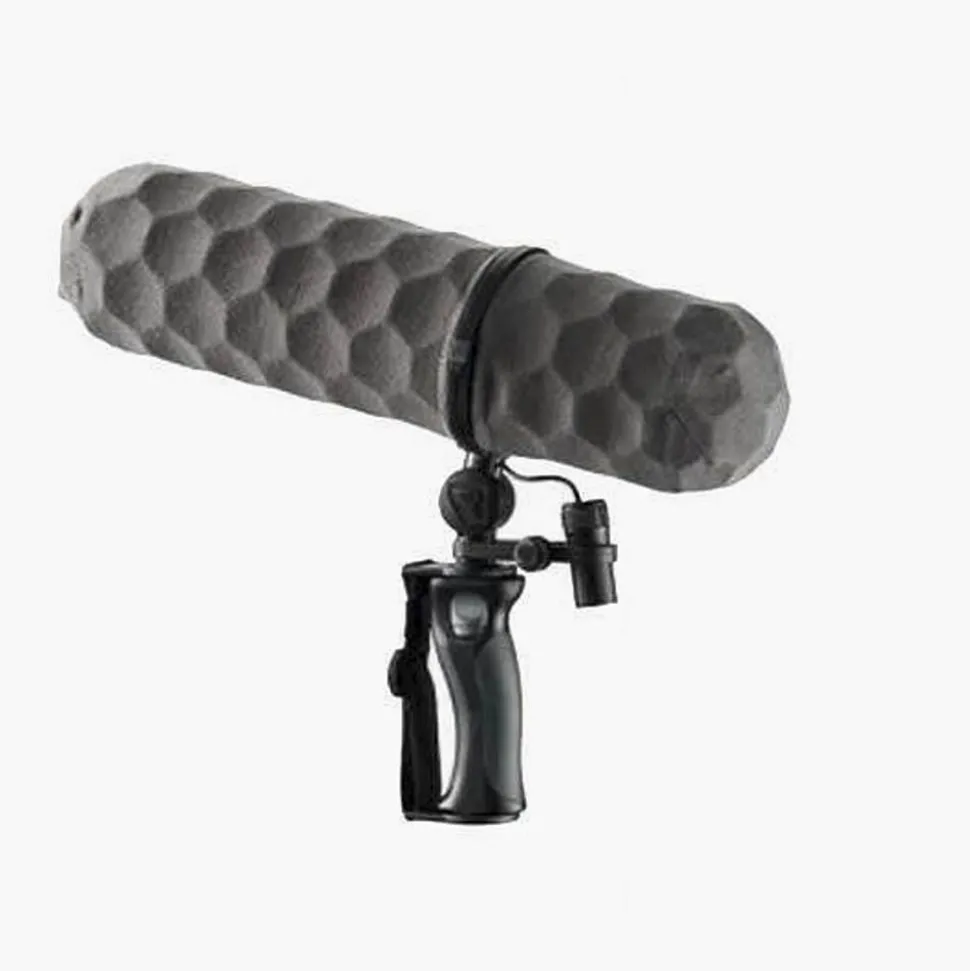

The Rycote Nano Shield kits are 30% lighter and have a smaller overall footprint compared to existing windshield kits. They feature interchangeable magnetic basket halves for fast setups and mic swaps, as well as redesigned and patented Lyre mounts that offer improved handling noise reduction. These Lyre mounts can be adjusted or swapped out without the need for tools, and the oval blimp design with non-parallel sides provides better wind protection with less internal resonance. The kits also have large hexagonal pockets for better acoustic transparency and a slim design friction-braking swivel arm. A low profile XLR cable with built-in RF filter and switchable 80Hz low-cut is included, along with an ergonomic handle and removable/interchangeable windshield socks.

The Nano Shield kits are designed for versatility and compatibility, with a mix-n-match design that allows for different microphone sizes by swapping out basket halves. They also feature advanced Lyre mounts specifically designed for the Nano Shield kits, and no tools are needed for adjustments. The kits are compatible with various microphones, including the Audio-Technica AT 4073, DPA 4017B, Neumann KMR 81i, Rode NTG1, Sanken CS-2, Schoeps CMIT5u, Sennheiser MKH 416, and Sony ECM 670. Please note that the microphone is not included with the Nano Shield kits.

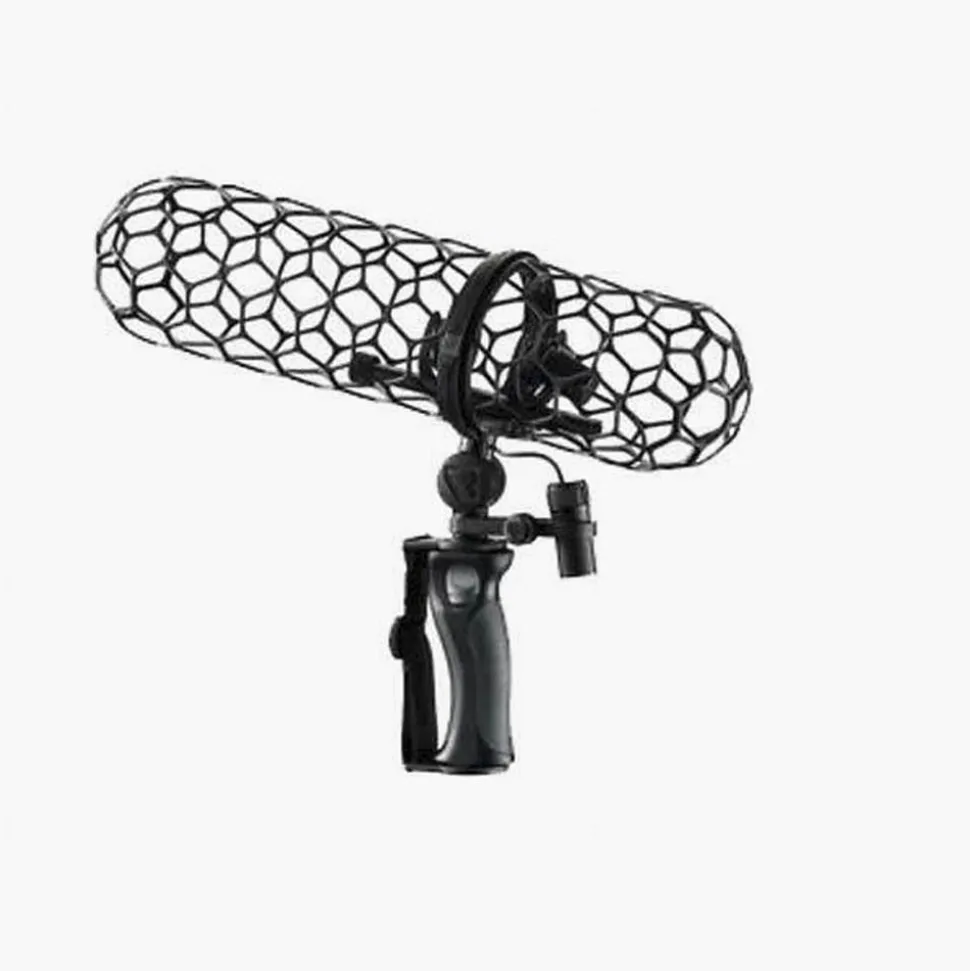

• Mix-n-Match Design – The Nano Shield kits use a unique magnetic locking basket design which can be configured to fit various microphone sizes by simply swapping out basket halves.
• Advanced Lyre Mounts – Rycote has advanced their patented Lyre mount and redesigned them specifically for the Nano Shield kits.
• No Tools Required – The Lyre mounts and mounting bar on the Nano Shield can be adjusted, repositioned or swapped out by loosening / tightening the thumbwheel attached to the bar.

Rycote has pushed their windshield kits to another level with the creation of the Nano Shield. Although the blimp shape may look familiar from afar, a closer look reveals several new design and engineering features that make it Rycote’s most advanced windshield kit yet. The Nano Shield offers an enhanced level of wind protection paired with improved acoustic transparency. The kits are smaller and on average weigh 30% lighter than Modular Windshield Kits. The new advanced Lyre mounts are also more compliant and offer better handling noise reduction. Overall the Nano Shield Kits raise the bar for performance and versatility.

Max Mic Length = 256mm

Compatible with the following mics:

AUDIO-TECHNICA AT 4073
AUDIO-TECHNICA AT 835ST / BP 4029
DPA 4017B
NEUMANN KMR 81i
RODE NTG1
RODE NTG3
RODE NTG4
SANKEN CS-2
SANKEN CSS-50*
SCHOEPS CMIT5u
SENNHEISER MKH 416
SENNHEISER MKE 600
SONY ECM 670

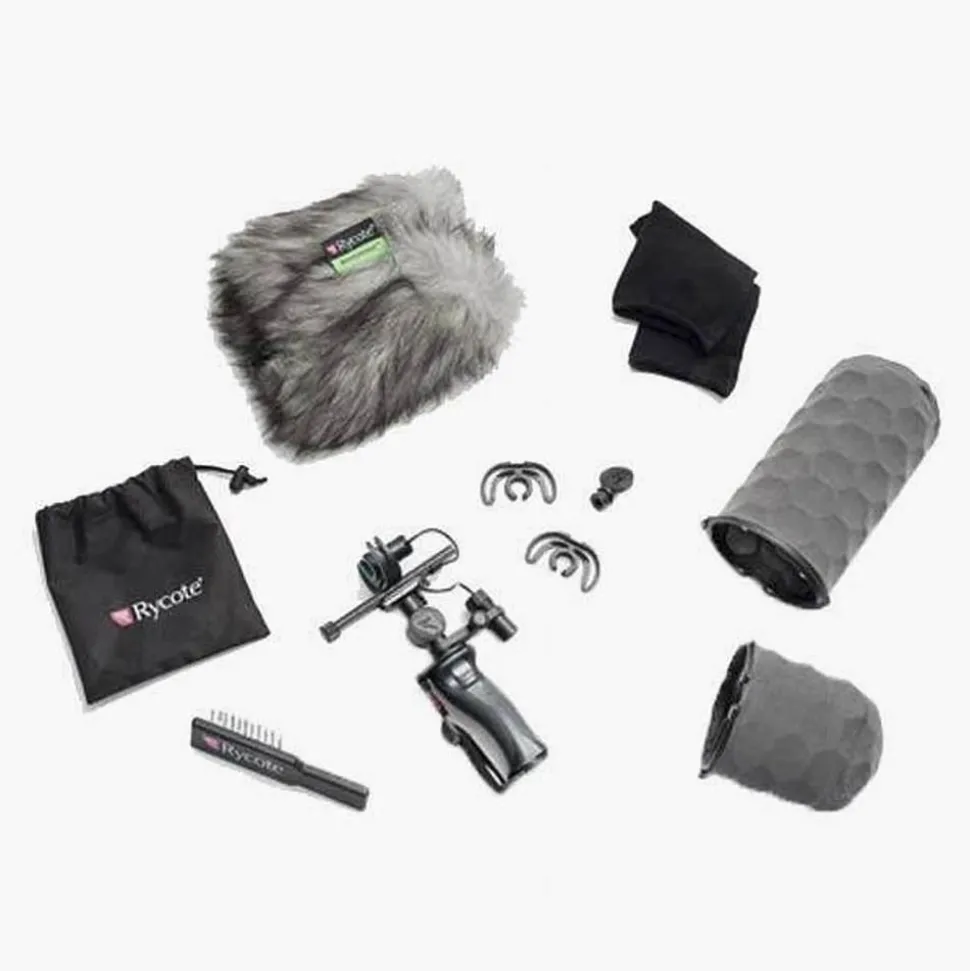

In the Box:

• 1x  Set of 2 Magnet locking windshield 3D Tex basket halves
• 1x  Windjammer
• 1x  ‘No tools needed’ mic mounting bar w/ cable clips
• 1x  Multiple pairs of advanced Lyre mounts (17-21 & 22-25)
• 1x  Friction brake swivel arm with PCS-tip
• 1x  Swivel arm 3/8” thread adaptor (for usage on booms or stands)
• 1x  PCS ergonomic handle
• 1x  Low-profile XLR cable with built-in RF filter and switchable 80Hz low-cut
• 1x Low-profile XLR3 Digital cable
• 1x  360-adjustable and reversible XLR holder
• 1x  Protective case
