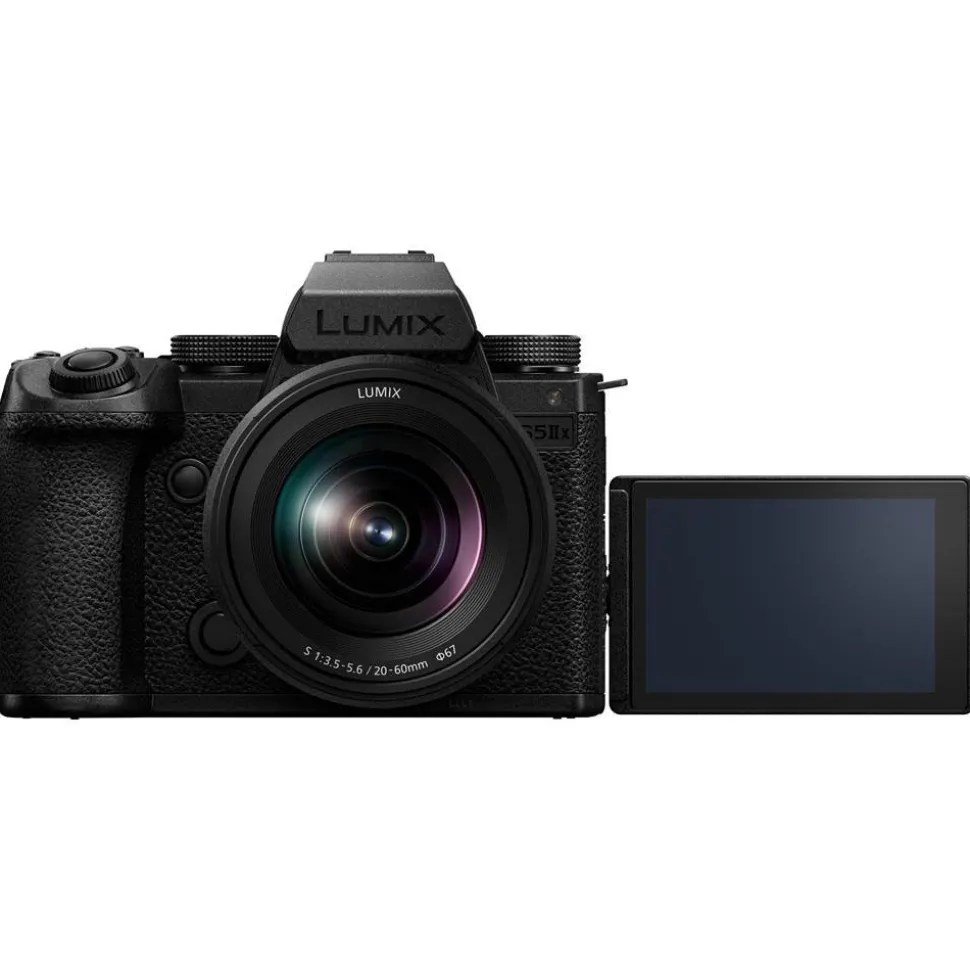

Panasonic Lumix S5 II X with 20-60mm and 50mm Twin Lens Kit

• Unbeatable versatility for video-centric content creators with a twin lens kit, which includes a fast prime and high-quality zoom
• New CMOS sensor with new high-speed processor with first Hybrid Phase Detection Autofocus for Lumix
• Supports Apple Pro Res RAW output to Atomos recorder using a full-sized HDMI port, and IP streaming from the body
• Upgraded software, hardwear and improved ergonomics including a new control joystick, new EVF and LCD screen
• Make use of REAL TIME LUTs, Waveform Monitor, Vectorscope, Zebra Patterns and capture 14+ stops with V-Log

Key Features

Camera

• 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording
• Supports Apple Pro Res RAW video output to Atomos recorders like the
• Support for wired and wireless IP streaming and USB tethering
• Newly developed 24 megapixel full-frame CMOS sensor with fast readout speeds
• Hybrid Phase Detection Autofocus with 779-area metering
• High-speed imaging engine co-developed with Leica in the L²Technology partnership
• 4:2:0 10-bit 6K (3:2) and 5.9K (16:9) at 30fps and 4:2:2 C4K and 4K at up to 60fps internal
• HFR (High Frame Rate) recording at up to 120fps and Slow & Quick capture at up to 180fps
• 14+ stop V-Log/V-Gamut and new REAL TIME LUT function
• Newly added Waveform Monitor, Vectorscope and Zebra Pattern
• Improved 48kHz/24-bit audio and high-resolution 96kHz/24-bit recording with external and XLR microphones
• Dual UHS-II SD card slots support Relay, Backupand Allocation
• Up to 9fps with mechanical shutter and 30fps with electronic shutter (up to 300 images)
• 96 megapixel High Resolution Mode
• Dual Native ISO sensitivity
• Improved image stabilisation with new Active I.S. for smoother video recording
• Upgraded useability with new 8-way joystick, expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder
• Full-sized HDMI Type A terminal, high-speed USB 3.2 Gen 2 and Wi-Fi 5GHz connectivity
• Improved cooling for unlimited recording in key video modes
• Robust body with magnesium alloy die-cast front and rear frames and splash and dust resistant construction

50mm f/1.8 Lens

• Excellent sharpness and high resolution
• 9-bladed circular aperture diaphragm renders beautiful bokeh
• Bright f/1.8 aperture provides a shallow depth of field and great low light performance
• Lens measures 82mm long and weighs just 300g, with a compact 67mm filter thread
• Rugged dust/splash resistant design for any outdoor conditions
• Ideal for video creation with adjustable focus ring control setting, fast, accurate autofocus and smooth aperture changes

20-60mm

• Versatile zoom range for indoor and outdoor subjects
• Dust, splash and freeze-resistant design
• Excellent close-up performance with 0.43x magnification and 0.15m closest focusing distance
• Ideal for video recording with fast, accurate autofocus and smooth aperture changes
• Outstanding sharpness and resolution throughout the entire zoom range
• Compact 67mm filter thread and lightweight design of just 350g

Panasonic Lumix S5 II X with 20-60mm and 50mm Twin Lens Kit Summary

Combining the latest hybrid technology in a video-centric matte black full-frame camera, the Panasonic Lumix S5 II X with 20-60mm and 50mm Twin Lens Kit provides unbeatable versatility for advanced content creators. With the two L-mount lenses included, you can head out and capture diverse content from day one.

The Lumix S 20-60mm f/3.5-5.6 delivers lightweight, highly mobile zoom capabilities, while the Lumix S 50mm compliments this with a wide aperture f/1.8 prime. Both lenses and the camera body are extremely robust, offering dust and moisture resistance, and freeze-proofing down to -10ºC. This ensures you can continue capturing content whatever the weather or lighting conditions, consistent with pro-level equipment which  delivers.

Having been subject to numerous upgrades, the Lumix S5 II X provides exceptional performance for capturing professional quality stills and videos. At its heart is a brand new 24MP CMOS sensor, with fast readout speeds and reduced rolling shutter, which has been paired with a new imaging processor, jointly developed with Leica in the L²technology partnership. These core elements are responsible for impressive speeds, as well as the first Hybrid Phase Detection Autofocus (PDAF) found in a . Alongside these updates you’ll find a host of improvements from enhanced image stabilisation to a new EVF, new free-angle LCD screen and powerful moviemaking features.

Panasonic Lumix S5 II X with 20-60mm and 50mm Twin Lens Kit in More Detail

Features update May 9th, 2023

In addition to ProRes RAW, Blackmagic RAW is now available for the Panasonic Lumix S5 II X and there is also additional support for  and , on top of existing support for the Ninja V+. Please note that firmware updates to the external recorders may be required in order to achieve these recording modes. This could be the perfect time to  and update to the enhanced Lumix S5 II X.

All recording mode can be set as follows:

*Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT.

*Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same colour grading as V-Log/V-Gamut

https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/

*Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.

*DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840×2160.

*All functions may not be available depending on the situation.

Panasonic Lumix S 50mm f/1.8 Lens (S-S50)

The first lens in this twin lens kit is a bright aperture full-frame prime, perfect for a huge variety of subjects from portraits and street photography to video. An advanced optical design within the Lumix S 50mm f/1.8 Lens is made from 9 elements in 8 groups. These include 3 ASPH, 1 ED and 1 UHR lenses to minimise aberrations and ensure superb resolution. The results are spectacular with high sharpness and resolution from the centre to the edges of the frame.

You can enjoy beautiful bokeh from the wide maximum aperture, which features a 9-bladed diaphragm, which provides a wealth of creative opportunities, especially in low light.

Panasonic Lumix S 20-60mm f/3.5-5.6 L-mount Lens (S-R2060)

The Lumix S 20-60mm f/3.5-5.6 L-Mount lens is a versatile zoom, which is lightweight and compact enough to bring on any adventures. A high quality optical design includes 11 elements in 9 groups, with 2 ASPH, 3 ED and 1 UHR to minimise aberrations and ensure high resolution results.

With an ultra-wide 20mm maximum width the Lumix S 20-60mm is useful for photos and videos, to capture epic grand landscapes, interiors and everyday snapshots. A maximum 0.43x magnification at 0.15m with focal length 26mm and minimum focusing distance of 0.15m (0.4m at 60mm), provides a great lens for close-ups of diverse subjects.

You’ll be able to continue shooting even in harsh conditions, thanks to a dust and splash-resistant construction, which also allow you to shoot in temperatures as low as -10 °C. The Panasonic  offers fast, accurate autofocus and smooth aperture changes, perfect for content creators who capture stills and videos.

Best ever AF performance for Lumix cameras

The L²Technology partnership between LEICA and Lumix has resulted in a newly developed imaging engine, along with a new 24-megapixel full-frame CMOS sensor. This lead to the release of the S5 II X alongside the original Lumix S5 II, which are the first  to offer Hybrid Phase Detection Autofocus (PDAF).

The camera employs a new Phase Hybrid AF system, which combines PDAF with Contrast Detect AF for fast and dependable autofocus capabilities, while providing 779-area metering and a new Pinpoint AF. This new AF system can detect target subjects in difficult conditions such as low light, or when backlit and once locked on, will continue tracking even with other moving objects in the frame. Continuous AF during zooming¹and AF micro adjustment are also available.

1 Conventional zoom lenses require firmware update to use Continuous AF during zooming.

Powerful video capabilities

The LUMIX S5IIX is capable of 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording. Additionally, the S5II X can support Apple Pro Res RAW video output to Atomos. It also supports wired2 and wireless IP streaming and USB tethering.

The S5 II X new engine presents a range of video recording capabilities, including internal:

• 6K 4:2:0 10-bit (3:2) at 30fps
• 5.9K (16:9) at 30fps
• C4K and 4K 4:2:2 at up to 60fps

A new low-profile heat management system has also been developed, which ensures unlimited recording times¹without increasing the size of the camera body. The Lumix S5 II X camera body also support HFR (High Frame Rate) recording at up to 120fps and Slow & Quick capture at up to 180fps.

A range of picture profiles provide the ability to record 14+ stops of dynamic range when using V-Log/V-Gamut, as well as a new REAL TIME LUTfunction. This allows you to upload colour grading LUTs from an  which are directly applied in-camera, rather than after recording in post-production.

Features such as Waveform Monitor, Vectorscopeand Zebra Patternhave also been added in response to requests from professional users, along with System Frequency (24.00Hz) and Synchro Scan, amongst other pro features.

Audio capabilities have also been enhanced, with clear and realistic 48kHz/24-bit audio, which can be recorded via the built-in mic, or an . High-resolution 96kHz/24-bit recording is also possible when using external and XLR microphones, bringing the S5 II X closer in-line with audio capabilities first introduced on the , simply add the  for XLR audio capabilities.

¹When the camera is used at recommended operating temperature 0-40 degrees C. 6K and 5.9K at 30p/25p video recording stops once when continuous recording time exceeds 30 minutes if [Thermal Management] is set to [STANDARD].

²Requires USB-LAN adapter, sold separately.

Pro-level photo and video

Thanks to a series of new and improved features the Lumix S5 II X is capable of delivering truly stunning photo and video performance. Capture all the action with high-speed burst shooting at up to 9fps with mechanical shutter and 30fps when using electronic shutter, for up to 300 images.

High Resolution Mode is available for RAW and JPEG to create astounding 96-megapixel stitched shots, while Dual Native ISO sensitivity minimises noise and provides a maximum ISO of 51200 (up to 204800 when extended).

Better image stabilisation

The Lumix S5 II X also boasts an upgraded 5-axis image stabilisation system, to improve handheld shooting across a wide range of conditions and situations. New Active I.S. delivers highly stable video recording by optimising horizontal, verticaland rotationalcorrection, with up to 200%² improvement compared to conventional stabilisation. Active I.S. is especially effective in what would typically be challenging conditions for handheld shooting, such as recording while using telephoto lenses or while walking.

¹Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used. Firmware must be updated to the latest version.

²Compared with Lumix S5. Focal length 20mm, when using S-R2060.

Advanced operation for solo creators

A highly refined shooting experience allows creators to achieve excellent results with a more streamlined workflow thanks to features such as AWB Lock, MF Assist(available for both video¹and photo) and a new Live Cropfunction, which records video footage using the entire sensor surface enabling the user to crop 4K and FHD images afterwards.

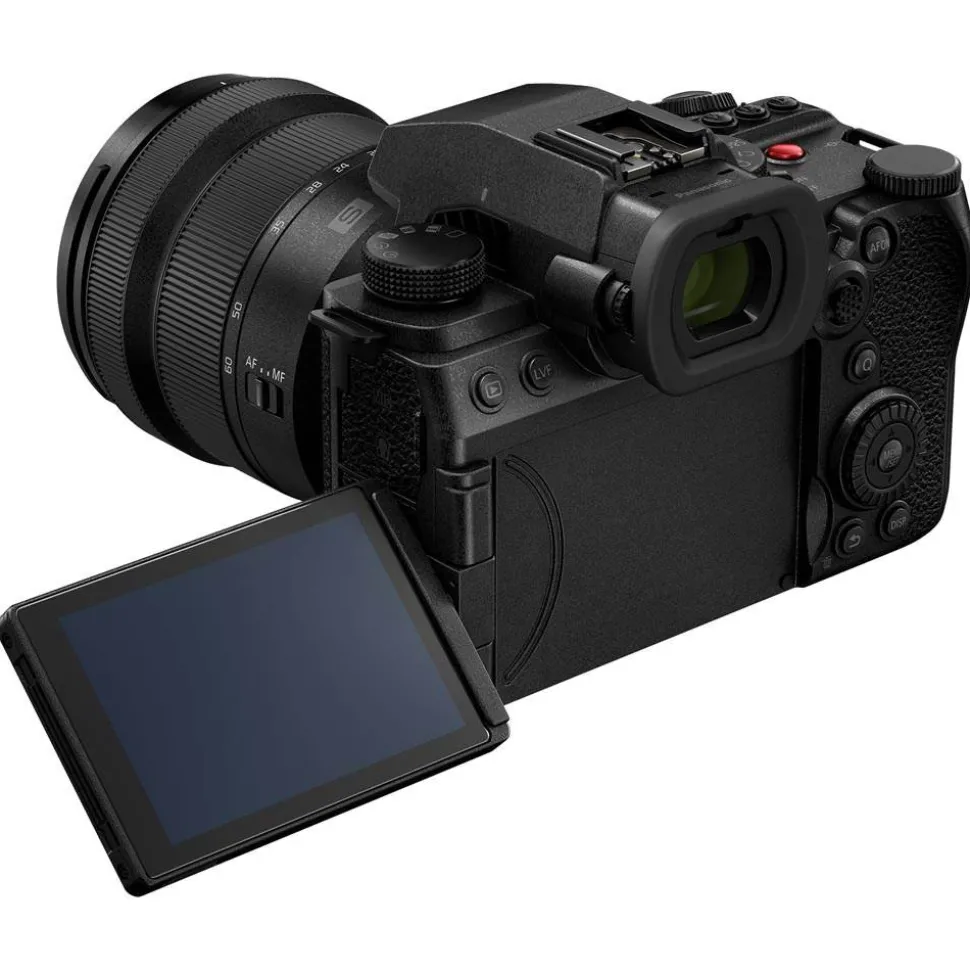

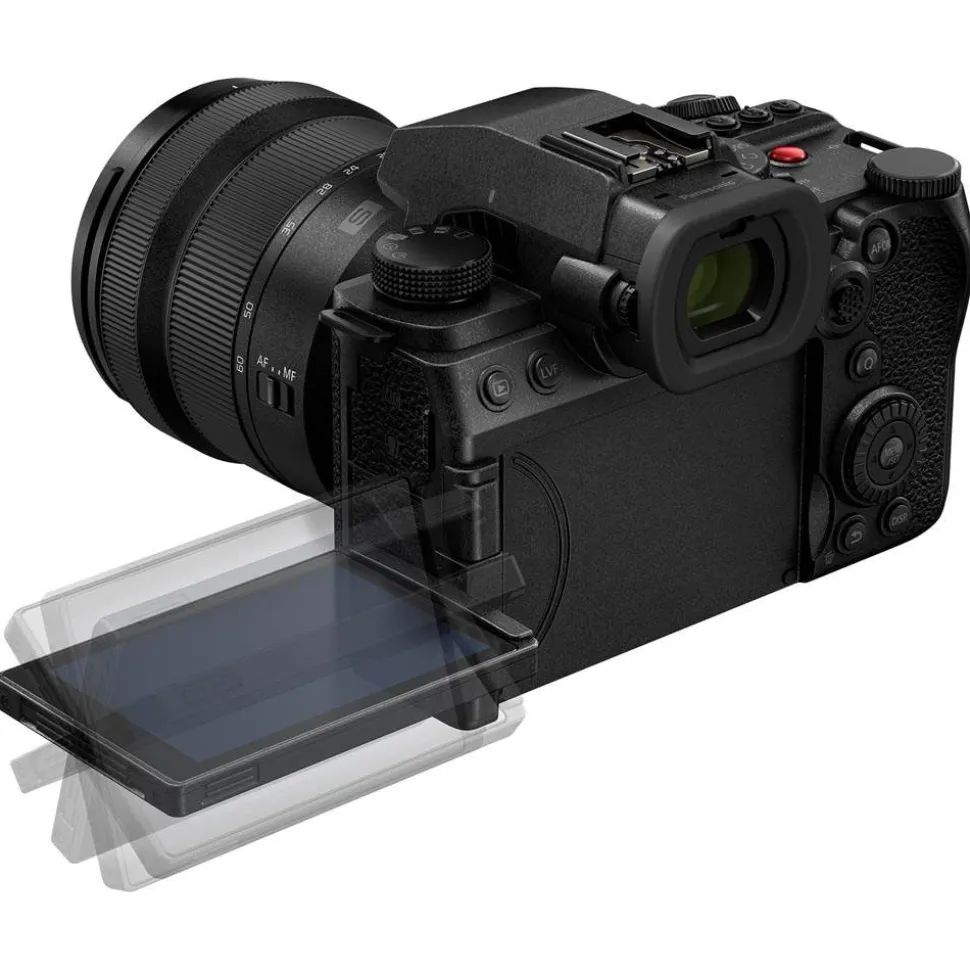

A new easy-to-operate 8-way joystick further enhances usability as does the expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder.

¹Up to 60p. Does not work in Variable Frame Rate mode.

Improved reliability and connectivity

The camera is built to robust standards for demanding use in the field, with magnesium alloy die-cast front and rear frames plus a splash and dust resistant¹construction.

Connectivity has been improved over the previous model, with the LUMIX S5 II X featuring a full-size HDMI Type A terminal, high-speed USB 3.2 Gen 2 and a cable lock holder to prevent unwanted unplugging. Wireless connectivity has been improved too, adding Wi-Fi 5GHz²to 2.4GHz, which provides a fast, stable connection with smartphones and tablets. Dual card slots (both UHS-II) support Relay Recording, Backup Recording and Allocation Recording and the 2200 mAh high-capacity battery can be recharged via AC or USB.

¹ Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.

Huge range L-Mount lenses

Along with a diverse range of accessories, users can enjoy building an extensive collection of  from Panasonic, Leica, Sigma and third party manufactures such as Laowa. Options aside from the included kit lenses are the , which launched at the same time as the camera and numerous other focal lengths, suitable for stills and video.

Diverse range of camera accessories

Discover a wide range of  to extend your creative potential, and if you’ve upgraded from the first generation body you can continue using the same batteries, grip, memory cards and other accessories.

• as well as third party mics including the  and , amongst many more.
• The camera is compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.,  and .
• Add a s (same as S5), which also fits the compatible

Firmware updates for enhanced functionality

Panasonic is well known for enhancing camera performance through regular firmware updates and have already announced a pending update, which will add new functions including RAW data output and Live View Composite.

Discover more

Alongside this video-centric matte black camera with twin lens kit, Panasonic has released a single lens kit and a standard body, which you can learn more about in our . Options include:

• Lumix S5 II X with 20-60mm and 50mm Twin Lens Kit

What’s in the Box

• Panasonic Lumix S5 II X Matte Black Video Edition full-frame L-Mount Camera Body
• Body Cap
• Hot Shoe Cover
• Cover for the Battery Grip Connector
• Shoulder Strap
• Battery Pack
•
• Panasonic Lumix S 20-60mm f/3.5-5.6 Zoom Lens for L-Mount
• Panasonic Lumix S 50mm f/1.8 Lens for L-Mount
• Lens Cap x2
• Lens Hood x2
• Lens Rear Cap x2
