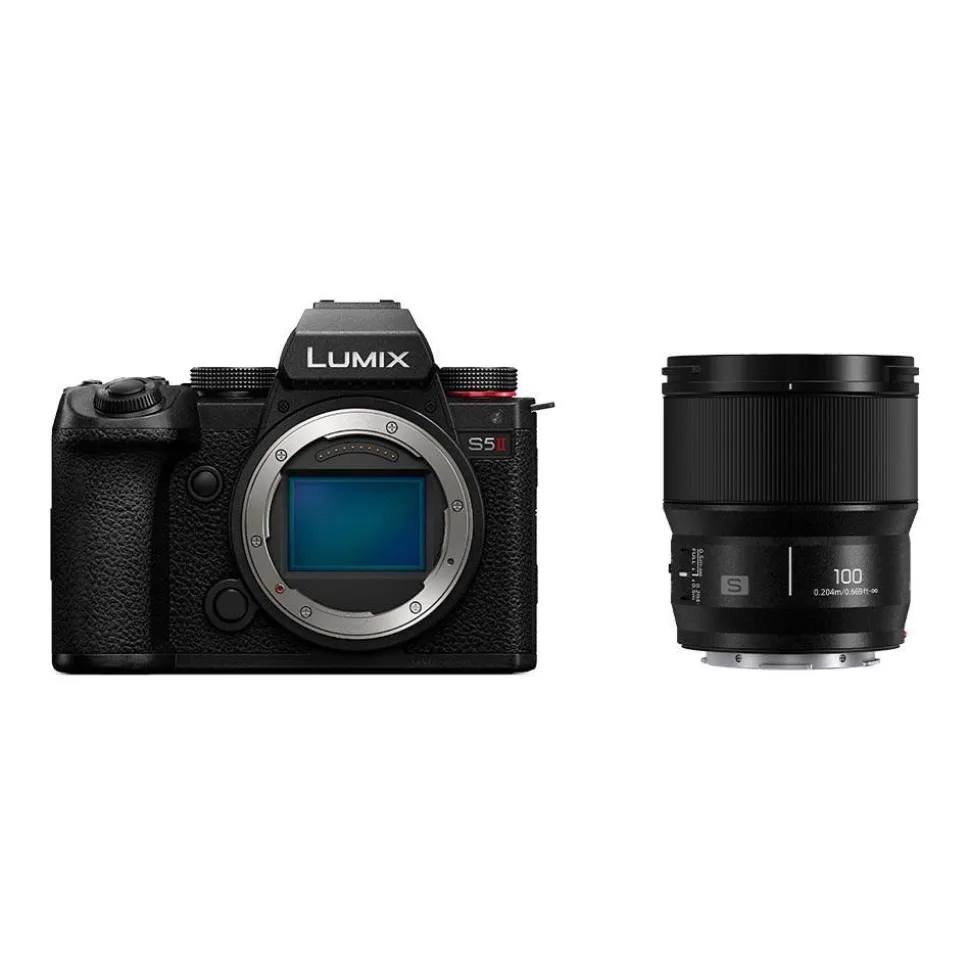

Panasonic Lumix S5 II Camera with S 100mm f/2.8 Macro Lens Kit

The Panasonic Lumix S5 II Camera with S 100mm f/2.8 Macro Lens Kit is an ultra lightweight and portable setup for close-up photo and video content, which offers superb optics and a high-speed dual focus system.

Key Features

Camera

• Newly developed 24 megapixel full-frame CMOS sensor with phase-detection points
• First ever Hybrid Phase Detection Autofocus for Panasonic with 779-area metering
• New imaging engine co-developed with Leica from the L2 technology partnership
• Internal 4:2:0 10-bit 6K (3:2) and 5.9K (16:9) at 30fps and 4:2:2 C4K and 4K at up to 60fps
• HFR (High Frame Rate) recording up to 120fps and Slow & Quick capture up to 180fps
• 14+ stop V-Log/V-Gamut and new REAL TIME LUT function
• Waveform Monitor, Vectorscope and Zebra Pattern added
• Record 48kHz/24-bit audio and high-resolution 96kHz/24-bit with external and XLR microphones
• Dual UHS-II SD card slots support Relay Recording, Backup Recording and Allocation Recording
• Up to 9fps with mechanical shutter and 30fps with electronic shutter (up to 300 images)
• 96 megapixel High Resolution Mode
• Dual Native ISO sensitivity for cleaner results
• Upgraded 5-axis image stabilisation system with new Active I.S. for smoother video recording
• Updated ergonomics with new 8-way joystick, expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder
• Full-sized HDMI Type-A terminal, high-speed USB 3.2 Gen 2 and Wi-Fi 5GHz
• Improved heat dissipation without increasing body size for unlimited recording in key video modes
• Robust body made from magnesium alloy die-cast front and rear frames with a splash and dust resistant construction

Lens

• World’s smallest and lightest full-frame macro lens (300g)
• 1:1 life-size magnification
• 20.4cm minimum focus distance
• High quality optics with three aspherical elements
• Newly developed dual phase linear motor focus system
• Compatible with handheld high resolution mode
• Thoughtful design with grey printing to minimise reflections
• Unified size and centre of gravity for efficient workflows
• Suppressed focus breathing for videography
• 9 aperture blades
• Dust and splash resistant design
• Compact 67mm filter thread

Panasonic Lumix S5 II Camera with S 100mm f/2.8 Macro Lens Kit Summary

Panasonic Lumix S5 II Full Frame Mirrorless Camera Body

Upgrading to the second generation hybrid Panasonic Lumix S5 II Full Frame Mirrorless Camera Body sees a fruitful partnership with Leica, to create the most advanced photo and video camera in the  . This compact hybrid has been upgraded inside and out, starting with a newly developed 24 megapixel full-frame CMOS sensor. This features on-sensor Hybrid Phase Detection Autofocus for the first time in a Lumix body, which is paired with a jointly developed imaging engine, which delivers impressive speeds and high image quality.

Aimed at hybrid content creators, the S5 II packs a host of features to support both photo and video creation. These include high frame rate stills (9fps mechanical and 30fps electronic shutter) and HFR video capture to 180fps, and 6K internal video recording with 14+ stop dynamic range using V-Log profile.  also incorporated upgrades to useability and ergonomics, designed to streamline content creation, including the addition of a new 8-way joystick, high resolution OLED Live View Finder and free-angle TFT free-angle LCD monitor, with static touch control.

Panasonic Lumix S5 II L-Mount Camera Body in More Detail

May 9th, 2023new firmware update 2.0 is available for the Lumix S5 II

This provides RAW output over HDMI (Requires Software Upgrade Key DWW-SFU2). In addition to ProRes RAW, Blackmagic RAW is now available for the Panasonic Lumix S5 II and there is also additional support for  and  , on top of existing support for the Ninja V+.

Firmware updates to the external recording devices may be required in order to realise these recording modes. Live View Composite is also available (Pre-installed in the  ). All recording mode can be set as follows:

					59.94Hz	50.00Hz
Full-frame	5.9K	16:9	5888×3312	12-bit	29.97p 23.98p	25.00p
APS-C	4.1K	17:9	4128×2176	12-bit	59.94p 29.97p 23.98p	50.00p 25.00p
	3.5K	4:3	3536×2656	12-bit	29.97p 23.98p	50.00p 25.00p

*Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT.

*Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same colour grading as V-Log/V-Gamut

https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/

*Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.

*DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840×2160.

*All functions may not be available depending on the situation.

This could just be the perfect time to  and update to the enhanced Lumix S5 II.

New standards in Lumix AF performance

The L2 Technology partnership formed by LEICA and Lumix has resulted in a new imaging engine being developed, along with a new 24-megapixel sensor. The result is the Lumix S5 II (and simultaneously announced  are the first  to offer Hybrid Phase Detection Autofocus (PDAF).

The camera uses a new Phase Hybrid AF system which combines PDAF with Contrast Detect AF for fast and dependable autofocus capabilities, while providing 779-area metering and a new Pinpoint AF. This new AF system can detect target subjects in difficult conditions such as low light, or when backlit and once locked on, will continue tracking even with other moving objects in the frame. Continuous AF during zooming1 and AF micro adjustment are also available.

1 Conventional zoom lenses require firmware update to use Continuous AF during zooming.

Advanced video options

The S5 II new engine presents a range of video recording capabilities, including internal:

• 6K 4:2:0 10-bit (3:2) at 30fps
• 5.9K (16:9) at 30fps
• C4K and 4K 4:2:2 at up to 60fps

A new low-profile heat management system has also been developed, which ensures unlimited recording times1 without increasing the size of the camera body. The Lumix S5 II camera body also support HFR (High Frame Rate) recording at up to 120fps and Slow & Quick capture at up to 180fps.

A range of picture profiles provide the ability to record 14+ stops of dynamic range when using V-Log/V-Gamut, as well as a new REAL TIME LUTfunction. This allows you to upload colour grading LUTs from an  which are directly applied in-camera, rather than after recording in post-production.

Features such as Waveform Monitor, Vectorscopeand Zebra Patternhave also been added in response to requests from professional users, along with System Frequency (24.00Hz) and Synchro Scan, amongst other pro features.

Audio capabilities have also been enhanced, with clear and realistic 48kHz/24-bit audio, which can be recorded via the built-in mic, or an  . High-resolution 96kHz/24-bit recording is also possible when using external and XLR microphones, bringing the S5 II closer in-line with audio capabilities first introduced on the  , simply add the  for XLR audio capabilities.

1When the camera is used at recommended operating temperature 0-40 degrees C. 6K and 5.9K at 30p/25p video recording stops once when continuous recording time exceeds 30 minutes if [Thermal Management] is set to [STANDARD].

2Requires USB-LAN adapter, sold separately.

Professional photo and video performance

Thanks to a series of new and improved features the Lumix S5 II is capable of delivering truly stunning photo and video performance. Capture all the action with high-speed burst shooting at up to 9fps with mechanical shutter and 30fps when using electronic shutter, for up to 300 images.

High Resolution Mode is available for RAW and JPEG to create astounding 96-megapixel stitched shots, while Dual Native ISO sensitivity minimises noise and provides a maximum ISO of 51200 (up to 204800 when extended).

Improved image stabilisation

The Lumix S5 II also boast an upgraded 5-axis image stabilisation system to improve handheld shooting across a wide range of conditions and situations. New Active I.S. delivers highly stable video recording by optimising horizontal, verticaland rotationalcorrection, with up to 200%2 improvement compared to conventional stabilisation. Active I.S. is especially effective in what would typically be challenging conditions for handheld shooting, such as recording while using telephoto lenses or while walking.

1Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used. Firmware must be updated to the latest version.

2Compared with Lumix S5. Focal length 20mm, when using S-R2060.

More advanced handling for solo operation

A highly refined shooting experience allows creators to achieve excellent results with a more streamlined workflow thanks to features such as AWB Lock, MF Assist(available for both video1 and photo) and a new Live Cropfunction, which records video footage using the entire sensor surface enabling the user to crop 4K and FHD images afterwards.

A new easy-to-operate 8-way joystick further enhances usability as does the expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder.

1Up to 60p. Does not work in Variable Frame Rate mode.

Class-leading reliability and connectivity

The camera is built to robust standards for demanding use in the field, with magnesium alloy die-cast front and rear frames plus a splash and dust resistant1 construction.

Connectivity has been improved over the previous model, with the LUMIX S5II featuring a full-size HDMI Type A terminal, high-speed USB 3.2 Gen 2 and a cable lock holder to prevent unwanted unplugging. Wireless connectivity has been improved too, adding Wi-Fi 5GHz2 to 2.4GHz, which provides a fast, stable connection with smartphones and tablets. Dual card slots (both UHS-II) support Relay Recording, Backup Recording and Allocation Recording and the 2200mAh high-capacity battery can be recharged via AC or USB.

1 Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.

Huge range of hybrid accessories

Discover a wide range of  to extend your creative potential, and if you’ve upgraded from the first generation body you can continue using the same batteries, grip, memory cards and other accessories.

• as well as third party mics including the
• The camera is compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
• Add a spare  (same as S5), which also fits the compatible

Extensive L-Mount lens range

Along with a diverse range of accessories, users can enjoy building an extensive collection of  from Panasonic, Leica, Sigma and third party manufactures such as Laowa. Options include the  , which launched at the same time as the camera and numerous other focal lengths, suitable for stills and video.

Regular firmware updates to enhance functionality

Panasonic is well known for enhancing camera performance through regular firmware updates and have already announced a pending update, which will add new functions including RAW data output and Live View Composite.

Discover more

Alongside this standardcamera, Panasonic has released lens kits and a video-centric X matte black body, which you can learn more about in our  . Options include:

• Lumix S5 II Full Camera Body Only

Panasonic Lumix S5 II Sample photos

Fairground with  @200mm. Camera settings: 1/400 sec. f/4.0. ISO 800



Landscape with  @68mm. Camera settings: 1/125 sec. f/5.6. ISO 400



Biker with  @43mm. Camera settings: 1/800 sec. f/8. ISO 250



Portrait (no lens data) @85mm. Camera settings: 1/20 sec. f/1.8. ISO 100



Panasonic Lumix S 100mm f/2.8 Macro Lens for L-Mount

has developed unique technology for the Panasonic Lumix S 100mm f/2.8 Macro Lens for L-Mount, which is the world’s smallest and lightest full-frame macro lens at the time of launch. At 300g and just 73.6mm x 82mm it is considerably smaller than equivalent models for other systems, ensuring  users gain a lightweight short telephoto lens for a range of photography and videography subjects.

Despite being incredibly portable, the Lumix S 100mm f/2.8 Macro lens’ optical design delivers uncompromising image performance, thanks to the inclusion of three aspherical and other special lens elements. It also boasts highly effective AF, which is made possible by a newly developed high-speed dual phase linear motor focus system.

The OIS unit has been removed to achieve such a significant reduction in size and weight, relying on the extremely effective in-body stabilisation, which is found in most Panasonic and other L-mount cameras, from both  and .

What’s more, this macro lens offers a unified design with five existing , providing a streamlined workflow when switching lenses on a , or sharing  across various models.

With a versatile 100mm focal width and impressive minimum focus distance, this lens is versatile enough for close-up photography and videography of nature, insects and flowers, as well as food photography and portrait snapshots or landscapes.

Read our Panasonic Lumisx S 100mm F/2.8 macro Lens Review

Learn more about the impressive features which can help elevate your photography in our latest review.

Panasonic Lumix S 100mm f/2.8 Macro Lens for L-Mount in More Detail

1:1 life sized reproduction from the world’s smallest macro lens

Capture true 1:1 magnification macro images while using a compact and highly portable lens, which is the world’s smallest and lightest macro lens for full-frame cameras. With measurements of just 73.6mm x 82mm and a weight of 300g this is one of the most portable options you can bring on any shoot.

It also offers a close 20.4cm minimum focus distance, ensuring you can maintain sufficient distance from your subject to leave them undisturbed, while also getting extremely close-up shots, which fill the frame.



Innovative design packed with new technology

Panasonic has achieved such as compact design by developing unique technology for the Lumix S 100mm f/2.8 Macro Lens. Three aspherical lens elements and a new double focus unit are utilised,  in order to reduce its size.

For weight reduction the OIS (optical image stabilisation) unit has been removed, with stabilisation handled by effective IBIS, which is found in the majority of recent L-mount cameras.



High-speed dual phase linear motor (DPLM)

A new proprietary technology was developed to both reduce the size and weight, as well as provide extremely effective AF, which offers 3x the output of conventional linear motors. The dual phase drive achieves highly precise focus as required by a macro lens, with quick and quiet AF suited to both stills and video capture. Additionally, the AF range can be optimised by using the Focus Limiter, increasing AF speed when capturing shots within a specific distance range.

Panasonic has considered every aspect of the lens design, even incorporating grey printing on the front, rather than white, in order to minimise reflections when capturing shots in close proximity to the subject.



Uncompromising optics

Results are spectacular from an optical formula composed of 13 elements in 11 groups, which includes 3 aspherical, 2 UED (Ultra Extra-Low Dispersion) and 1 ED (Extra-Low Dispersion) element. These special optics are responsible for rendering high resolution detail, sharpness, reduced optical aberrations and colour fringing, ensuring you can achieve excellent results with beautiful bokeh from the 9-bladed diaphragm, and wide f/2.8 maximum aperture.



Efficiency through a unified design

Thanks to a unified design across six L-mount lenses, users benefit from smooth lens changes when working on a gimbal, as well as the ability to share 67mm lens filters across all six models. A similar size, centre of balance, weight and filter size are shared with the  (355g),  (300g) and even the  (310g) wide angle lens, amongst others.

This makes rebalancing far quicker, with smoother changes when filming different subjects, or when using different focus widths. What’s more, the new 100mm macro lens has well suppressed focus breathing, ensuring focus shifts remain unfettered by visual distractions, even when capturing extremely small subjects.



Robust build for outdoor creators

Comprehensive seals across each part of the lens provide dust and splash resistant properties to support outdoor content creation. Sealing also ensures you can operate in temperatures as low as -10ºC, with a lens which is tough enough to withstand extremely poor weather conditions.



New Lumix high res shot mode capabilities

Lumix cameras such as the  and  offer 96 megapixel high res modes, which are supported by new features found in the Lumix S 100mm f/2.8 Macro Lens:

1. Long exposure noise reduction can be applied at shutter speeds of 8 seconds when shooting from a
2. You can now capture handheld high res mode shots without the need for a tripod, and still achieve sharp 96MP images

What’s in the box

• Panasonic Lumix S 100mm f/2.8 Macro Lens for L-Mount

Panasonic Lumix S 100mm f/2.8 Macro Lens for L-Mount Specifications

Focus width	100mm
Aperture range	f/2.8 – f/22
Lens construction	13 elements in 11 groups
Aperture design	9 diaphragm blades
Maximum magnification	1.0x
Minimum focus distance	20.4cm
Focus system	Dual Phase Linear Motor
OIS	Provided by camera IBIS
Switch / ring	Focus limiter / AF/MF switch
Weather sealed	Yes dust and splash resistant and freeze resistant to -10ºC
Diameter / length	73.6 x 82mm
Weight	300g



What’s in the Box

• Panasonic Lumix S5 II Full Frame L-Mount Mirrorless Camera Body
• Body Cap
• Hot Shoe Cover
• Cover for the Battery Grip Connector
• Shoulder Strap
• Battery Pack

Offers: Price Drop

Offer Category: N/A

Offer Product Type: N/A

Model: N/A

AE Bracketing: N/A

Autofocus Modes: N/A

Articulated Screen: N/A

Aperture priority: Yes

Battery: N/A

Built-in flash: N/A

Battery Life (CIPA): 370

Camera CIPA image stabilization rating: N/A

Colour: N/A

Continuous drive (fps): 9

Custom white balance: Yes

Digital zoom: N/A

Effective pixels (megapixels): 24

Environmental Sealing: N/A

Exposure compensation: N/A

External flash: Yes

Flash range (metres): N/A

Focal length (equiv.): N/A

Focal length multiplier: 1

Flash modes: N/A

GPS: N/A

HDMI Port: N/A

Headphone port: Yes

Height (mm): 102

Length (mm): N/A

Width (mm): 134

Weight (g): N/A

Weight (inc. batteries) (g): 740

Image ratio w:h: N/A

Camera Image stabilization: N/A

ISO: N/A

JPEG quality levels: N/A

Live view: Yes

Camera Lens mount: N/A

Manual exposure mode: Yes

Maximum shutter speed (electronic): N/A

Maximum ISO: N/A

Maximum ISO (boosted): 204800

Max resolution: N/A

Maximum shutter speed (seconds): N/A

Maximum aperture: N/A

Manual focus: N/A

Microphone: N/A

Microphone port: Yes

Camera Minimum focus distance (cm): N/A

Minimum ISO: N/A

Minimum ISO (boosted): 50

Minimum macro focus distance (cm): N/A

Minimum shutter speed (seconds): N/A

Metering modes: N/A

Number of focus points: 779

Number of white balance presets: N/A

Optical zoom multiplier: N/A

Orientation sensor: Yes

Other resolutions: N/A

Processor: N/A

Remote control: N/A

Screen dots: 1840000

Screen size: N/A

Screen type: N/A

Self-timer: Yes

Shutter priority: Yes

Speaker: N/A

Sensor photo detectors (megapixels): 25

Sensor size: N/A

Sensor type: N/A

Storage types: N/A

Subject / scene modes: N/A

Timelapse recording: N/A

Touchscreen: Yes

Camera Type: N/A

Uncompressed format: N/A

Camera USB: N/A

USB charging: Yes

Viewfinder coverage: N/A

Viewfinder magnification: N/A

Viewfinder resolution: 3680000

Viewfinder type: N/A

Video formats: N/A

Video Mode Categories: N/A

Video Modes: N/A

WB Bracketing: Yes

Wireless: N/A

Notes: N/A
