- Versatile 100-400mm focal range (200-800mm equivalent) is ideal for wildlife, bird photography, and distant landscape vignettes
- A maximum of 7EV Steps Sync IS delivers superb handheld performance for both stills and video
- The durable, weather-sealed construction provides more reliable operation in tough environments
- A fluorine-coated front element simplifies cleaning and enhances protection against dust and oils
- Compact and portable design makes this super-telephoto zoom easier to carry and handle than many large alternatives
Key Features
- Versatile zoom range of 100-400mm (200-800mm full-frame equivalent)
- Compact dimensions of 86.4 x 205.6mm
- Advanced optics with 4 ED, 2 Super HR, and 2 HR special elements
- Upgraded 7EV Steps 5-Axis Sync IS
- Weather-sealed construction rated to IPX1 standards
- Fluorine coating on the front element
- Weighs 1,125g (without tripod adapter)
- Minimum focusing distance of 1.3m and a maximum magnification of 0.29x (0.57x full-frame equivalent)
- Circular 9-blade diaphragm for smooth, natural bokeh
- Compatible with and for extended reach up to 1600mm
- 72mm filter thread

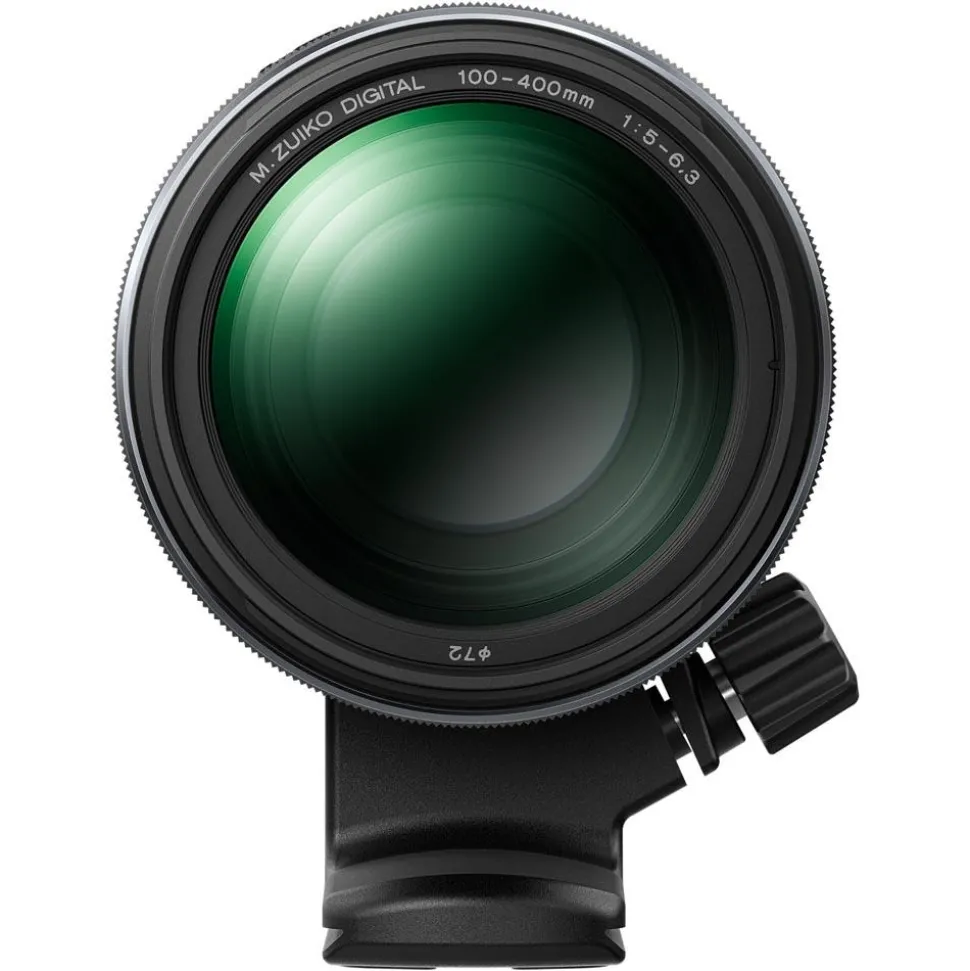

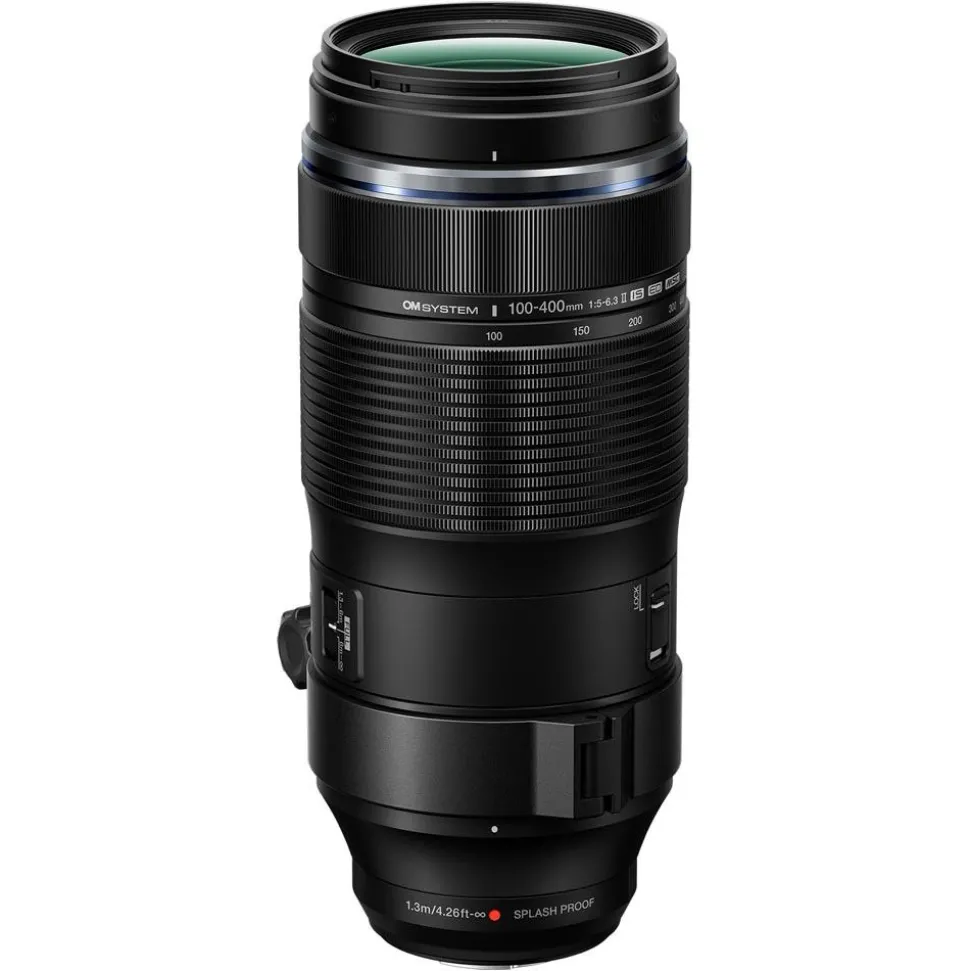

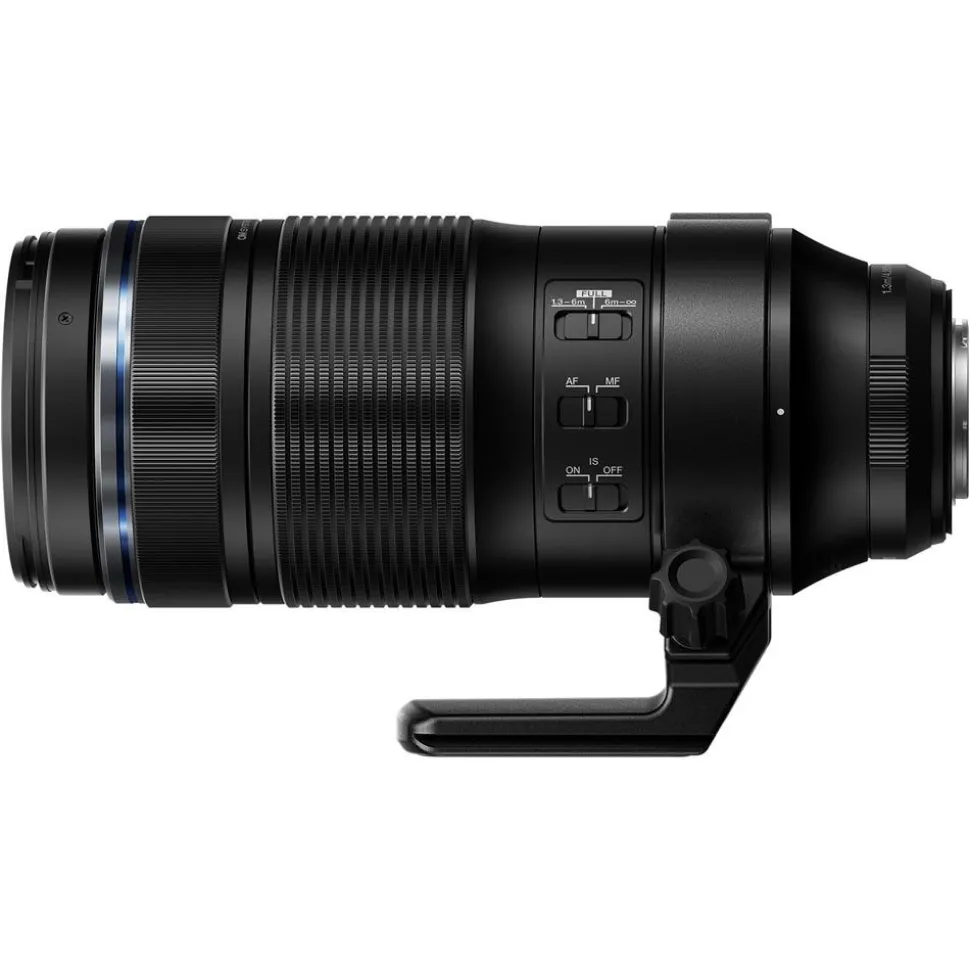

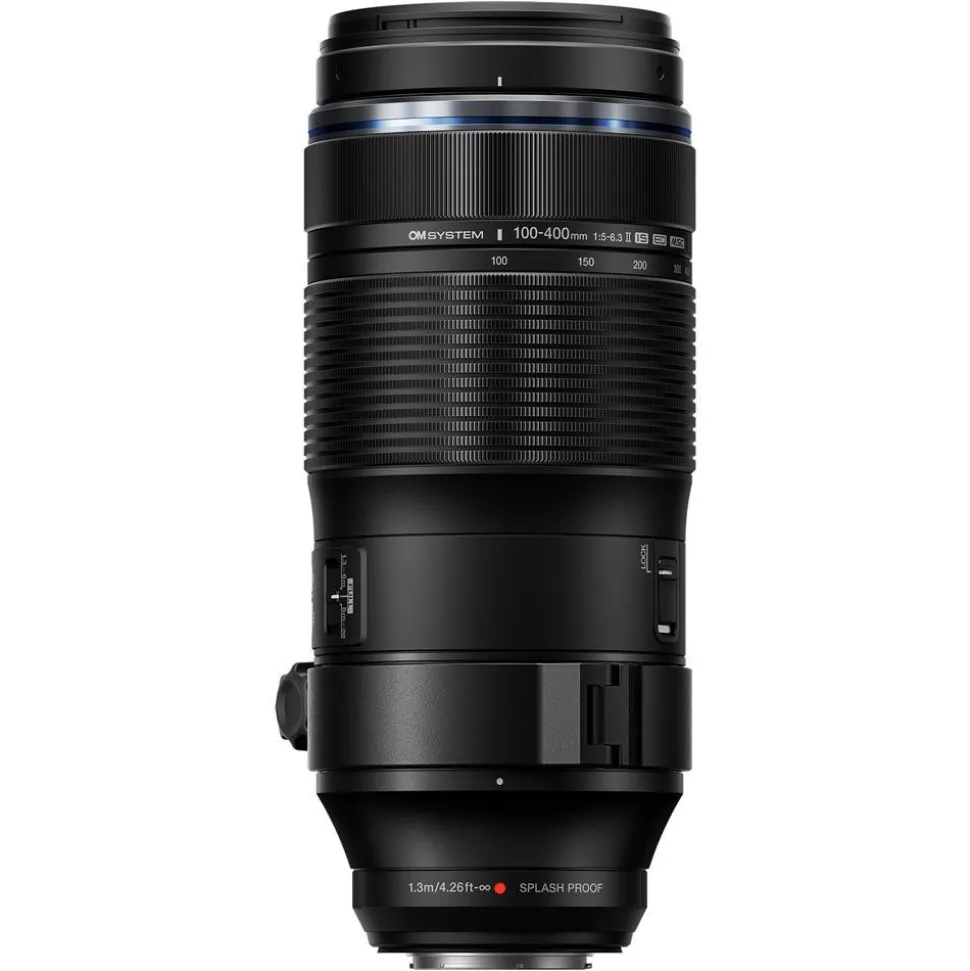

OM System M.Zuiko Digital ED 100-400mm f/5.0-6.3 IS II Lens Summary
The OM System M.Zuiko Digital ED 100-400mm f/5.0-6.3 IS II Lens is a high-performance super-telephoto zoom for bird, wildlife and nature photographers. With a classic 100-400mm zoom range (equivalent to 200-800mm on a full-frame system), this  delivers incredible reach in a lightweight, portable form. Its optical design includes 21 elements in 15 groups, featuring 4 ED, 2 HR, and 2 Super HR lenses, ensuring great image quality throughout the zoom range, especially considering the accessible price point.
This second-generation model from  adds key updates, including significantly improved 7EV Steps Sync IS with compatible , for sharper handheld shots. Additionally, OM System has incorporated a fluorine coating on the front element to repel dust, water, and dirt. With a design exclusively for outdoor use, the lens is now rated IPX1 for splash and dust resistance when paired with a weather-sealed OM System body, such as the .
With a close minimum focusing distance of 1.3m and a maximum image magnification of 0.29x (0.57x full-frame equivalent) at 400mm, the new Digital ED 100-400mm super telephoto lens is also ideal for capturing close-up tele-macro details of birds, wildlife, flowersand intimate subjects. Weighing in at just 1,125g without the tripod adapter, it offers an unbeatable price-to-performance ratio for those looking to embark on the world of super-telephoto photography.
| Offers: N/A |
| Offer Category: N/A |
| Offer Product Type: N/A |
| Autofocus: Yes |
| Aperture ring: N/A |
| Constant Aperture: N/A |
| Lens CIPA Image stabilization rating: N/A |
| Colour: N/A |
| Diameter (mm): 86 |
| Length (mm): 206 |
| Weight (g): 1300 |
| Distance scale: N/A |
| DoF scale: N/A |
| Elements: 21 |
| Environmental Sealing: N/A |
| Focus distance limiter: Yes |
| Focal length: 100 – 400 mm |
| Focus method: N/A |
| Filter Thread: N/A |
| Full time manual: Yes |
| Groups: 15 |
| Hood supplied: Yes |
| Lens Image stabilization: N/A |
| Lens mount: N/A |
| Lens Materials: N/A |
| Maximum focal length: 400.0 |
| Maximum magnification: 0.08 |
| Maximum aperture (number): 5 |
| Maximum aperture (text): N/A |
| Max Format size: N/A |
| Minimum focal length: 100.0 |
| Lens Minimum focus distance (m): 0.25 |
| Minimum aperture (number): 22 |
| Minimum aperture (text): N/A |
| Motor type: N/A |
| Number of diaphragm blades: 7 |
| Power zoom: N/A |
| Special elements / coatings: 4 ED, 2 Super HR, 2 HR elements, flourine coating |
| Tripod collar: Yes |
| Lens type: N/A |
| Wide/Tele: N/A |
| Lens Level: N/A |
| Best For: N/A |
| Best For Holiday and Landscape: N/A |
| Best For Interior and Architecture: N/A |
| Best For Fashion and Portrait: N/A |
| Best For Macro and Still Life: N/A |
| Best For Astro: N/A |
| Best For Street: N/A |
| Best For Wildlife and Sport: Yes |
| Zoom lock: Yes |
| Zoom method: N/A |
| Notes: N/A |
