- Built-in 1.25x teleconverter for extended reach equivalent to 300-1000mm (35mm equivalent)
- Class-leading image stabilisation with up to 8 stops of compensation for more keepers
- Incredibly compact, lightweight and portable design for easy extended shooting times
- Close focus distance allows versatile shooting styles in a variety of situations
- Fast, high precision AF with added bird detection recognition for OM-D E-M1X photographers
Â

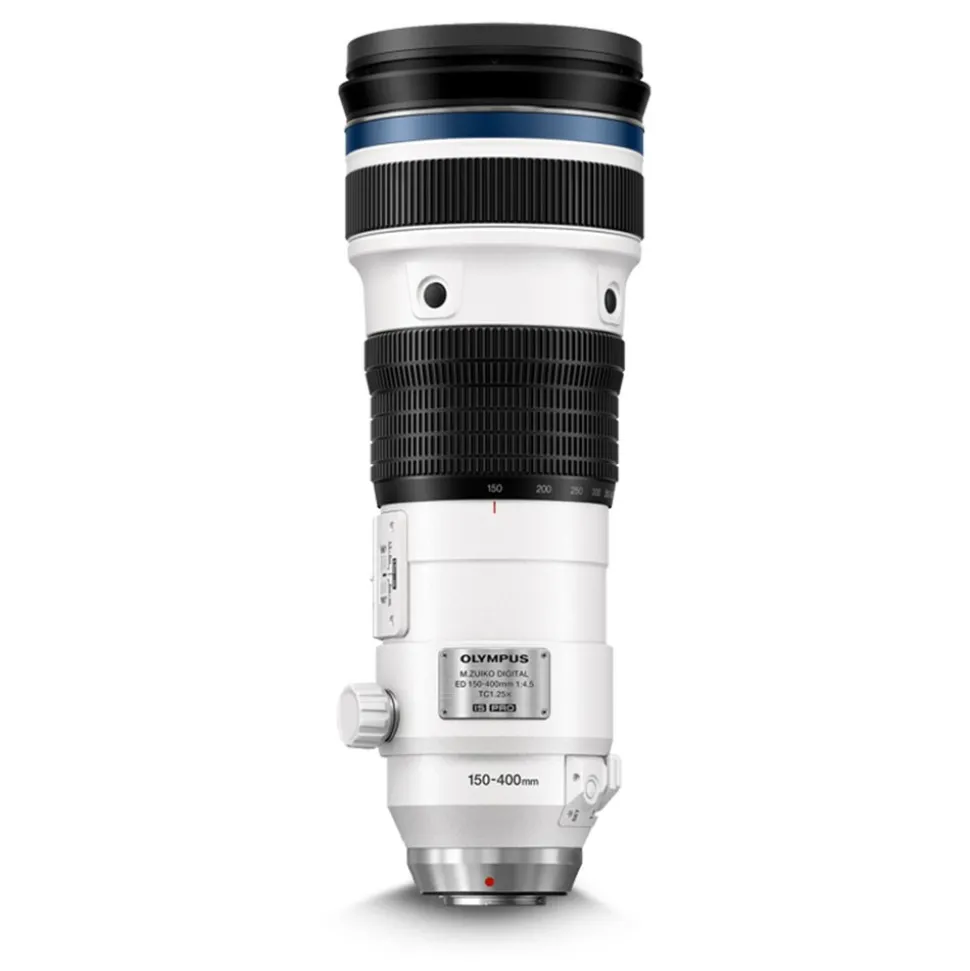

Digital ED 150-400mm f/4.5 TC 1.25x IS PRO Summary
Sports, action and wildlife photographers who shoot with micro four thirds cameras will be delighted at the arrival of the M.Zuiko Digital ED 150-400mm f/4.5 TC 1.25x IS PRO lens from OM-Systems (Olympus). This super telephoto with built-in teleconverter provides an equivalent focal range of 300-1000mm (35mm equivalent) yet weighs just 1.8kg and measures 31cm long.
Features at a glance
- Built-in 1.25x teleconverter for extended reach
- 5-axis sync image stabilisation
- 28 optical elements in 18 groups
- Dustproof, splashproof, heat proof and freezeproof design
- Minimum shooting distance of just 1.3m
- Fast, high precision AF
Class leading image stabilisation delivers up to 8EV stops of compensation allowing photographers to continue shooting hand held as light levels dip considerably. An advanced optical design and internal focus system ensure the lens delivers impeccable results whilst remaining lightweight. The focus mechanism also means that the lens does not extend when zooming across the entire range. For those who need yet more reach the lens is compatible with the 2.0x TC, full details below.
OM-Systems M.Zuiko Digital ED 150-400mm f/4.5 TC 1.25x IS PRO Lens In more detail
- Inner zoom system keeps the lens the same length when zooming • Rubberised zoom / focus ring for comfortable, ergonomic operation
- Preset focus function allows the user to set and recall a favourite focal position
- Easy to carry tripod base plate
- Strap eyelets are placed to improve transportability and reduced load on the lens mount
- Rubber lens end cover, designed to prevent scratches on the front lens
M.ZUIKO DIGITAL ED 150-400MM F4.5 TC1.25X IS PRO Autofocus Compatibility Chart
| Â | ||||
| 1. Bird detection | Yes | No | No | No |
| 2. RAW video data output | Yes | Yes | No | No |
| 3. Lens that supports Focus Stacking added | Yes | Yes | Yes | Yes |
| 4. Improved video image stabilization | Yes | Yes | Yes | Yes |
| 5. Focus indicator display added | Yes | Yes | No | No |
M.ZUIKO DIGITAL ED 150-400MM F4.5 TC1.25X IS PRO SPECIFICATIONS
| Focal Length 35mm Equivalent Focal Length | 150-400mm (with built-in teleconverter : 187.5-500mm) 300-800mm (with built-in teleconverter : 375-1,000mm) |
| Lens Construction | 28 elements in 18 groups (Built-in teleconverter : 7 elements in 4 groups) (1 EDA lens, 4 Super ED lenses, 2 ED lenses, 2 HR lenses, 1 HD lens) |
| Splashproof Type / Dustproof | “IEC Standard publication 60529 IPX1 (applies when the lens is used with Olympus splashproof Body) / Dustproof construction” |
| Focusing System | High-speed Imager AF (MSC) |
| Angle of View | 8.2 degrees – 3.1 degrees (with built-in teleconverter : 6.6 degrees – 2.5 degrees) |
| Closest Focusing Distance | 1.3m (across the entire zoom range when built-in teleconverter is used or not) |
| Maximum Image Magnification 35mm Equivalent Max. Image Magnification | Wide:0.12x / Tele:0.29x (with built-in teleconverter : Wide:0.15x / Tele:0.36x) Wide:0.25x / Tele:0.57x (with built-in teleconverter : Wide:0.31x / Tele:0.71x) |
| Minimum Field Size | Wide:139.5×104.8mm / Tele:60.7×45.6mm (with built-in teleconverter : Wide:111.6×83.9mm / Tele:48.6×36.5mm) |
| Number of Blades | 9 (circular aperture diaphragm) |
| Maximum Aperture | F4.5 (with built-in teleconverter : F5.6) |
| Minimum Aperture | F22 (with built-in teleconverter : F29) |
| Lens IS Mechanism | VCM |
| Â Â Â Â IS Performance | 5-axis sync IS 8 steps* * According to CIPA standards. When attached to OM-D E-M1X, with yaw and pitch applied to camera, half-press IS set to Off, and focal length set to 150mm. (without built-in teleconverter) |
| 5-axis sync IS 6 steps* * According to CIPA standards. When attached to OM-D E-M1X, with yaw and pitch applied to camera, half-press IS set to Off, and focal length set to 400mm. (with built-in teleconverter : 500mm) | |
| Lens IS 4.5 steps* * Focal length : 400mm (with built-in teleconverter : 500mm)” | |
| Filter Size | Diameter 95 mm |
| Dimensions | ∅115.8×314.3mm |
| Weight | 1,875g (without Lens Cap, Lens Rear Cap and Lens Hood) |
| Box Contents | LH-115 Lens Hood, LC-115 Lens Cap, LR-2 Lens Rear Cap, LSC-1642 Lens Case, CSS-P121 Lens Strap, Instruction Manual, Warranty Card |
Â
| With MC-14 Teleconverter | |
| Focal Length 35mm Equivalent Focal Length | 210-560mm (with built-in teleconverter : 262.5-700mm) 420-1,120mm (with built-in teleconverter : 525-1,400mm) |
| Maximum Image Magnification 35mm Equivalent Max. Image Magnification | Wide:0.18x/ Tele:0.40x (with built-in teleconverter Wide:0.22x/Tele:0.50x) Wide:0.35x/ Tele:0.81x (with built-in teleconverter Wide:0.44x/Tele:1.01x) |
| Maximum Aperture | F6.3 (with built-in teleconverter : F8.0) |
| Minimum Aperture | F22 (with built-in teleconverter : F29) |
Â
Â
| With MC-20 Teleconverter | |
| Focal Length 35mm Equivalent Focal Length | 300-800mm (with built-in teleconverter : 375-1,000mm) 600-1,600mm (with built-in teleconverter : 750-2,000mm) |
| Maximum Image Magnification 35mm Equivalent Max. Image Magnification | Wide:0.25x/ Tele:0.57x (with built-in teleconverter Wide:0.31x/Tele:0.71x) Wide:0.50x/ Tele:1.14x (with built-in teleconverter Wide:0.62x/Tele:1.43x) |
| Maximum Aperture | F9.0 (with built-in teleconverter : F11) |
| Minimum Aperture | F22 (with built-in teleconverter : F29) |
Â
What’s in the box
- M.Zuiko Digital ED 150-400mm F4.5 TC1.25x IS PRO lens
- LH-115 Lens Hood
- CSS-P121 Lens Strap
- CSS-P121 Lens Strap
- LSC-1642 Lens Case
Â
Optional accessories
- PRF-ZD95 lens filter
| Offers: N/A |
| Offer Category: Camera Lenses |
| Offer Product Type: Micro Four Thirds Lenses |
| Autofocus: Yes |
| Aperture ring: N/A |
| Constant Aperture: Yes |
| Lens CIPA Image stabilization rating: N/A |
| Colour: N/A |
| Diameter (mm): 116 |
| Length (mm): 214 |
| Weight (g): 19595 |
| Distance scale: N/A |
| DoF scale: N/A |
| Elements: 28 |
| Environmental Sealing: N/A |
| Focus distance limiter: Yes |
| Focal length: 150 – 400 mm |
| Focus method: N/A |
| Filter Thread: N/A |
| Full time manual: Yes |
| Groups: 18 |
| Hood supplied: Yes |
| Lens Image stabilization: N/A |
| Lens mount: N/A |
| Lens Materials: N/A |
| Maximum focal length: 400 |
| Maximum magnification: 0.71 |
| Maximum aperture (number): 4.5 |
| Maximum aperture (text): N/A |
| Max Format size: N/A |
| Minimum focal length: 150 |
| Lens Minimum focus distance (m): 1.3 |
| Minimum aperture (number): 22 |
| Minimum aperture (text): N/A |
| Motor type: N/A |
| Number of diaphragm blades: 9 |
| Power zoom: N/A |
| Special elements / coatings: 1 EDA + 4 super ED + 2 ED + 2 HR + 1 HD elements, Z Nano Coating |
| Tripod collar: Yes |
| Lens type: N/A |
| Wide/Tele: N/A |
| Lens Level: N/A |
| Best For: N/A |
| Best For Holiday and Landscape: N/A |
| Best For Interior and Architecture: N/A |
| Best For Fashion and Portrait: N/A |
| Best For Macro and Still Life: N/A |
| Best For Astro: N/A |
| Best For Street: N/A |
| Best For Wildlife and Sport: Yes |
| Zoom lock: Yes |
| Zoom method: N/A |
| Notes: N/A |
