Newell GaN Tech T-power 100 W Charger

The Newell GaN Tech T-power 100 W is a modern mains charger that replaces silicon components with gallium nitride.

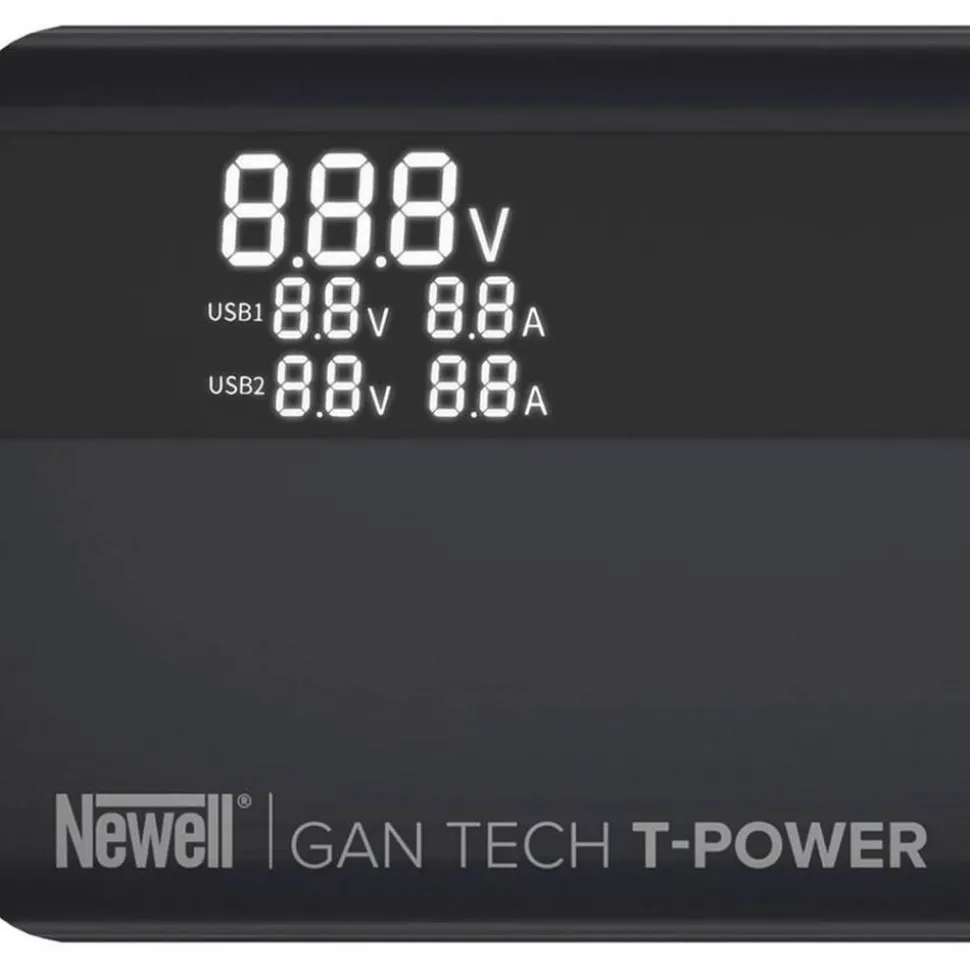

This makes it smaller, faster and more efficient than previously known devices. The charger is equipped with 2 USB-C ports and 2 USB Type A ports. There is also a backlit screen that informs about the parameters of the charging process. The maximum power of the charger is as much as 100 watts. This allows you to quickly replenish energy not only in your smartphone or tablet, but also in your laptop. Express charging time is ensured by Power Delivery and Qualcomm Quick Charge technologies. The device is also equipped with a number of safety features to protect against overheating, overcharging or overloading, among others.



Specification

Model: Newell GaN Tech T-power 100 W
color: black
number of available ports: 4 (2 x USB-A, 2 x USB-C)
input current: 100 – 240 V / 50-60 Hz / 2.0 A max
max power output:
    USB-A 1 / USB-A 2: 30 W
    USB-C 1 / USB-C 2: 100 W
Total power: 100 W
power depending on ports used:
USB-C 1 + USB-C 2: 65 W + 30 W (max. 95
W)
USB-C 1 + USB-C 2 + USB-A 1 + USB-A 2: 45 W + 12 W + 15 W + 12 W
USB-C 1 + USB-A 1: 65 W + 30 W (95 W max)
Output voltage / output current:
    USB-C output 1: 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 5 A (100 W max)
    USB-C output 2: 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 5 A (100W max)
    USB-A output 1: 4.5 V / 5 A, 5 V / 4.5 A, 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A, 20 V / 1.5 A (max. 30W)
    USB-A 2 output: 4.5 V / 5 A, 5 V / 4.5 A, 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A, 20 V / 1.5 A (max. 30 W)
dynamic PPS charging: 3.3 – 21 V / 5 A
Dimensions: 96 x 66 x 32 mm
weight: 201 g
