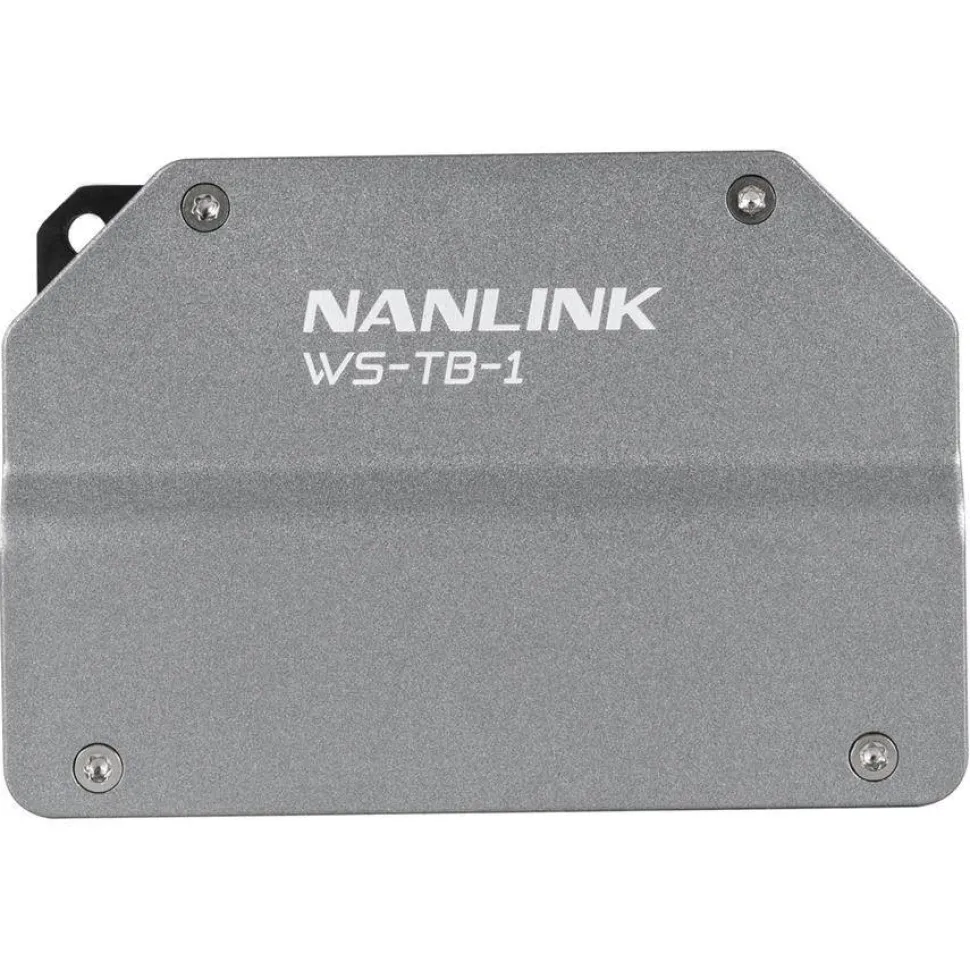

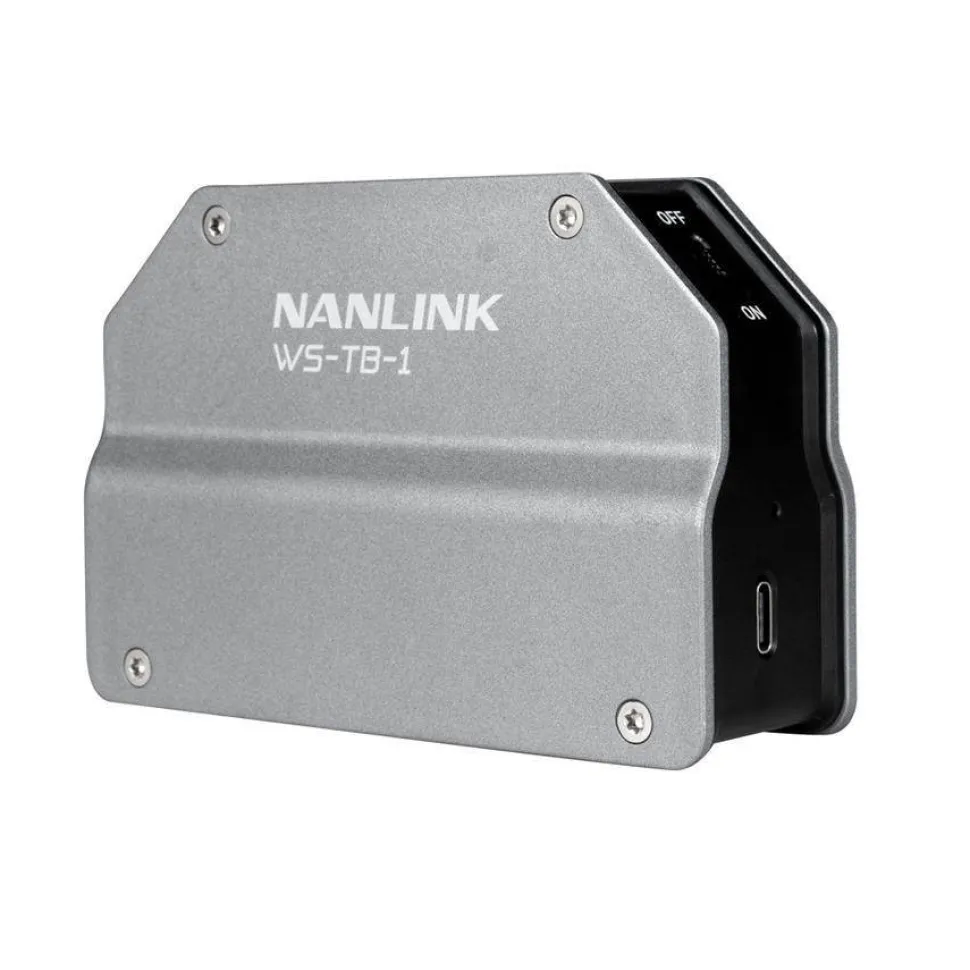

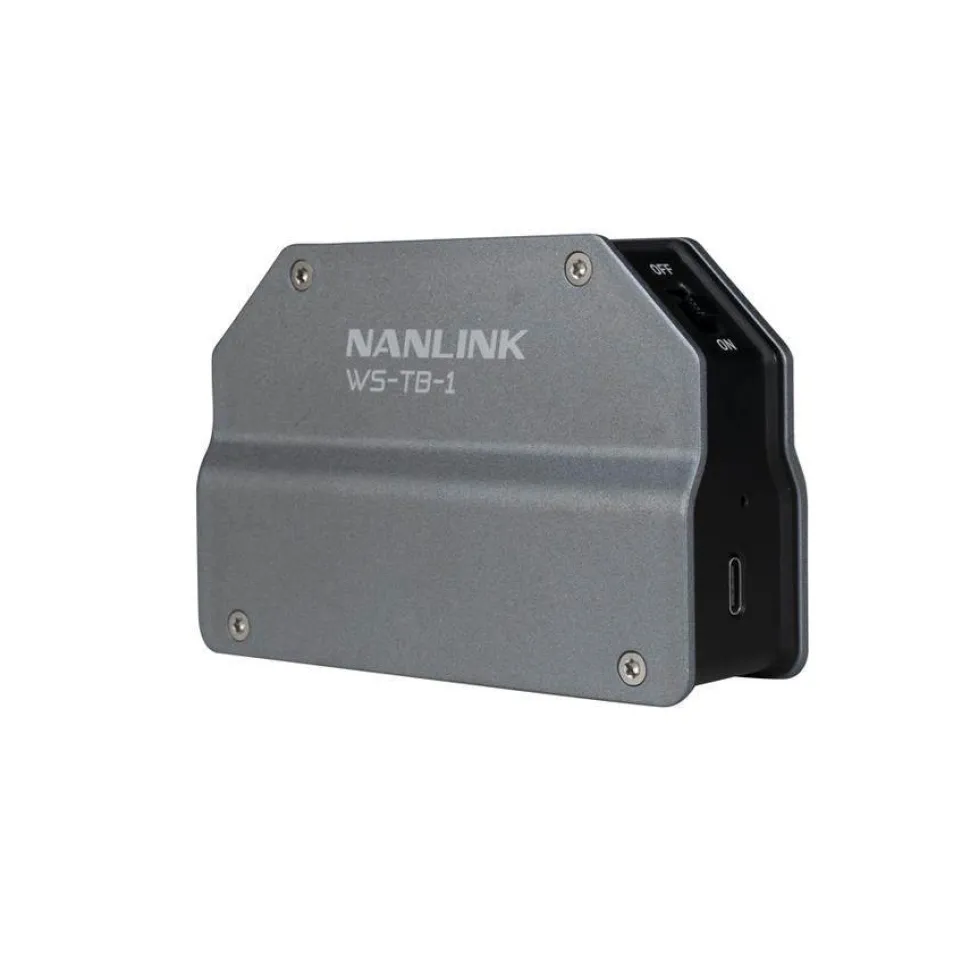

Nanlite WS-TB-1 Transmitter Box

The NANLINK WS-TB-1 Transmitter Box lets you wirelessly control lights with the NANLINK mobile app regardless of whether or not they have built-in Bluetooth. Any Nanlite fixture with built-in 2.4Ghz is compatible with the WS-TB-1, including the PavoTube 30C and 15C, Forza 500, MixPanel 150 and 60, and others. The NANLINK mobile app gives you deep control over color temperature, HSI, and effects, and it lets you easily create repeatable scenes, presets, and control lights in groups.

Adds Powerful Mobile App Control
Easily control lights like the PavoTube 30C and 15C, Forza 500, and MixPanel 150 wirelessly with the free NANLINK mobile app. You can group lights, synchronize effects, and fine-tune dimming, HSI, and CCT. You can even use the camera on your mobile device to take a photo and then pick a color from the image to instantly send to RGB lights.

Multiple Power Options
With a built-in 2400 mHz battery, the NANLINK WS-TB-1 Transmitter Box can run constantly for 10 hours. The integrated USB-C port allows you to add future firmware updates, but it also lets you power the device in the field with a USB powerbank battery. You can also use this port to connect the WS-TB-1 directly to an AC outlet to run continuously while charging the internal battery.

Compact and Easy to Mount

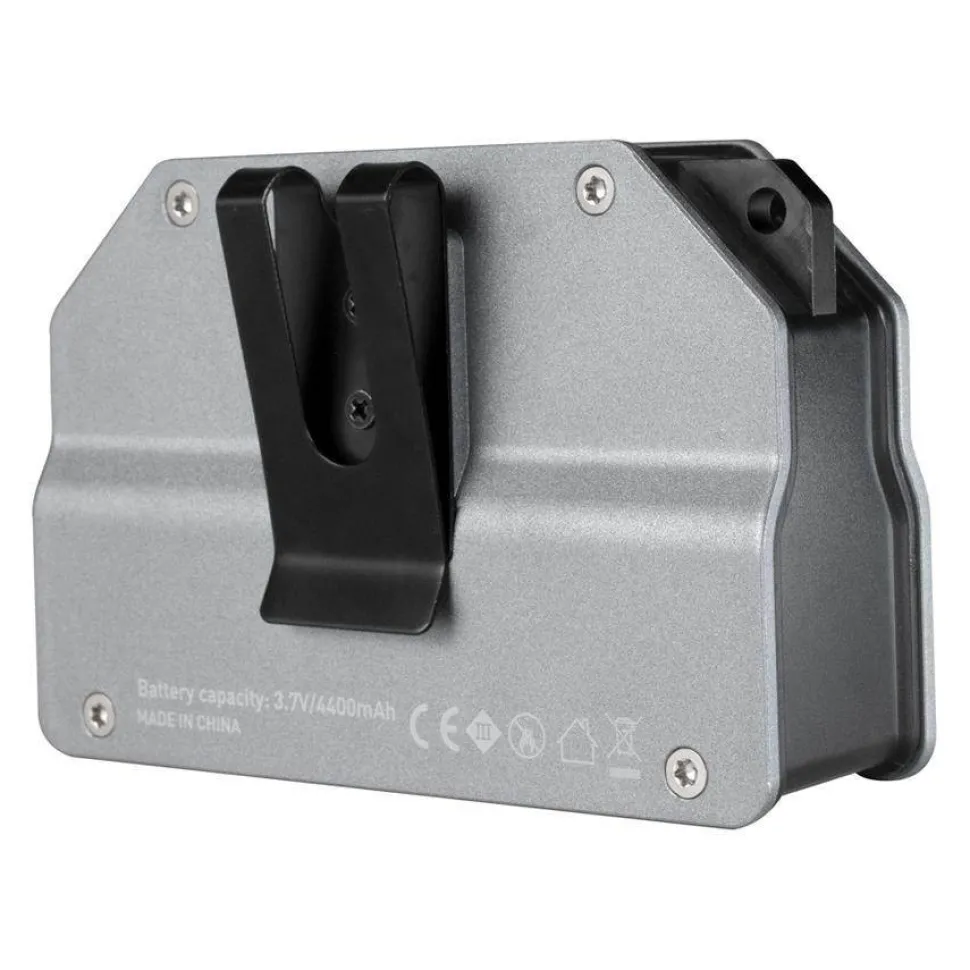

The WS-TB-1 was intentionally designed to be as compact and lightweight as possible, while still providing all-day battery life and a robust control signal. An internal antenna system helps it preform and keeps the size to a minimum. A bottom 1/4-20 socket, side belt-clip, and a ring integrated into the chassis give you many different ways to mount it. The included padded case even has a belt loop and a carabiner clip.

Compatible With Many Lights
The WS-TB-1 is fully compatible with: PavoTube II X-Series, PavoTube 30C and 15C, PavoTube II 6C, Forza 500, 300, 300B, 200, 150, 60, and 60B, MixPanel 150 and 60, FS 300, 200, and 150, LumiPad 25 and 11, Compac 200 and more.

• Channels: 512 (DMX)
• Wireless Protocol: 2.4 GHz and Bluetooth
• DC Input Power: 7.2 to 15 VDC
• Battery: Built in Rechargeable 3.7V/2400mA
• Dimensions: 4.2 x 2.87 x 1.7″ / 10.7 x 7.3 x 4.4 cm
• Weight: 0.37 lb / 0.17 kg

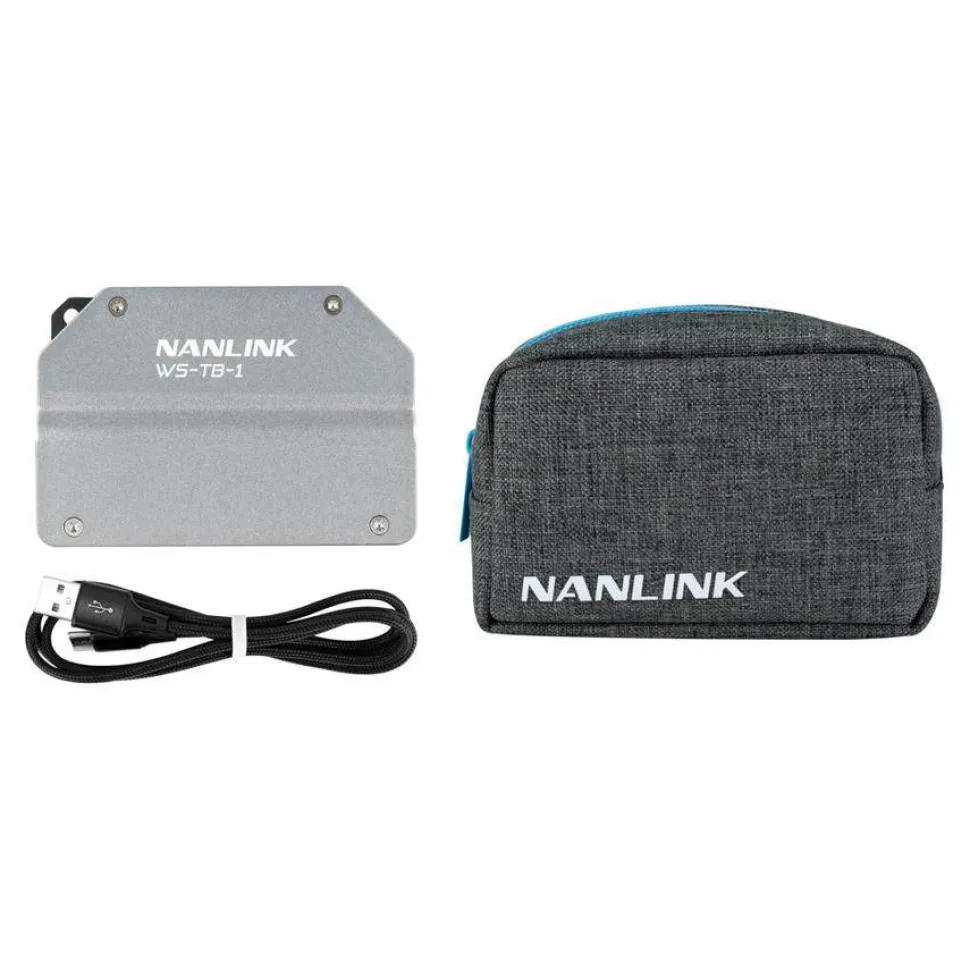

ITEM INCLUDES

• 1x NANLINK Transmitter Box
• 1x USB-A to USB-C Cabl
• 1x Padded Travel Case
• Limited 2 Year Warranty
