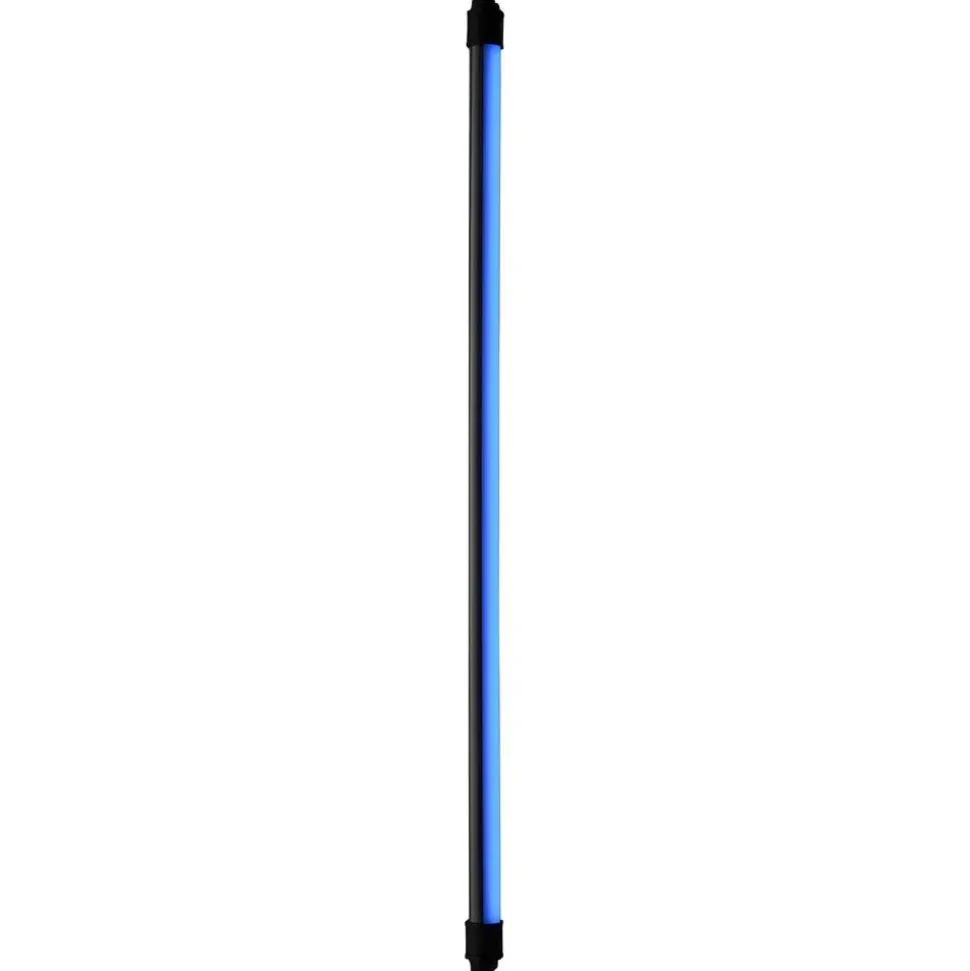

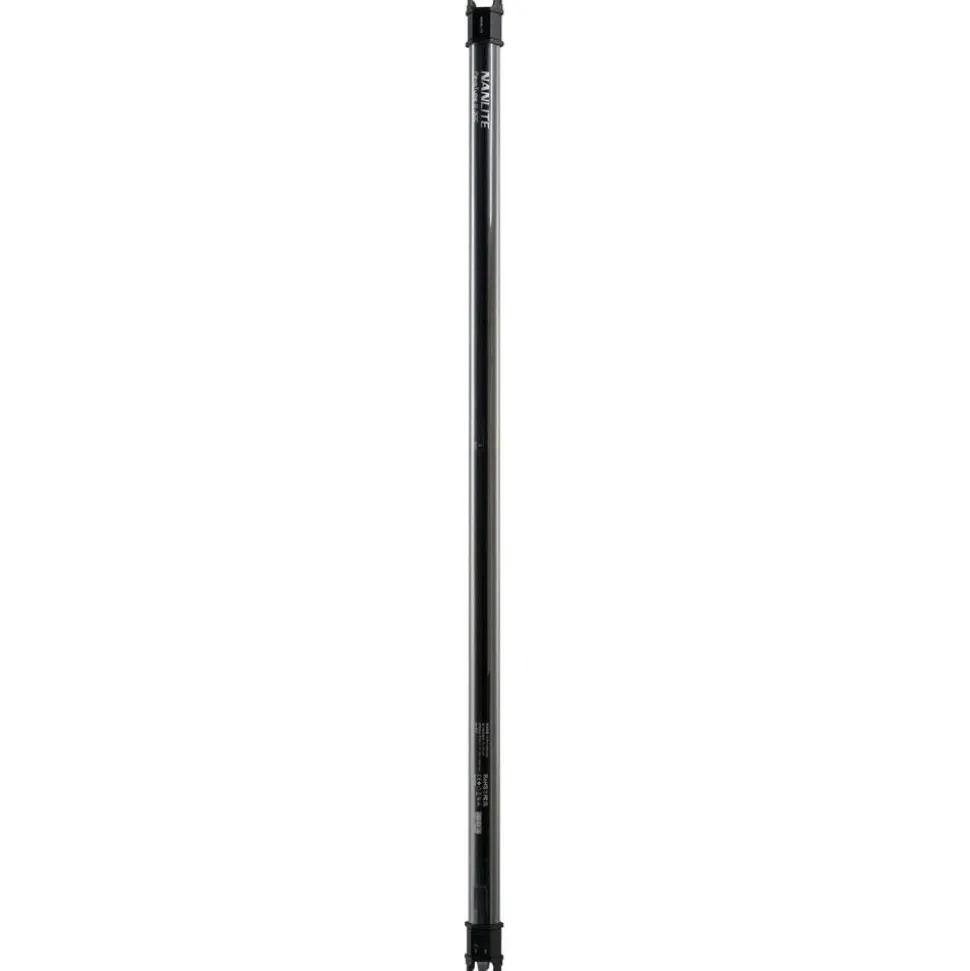

Nanlite Pavotube 30C Mark II 1 Tube LED Kit

The next generation Nanlite Pavotube 30C Mark II 1 Tube LED Kit features battery enhancements, offers an expanded 2700K-7500K CCT range and has 15 built-in special effects for versatile RGBWW lighting anywhere.

Key Features

• Class-leading colour accuracy with a CRI of 97 and TLCI of 98
• TM-30 Rf: Average 94, TM-30 Rg: Average 101
• Wider CCT Range: 2700K-7500K
• On-board controls, Bluetooth, 2.4G, and locking DMX/RDM port
• 15 Effects (up from 5 in the original line)
• Lock button and recessed power switch
• USB-C Port for firmware updates and charging
• Run on internal battery, AC, or D-Tap batteries with CB-DT/DC cable (sold separately)
• Precisely sized barndoor and grid kits available (sold separately)

Nanlite Pavotube 30C Mark II 1 Tube LED Kit Summary

The original Nanlite PavoTube 15C and 30C quickly became market-leading LED tube lights due to the highly accurate and striking light they produced, their durable build quality, and how easy they were to use and adjust. The new PavoTube II 15C and 30C keep every aspect people loved—and improve on them in every way. The result is a line of versatile and cost-effective tube lights that have smaller endcaps, larger illumination areas, wider CCT ranges, seamless diffusion, G/M adjustment, Bluetooth and 2.4G for wireless control and locking DMX ports.

Visually Balanced with the Virtues of Built-In Batteries
LED tubes make excellent key lights, fills, backlights and more, but they also play a role in front of the camera as practical’s. The completely balanced design of PavoTube II 15C and 30C have equally sized compact endcaps that minimize visual distractions on screen. The powerful built-in batteries evenly distribute weight making these tubes easy to mount with the included transparent clip. You get over 2 hours of battery life at 100% brightness, but PavoTubes are often used at lower intensities, and battery run-times rise exponentially as you dim down: 4 hours at 50%, 9.5 hours at 10%, and 14 hours at 1%.

Always Accurate in Every Temperature, Intensity and Colour
Colour-accurate light is synonymous with the name Nanlite, and the new PavoTube II 15C and 30C are no different. No matter how bright or dimmed, no matter the colour or CCT you have dialled-in from their expanded 2700K-7500K range, the light you see on set and in your monitors will always be accurate. There are many competing models in the LED tube-light space, but most fall noticeably short of matching the accurate performance of PavoTubes. With the new ability to adjust the G/M shift by +/- 150, you can precisely match other light sources as well.

Improved Diffusion, Compact Endcaps, Larger Illumination Area
The diffusion in the new PavoTube II 15C and 30C has been greatly improved. Individual LED diodes are completely obscured, which allows the fixtures to appear as seamless shafts of light. The endcaps have been reduced to a significantly more compact size, yet the popular quick adjustment knobs of the original line are still found there. Integrated fastening loops remain in the endcaps as well, and a set of steel safety wires are included for easy hanging. You can now confidently place a PavoTube II 15C or 30C vertically on surfaces with room for power and DMX cables below using the Nanlite LSFLT12MII Foldable Floor Stand (sold separately). The new lights are identical in size to the originals, but their illumination areas have increased, providing a longer shaft of light. The new design requires barndoor and grid accessories that fully accommodate the larger illumination areas, which are supplied by the new Nanlite BDPTII15CEC and BDPTII30CEC.

Built-in Bluetooth, Locking Metal DMX Port and Much More

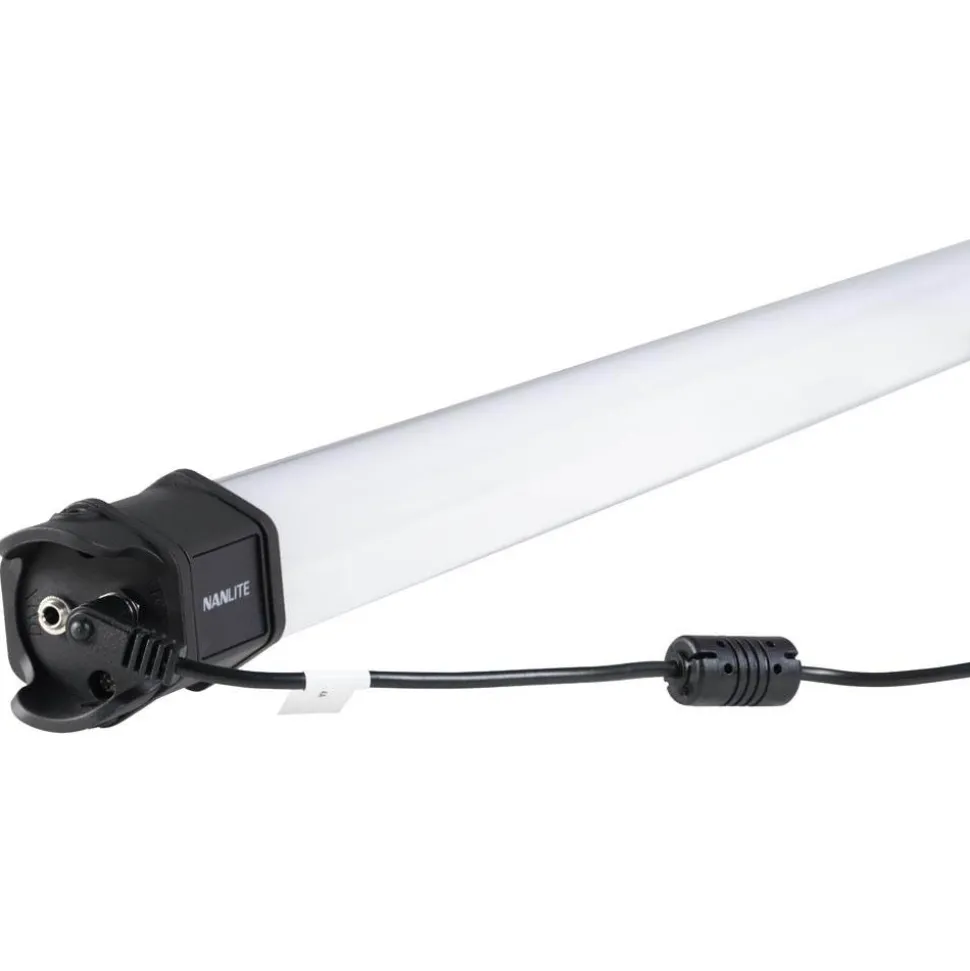

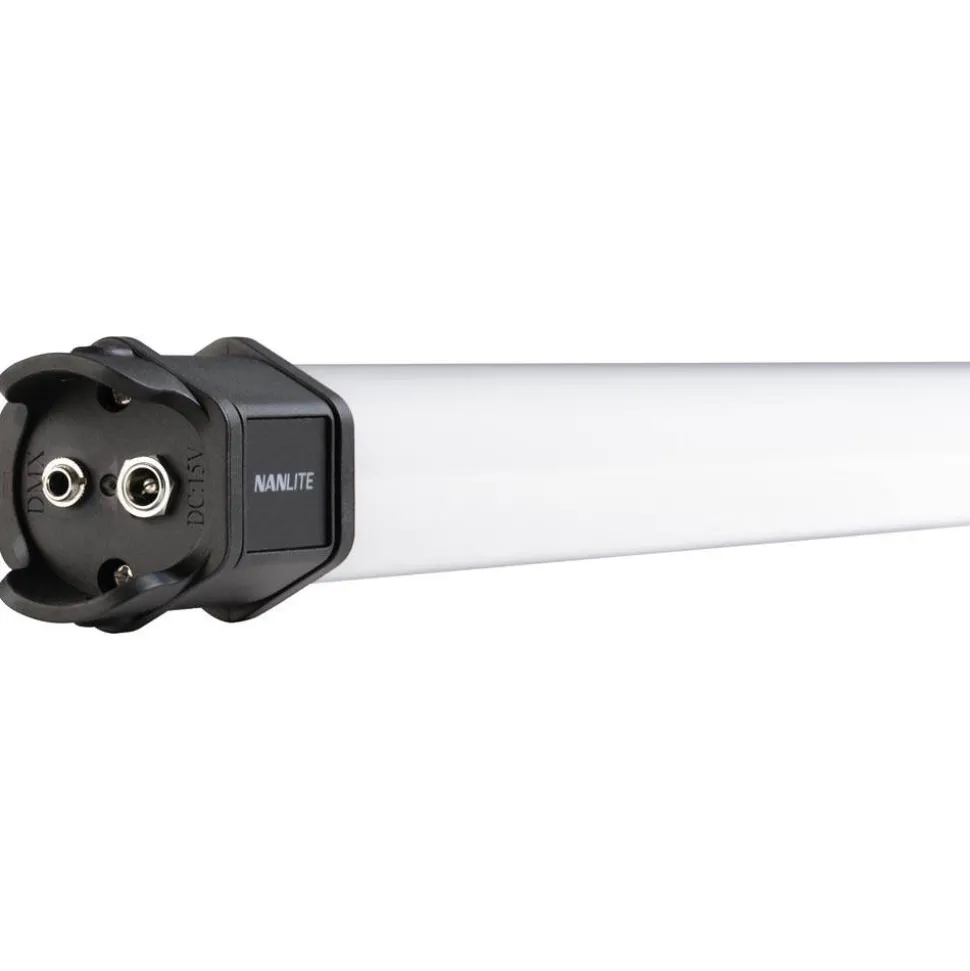

The new PavoTube II 15C and 30C feature built-in Bluetooth for direct control with the free NANLINK app for iOS and Android. Built-in 2.4G lets you to control with the WS-RC-C2 handheld remote (sold separately) or the WS-TB-1 Transmitter Box (sold separately) for larger setups. The bottom of an endcap houses the regular AC power input and a locking metal 3.5mm DMX/RDM port that you can connect to with the CB-DMX-3.5C-1/2 adapter cable (sold separately), which provides locking 5-pin male and female XLR connectors. A USB-C port is also built-in to add future firmware updates and to fast-charge the battery. The power switch is much smaller and recessed to avoid accidental switching. Regular AC power chargers are now included for each light in multi-light kits. Simply put, improvements are found throughout.

Specifications:

Rated Power: 55W
Power Supply: DC15V/4A Max; AC100-240V 50/60Hz; PD3.0 (12-20V) 30W Min
CRI/TLCI: Average 97 / Average 98
CCT: 2700K-7500K (G/M ±150)
Dimming:0 – 100 %
Control: On-board control, 2.4G, Bluetooth, DMX/RDM, Nanlink APP
Dimensions: f48×1770mm/f1.89×46.06″”
Weight: 1.4kg/3.09lb

Illumination:
2700K: 0.3m-3022lux/281fc, 0.5m-1720lux/160fc, 1m-581lux/54fc
3200K: 0.3m-3106lux/289fc, 0.5m-1767lux/164fc, 1m-599lux/56fc
5600K: 0.3m-3281lux/305fc, 0.5m-1910lux/177fc, 1m-647lux/60fc
6500K: 0.3m-3364lux/313fc, 0.5m-1944lux/181fc, 1m-660lux/61fc
R: 0.3m-1452lux/135fc, 0.5m-870lux/81fc, 1m-303lux/28fc
G: 0.3m-3151lux/293fc, 0.5m-1819lux/169fc, 1m-642lux/60fc
B: 0.3m-550lux/51fc, 0.5m-300lux/28fc, 1m-106lux/10fc

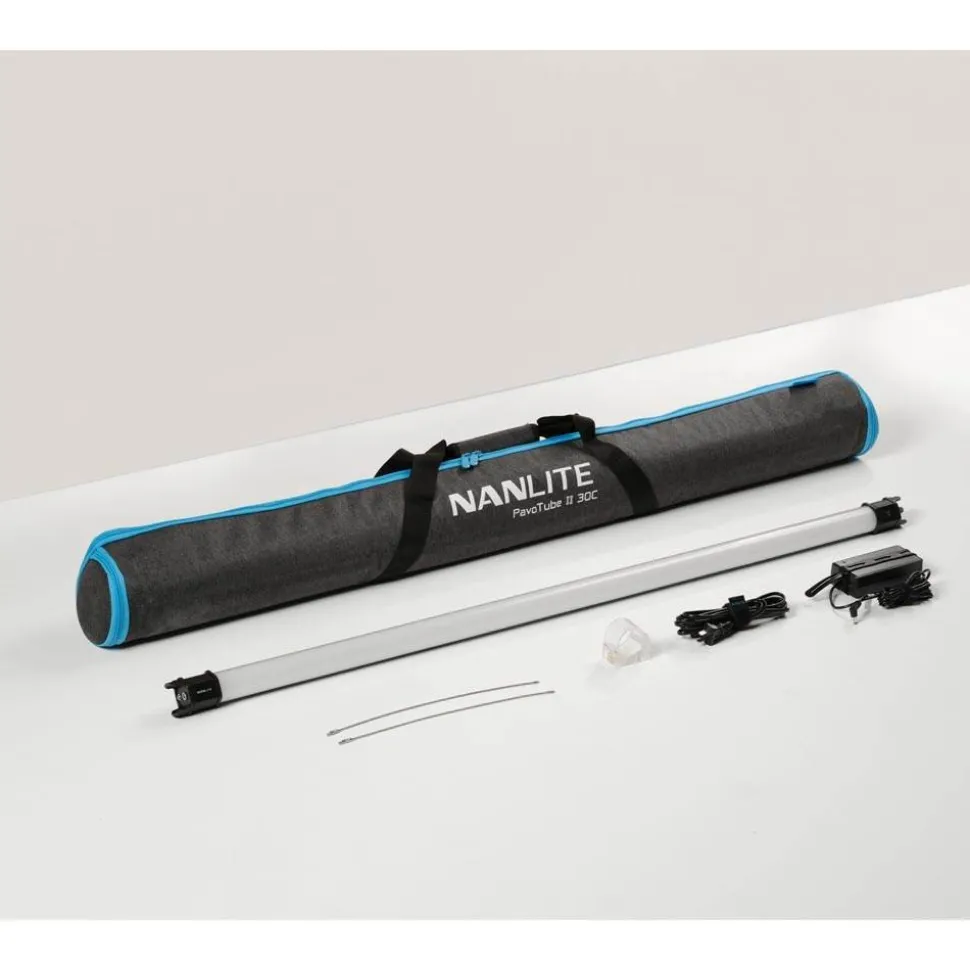

What’s in the Box

• 1x PavoTube II 30C
• 1x Power Adapter 15V4A with right-angle connector
• 1x Power Cable 9.9’ (3m)
• 1x Transparent T12 Clip with
• 2x 1/4-20 Mounts
• 2x Steel Safety Wires
• 1x User Manual
• 1x Padded Carrying Bag
