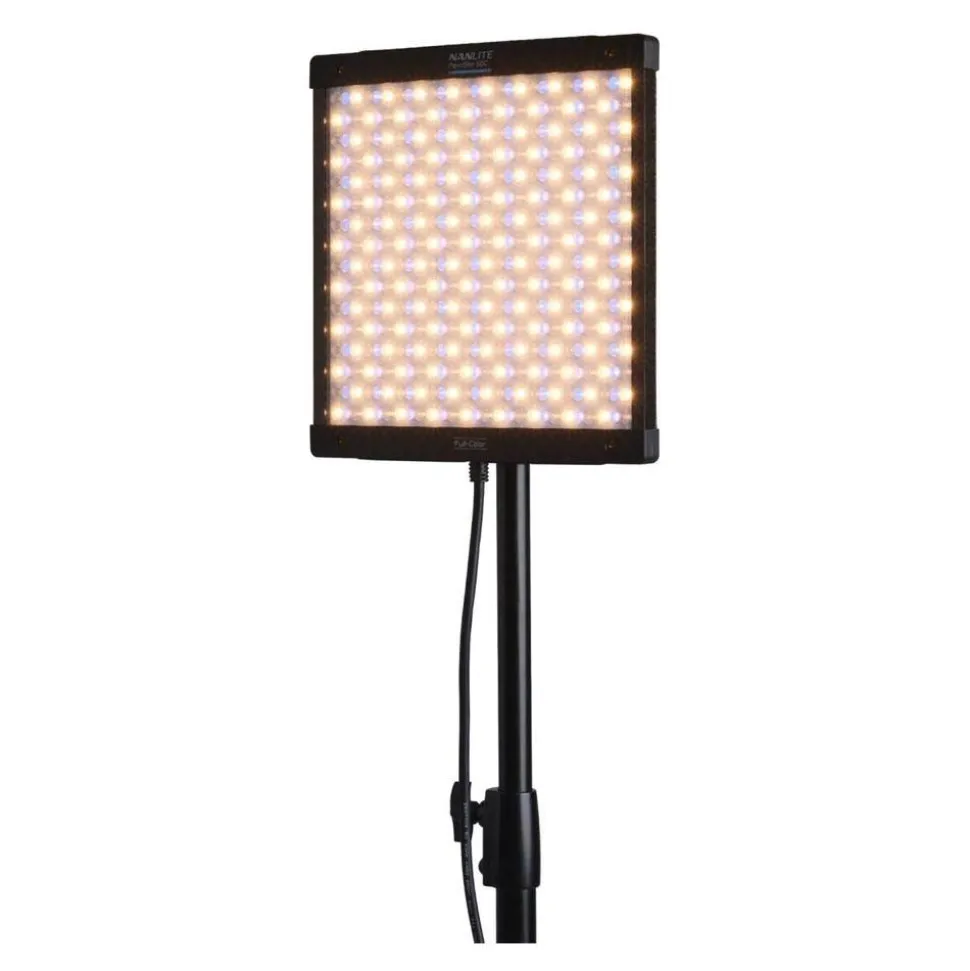

Nanlite PavoSlim 60C LED RGBWW LED Panel

The Nanlite PavoSlim 60C LED RGBWW LED Panel features a new design, which outperforms predecessors, despite offering brighter light output and a lighter design, which is exceptionally quick to set up.



Nanlite PavoSlim 60C LED RGBWW LED Panel Summary

The Nanlite PavoSlim 60C is an exceptionally thin and lightweight 1×1 RGBWW LED panel light that provides impressive output (7074 lux, 657.2 fc @1M 5600K), 0–100% dimming, a bi-color CCT range of 2700K–7500K with G/M adjustment of +/- 150, built-in CRMX LumenRadio, power through AC, NP-F or V-Mount battery, and includes a Control Unit, super clamp, softbox, 2 sets of diffusion, eggcrate grid, a swivel mount, a baby-pin mount, and a compact padded carrying case that safely holds everything.

SPACE-EFFICIENT & FAST
This is a portable fixture that easily fits into tight spaces and quickly sets up and breaks down. It has durable, heat-dissipating metal construction that operates without a fan and was designed to provide years of reliable service.

THIN YET POWERFUL
PavoSlim 60C is only 0.73″ (30.6 cm) thick, yet it features an advanced optical system that’s capable of outputting a sizable amount of light: 6362 lux (591 fc) @1M 3200K, 7074 lux (657.2 fc) @1M 5600K. In addition to bi-color and daylight-balanced output, PavoSlim 60C provides eye-catching RGB colors and 151 gel filter presets.

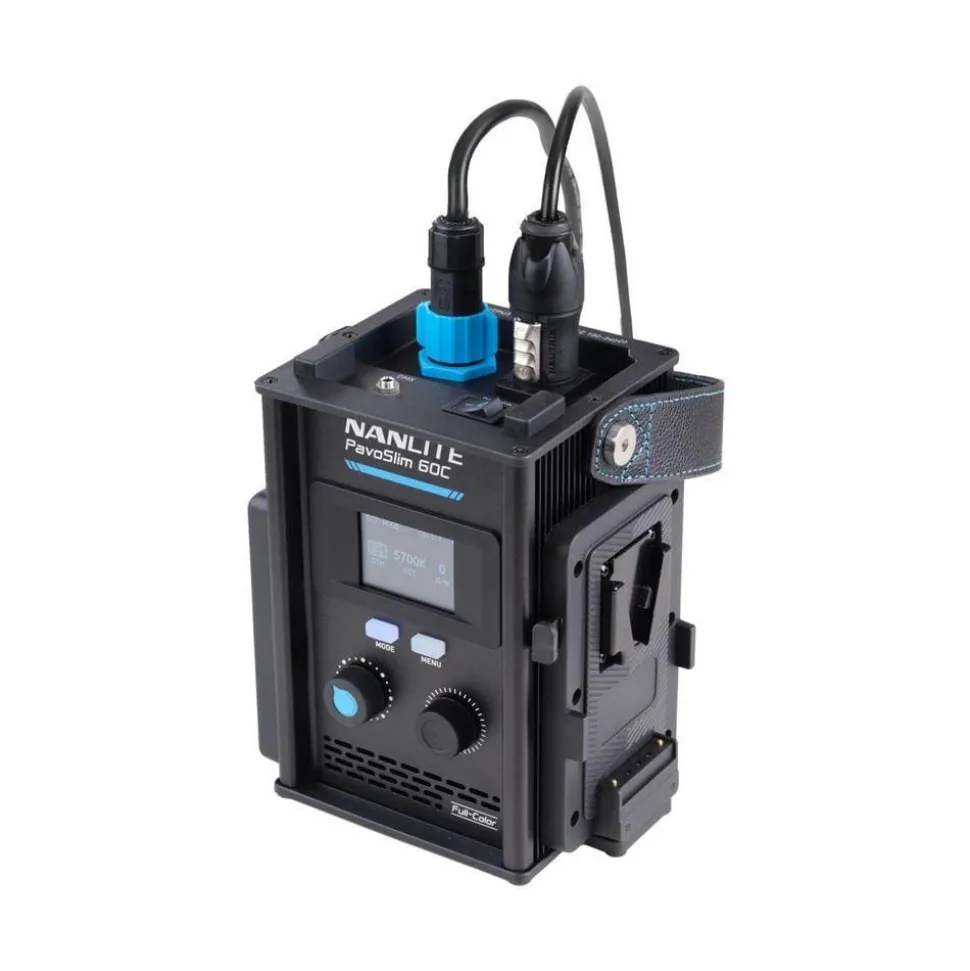

COMPLETE CONTROL
The Control Unit has easy-to-use buttons, knobs, and a screen. Put the panel high up on a stand while being able to access the controls and swap out batteries easily. Features a locking metal DMX/RDM port, built-in CRMX LumenRadio receiver, Bluetooth for the free NANLINK app, and 2.4G for the WS-RC-C2 handheld remote or WS-TB-1 Transmitter Box (both sold separately).

MULTIPLE MOUNTS
The body of PavoSlim is metal with multiple 4-pin locking plates incorporated into the back. The 2 included mounts slide into the plates and lock securely. One of the mounts has a fixed baby-pin, the other can be swiveled and locked into the exact position you desire.

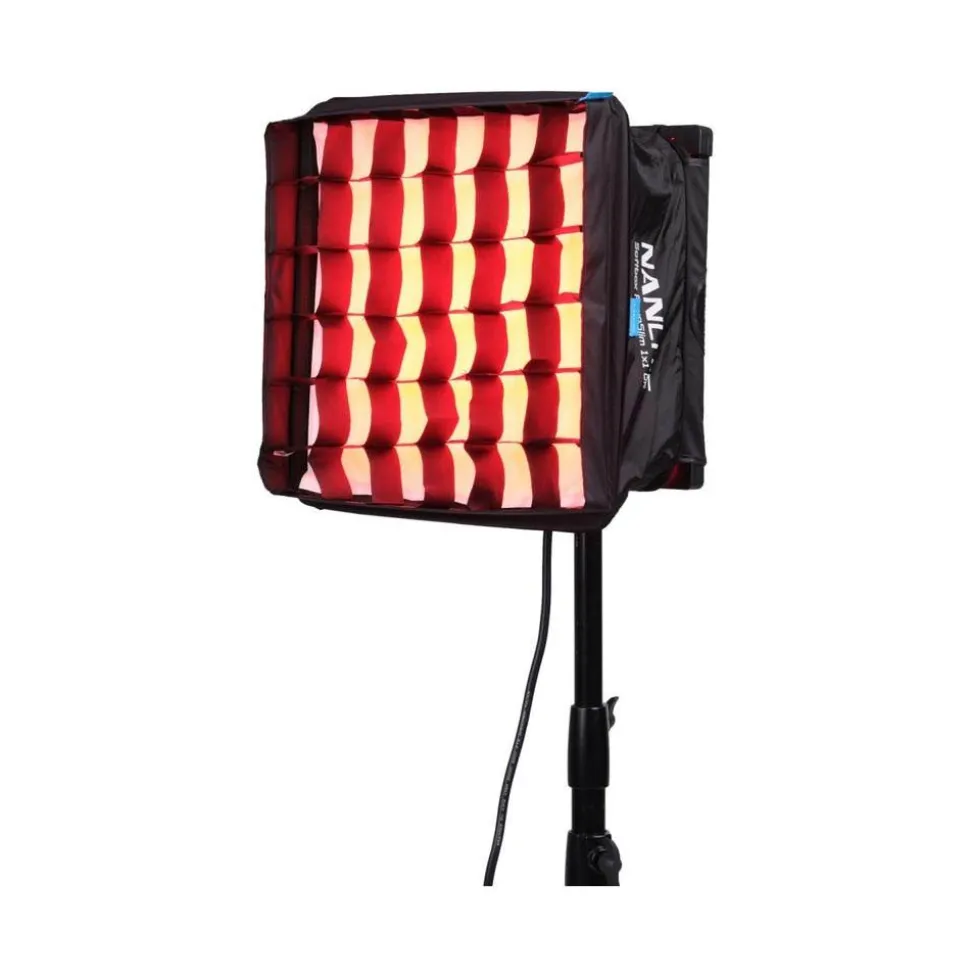

SOFTBOX & CASE
The slender padded carrying case has room for all the included accessories, like the quick-open softbox, grid, 1.5 stop, and 2.5 stop diffusers (which set up and break down in seconds). The case won’t weigh you down or consume unnecessary space in transit or storage.

FLICKER-FREE ACCURACY
Every Nanlite fixture delivers highly accurate performance that remains flicker-free even at incredibly high frame rates, and PavoSlim is no different. With the 60C, you can always have confidence in your colors: CRI average 96, TLCI average 97, TM-30 Rf average 94 and Rg average 100, SSI 3200K 83 and 5600K 74.

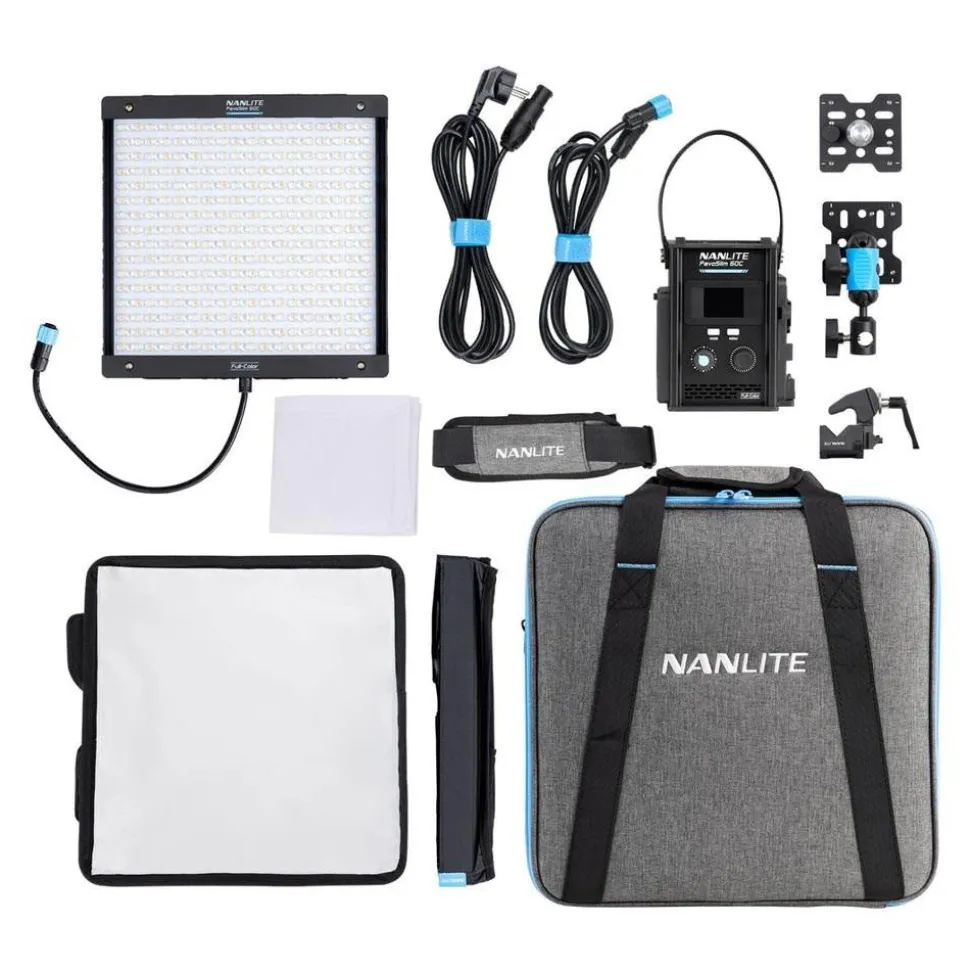

ITEM INCLUDES

• PavoSlim 60C LED RGBWW Panel
• Control Unit with 2 NP-F Battery Plates and 1 V-Mount Battery Plate
• Baby-Pin Holder
• Swivel Holder
• Quick-Release Clamp
• Baby-Pin Holder
• DC Connection Cable 8.5′ (2.6m)
• AC Power Cable 14.7′ (4.5m)
• Quick-Open Softbox
• 2x Diffusers (2.5 Stop Lite Diffuser, 1.5 Stop Standard Diffuser)
• Eggcrate
• Padded Carrying Bag
• User Manual
• 2-Year Limited Warranty

Specifications:

Rated Power: 72W
Input Voltage/Current: DC (Battery) 14.4-26V, DC (Battery) 7.4V×2, AC 100-240V 50/60Hz
CRI/TLCI: Average 96/ Average 97
CCT: 2700K-7500K(GM±150)
Control: On-board controller, 2.4G, Bluetooth, NANLINK APP, DMX/RDM, Lumenradio
Product Size(mm): 306.3×300.65×18.6mm/12.06×11.84×0.73″”
Product Weight (kg): 0.94kg/2.07lb
Illumination:
5600K: 24900 , 7074 , 1851
3200K: 22310 , 6362 , 1674
R:  9530 , 2580 , 675
G:  17520 , 4595 , 1182
B:  2510 , 660 , 169
