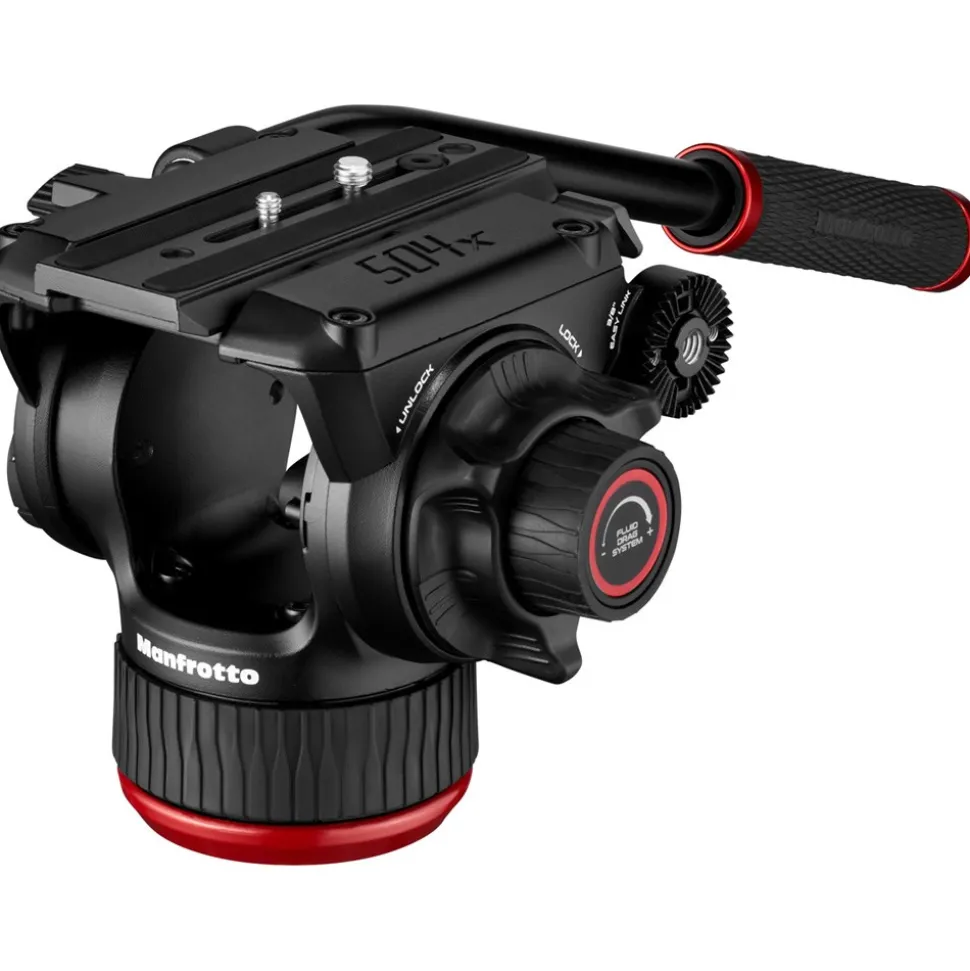

Manfrotto 504X & Alu Twin MS

$153.00

Categories: Tripods, Video Heads

Description
Reviews (0)

Summary

The complete range of Bridging technology heads, designed to provide an optimum support of the latest camera and camcorder, has now a new incredible video head, the new 504X. This new video head is going to replace the successful 504HD with a complete new design and many other features.

Capturing smooth reliable footage every time is essential for any filmmaker, the new Manfrotto 504X head will give you unrivaled stability and smoothness time after time.

504X fluid video head is the evolution of the successful 504HD.

This is the more compact and lighter version that finally comes with flat base, developed to satisfy videographers’ needs.

New catching design with flat base

Perfect balance of design and performance for optimum balance of strength and size. The flat base ensures versatility.

4 steps CBS and fluidity on both PAN & TILT powered by new fluid technology

4 steps counterbalance system up to 6,5 kg/14,3 lb at 55 mm/2,2 in C.O.G ensures quick set up and optimal performance. Extremely smooth movements are guaranteed by the fluidity function on PAN & TILT.

Great payload

The head has a maximum payload up to 12 kg / 26,5 lb.

Size and portability

More compact and lighter then ever with feature an illuminum design ensuring it will last you a life time.

Features

New easy link connectors
comes with Manfrotto anti rotation technology and Arri pin. The pan bar attachments on both left and right sides of the head give maximum flexibility. On the left side a cap, that cover 3/8” easy link connector, to avoid cutting during the use.

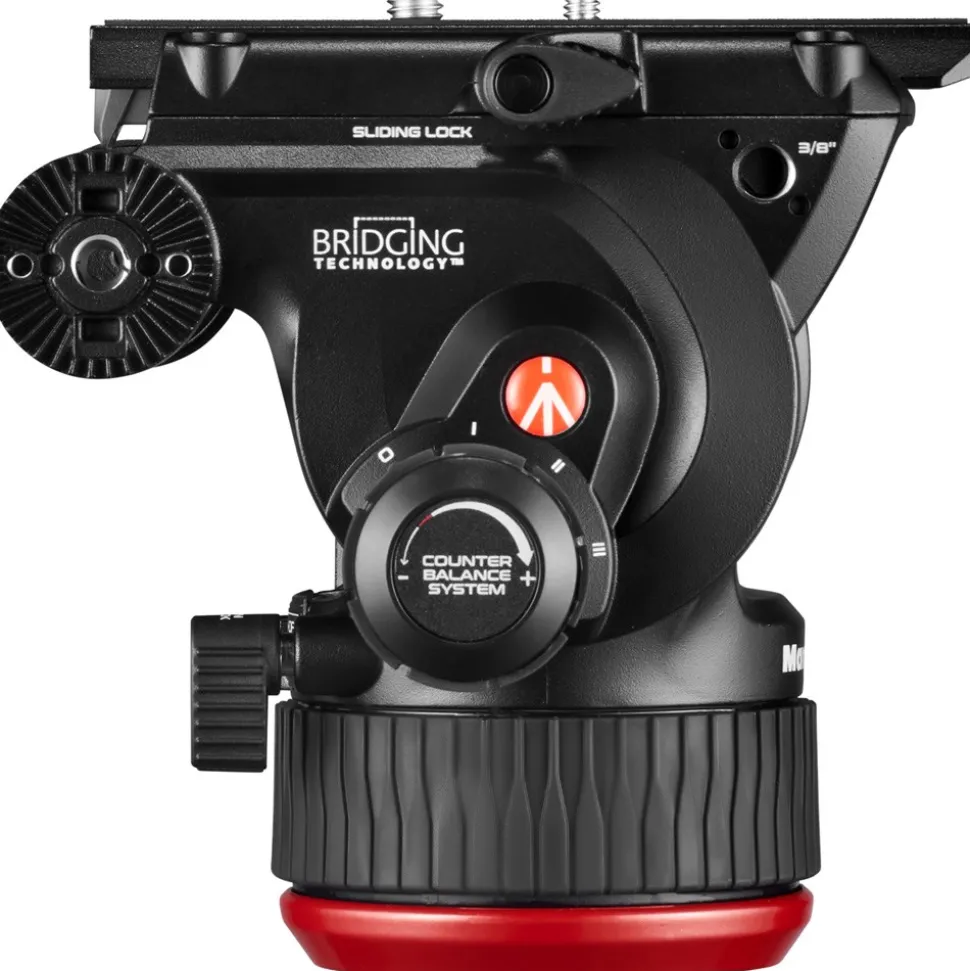

4 steps CBS
The head offers unrivalled stability and allows smooth shooting thanks to 4-steps counterbalance System up to 6,5 kg/14,3 lb at 55 mm/2,2 in C.O.G.
STEP 0: off
STEP 1: 2,2 kg / 4,8 lb
STEP 2: 4,4 kg / 9,7 lb
STEP 3: 6,5 kg / 14,3 lb

Flat base
to have more options for shooting on sliders, jibs or other accessories.

Sliding quick release plate
sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment, keeping video equipment stability and balance.

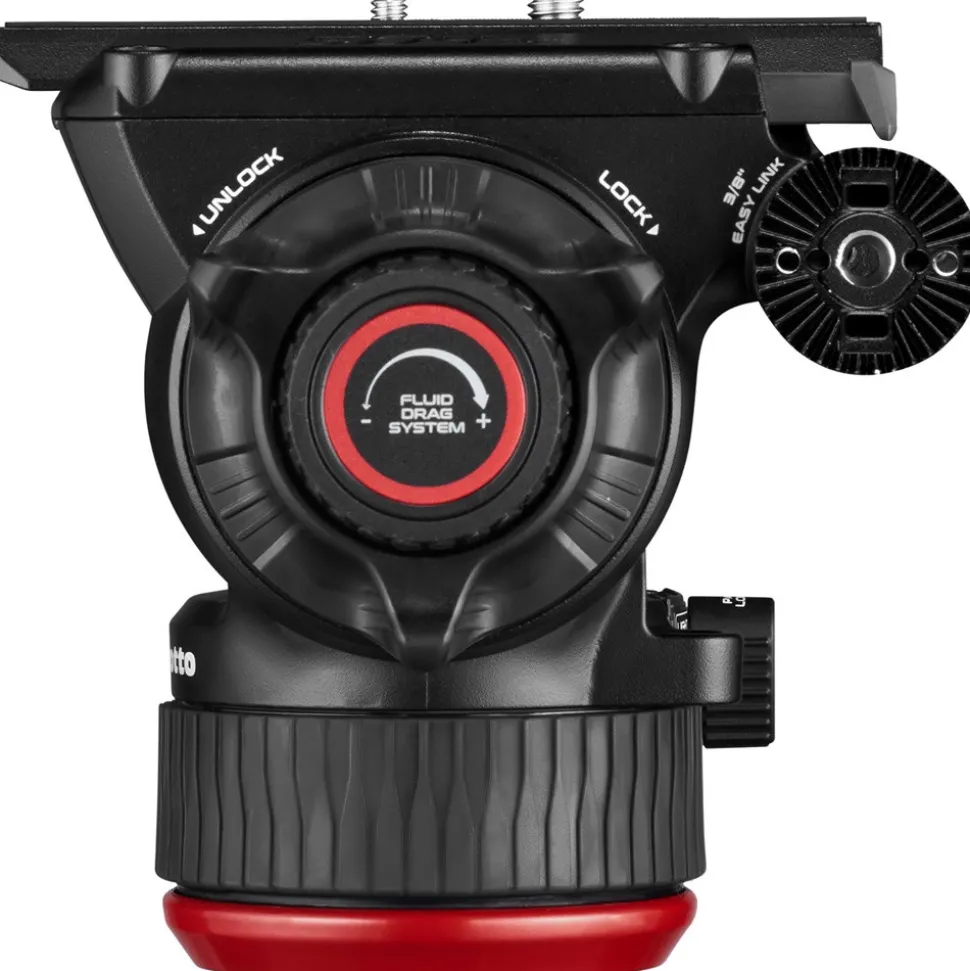

New fluid technology
The variable continuous fluid drag system is powered by a new fluid technology, which sets a new level of performance in the Manfrotto range, boosting the smoothest and judder-free pan and tilt movements.

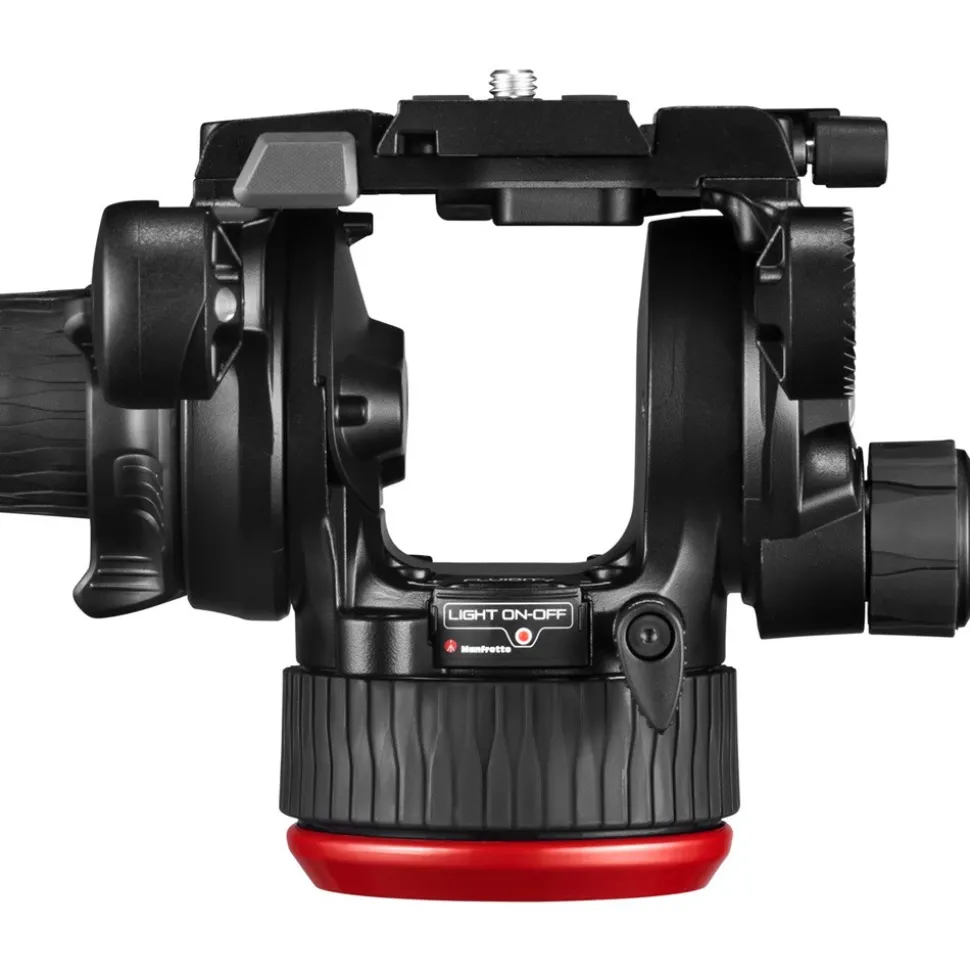

Brakes
Independent brakes on TILT and PAN axes. The 504X increases the capability of keeping the heavy equipment safe, stable and in position.

Bubble level
The back bubble level lets you level the heads even in low light conditions.

Offers: N/A

Offer Category: Tripods

Offer Product Type: Video Heads

Colour: N/A

Height (mm): N/A

Length (mm): N/A

Width (mm): N/A

Weight (g): N/A

Carry bag: N/A

Closed length (mm): N/A
