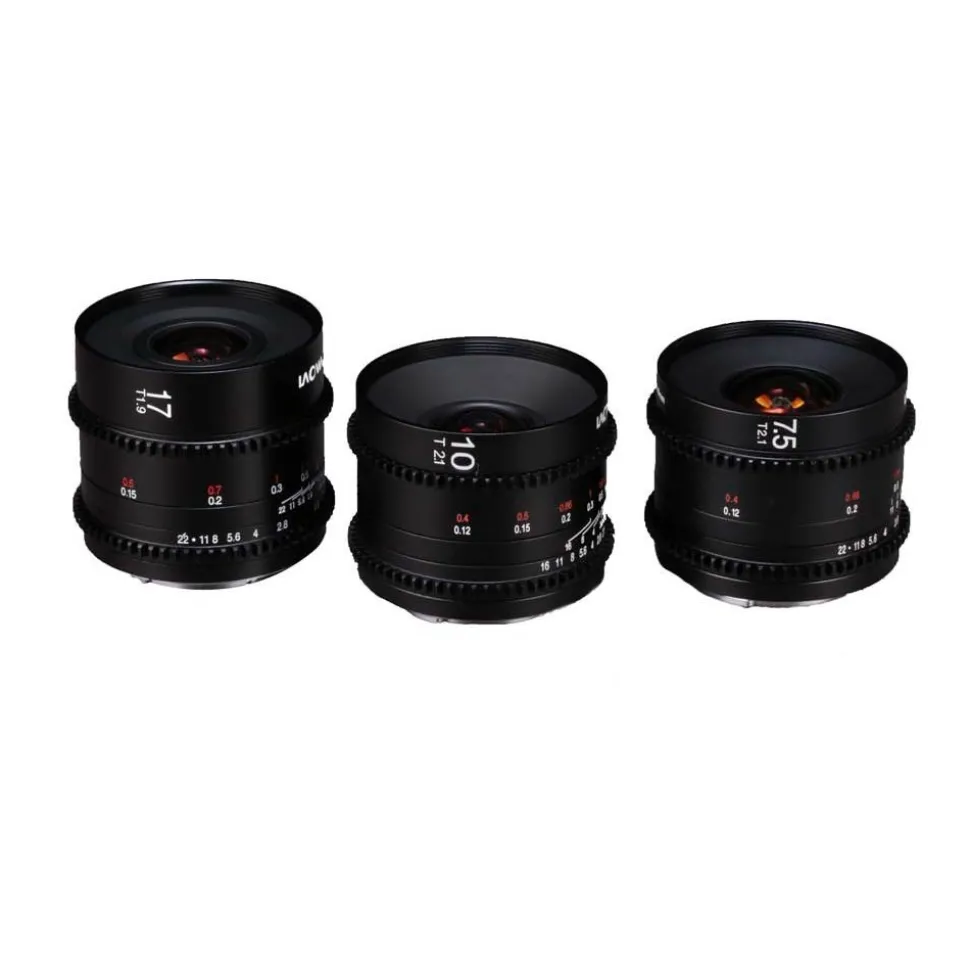

Laowa Wide Angle Cine Lens Kit for Micro Four Thirds

The Laowa Wide Angle Cine Lens Kit for Micro Four Thirds includes three Cinema primes with a 7.5mm, 10mm and 17mm for compact, lightweight video which all feature a bright aperture & screw-in filter compatibility.



Laowa Wide Angle Cine Lens Kit for Micro Four Thirds Summary

7.5mm T2.1 MFT Cine Features

• 110° angle of view
• Large Aperture – T2.1 for low light environment
• Short focusing distance: 12cm /4.72”
• Light and compact (can be used on drones)
• Screw-in filter is allowed: 49mm for compact settings
• Cine mod- allow follow focusing
• *Pelican Protective Cases

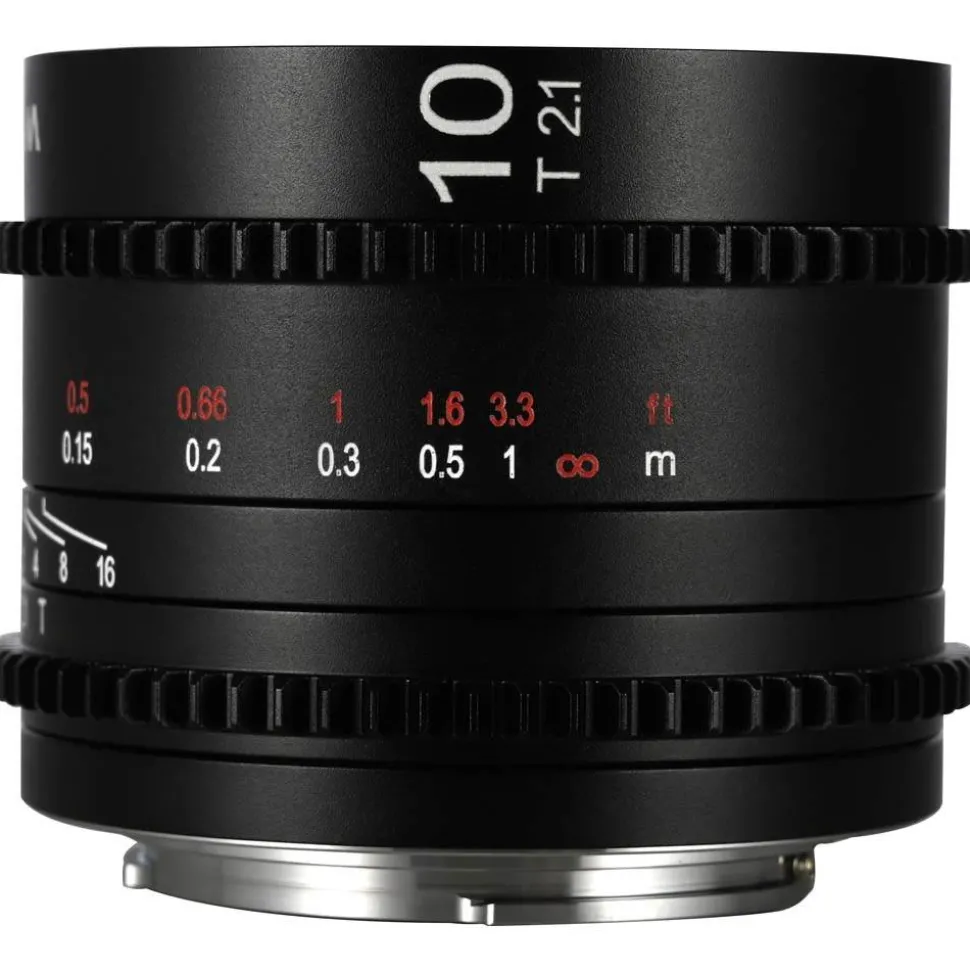

10mm T2.1 Zero-D MFT Cine Features

• 96° angle of view
• “Zero-D”
• Large Aperture – T2.1 for low light environment
• Short focusing distance: 12cm
• Light and compact (can be used on drones)
• Screw-in filter is allowed: 49mm
• Cine mod- allow follow focusing
• *not Pelican Protective Case

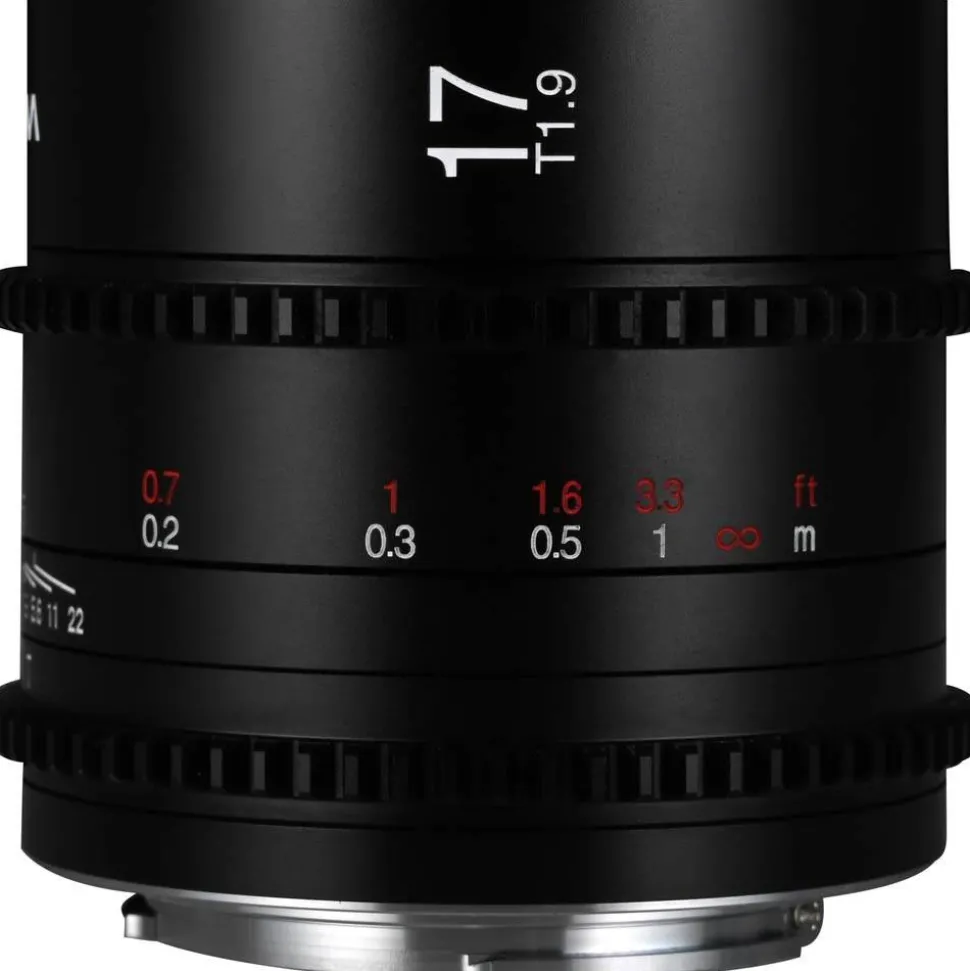

17mm T1.9 MFT Cine Features

• Large Aperture – T1.9 for low light environment
• Short focusing distance: 15cm (5.90”)
• Light and compact
• Screw-in filter is allowed: 49mm
• Cine mod- allow follow focusing
• * Not Pelican Protective Case

Laowa Wide Angle Cine Lens Kit for Micro Four Thirds Specifications

Name	7.5mm T2.1 MFT Cine	10mm T2.1 Zero-D MFT Cine	17mm T1.9 MFT Cine
Focal Length	7.5mm	10mm	17mm
T-Stop Range	T2.1-22	T2.1-22	T1.9-22
Format Compatibility	Micro Four Thirds	Micro Four Thirds	Micro Four Thirds
Angle of View	110°	96°	65°
Image Circle	21.6mm	21.6mm	21.6mm
Lens Structure	13 elements in 9 groups	11 elements in 7 groups (2 pcs of ED glasses & 2 pcs of aspherical glasses)	9 elements in 7 groups (1 pc of ED glass)
Aperture Blades	7	5	7
Min. Focusing Distance	12cm (4.72”)	12cm (4.72”)	15cm (5.90”)
Max. Magnification	0.13x	0.15x	0.2x
Filter Thread	Φ49mm	Φ49mm	Φ49mm
Dimensions	~Φ56 x 46mm ( 2.20 x 1.81”)	~Φ56 x 47mm (2.20 x 1.85”)	~Φ56 x 53mm ( 2.20 x 2.08”)
Weight	~170g excluding front and back caps (5.99oz)	~150g excluding front and back caps (5.29oz)	~175g excluding front and back caps (6.17oz)
Mounts	MFT	MFT	MFT
