- High optical performance from an advanced design with 4 ED elements rendering sharp details throughout
- Ultra compact and lightweight ultra wide angle pancake lens for Canon RF mount mirrorless cameras
- Well controlled distortion from the world’s widest rectilinear pancake lens, enabling you to capture straight lines
- Renders striking 10-point sunstars from a 5-bladed aperture design to help your images stand out
- Particularly close 10cm minimum focus distance for close-ups, dynamic wide angles and macro-style images
Â
Key Features
- Extremely compact 25mm long and lightweight 130g ultra wide angle prime
- World’s widest rectilinear pancake lens with 109.3° angle of view
- Designed for  with an APS-C image circle
- Super-low distortion
- High optical performance
- 10-point sunstar from a 5-bladed aperture design
- Close 10cm minimum focusing distance
- Built-in 37mm filter thread

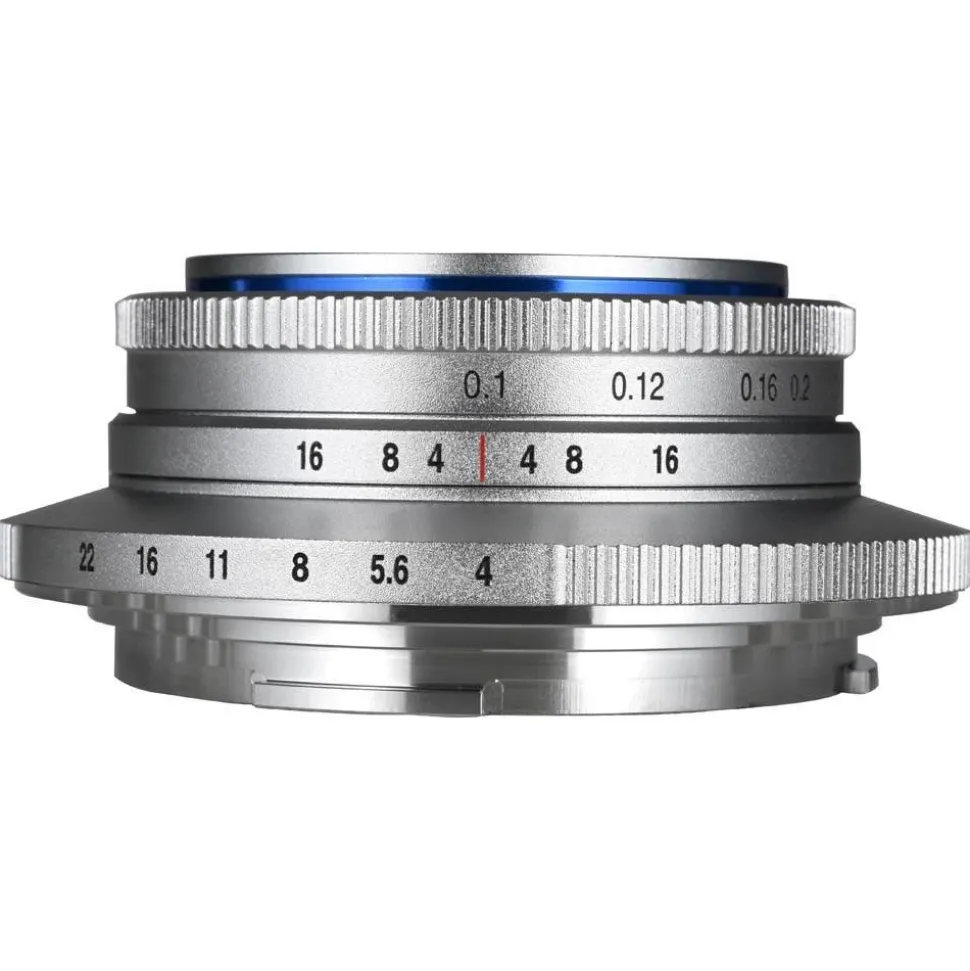

Laowa 10mm f/4 Pancake Lens Silver for Canon RF Summary
Joining a host of extremely accomplished  is the ultra-compact and lightweight Laowa 10mm f/4 Pancake Lens Silver for Canon RF mount. It features a high quality optical design with special glass elements to render good image quality and sharpness, with an ultra wide 109.3° angle of view. This lends the 10mm f/4 Pancake to a variety of subjects including landscapes, seascapes, city and general purpose shooting, perfect for cameras such as the  and .
A unique 5-bladed aperture design renders beautiful 10-point sunstars and the lens displays extremely well controlled distortion, which is ideal for maintaining straight lines in your images and particularly beneficial to architectural shots. Laowa’s advanced optical design features 12 elements arranged in 8 groups, with 2 aspherical and 4 extra-low dispersion elements, which render excellent results across the frame.
Laowa 10mm f/4 Pancake Lens Silver for Canon RF in More Detail
High optical performance
Whichever subjects you shoot with the Laowa 10mm f/4 Pancake Lens Silver you’ll benefit from impressive image quality for a pancake lens, with good flare and ghost control when shooting backlit subjects. When the lens is stopped down to f/8 sharpness is extremely high, which is ideal for subjects for which this ultra wide angle lens is intended.
Super compact and lightweight
With a weight of just 130g and measuring Ø59.8 x 25mm, the Laowa 10mm f/4 Pancake Lens in Silver is easy to handhold and bring along for all-day shooting. It includes an equally compact 37mm filter thread, enabling you to add  such as ,  and more.
Ultra low distortion results
The Laowa 10mm f/4 Pancake Lens (Silver) renders 109.3° angle of view, making it the world’s widest rectilinear pancake lens at launch. This allows you to capture horizontal and vertical straight lines in buildings, streets and any other subjects with straight lines, where minimal distortion and realistic results are rendered.
10-Point sunstars
Laowa’s unique design includes an aperture diaphragm with 5 aperture blades, which creates impressive sunstars with 10 points to enhance your images.
Close minimum focus distance
Create dynamic compositions with an extremely close 10cm minimum focus distance and 0.15x maximum magnification. This extends the versatility of the 10mm pancake for macro-style close-up images and creating subject separation from the background.
Sample Images
©Thomas John
©Thomas John
©Richard Wong
©Dylan Goldby
©Jimmy Chan
©Alex Barcella
©Alexander Martindes Chung
©Alexander Martindes Chung
©David Mckeegan
©David Mckeegan
Specifications
| Focal Length | 10mm |
| Aperture Range | f/4-22 |
| Angle of view | 109.3° |
| Format | APS-C |
| Lens Structure | 12 elements in 8 groups (4 ED elements) |
| Aperture Blades | 5 blades |
| Max. Magnification | 0.15x |
| Min. Focusing Distance | 100mm |
| Focus Mode | Manual (MF) |
| Dimensions for Filter Thread | Ø 37mm |
| Dimensions | About Ø 59.8mm * 25mm |
| Weight | About 130g |
What’s in the Box
| Offers: N/A |
| Offer Category: N/A |
| Offer Product Type: N/A |
| Autofocus: N/A |
| Aperture ring: Yes |
| Constant Aperture: Yes |
| Lens CIPA Image stabilization rating: N/A |
| Colour: N/A |
| Diameter (mm): 53 |
| Length (mm): 41 |
| Weight (g): 125 |
| Distance scale: Yes |
| DoF scale: Yes |
| Elements: 11 |
| Environmental Sealing: N/A |
| Focus distance limiter: N/A |
| Focal length: 10 mm |
| Focus method: N/A |
| Filter Thread: N/A |
| Full time manual: Yes |
| Groups: 7 |
| Hood supplied: Yes |
| Lens Image stabilization: N/A |
| Lens mount: N/A |
| Lens Materials: N/A |
| Maximum focal length: 10 |
| Maximum magnification: 0.15 |
| Maximum aperture (number): 4 |
| Maximum aperture (text): N/A |
| Max Format size: N/A |
| Minimum focal length: 10 |
| Lens Minimum focus distance (m): 0.12 |
| Minimum aperture (number): 16 |
| Minimum aperture (text): N/A |
| Motor type: N/A |
| Number of diaphragm blades: 5 |
| Power zoom: N/A |
| Special elements / coatings: ED + glass aspherical elements |
| Tripod collar: N/A |
| Lens type: N/A |
| Wide/Tele: N/A |
| Lens Level: N/A |
| Best For: N/A |
| Best For Holiday and Landscape: Yes |
| Best For Interior and Architecture: Yes |
| Best For Fashion and Portrait: N/A |
| Best For Macro and Still Life: N/A |
| Best For Astro: N/A |
| Best For Street: Yes |
| Best For Wildlife and Sport: N/A |
| Zoom lock: N/A |
| Zoom method: N/A |
| Notes: N/A |
