Hedbox NINA M Li-Ion Battery Pack 6700mAh V-Mount

NINA M Mini V-Mount Battery 99.20 Wh 2x D-tap & USB-A and USB-C Out OLED Display with IDR System




Hedbox NINA M Li-Ion Battery Pack 6700mAh V-Mount

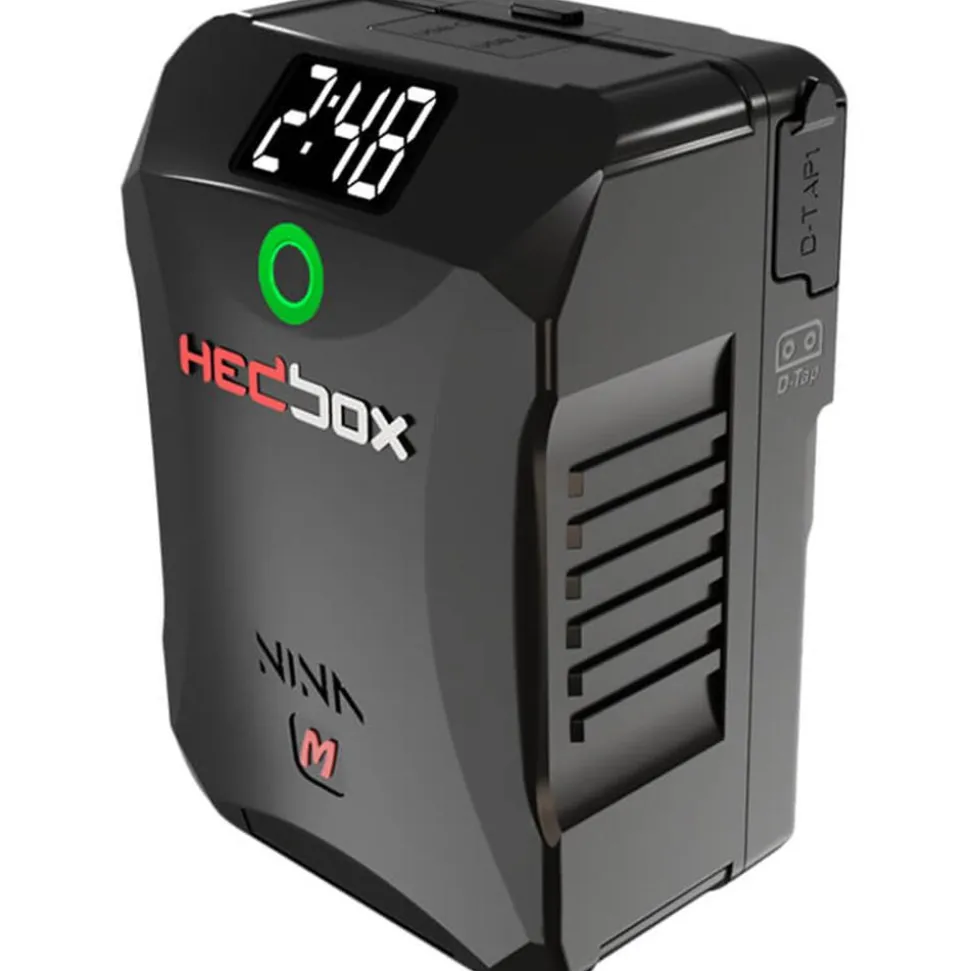

The NINA series of Hedbox stands for High Performance and High Safety Design mini Battery Pack. The new and revolutionary IDR System provides full control and display of the battery status. On the high-contrast OLED Display, the Battery Capacity, Remaining Time, Circle usage, and Charging function are visible during the day and night.

Through its additional 2xD-Tap DC output the NINA can deliver power to all additional accessory devices. An extra USB-A and USB-C power input allows the charging of the battery with regular USB chargers. Also the same can be used as Power output for mobile phones, tablets, or other accessories using one single battery.

Mini V-Mount Battery 99.20 Wh 2x D-tap & USB-A and USB-C Out OLED Display with IDR System

Capacity Percentage Display
Upon pressing the IDR button (Indication Display Ring)
The OLED Display shows the battery capacity status in percentage (%)

Remaining Time Display
Upon pressing the IDR button ( Indication Display Ring)
The OLED Display shows the battery capacity remaining time in minutes

Total Usage Display
Upon pressing the IDR button (Indication Display Ring)
The OLED Display shows the total usage of the battery lifetime
The usage is counted per circle (one circle is total charging/discharging)

USB Charging Display
Upon pressing the IDR button ( Indication Display Ring)
The OLED Display shows the charging process of the battery
The charging readout is shown as an indication and a percentage

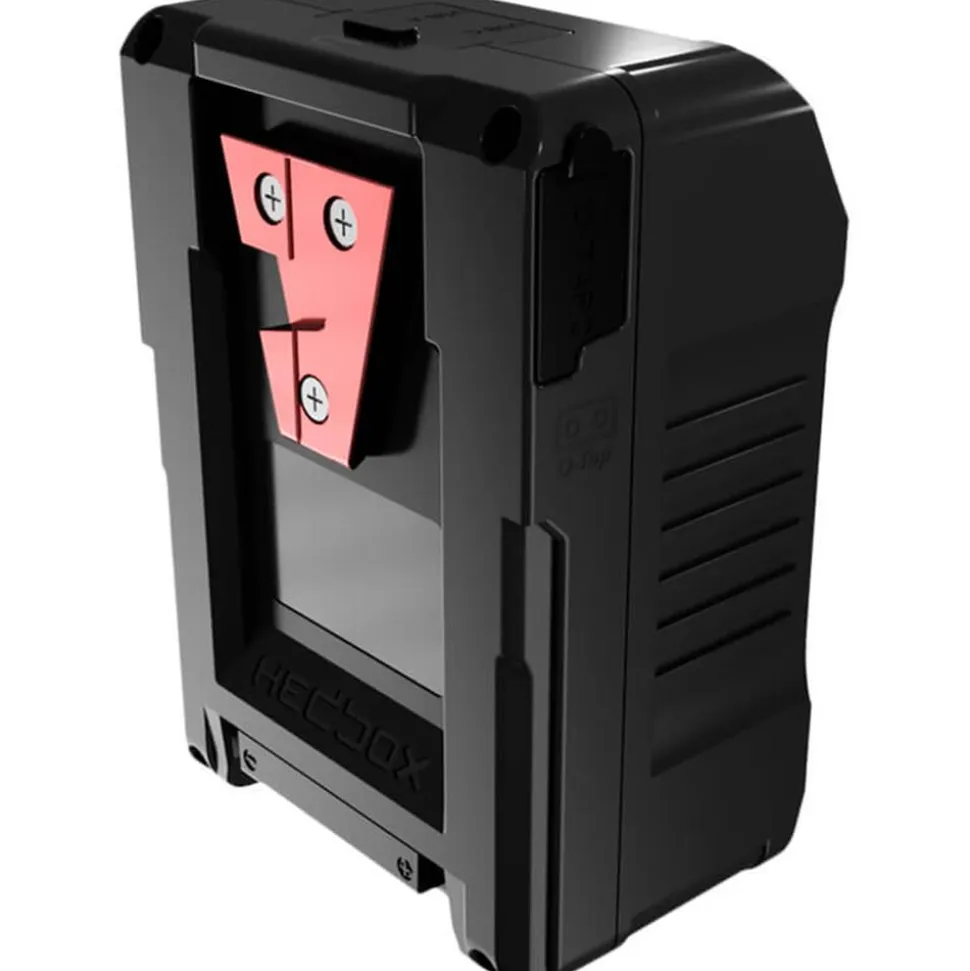

V–Mount Connection Holder

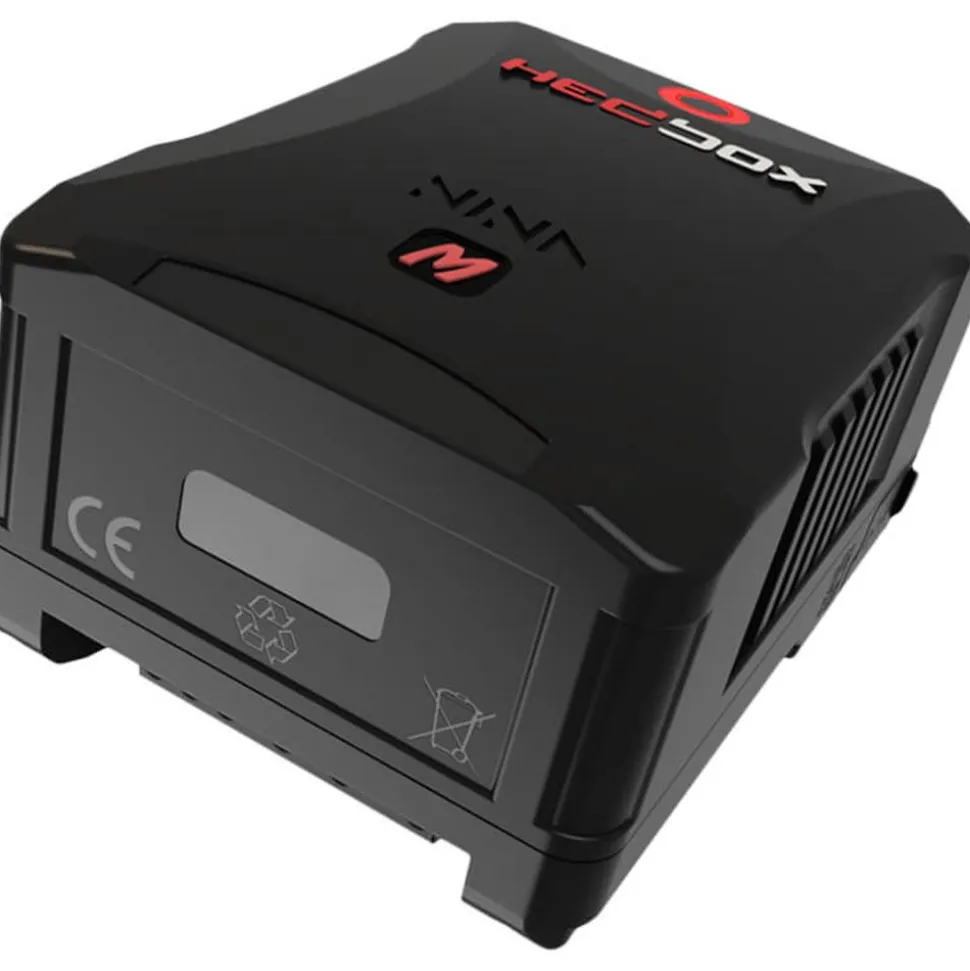

NINA M has a standard V-Mount connection. The V-Wedge is made from a special structure of high-quality dur-aluminum. This material enables safe, rugged, and reliable mounting of the battery on all products on which the battery will be used

Battery Charging OLED Display
During the Battery Charging process, via the USB Charger/cable, the battery OLED Display shows the real-time charging process. The readout is visibly shown in the charging indication progress and the current state of battery capacity status. The battery Capacity status is counted per one percent (1%)

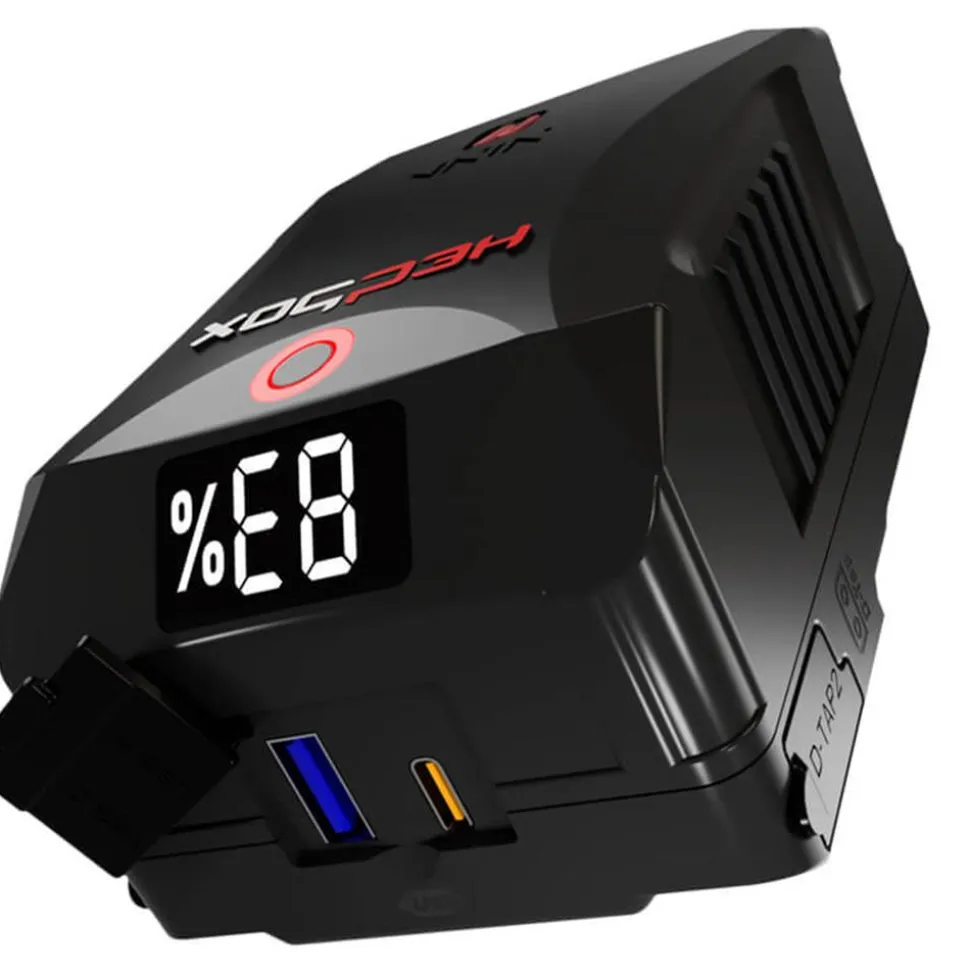

Two D-Tap, Power Out – USB-A and USB-C
Through its additional integration on both sides D-Tap DC Power output. The NINA M battery can deliver two times 16.8V, 135W/ 8A of power. An extra USB-A power provides 5V/3A , 9V/2A , 12V/2A and another USB-C can sustain 5V/3A、9V/3A、12V/3A、15V/3A、20V/3.25A (65W) Both USB outputs support PD3.0/QC2.0/QC3.0/PPS/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A This allows the charging of mobile phones, tablets, or other accessories using one single battery

Low Capacity Emergency ALARM
When the battery capacity drops below 20%. The battery IDR emergency ALARM lights up. The strong and visible fleshing IDR ring, (silent mode no buzzer), warns the user that the battery has fallen below 20% capacity. This unique function gives the camera operator enough time to finish the recording and replace the battery in time

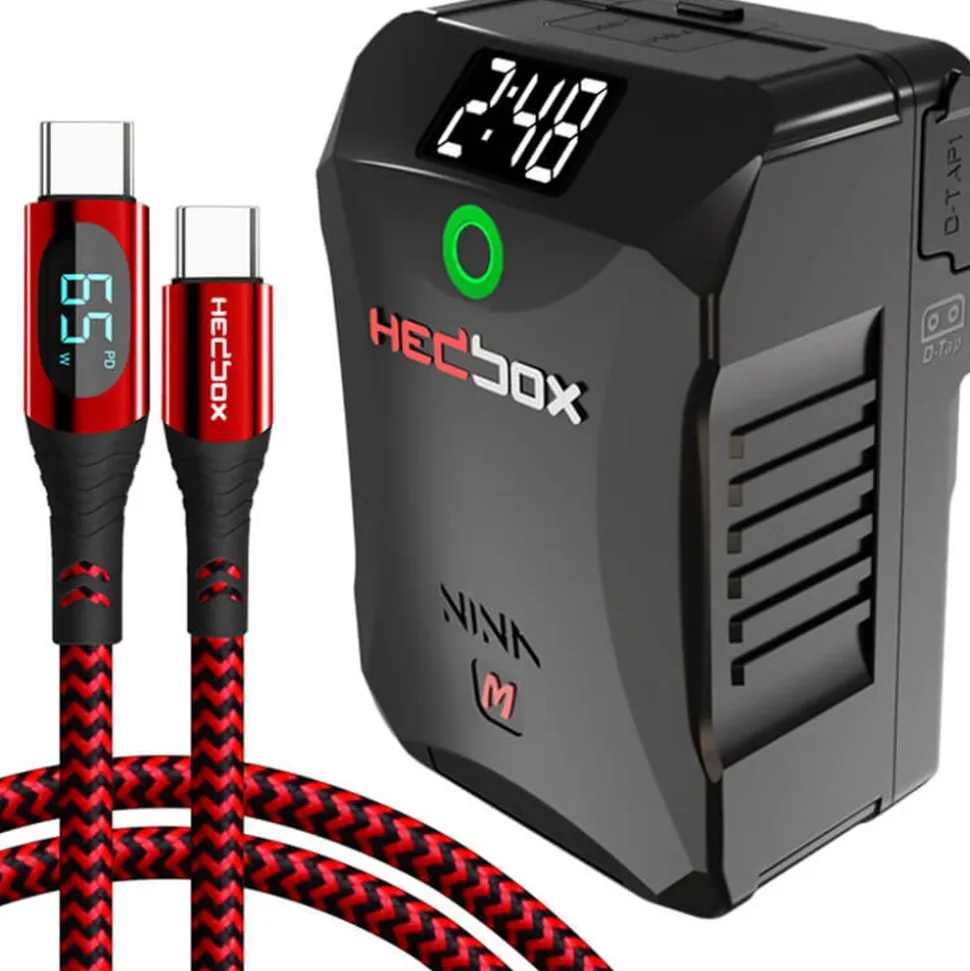

USB-C LED Cable Included
The cable has an LED display that in real-time shows charging power, and charging status. Built-in smart chips monitor the charging power and adjust current and voltage automatically, avoiding damage to the battery in case of an unstable current. (Please note display module just shows charging power, it neither increases nor decreases charging current)

Cable Lenght: 1.2m / 3.93 ft
Cable Type: USB-C to USB-C
Power Delivery 3.0, Qualcomm Quick Charge 5.0 protocol (2.0/3.0/4+)
Super fast charging 2.0 and PPS 65W/45W/25W

In the Box:

• 1x NINA M BATTERY PACK
• 1x USER MAUNAL (ENGLISH)
• 1x 1 YEAR LIMITED MANUFACTURER’S WARRANTY
