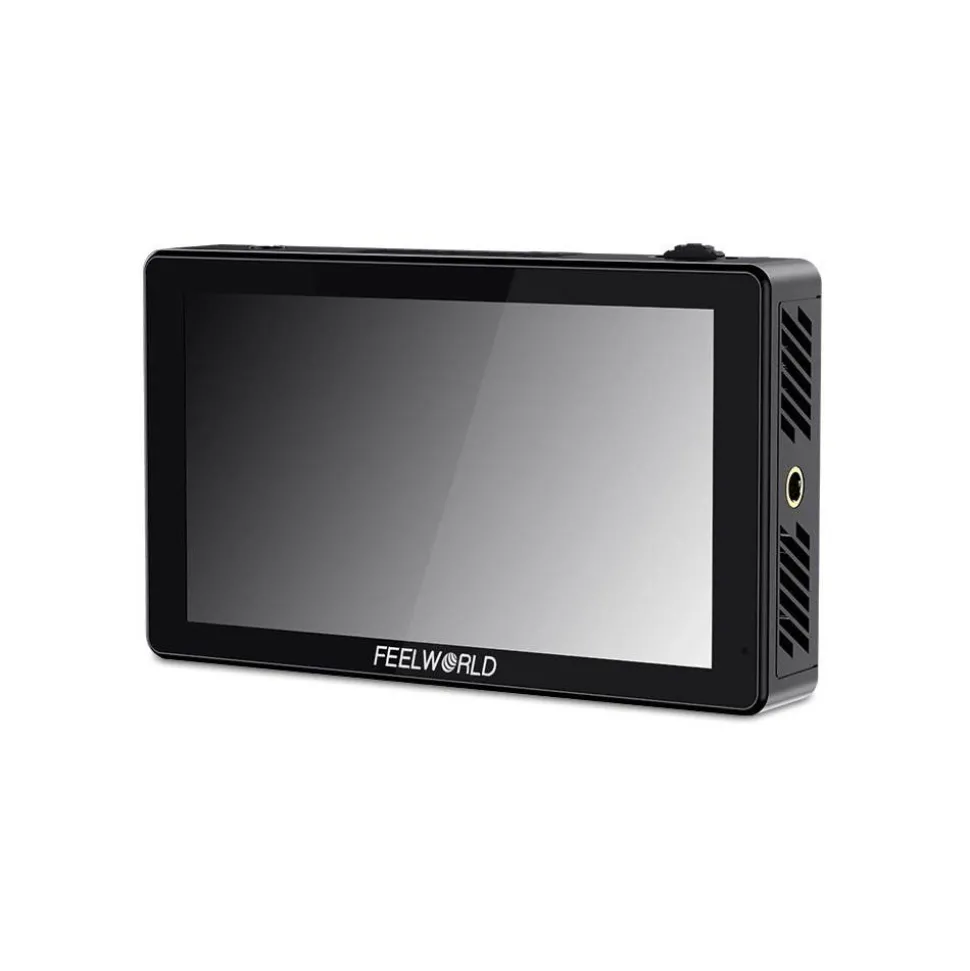

Feelworld LUT5 5.5 Inch Touch Screen Field Monitor

With a sharp 1920×1080 resolution and impressive 3000 cd/m² brightness, the Feelworld LUT5 5.5 Inch Touch Screen Field Monitor is as visible in the great outdoors as it is in the studio.

Key Features

• 5.5″ IPS panel for accurate content monitoring
• Ideal for filmmakers, videographers and content creators
• Delivers sharp video resolutions up to 3840×2160 pixels
• Wide viewing angle ensures distortion-free viewing from various angles
• Calibrated for precise colour rendering and maintaining footage consistency
• Supports Rec.709 and DCI-P3 colour spaces
• Built-in 3D LUTs for visualisation of post-production colour grading
• HDMI connectivity for use with cameras, camcorders, laptops, and other devices

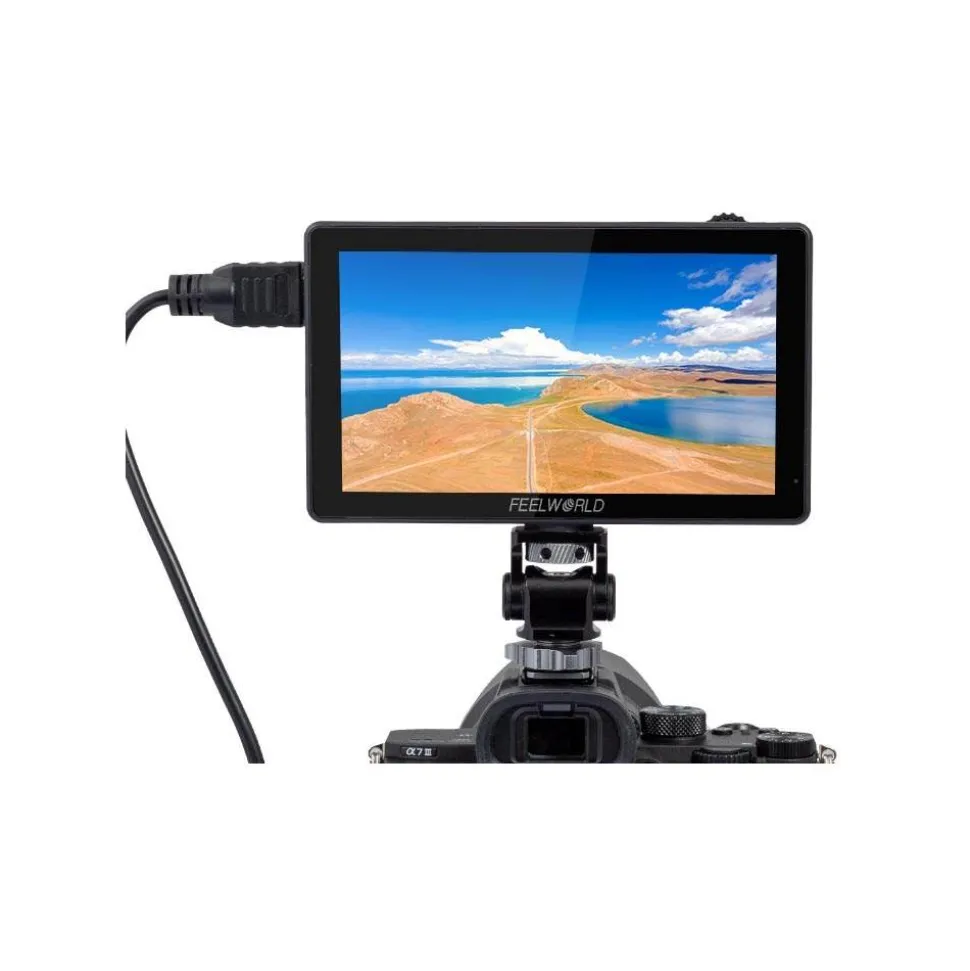

• Easily mounts on cameras or rigs without adding unnecessary bulk
• Features 1/4-inch screw holes and hot shoe mounts for versatile setup
• Designed to withstand on-set use, travel and on-the-go filmmaking
• Check footage with focus peaking, zebras, and other essential monitoring tools
• Intuitive controls provide easy customisation and operation

Feelworld LUT5 5.5 Inch Touch Screen Field Monitor Summary

The Feelworld LUT5 5.5-Inch Touch Screen Field Monitor is an indispensable tool for professional videographers and filmmakers. Designed to enhance your shooting experience, this high-resolution  offers exceptional performance and visual clarity. Its 5.5-inch IPS screen features a 1920×1080 resolution, delivering vibrant colours and sharp details, even in bright outdoor settings thanks to its impressive 3000 cd/m² brightness.

It comes packed with professional tools like waveform, histogram, and peaking focus assist, ensuring that the LUT5 provides precise monitoring and focus control. The 3D LUT colour calibration provides accurate colour reproduction, helping you achieve the perfect shot while editing in post. Built to endure the rigours of professional use, the LUT5 monitor from Feelworld is durable and portable, making it easy to take on location.

If you regularly film on-location in the outdoors this panel by  could be the ideal solution due to the exceptionally bright 3000nits screen, which is clearly viewable in direct sunlight. With support for HDMI signals up to 4K@30Hz HDR monitoring is also available, future-proofing the screen for HDR content creation.

Feelworld LUT5 5.5 Inch Touch Screen Field Monitor in More Detail

 Perfect For Outdoor Filming

The Feelworld LUT5 is a 5.5-inch ultra-bright on-camera monitor, designed with outdoor shooting in mind. Boasting a seriously impressive 3000nits of brightness, the screen remains perfectly visible even in direct sunlight, eliminating the need even for a sunshade.

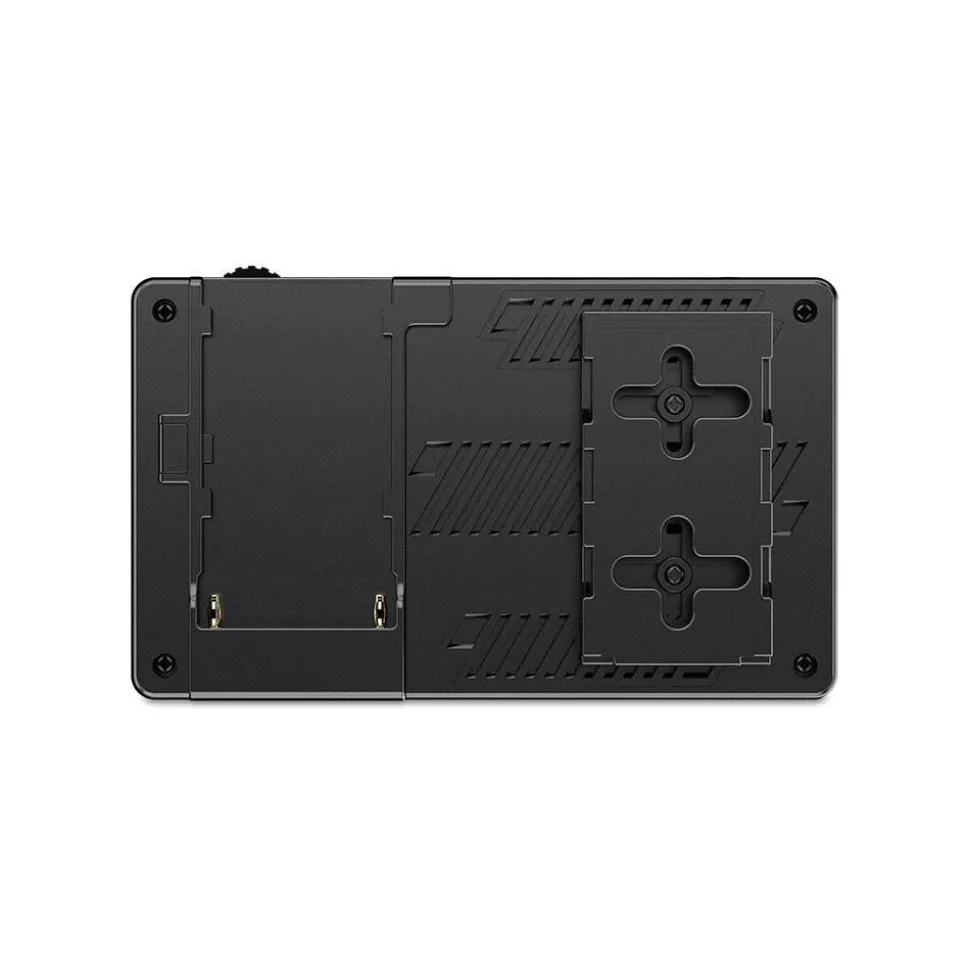

This Full HD LCD touchscreen also provides intuitive operation and supports 4K HDMI signals, custom 3D LUTs, plus other professional tools. The rear of the monitor features an F970 battery mount and power kit, allowing for wireless transmission and a clutter-free setup, which is perfect for director monitoring.

The 3000nit ultra-bright display ensures that the Feelworld LUT5 remains clearly visible even under strong sunlight, so you can capture your shots without the hassle of a sunshade.

Lightweight and Portable

Weighing just 270 grams, the Feelworld LUT5 is compact and lightweight, making it ideal for use with gimbals. This portability ensures you can quickly move around the set and capture great shots on the first take.

5.5-Inch LCD Full HD Resolution

The Feelworld LUT5’s 5.5-inch Full HD display, with a resolution of 1920×1080, delivers stunning colour accuracy and clarity. With a brightness of 3000nits, 1000:1 contrast ratio, and sRGB/Rec.709 colour gamut, this is also ideal for shooting in bright conditions. A wide 160º viewing angle allows multiple crew members or a client to easily view the footage with excellent clarity.

Versatile Light Sensor for Auto Dimming

Whether you’re filming in a dim studio or under bright midday sun, the Feelworld LUT5 automatically adjusts its brightness thanks to its ambient light sensor, ensuring optimal visibility in any environment.

Intuitive Operation

The innovative touchscreen interface on the screen offers intuitive control with tap and swipe gestures allowing you to navigate the monitor’s features without the need for buttons.

Built-in Cooling System

This screen is equipped with a heatsink and an efficient fan, combined with a well-ventilated design, ensuring effective cooling and reliable performance even during long shoots..

Touch Screen Operating Instructions

1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the “” key.
3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
4. Click any space beside the menu to exit.

Advanced features

• Support 3D LUT Log to Rec.709, user 3D LUT Upload
• Support Touch Menu
• Parade (RGB, YUV, Y)
• All Waves*
• Vector
• RGB Histogram
• Brightness Histogram
• Embedded Audio
• Peaking Focus (red, green, blue, white, yellow five peaking colours optional; 1~10 peaking level adjustable)
• False Colours
• Zebra Exposure (1%~100% adjustable)
• Check Field (Red, Green, Blue, Grey)
• Scan Mode (Under Scan, Over Scan)
• Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag)
• Image Flip (H, V, H/V)
• Image Freeze
• Centre Marker
• Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1)
• Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
• Marker Color (red, green, blue, white, black, yellow)
• Colour Temperature Adjustment (5600K, 6500K, 9300K, user)
• Nine Grid
• Zoom (100%~500%)Aspect Ratio
• Pixel to Pixel

Feelworld LUT5 5.5 Inch Touch Screen Field Monitor Specifications

Model	LUT5
Screen Size	5.5″ IPS
Resolution	1920×1080 pixels
Pixel Pitch	0.069 (L) x 0.069(W) (mm)
Aspect Ratio	16:9
Brightness	3000cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)
Input	1 x HDMI
Output	1 x HDMI 1 x DC Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.
Audio	3.5mm Stereo Headphone
HDMI Input/ Output Support Format	480i/576i/480p/576p
	1080i (60/59.94/50)
	720p (60/59.94/50/30/29.97/25/24/23.98)
	1080p (60/59.94/50/30/29.97/25/24/23.98)
	4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
Input Voltage	DC7~24V
Power Consumption	=20W
Working Temperature	-20°C~70°C
Storage Temperature	-30°C~80°C
Install	1/4″-20 Thread Socket ( Right, Bottom)
Battery Plate	NA
Size	142L x 86H x 28D(mm)
Weight	270g

What’s in the Box

• Feelworld LUT5 5.5 Inch Touch Screen Field Monitor
• 1 x Micro HDMI Cable
• 1 x Mini hot shoe mount+Hex wrench
• 1 x Manual
• Limited 1-Year Warranty
