Key Features
- 5.5-inch HDMI monitor with 4K signal support for image clarity
- Crisp visuals with a native 1920x1080p HD resolution
- Accurate colour representation with precise content monitoring

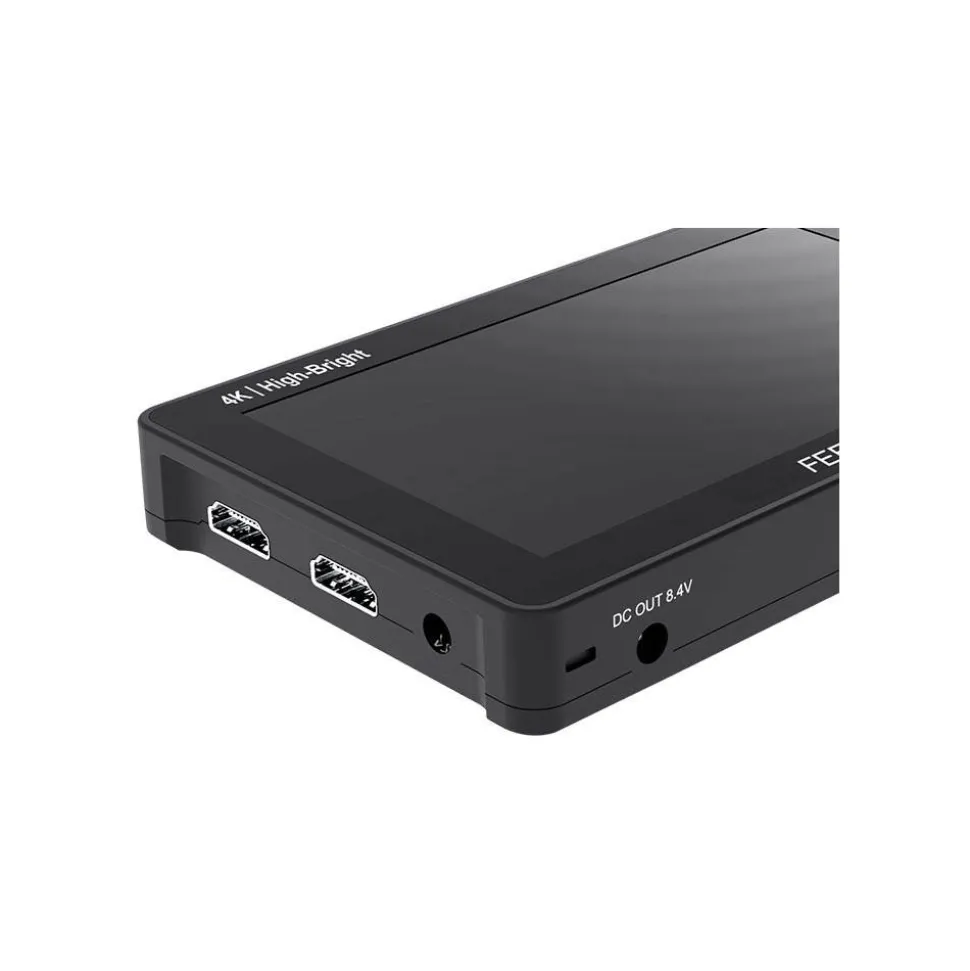

- HDMI input/output ports compatible with numerous cameras and camcorders
- Advanced monitoring tools enhance accuracy
- Compact, lightweight design for easy mounting without too much weight
- Power options include support for L-series batteries and DC adapter
- Intuitive user interface with easy navigation and customisation
- Real-time audio monitoring via 3.5mm headphone jack
- Wide viewing angle ensures clear visibility from multiple perspectives
- Dual-purpose sunshade and screen protector improve outdoor visibility
- HDMI loop-through allows simultaneous monitoring on multiple displays
- Firmware upgradeable for access to the latest features and improvements

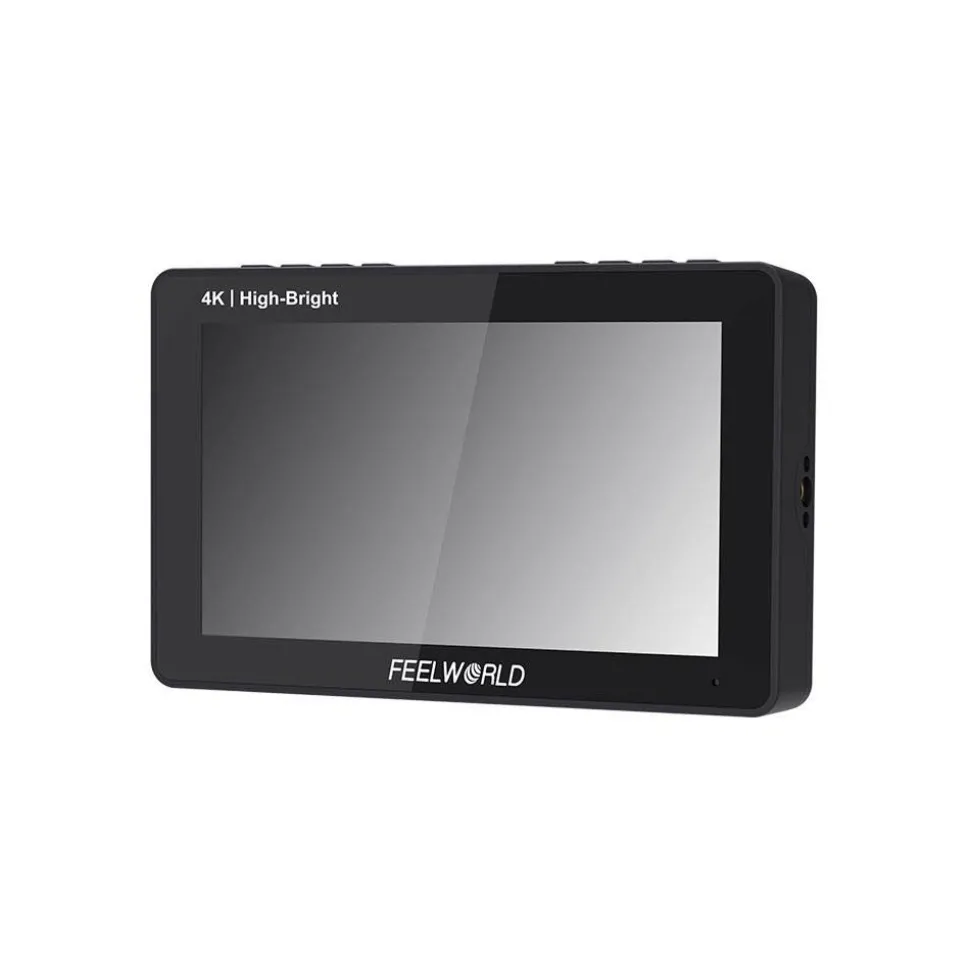

Feelworld F5 Pro X 5.5 Inch Field Camera Monitor Summary
The Feelworld F5 Pro X 5.5 Inch Field Camera Monitor is a Full HD Â designed to enhance your photography and videography shooting experience. With its sharp 1920×1080 resolution and impressive 1600-nit brightness, it delivers exceptional colour accuracy and clarity.
This monitor is packed with professional features such as waveform monitoring, vectorscope, and histogram, ensuring you can achieve perfect exposure and colour balance in any lighting. Its HDMI and SDI inputs, combined with a lightweight yet durable aluminium alloy body, make the F5 Pro X a must-have tool for real-time monitoring and creative exploration.

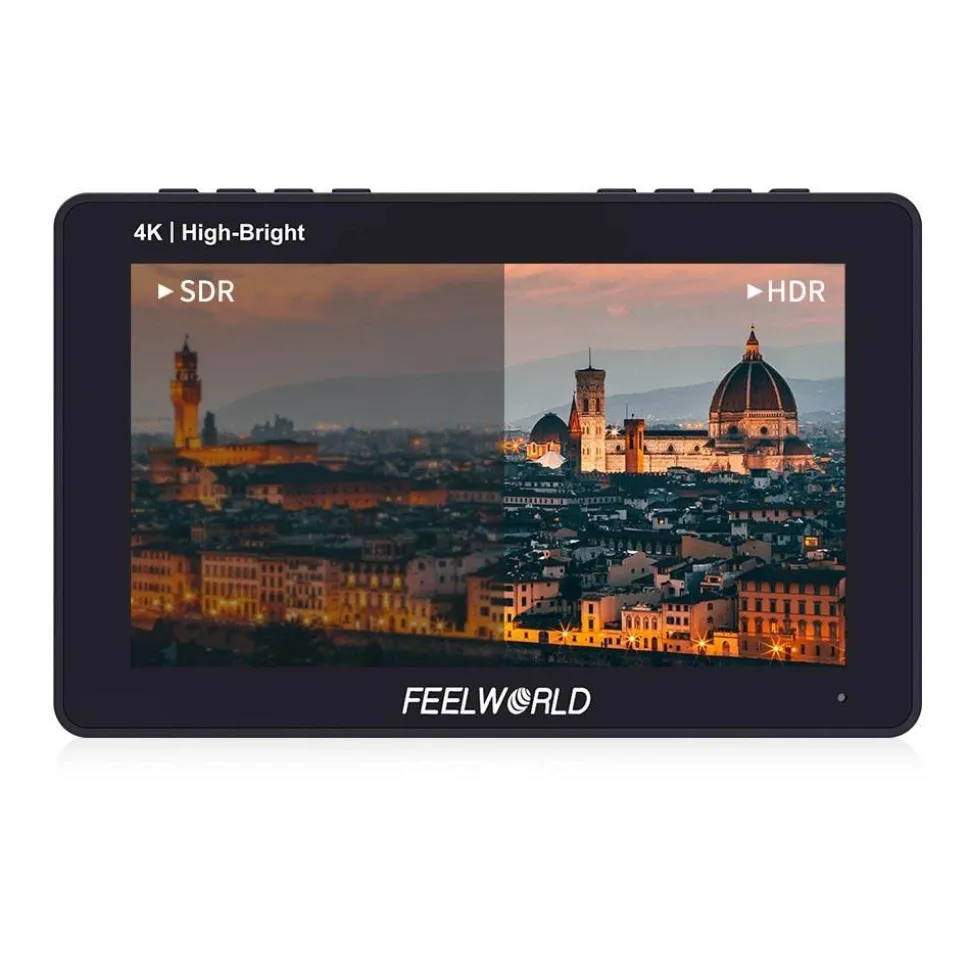

With a 1920×1080 resolution, 1000:1 contrast display with 1600 nits of brightness, this monitor delivers vibrant, true-to-life images regardless of the prevailing lighting conditions. These capabilities make it ideal for both working indoors and outdoors, as the F5 Pro X ensures that your shots look exactly as you envisioned them.
Feelworld F5 Pro X 5.5 Inch Field Camera Monitor in More Detail
The F5 Pro X is packed with advanced tools like waveform monitoring, vectorscope, and histogram, enabling precise exposure and colour balancing. The intuitive touchscreen interface also makes it incredibly easy to control and customise settings, ensuring professional-quality with every scene.
Upgrade Your Setup
More than just a monitor, the Feelworld F5 Pro X 5.5 Inch Field Camera Monitor offers versatility with multiple inputs, including HDMI and SDI. It integrates effortlessly with DSLRs, mirrorless cameras and professional camcorders, providing real-time monitoring with instantaneous feedback.
Lightweight yet Rugged Housing
The on-camera monitor is built to last with a durable, slim design that’s perfect for handheld setups, gimbals and professional drones. Despite its sleek profile, it offers a comprehensive set of monitoring tools whilst being easy to carry for any shoot.
Versatile Power Supply
The F5 Pro X includes a F970 battery mount and can also be powered via its built-in USB-C port for added convenience.
Compatible with the Feelworld Wireless Transmitter and Seetec Director Monitor
Easily connect to a director’s monitor using the  wireless video transmission system, enabling seamless transitions between scenes. Display live footage on multiple screens simultaneously, so the entire crew can monitor the shots in real-time.
Advanced Features
The F5 Pro X provide the following monitoring tools:
- Support 3D LUT Log to Rec.709, user 3D LUT Upload
- All Waves
- Waveform (RGB, Y, YUV)
- Histogram(RGB1, Y, RGB2)
- Peaking Focus Assist (Red, Green, Blue three colours optional highlight over parts of the image in focus)
- False Colours
- Zebra Exposure (10-100IRE adjustable)
- Check Field (Red, Green, Blue, Mono)
- Scan Mode (Under Scan, Over Scan)
- Anamorphic Mode (1.33x,1.6x, 2.0x, 2.0x mag)
- Image Flip (H, V, H/V)
- Image Freeze
- Centre Marker
- Safe Frames (80%,85%,90%,93%,96%, 2.35:1)
- Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
- Color Temperature Adjustment
- Nine Grid (Zoom one of the images to realise the full screen)
- Zoom (2X, 4X, 9X, 16X)
- Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
- Pixel to Pixel
Feelworld F5 Pro X 5.5 Inch Field Camera Monitor Specifications
| Model | F5 PROX |
| Screen Size | 5.5″ IPS Touch Screen |
| Resolution | 1920×1080 pixels |
| Pixel Pitch | 0.069 (H) x 0.069 (V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 1600cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| Input | 1 x HDMI |
| Output | 1 x HDMI |
| Audio | Audio Stereo Headphone |
| HDMI Input/ Output Support Format | 480i/576i/480p/576p |
| Input Voltage | DC7~24V |
| Power Consumption | =9W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install | 1/4″-20 Thread points |
| Size | 148L x 93H x 20D (mm) |
| Weight | 245g |
What’s in the Box
- Feelworld F5 Pro X 5.5 Inch Field Camera Monitor
- 1x Micro HDMI Cable
- 1x Tilt Arm
- 1x Sunshade
- 1x TYPE-C to USB
- 1x Disassemble Wrench
- 1x Manual
