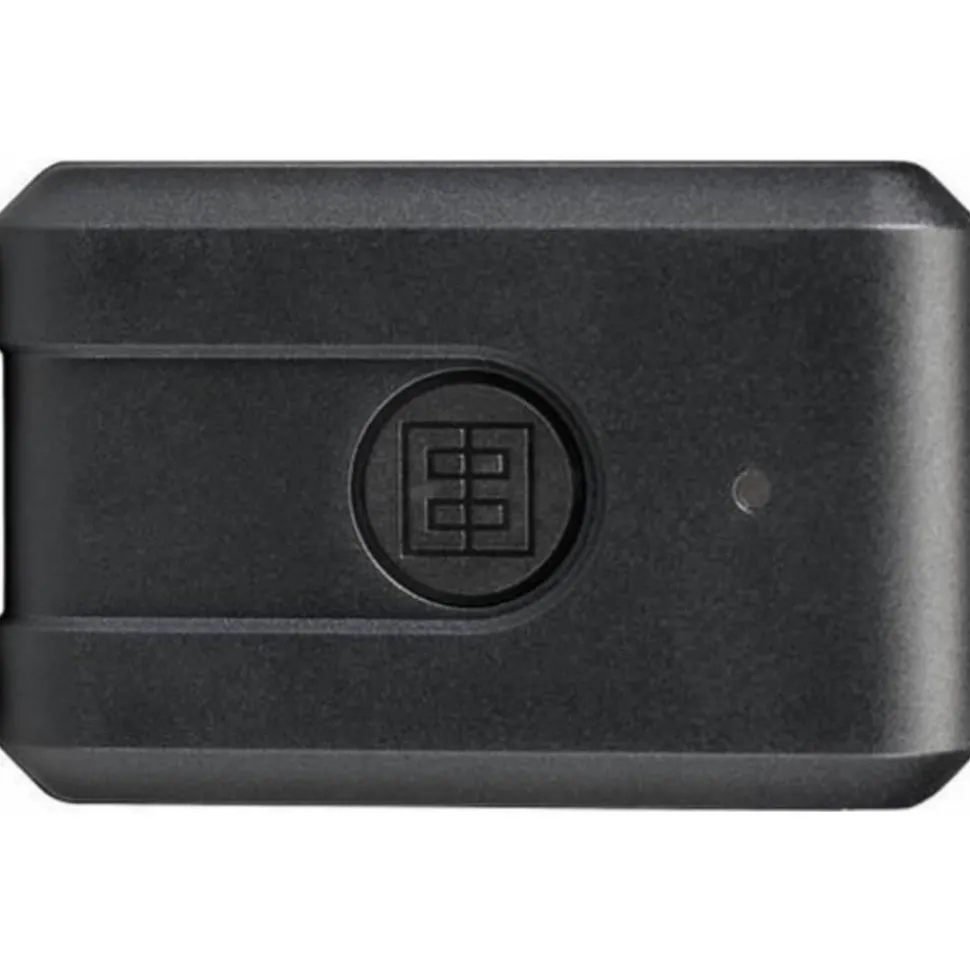

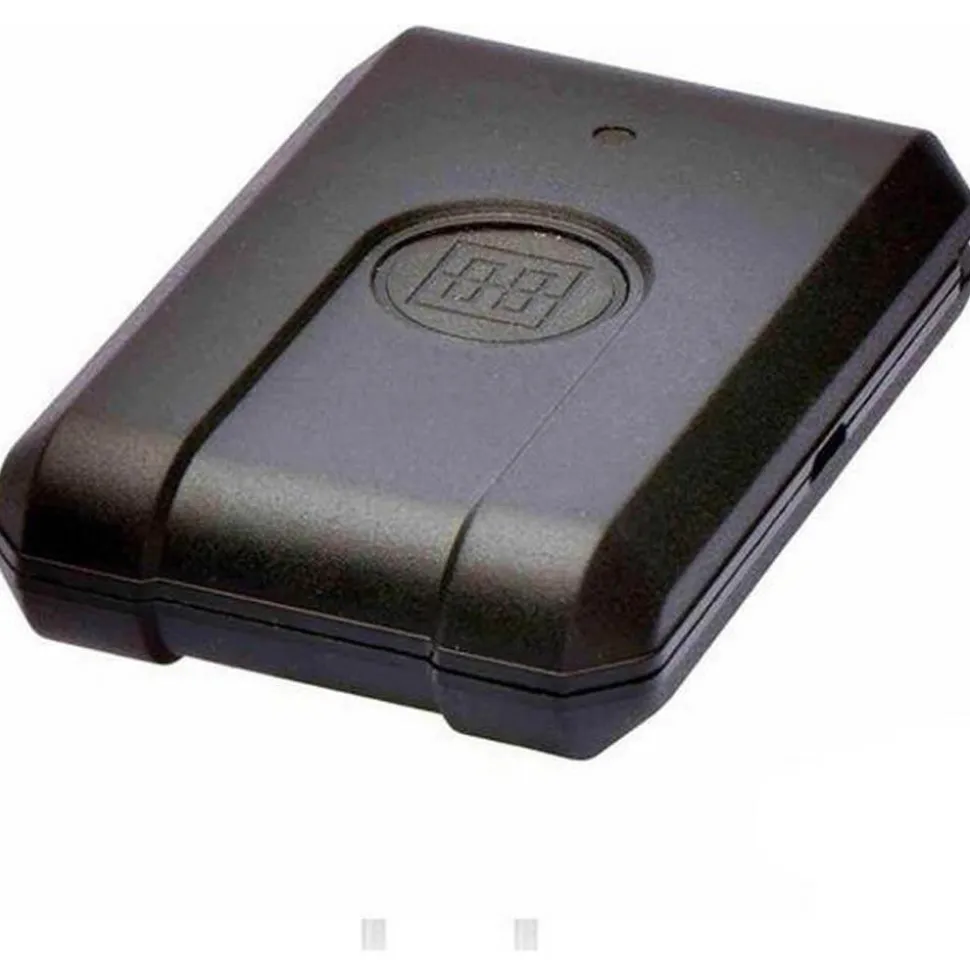

Elinchrom Skyport Bridge

The Elinchrom Skyport Bridge interfaces between EL flash with built-in receivers and a computer or mobile and is Mac/Win, iOS/Android compatible making it easy and fast to control your lighting set-up.



The Elinchrom Bridge is a small and robust bridge between your EL flash units and your computer or mobile devices MAC / WIN or iOS / Android operating systems.

It implements Bluetooth standards for easy pairing with mobile devices for IOS and Android and a new EL-Skyport software compatible with MAC or WIN operating systems via the USB connection. The Elinchrom Bridge enables you to use all the remote control features available with the new EL-Skyport Application for IOS or Android or either with Mac and WIN software.

The EL-Bridge is compatible with , the EL flash units with built in EL-Skyport receiver (Ranger Quadra RX, BRX family, D-Lite RX family, ELB family, ELC family). Style, Ranger RX, Digital RX with the Transceiver RX are not supported.

The Elinchrom Bridge comes with 1⁄4” thread, which can be mounted anywhere in the distance range of your mobile device. There is a USB connection for power supply, firmware updates and to connect the Bridge directly with a computer to control enabled flash units.

Elinchrom Skyport Bridge Specifications

• Supplied with Micro-USB cable
• Technology Bluetooth 4.0 / Skyport
• Product name (product code): Elinchrom Bridge (19338)
• Accessories: International Charger Kit (19276), not included
• Compatible products: EL flash units with built in EL-Skyport receiver
• Distance range Bluetooth: Maximum 30 m to mobile devices
• Distance range Skyport: Indoor: 60, outdoor: 200
• Frequency: 2.4 GHz
• Battery autonomy in h. ~10h
• Battery cell technology: Li-Po
• Battery charging time: ~2h
• USB socket (specification): Micro USB, for charging, firmware updates and remote communication with MAC / WIN computer
• Dimensions (L x WxH): 80.4×51.8×18.4mm
• Weight: 55g
