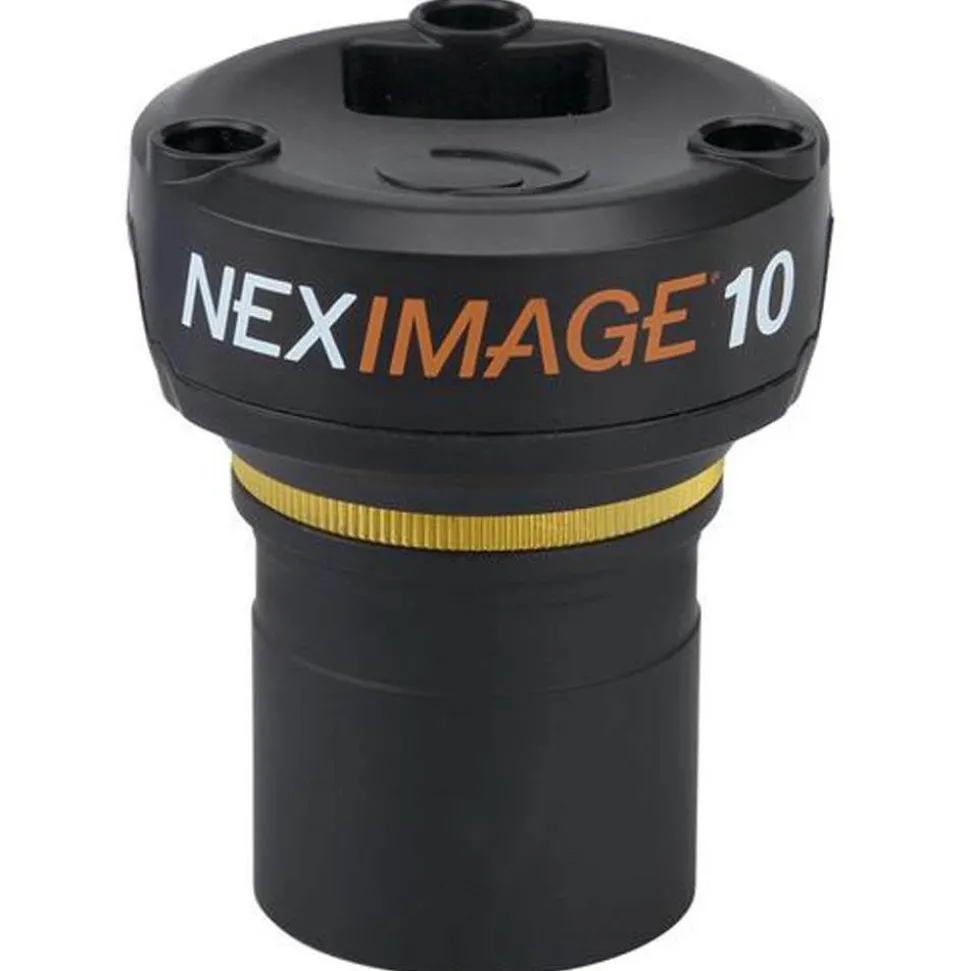

Celestron NexImage 10 Solar System Colour Imager

The Celestron NexImage 10 Solar System Colour Imager offers more than 10 million pixels with high speed data transmission and includes iCap and RegiStax software for image capture, export and auto alignment



Celestron NexImage 10 Solar System Colour Imager Summary

• Easy to use color camera, provides live video for quick focusing
• 3856 x 2764-pixel array with small pixels, provides high resolution images
• Includes Celestron iCap software for image capture and export
• Includes RegiStax stacking software that automatically filters the best images, aligns, and stacks your planetary images

You have your new telescope and have observed Saturn and Jupiter. Now you’re ready to take the next step and start imaging them. But where do you begin? The Celestron NexImage 10 Solar System Imager is the perfect solution.

The NexImage 10 is our first NexImage series camera to incorporate USB 3.0 SuperSpeed! With more than ten million pixels coupled with high speed data transmission, the NexImage 10 produces clear and detailed planetary images like never before. With super small 1.67µm pixels, smaller telescopes with shorter focal lengths are still going to yield tremendous planetary detail. It’s one of the best valued, high-res USB 3 planetary imaging cameras on the market. Best of all, NexImage includes everything you need to get started, including Celestron’s easy-to-use software suite. The iCap capture software and RegiStax stacking software are the same powerful programs included with Celestron’s high-end Skyris cameras.

Simply point your telescope at the Moon or a planet and record a quick video. The software analyzes each frame of video, throws away the fuzzy ones, and perfectly aligns the remaining images. The result is a bright, clear image with the maximum amount of color and detail. NexImage 10 is a great way to get started with astroimaging, especially if you live in a light-polluted area. If you can see the planet in the sky, you can image it with NexImage 10!

Now Mac OS X compatible! Refer to oaCapture and Lynkeos downloads in the support section of this page.

Specifications

Color or Monochrome:	Color
Power Requirements:	Powered by USB
USB:	High-Speed USB 3.0, cable 10′ length
Camera Housing Construction:	ABS with aluminum connection ring
Optical Window:	IR Cutoff Filter
Pixel Size:	1.67 Micron Square
A/D Conversion:	12 bit

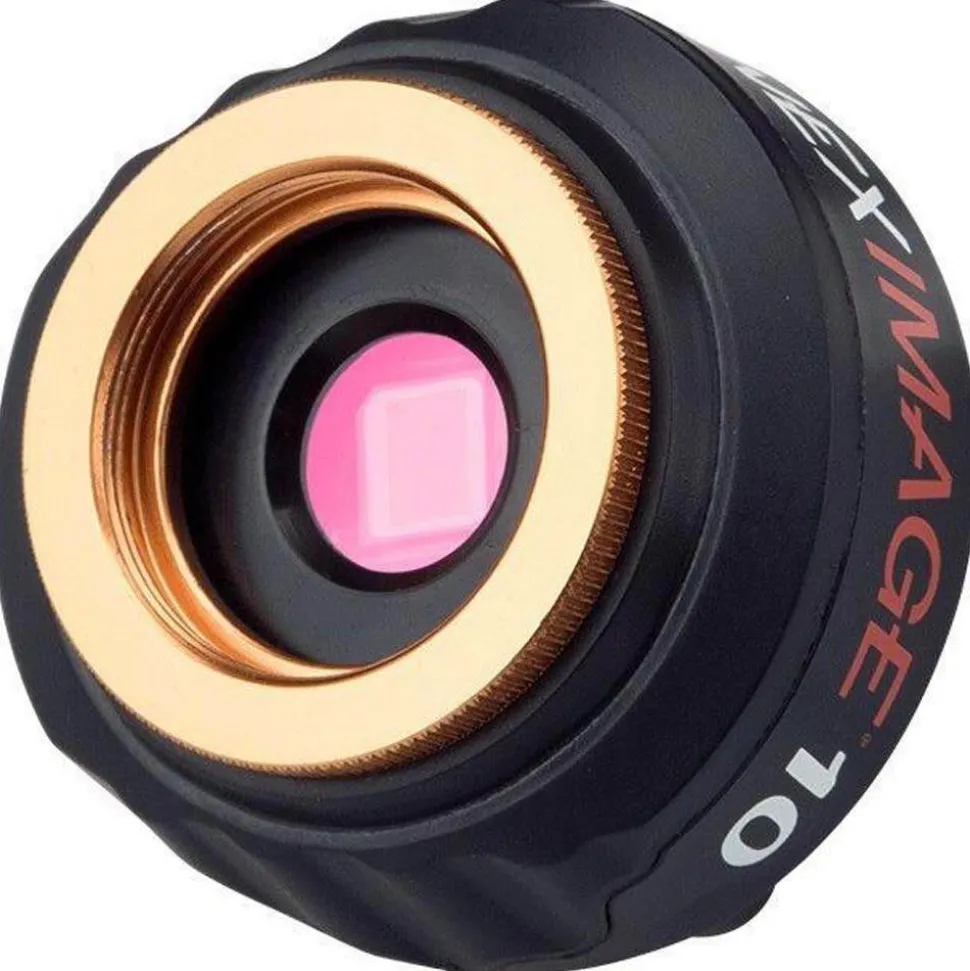

Imaging Sensor:	ON Semi MT9J003 CMOS
Camera Resolution (in Pixels):	3856 x 2764
Total Number of Pixels:	10.7 MP

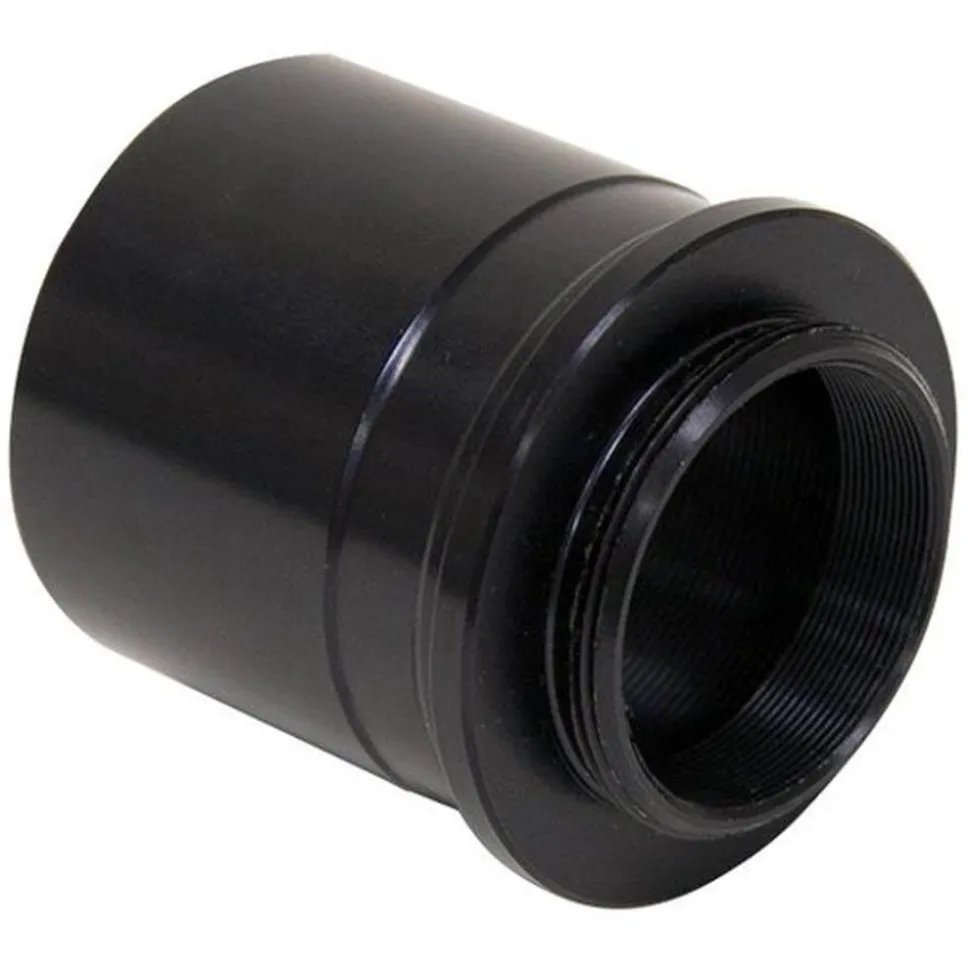

Mounting:	1.25″ barrel and C-thread
Sensor Size:	6.4mm x 4.6mm (0.25″ x 0.18″)
Shutter:	Electronic Rolling Shutter
Software Compatibility:	iCap | IC Capture | DirectShow | oaCapture
Operating Environment:	-40° – 104°F (-40° – 40°C)
Sub-Framing:	Hardware ROI
Exposure Range:	0.0001 to 10 seconds
Frames per second:	Up to 60 (14.7 fps at full frame)
Back Focus Distance:	13.1mm (0.51″) with nosepiece, 10.6mm (0.41″) without nosepiece
Recommended/Best Usage:	Getting started in lunar, solar, and planetary imaging
Weight:	2.0 oz (57 g)
Included Items:	NexImage 10 camera body| 1.25″ nosepiece| Software CD| USB cable| Instruction manual
