- Lightweight 136g on-camera microphone which slides into the hot shoe for a stable connection
- High quality digital audio with crisp, clean results and immersive audio for your audience
- Cable-free and battery-free operation so you never run out of power in the microphone when recording

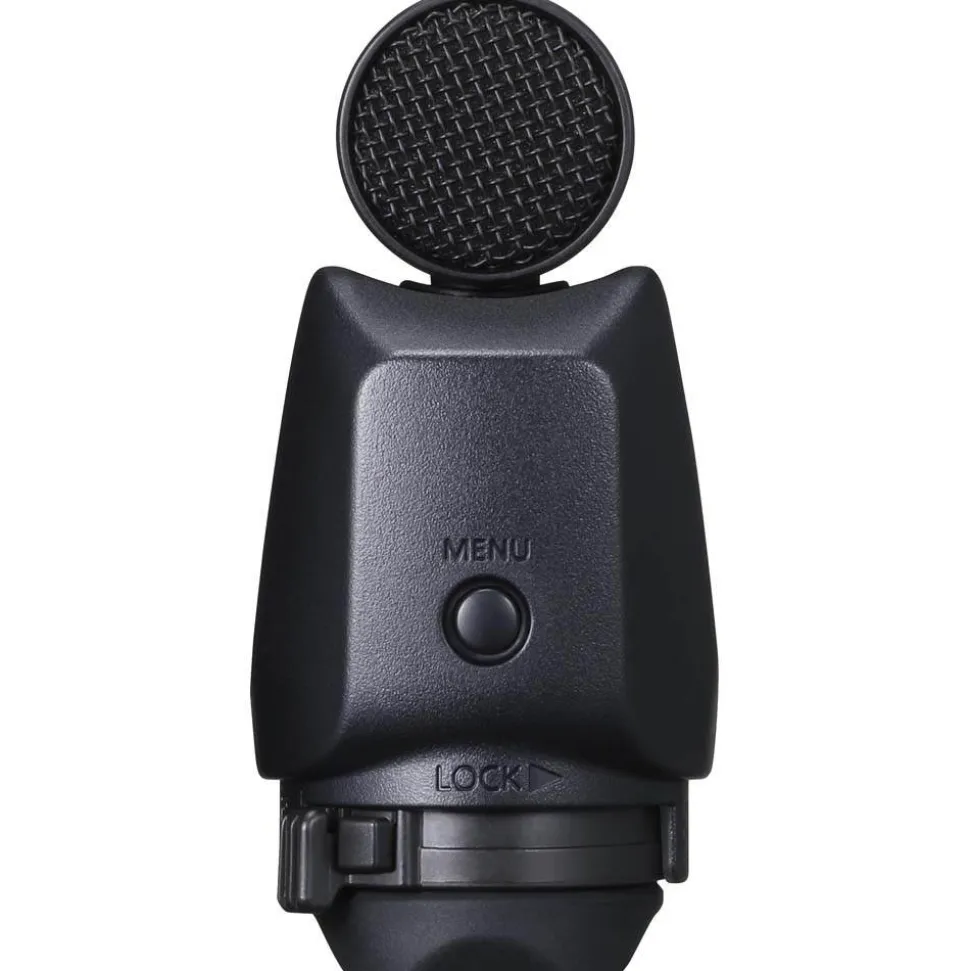

- Select mic menu button, then the menu appears on your camera LCD for easy setting changes
- Choose from different directional settings depending on the space you are recording in
Key Features
- Cleaner Digital audio recording
- No cables needed through a direct hot shoe connection
- No batteries needed as the mic is powered by the camera
- Choose from Shotgun (mono), 90° or 120° for different needs
- Control the microphone with a menu on the camera’s LCD screen

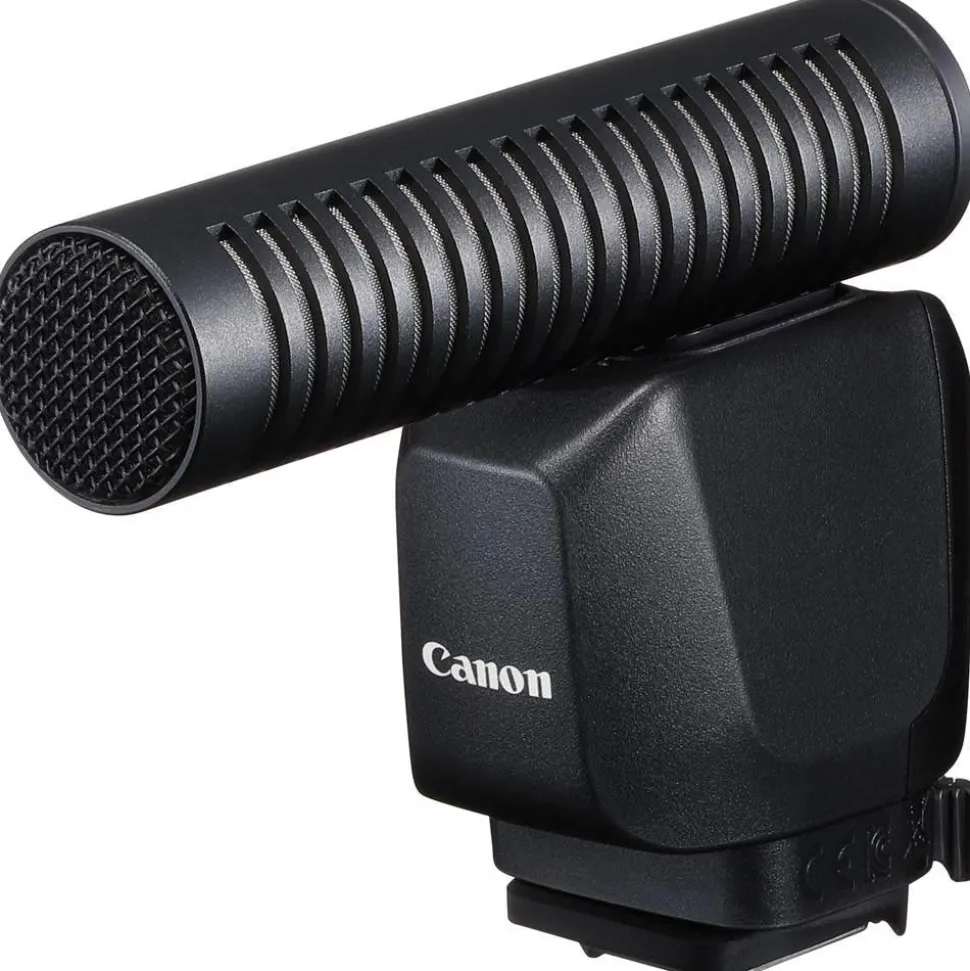

Canon DM-E1D Multi-function Shoe Directional Stereo Mic Summary
You can now capture clean, crisp and immersive audio with the Canon DM-E1D Multi-function Shoe Directional Stereo Microphone. The mic slides onto a newer Canon multi-function hot shoe as found on the  or  and second generation . It requires no cables or batteries for a reliable, secure connection. Digital signal processing results in cleaner audio with a richer experience for your audience. This can also be used with new APS-C format cameras including the  with the .
The Canon DM-E1D is a completely cable-free and battery-free , drawing power directly from the body so you’ll never have to worry about changing mic batteries midway through recording. There are three modes of directional pick-up for added versatility and you’re able to switch between shotgun (monaural), 90° or 120° stereo for different sized locations.
Canon DM-E1D Stereo Microphone Specifications
| Microphone type | Back-electret-condenser type stereo microphone |
| Directional sound pick-up | Shotgun (Monaural) 90° and 120° (Stereo) |
| Sensitivity | Â |
| SHOTGUN | -16dB (1kHz, 0db=1V/Pa) |
| 90° | -18.7dB (1kHz, 0db=1V/Pa) |
| 120° | -20dB (1kHz, 0db=1V/Pa) |
| Frequency SHOTGUN | 100 Hz – 10000 kHz |
| 90° | 100 Hz – 10000 kHz |
| 120° | 100 Hz – 10000 kHz |
| S/N ratio | 62 dB or higher (1 kHz, 1 Pa) |
| Analogue / Digital | Digital |
| Bits | 16-bit |
| Sampling frequency | 48 kHz |
| Attenuator | Yes |
| Wind filter | Yes |
| Output terminal | Multi-Function foot |
| Mounting shoe | Multi-Function shoe only |
| Power consumption | 0.11 W |
| Size (W x H x D), mm | 41.3 x 87.4 x 108.6mm |
| Weight (Body only, excluding batteries) | Approx. 136g |

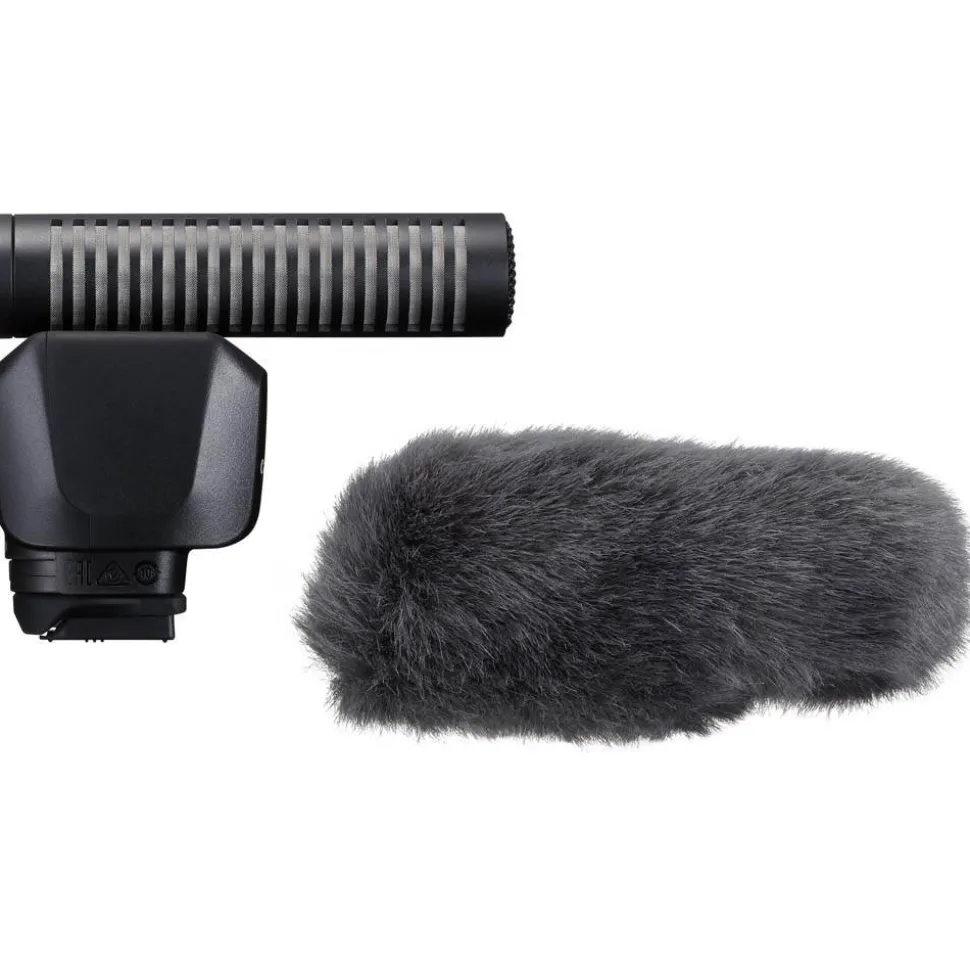

What’s in the Box
- Canon DM-E1D Multi-function Shoe Directional Stereo Microphone

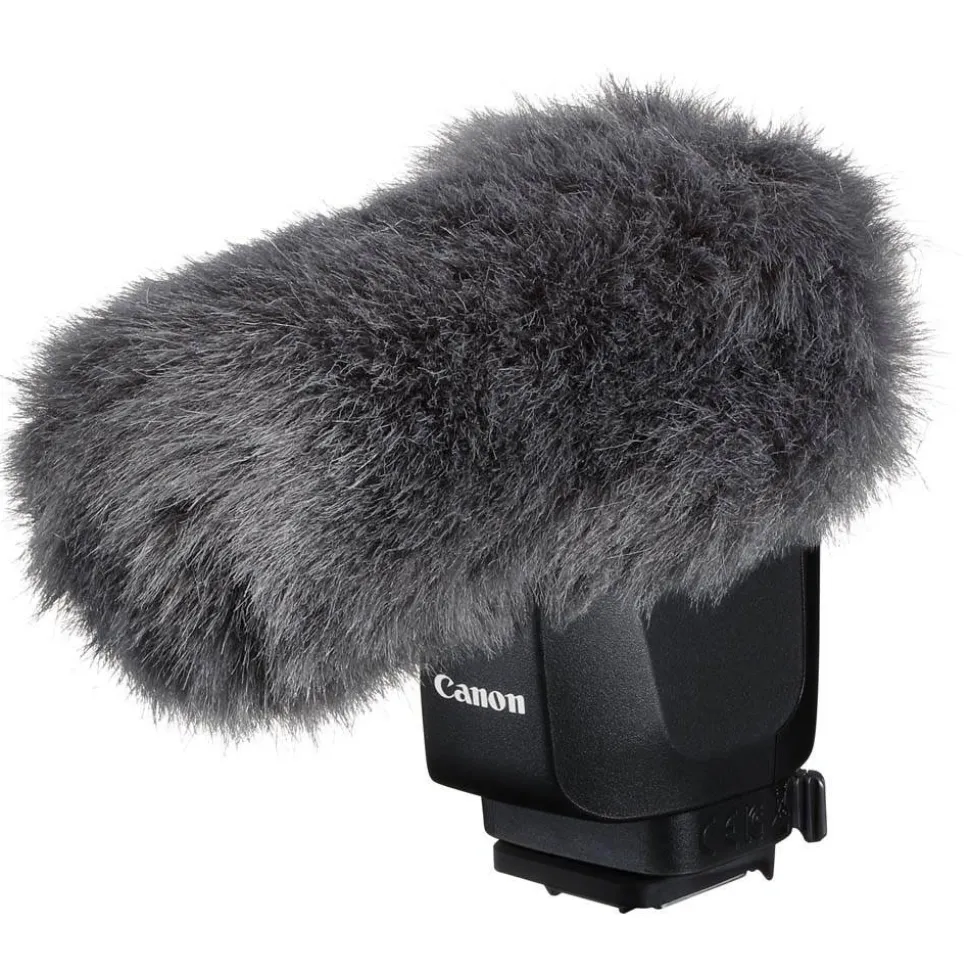

- Wind screen
- Shoe cover
