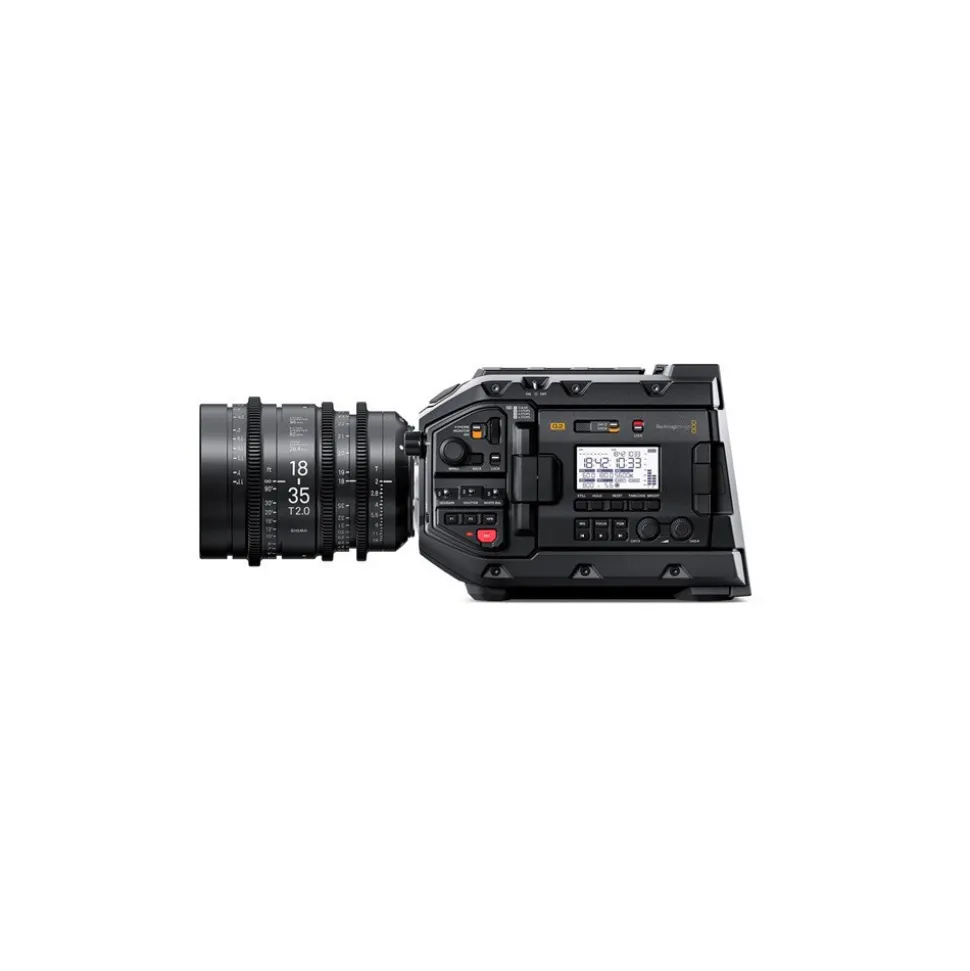

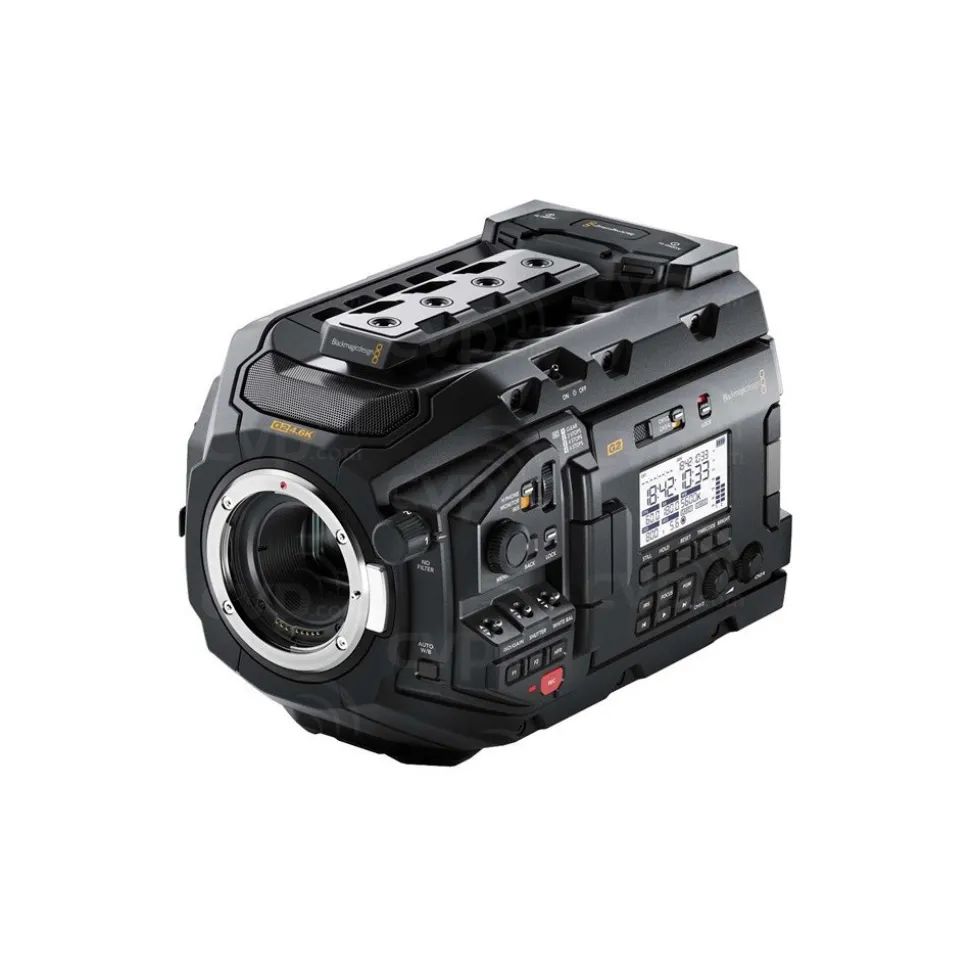

Blackmagic URSA Mini Pro G2 Super 35 4.6K Camcorder – EF Mount – Body

• Capture the action at up to 300 frames per second
• Super wide color gamut and precision color science
• Capture incredible digital film images with 15 stops of dynamic range
• Works with both CFast and SD card media
• High speed USB-C connection for direct external recording

Key Features

• Camera Update 6.4 – New features for URSA Mini Pro 4.6K G2
• Retain jam synced timecode after power cycle
• Improved jam sync timecode accuracy after playback
• Improved HDR SDI metadata support
• Improved pixel recalibration
• Improved door LED behaviour on low battery
• Improved clip playback for renamed clips
• Improved EF lens metadata support
• Fixed still capture to slow media cards
• Fixed audio playback at 23.98, 29.97, 59.94 fps
• Fixed XLR gains resetting after power cycle
• General performance and stability improvements

Blackmagic Design URSA Mini Pro G2 Super 35 4.6K Camcorder – EF Mount Body

URSA Mini Pro 4.6K G2, is a  that combines incredible 4.6K image quality with the features and controls of a traditional broadcast camera! The second generation Blackmagic URSA Mini Pro features fully redesigned electronics and a new Super 35mm 4.6K HDR image sensor that combine to give you much higher frame rate shooting. You also get built in and filters, an interchangeable lens mount, Blackmagic RAW support, and both dual CFast and SD UHSII card recorders for capturing images at up to 300 frames per second.

There’s even a USBC expansion port that lets you record directly to flash drives or SSD disks for even longer recording times! URSA Mini Pro 4.6K G2 features a massive number of controls intuitively positioned on the side of the camera so you can adjust most settings by feel, without ever having to take your eyes off the action. URSA Mini Pro is lightweight and comfortable enough to use all day, has controls that are extremely fast to use, and image quality that’s far superior to broadcast cameras costing ten times more.

Blackmagic URSA Mini Pro 4.6K G2 in detail

Digital Film Quality for Every Project

The perfect camera for digital film, broadcast, live production and more

URSA Mini Pro cameras are “three cameras in one” because they combine high end digital film quality with the features and controls broadcasters need. They’re ideal for any kind of work from high end feature films, television shows and commercials, to independent films, broadcast news, and even studio and live production URSA Mini Pro cameras go beyond standard Ultra HD broadcast quality because they give you 4.6K resolution with 15 stops of dynamic range. Plus, the super wide color gamut and Blackmagic Design Generation 4 color science give you incredibly accurate skin tones and stunning, lifelike color so you always capture cinematic quality images. The super compact body features broadcast camera controls and advanced operating software that make it faster to set up and use than any other camera Whether you’re on set, on location or shooting run and gun, URSA Mini Pro has the image quality and features you need to work on any type of project.

Revolutionary URSA Design

Big camera features that are fast

URSA Mini Pro is designed to include everythang you need in a handheld camera so you can take it anywhere Unlike cheap plastic cameras, the evenly weighted camera body is made out of a super tough magnesium alloy. It’s a true professional camera with full redundancy on every control, even the power switch Plus, the familiar broadcast switches and controls allow full setting changes without having to take the camera off your shoulder There’s an external high visibility backlit LCD status display so you can see critical shooting information, and a 4″ foldout touch screen for reviewing shots. That means you don’t have to carry an extraa onset monitor You get professional connections such as 12GSDI, XLR audio, a built in high quality microphone and more. The optional electronic viewfinder and shoulder mount kit lets you go from tripod to handheld shooting in seconds, or you can turn URSA Mini Pro into the ultimate live production camera by adding an URSA Studio viewfinder.

Built in and Filters

High quality neutral density filters with IR compensation

URSA Mini Pro G2 features high quality neutral density (ND) filters that let you quickly reduce the amount of light entering the camera. The 2, 4 and 6 stop filters have been specifically designed to match the colorimetry and color science of the camera, providing you with additional latitude, even under harsh lighting conditions. This lets you use different combinations of aperture and shutter angle to achieve shallower depth of field, or specific levels of motion blur, in a wider range of situations. The IR filters have been designed to filter both optical wave lengths and IR wave lengths evenly to eliminate IR contamination of the images that most and filters can suffer from. The and filters are true optical filters with a precision mechanism that quickly moves them into place when the and filter dial is turned. The filter settings can even be displayed as either an and number, stop reduction or fraction on the LCD.

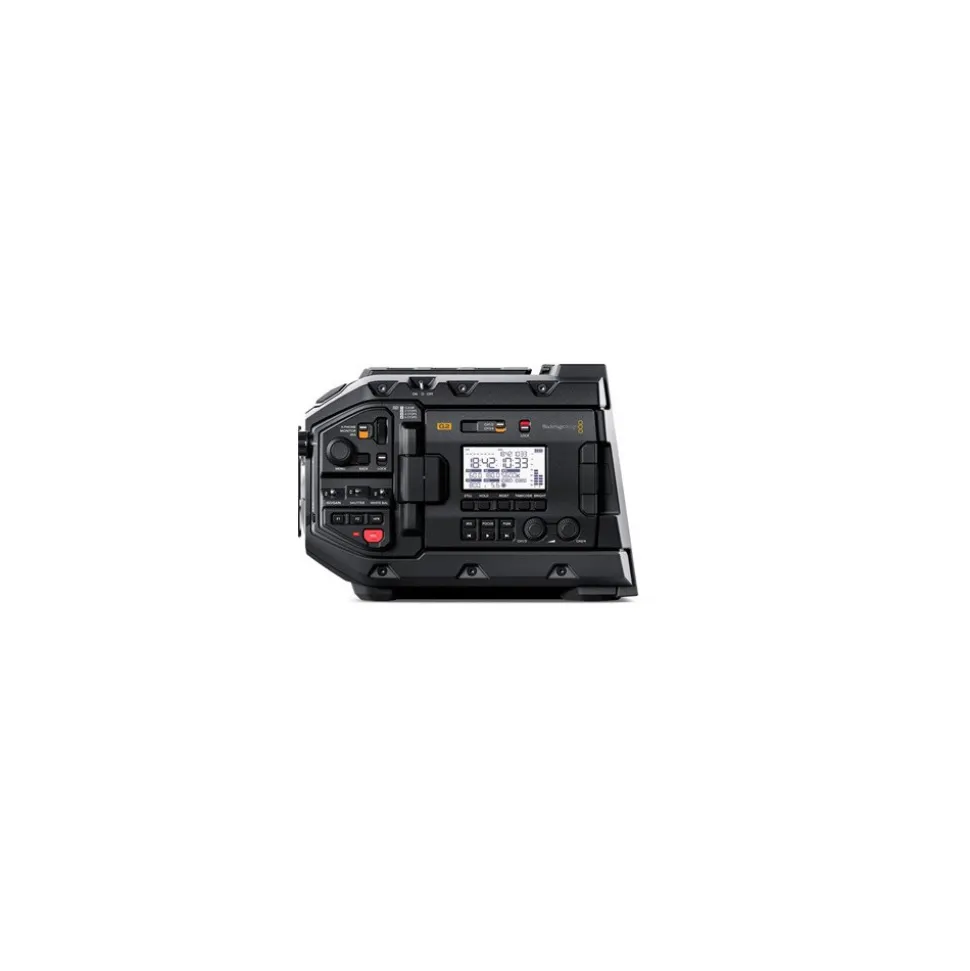

Familiar Broadcast Control

Quickly change settings without taking the camera off your shoulder

Like the world’s best broadcast cameras, URSA Mini Pro 4.6K G2 features independent controls for direct access to the most important camera settings. Buttons, switches and dials are laid out in a logical order that makes them easy to find by feel while using the viewfinder. This means you’ll be able to adjust settings, add an and filter or even change frame rate without having to fold out the touchscreen or take the camera off your shoulder.

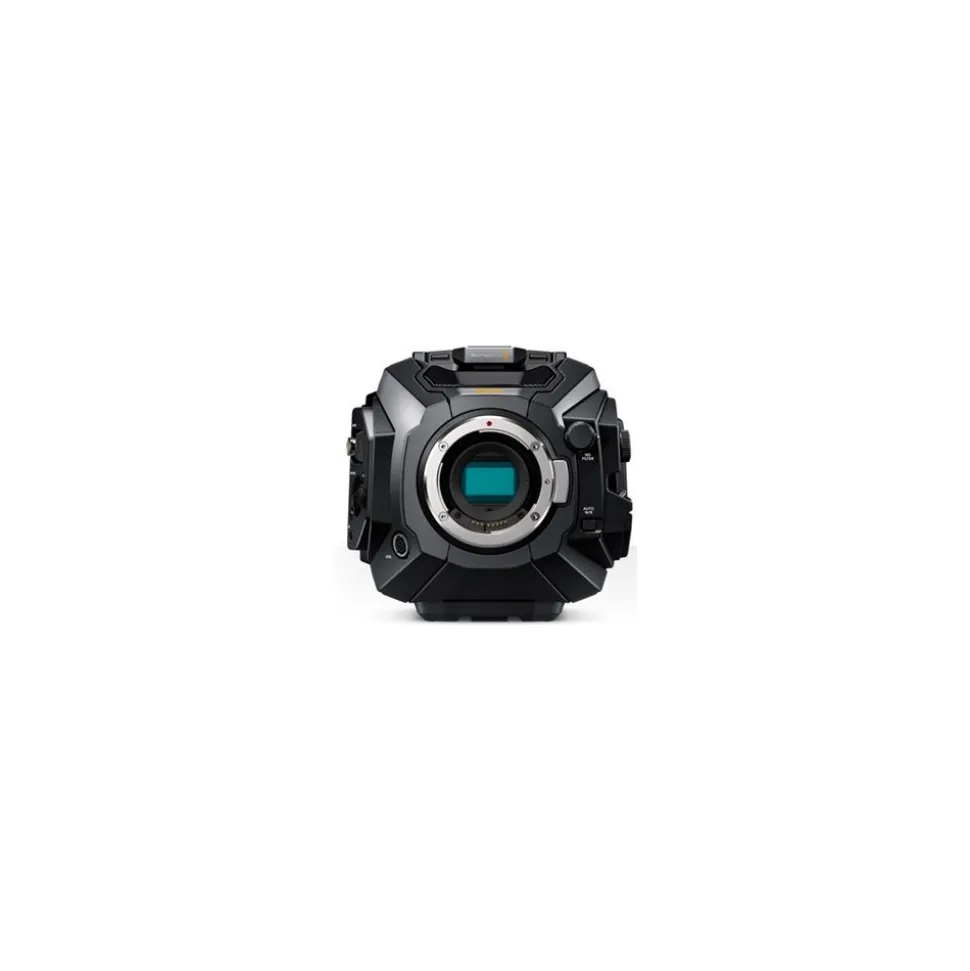

Interchangeable Lens Mounts

Compatible with EF, PL, B4 and F mount lenses

Different projects require different lenses, which is why URSA Mini Pro G2 feature an interchangeable lens mount. Imagine shooting regular work using a photography lens but then being able to change to a PL mount cinema lens if you get a high end film job. URSA Mini Pro makes that easy because you can quickly switch between EF, PL, B4 and F mount lenses, making it compatible with the widest possible range of professional lenses. That means you can work with high quality EF or F mount photographic lenses, large PL cinema lenses, and even B4 broadcast lenses, all with the same camera URSA Mini Pro comes standard with an  . Additional optional PL, B4 and F lens mounts can be purchased separately. With URSA Mini Pro, you get a single  that works with virtually all professional lenses so you can choose precisely the lens you.

Blackmagic Design URSA Mini Pro G2 Super 35 4.6K Camcorder – EF Mount – Body Specifications

Camera Features

Effective Sensor Size

25.34mm x 14.25mm (Super35)

Lens Mount

EF mount included. Interchangeable with optional PL, B4 and F lens mounts.

Lens Control

Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses

Dynamic Range

15 Stops.

Shooting Resolutions

4608 x 2592, 4608 x 1920 (4.6K 2.40:1), 4096 x 2304 (4K 16:9),

4096 x 2160 (4K DCI),

3840 x 2160 (Ultra HD),

3072 x 2560 (3K Anamorphic),

2048 x 1152 (2K 16:9),

2048 x 1080 (2K DCI),

1920 x 1080

Frame Rates

Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

High Speed Frame Rates

Blackmagic RAW 8:1

4.6K Full – Up to 120 fps

UHD Windowed – Up to 150 fps

HD Windowed – Up to 300 fps

ProRes 422 HQ

4.6K Full – Up to 80 fps

UHD Windowed – Up to 120 fps

HD Windowed – Up to 240 fps

Built in ND Filters

Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters.

Focus

Focus button turns on peaking, auto focus available using compatible lenses.

Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screen Dimensions

4 inch

Screen Type

LCD capacitive touchscreen.

Metadata Support

Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Controls

Touchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys.

Timecode Clock

Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

Total Video Inputs

1 x SDI

Total Video Outputs

1 x SDI, 1 x SDI Monitoring.

SDI Rates

1.5G, 3G, 6G, 12G.

Analog Audio Inputs

2 x XLR analog switchable between mic, line and AES audio. Phantom power support.

Analog Audio Outputs

1 x 3.5mm headphone jack, supports iPhone microphone for talkback.

Reference Inputs

Tri-Sync/Black Burst/Timecode.

Remote Control

2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.

Computer Interface

What’s in the Box

• Blackmagic URSA Mini Pro 4.6K G2 body
• Turret dust cap
• EF lens mount
• Power supply
• SD card with software and manual
• DaVinci Resolive Studio with activation key
