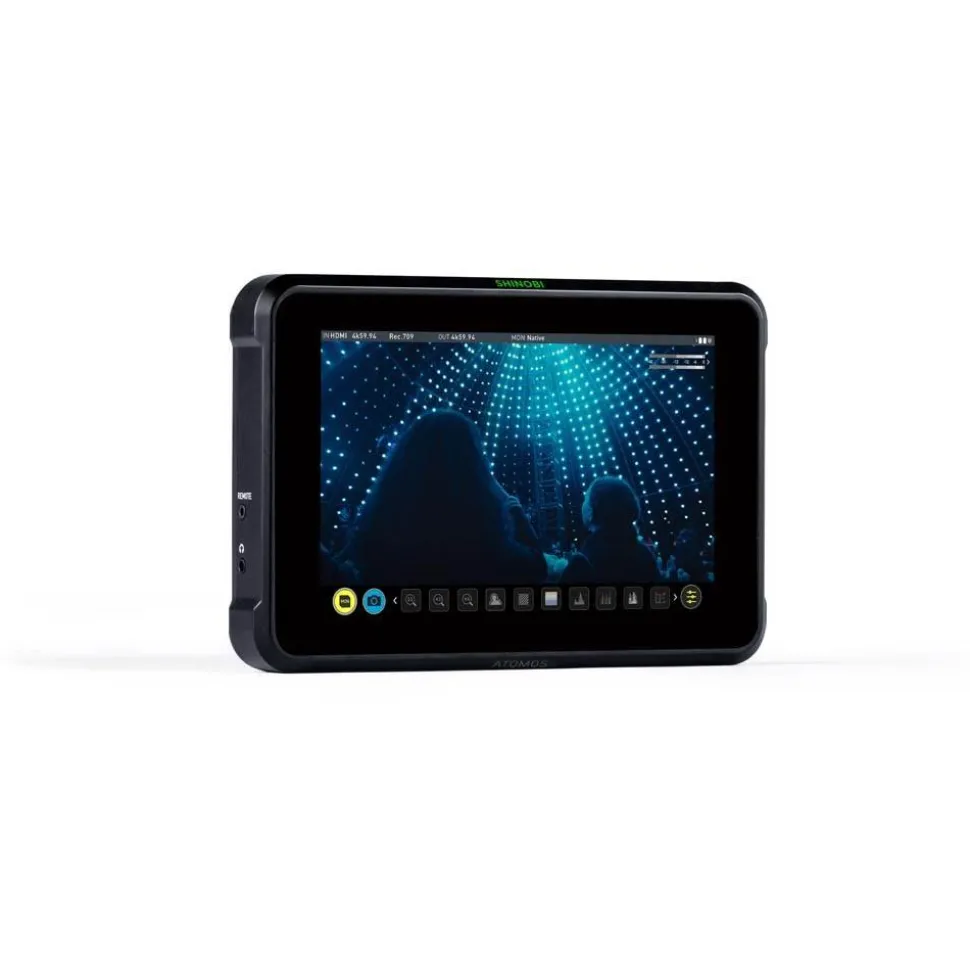

Atomos Shinobi 7 4K HDMI HDR Photo And Video Monitor

• High resolution 7-inch HDR monitor, perfect for daylight viewing with 2200 Nits brightness
• 4K/60p support with HDMI 2.0 as well as cross conversion between HDMI/SDI
• Useful tools for video including Safe Area, histogram, waveforms and 3D LUT support
• Endless power with dual NPF L series battery slots for hot swapping and a dedicated DC jack
• Camera control to make dynamic adjustments of iris, white balance, shutter angle and ND’s with more to follow

Key Features

Atomos Shinobi 7” Monitor Summary

Atomos are on a roll with this Shinobi 7 HDMI/SDI HDR Monitor-only, following hot on the heels of the previously announced . The Shinobi 7 is a 1920 x 1200 HD 7-inch monitor, which follows on from its smaller sibling, the extremely popular .

Not only is the newer Shinobi 7 larger, but features an ultra-bright daylight viewable 2200 Nits brightness, HDMI/SDI cross conversion and camera control with HDMI 2.0 support for 4K/60p.

are predominantly aimed at videographers who want a larger screen with video tools and don’t need extra video recording options. We are also finding a growing number of photographers using an external monitor for the bright viewing they offer with improved composing of their images, particularly for landscapes, architecture, interiors and product photography.

Features at a glance

• 2200 Nits HDR Daylight??Viewable Screen?
• 1920 x 1200 resolution in 16:10?
• HDMI 2.0 4K DCI 60p
• 3G 2K DCI 60p construction?
• 3 Year extended warranty
• AtomOS?and?AtomHDR?
• Waveform, RGB, Histogram? tools
• Analysis Mode, multi-scope view?
• 3D LUT, monitor and loop out?
• HDMI? SDI Cross Conversion?
• Camera Control with compatible cameras via Optional cables?
• Dual battery slots

Cross Conversion HDMI SDI with Down convert

• 1 x HDMI IN 2.0 supporting 4K/60p
• 1 x HDMI 2.0 OUT supporting 4K/60p
• 3G SDI IN/OUT supporting up to 2K/60p

Camera Control:

• 2.5 mm Remote jack supporting control of Z Cam E2 range (more to come soon)
• USB and RJ45 ports built in for future support and control functionality

The Shinobi 7 offers users a host of possibilities including serving as a remote viewing monitor for directors. It is also perfect for box cameras such as the  or pro video cameras like Canon’s . Youtubers and other content creators can use the Atomos Shinobi 7 as a larger monitor for live monitoring in far higher resolution than a camera LCD screen. Pro productions might also give their focus pullers this type of daylight viewable monitor-only.

Atomos Shinobi 7” 4K HDMI HDR Photo And Video Monitor In More Detail

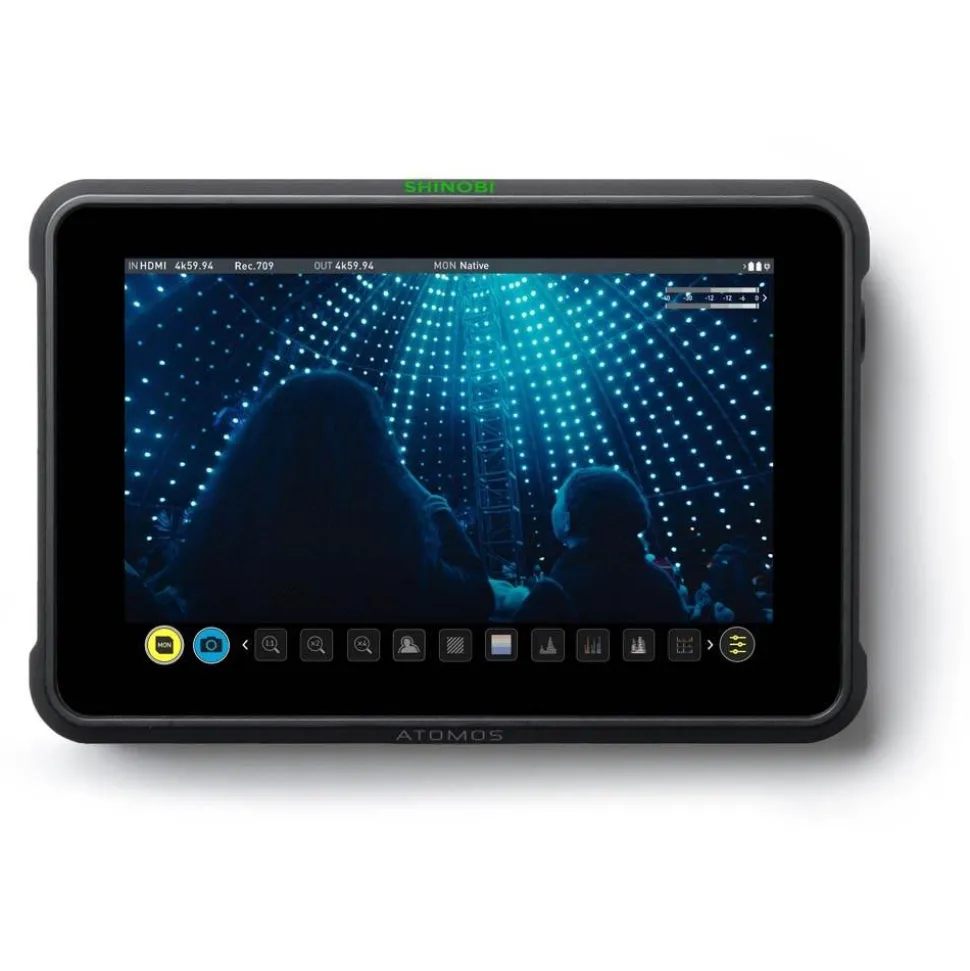

BIG, Bright and Beautiful Screen

The Shinobi 7 offers the expansive screen of the  with a lighter Monitor-only function of the original Shinobi weighing 577g (excluding batteries). With a calibrated peak brightness of 2200 Nits, the Shinobi 7 can be used in the brightest environments without a sun hood or for conversion of Log inputs for HDR monitoring. With the big, bright and beautiful display configuration options are endless, providing an ideal director or focus puller monitor, program or preview display for video switchers and the perfect view for vloggers presenting to camera.

Camera controls at your fingertips

Control your favourite cameras with the intuitive touchscreen, designed to provide fast access to the most important camera features. Whilst focusing on the image you can make dynamic adjustments of iris, white balance, shutter angleand ND. With the optional Atomos USB-C to serial cable, support is available out the box for the Z Cam E2 series camera, providing direct control of all the menu configurations. The additional USB and RJ45 control ports on the Shinobi 7 also provide support for future developments, with more options being added for camera control.

HDR in the field

The Shinobi 7 screen displays a broad 10+ stops of dynamic range in real time from Log/PQ/HLG signals. Combined with Atomos unique HDR monitoring features, the Shinobi 7 simplifies the complexities of shooting Log and HDR, helping to replicate post-production workflows at the moment while shooting. With Adaptive Cooling you can also prioritise reduced fan noise or peak display brightness.

Built in 3D LUT box

In addition to Log to HDR conversions you can also use your own custom 3D LUT to feed downstream to other devices or live feed. Load up to eight custom LUTs at any time via the SD Card Slot and instantly select between them. When using selfie mode, the large display acts as a perfect confidence monitor that allows you to apply a LUT to your camera output for a perfect piece to camera.

The best of AtomOS 10

Shinobi 7 utilises the fast and intuitive AtomOS 10 platform and is packed with an extensive suite of scopes and simple one-touch operations. Shinobi includes monitoring tools for focus, framingand exposure, including Focus Peaking, Focus Assistedge sharpening, 4:1 / 2:1 / 1:1 Zoom punch in, Zebra, False Color, Cine and social frame guides, SMPTE Safe Area, Waveform, RGB parade, vectorscope, anamorphic de-squeeze and 3D LUT support.

Atomos Analysis mode

With the new Analysis feature you can simultaneously see what you are shooting, view a waveform, histogram and vector scope, to ensure complete control of your image. You can even switch between different waveform, histogram and vector scope options on the fly with a single touch.

Streaming

The optional  converts the Shinobi 7’s HDMI output to USB, giving a plug and play UVC (USB Video Class) output for streaming on a computer. Deliver professional cinematic looks with ease and bring professional production values to video conferences.

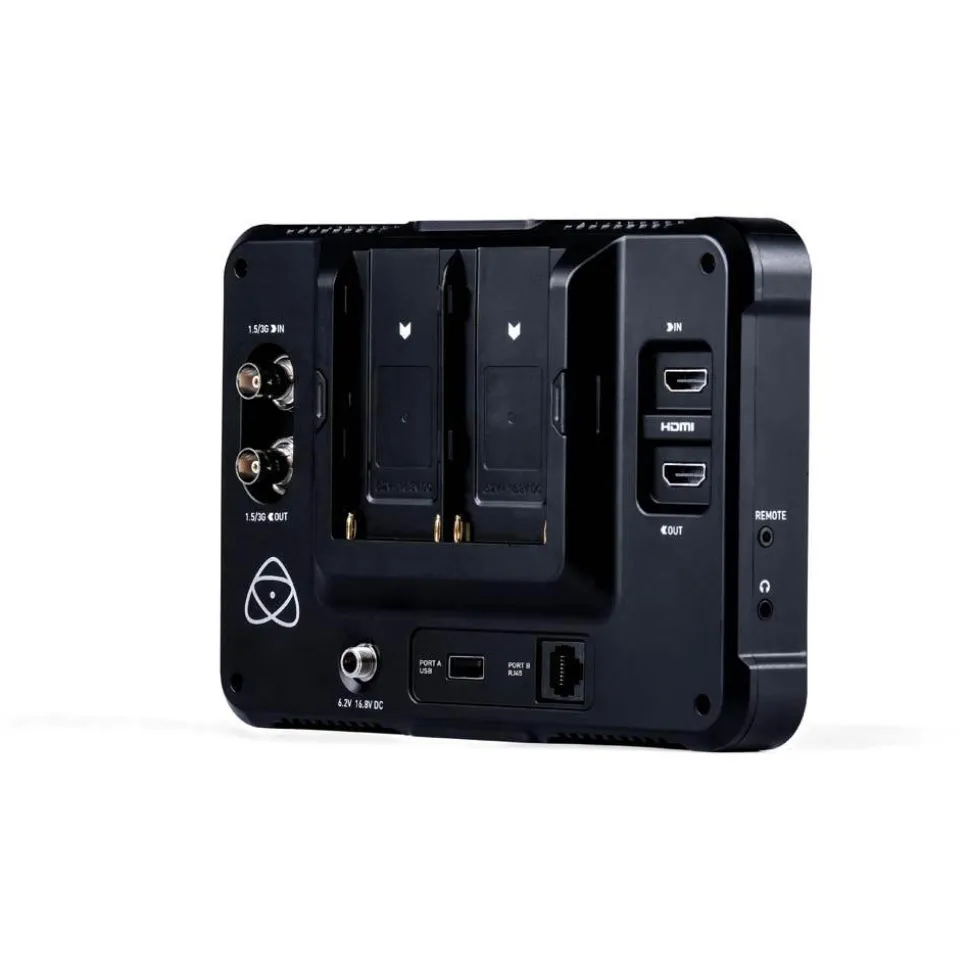

Continuous Power

With dual battery slots for NPF L series batteries including the  you can easily hot-swap batteries during your shoot and never be caught without power. The Shinobi was designed from the ground up to optimise battery usage while monitoring, as the dual slots combine to allow you to run all day. The dedicated locking DC jack input connects to mains power on-set and can be used with the optional DC to DTAP cable with V-lock batteries for power in the field.

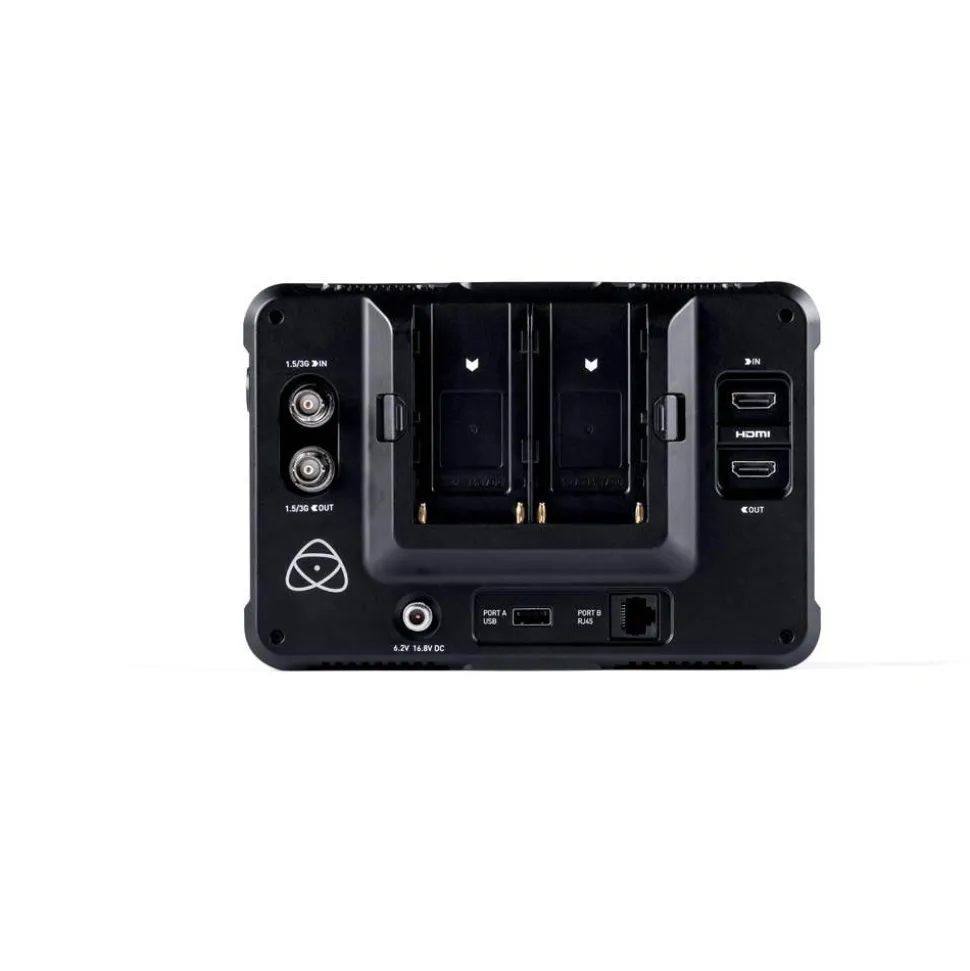

Pro I/O and Cross conversion

With support for up to 4K/60p via the HDMI inputs the Shinobi 7 cements itself into any video workflow by enabling cross conversion between 4K HDMI and 3G-SDI signals. Output low-latency video signals, with the ability to bring HDMI cameras into SDI workflows or vice versa without the need for additional convertors.

Factory and User calibration

The Shinobi 7 is factory calibrated for Rec.709 and also supports user-calibration via the free Atomos Calibration software, as monitors can drift over time. Using the optional USB-A or USB-C to Serial cable and  /  , the calibration software easily automates the calibration of the screen to ensure accurate and reliable monitoring results.

Check out our blog post with this  to see exactly what’s new and what’s different.

What’s in the Box

• Shinobi 7
• International DC Power Adaptor
• Quick Start Guide
