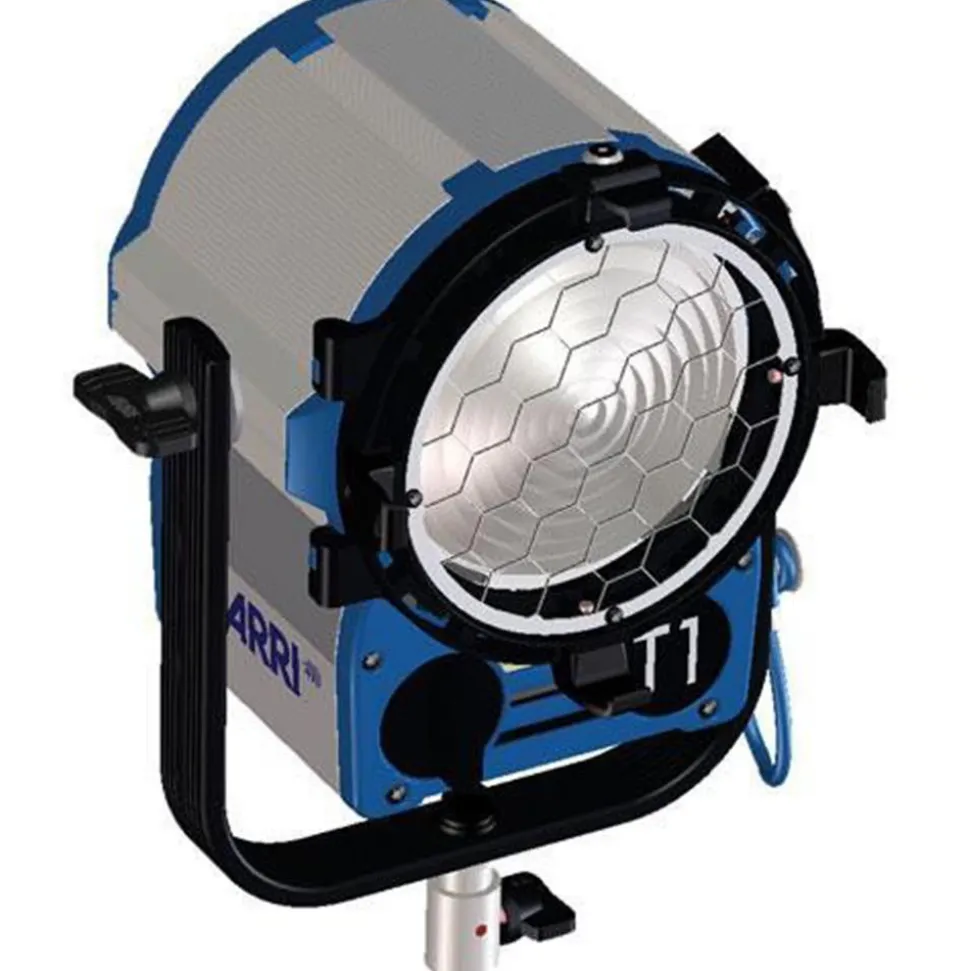

ARRI T1 True Blue Lamphead (Bare Ended)

ARRI True Blue represent an unprecedented evolution of the location fixtures that have been popular workhorses for over two decades. Following extensive research and feedback from lighting professionals around the world, combined with advances in technology, ARRI has designed a series of six highly innovative lampheads with over 30 new improvements for studio and location lighting. ARRI Fresnels are available in both manual and pole-operated versions.

Cross-Cooling System: new, highly effective cooling streams in addition to conventional cooling
Sliding Stirrup: centre of gravity adjustment
Tilt Lock: stainless steel friction disc for rigid lock-off
Top Latches: application-oriented Top Latches for location or studio use
Adjustable Accessory Brackets: adjustable 2-scrim and 4-scrim position
Stainless Steel Lens Protection: maximised light transmission and high temperature stability
Extremely Robust Barndoors: made of special alloy with high strength-to-weight ratio and effective tightening function
Maintenance: more shared parts, very fast access to all interior workings with three torx drivers only
Protection Rating IP23: safe indoor and outdoor use
Safety Certification: CE, TœV-GS, NRTL-US-C

Lamphead Type: Fresnel, 1000 W
Reflector Type: Spherical specular high purity aluminium
Lamp Type: 230 V: 1000 W (FKJ), 650 W (FKH); 120 V: 1000 W (EGT), 750 W (EGR), 500 W (EGN)
Power Consumption: 1000 W / 750 W / 650 W / 500 W
Voltage Range: 230 V / 120 V
Lamp Base: G22
Dimmability: Yes, 0 to 100 % via external dimming system
Correlated Color Temperature: 3,200 K
Beam Angle: 10° to 54°
Lens Diameter: 150 mm / 5.9″
Accessory Diameter: 197 mm / 7.8″ (Scrim)
Barndoor: 197 mm / 7.8″
Mounting: Spigot 28 mm (short), 16 mm Socket
Protection Class / IP Rating: I / IP 23
