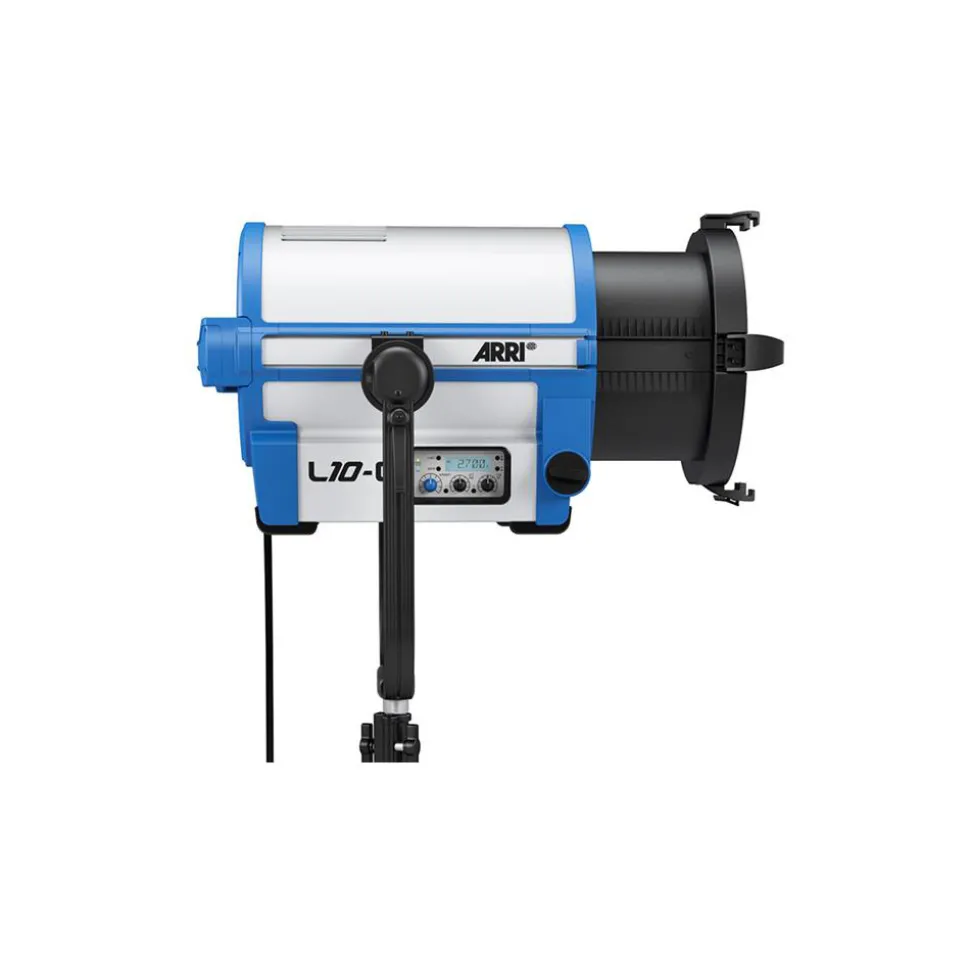

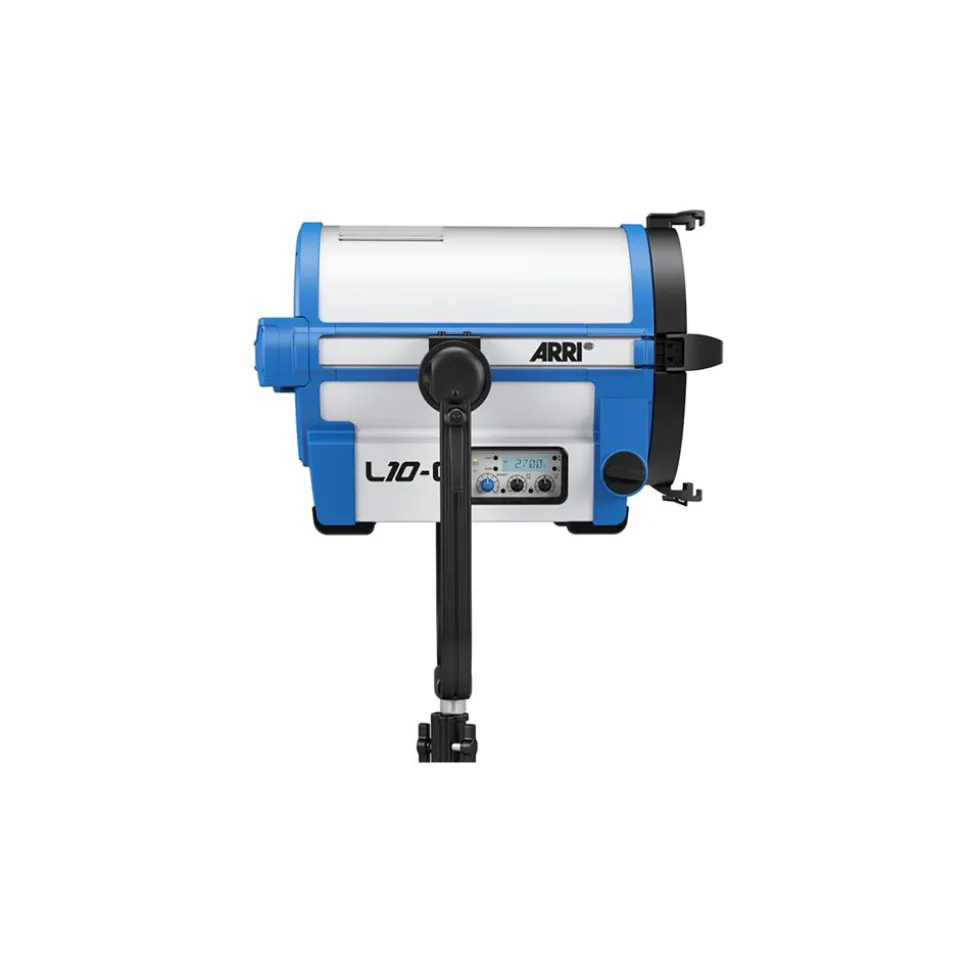

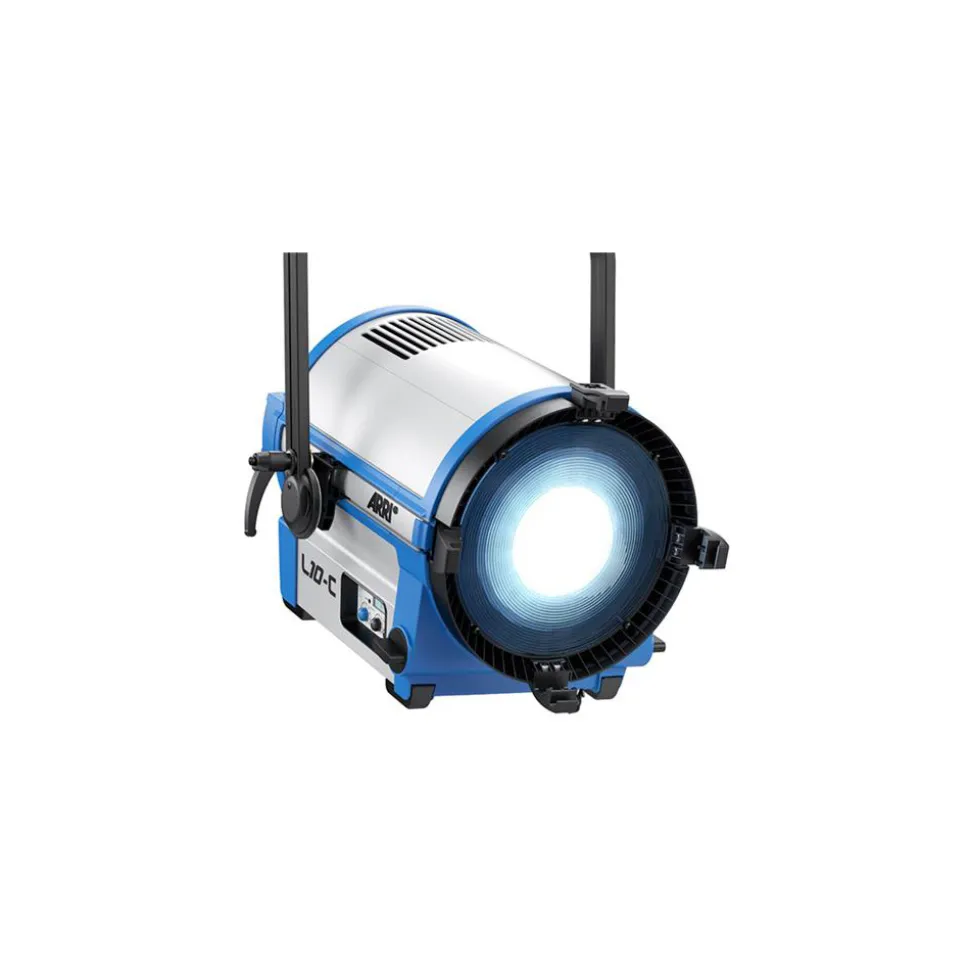

ARRI L10-C 10 LED Fresnel Light (Stand Mount)

Color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000 K, between full plus or minus green and RGBW colors.

Whereas other LED fixtures have taken forms that demand sacrifices in the quality of lighting designs, the L-Series is unique in that it fits perfectly into established working practices. This means that lighting designers will not have to adapt their creative techniques, nor will studios have to change their operating procedures; conventional Fresnels can be exchanged for L7 Fresnels on a like-for-like basis, achieving substantial and immediate cost savings with minimal disruption.

Cool Burning and Cost Saving
L-Series Fresnels burn cold; the lack of forward heat significantly reduces studio air conditioning costs and allows for a much cooler work environment. This makes life easier on set, both for the technicians behind the lights and the talent in front of them.

Focus Knobs
True Blue-style focus knobs provide the precise adjustment and rapid flood-to-spot that users enjoy from manual, mechanical control. Knobs on both sides of the fixture ensure easy access from all positions, eliminating the need for awkward reach-arounds. focusing is neither tedious nor time-consuming; full flood-to-spot can be achieved in only three turns.

Sliding Stirrup
The ARRI sliding stirrup design enables precise adjustment of the fixture’s center of gravity, to compensate for front-end accessories. It also creates the option of pulling the fixture back and reducing its hanging height.

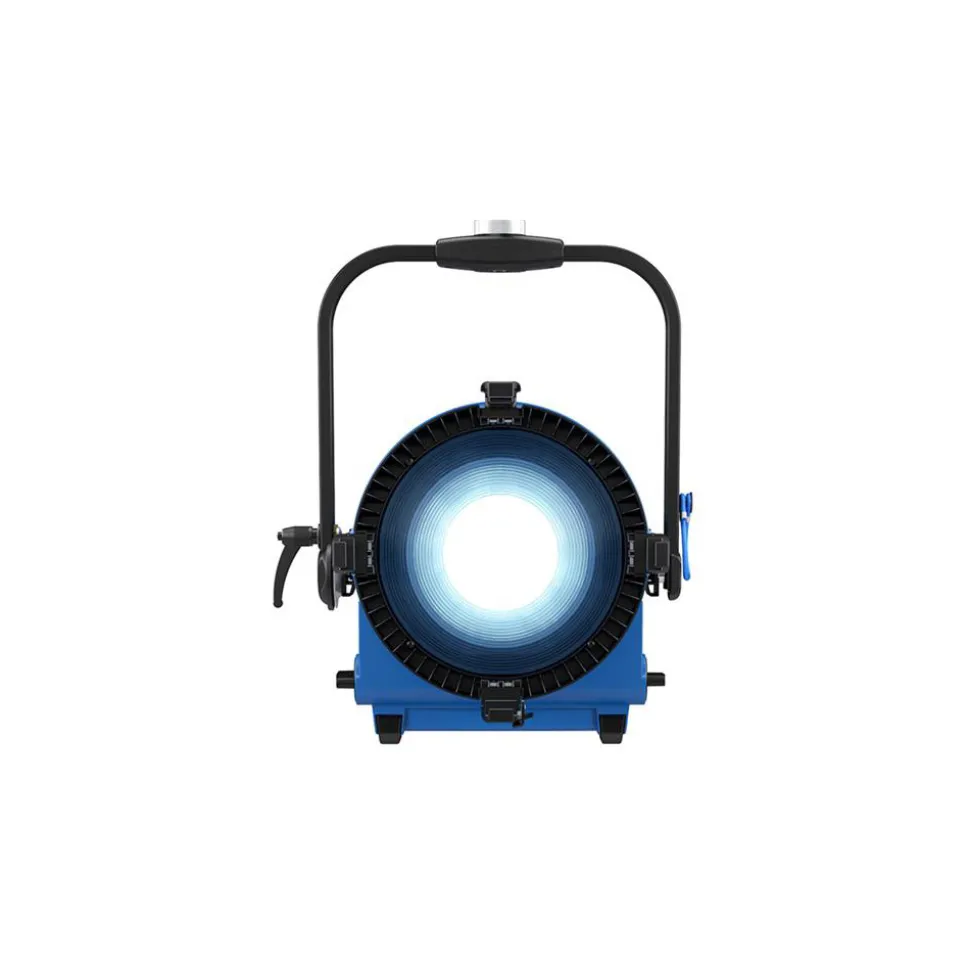

Yoke
With an extremely slim profile, the extruded aluminum yoke provides high strength without added weight. An optional pole-operated yoke allows full operation of pan, tilt and focus from the floor and is therefore a popular choice for many studios.
Tilt Lock
The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.

DMX Control
For broadcast studios, remote fixture control is of paramount importance, and all functions of the L7 are controllable through DMX. The L7 is also fully RDM compatible, providing bi-directional feedback and reporting of parameters including system status; hours on the light engine; and current DMX settings (with the ability to remotely assign and address all fixtures in a DMX network).

On-Board Control
For location applications, the ability to rapidly access all lamphead parameters directly at the light is important. For this reason, an optional on-board controller is available for the L7 Fresnels, with manual intensity adjustment and DMX settings.

With the L7-C, additional controls for color temperature and plus/minus green can be switched to manipulate hue and saturation at the touch of a button, and two fast-presets can be stored and recalled with ease.

Unique LED Lights with True Fresnel Performance
The ARRI L-Series has launched with an LED Fresnel fixture so close to its conventional equivalent in function and performance that it creates a previously unattainable opportunity: like-for-like replacement of traditional Fresnels with LED-based units.

Familiar, but Revolutionary
Quality of light begins with the field. Smooth intensity, uniform color, even illumination: all are traits shared by the L7 and conventional ARRI Fresnels. Since Fresnels are workhorses of the lighting industry, designers and technicians now have nothing new to learn in order to use LED technology.

Focusability:
Spot > Flood > Anywhere In-Between
Versatility is the key element in traditional Fresnels, especially the ability to spot and flood the beam as needed. Whether it’s a flood field for a pullback shot or a tight spot for a bright highlight, the continuous focusability of the L7 performs just as expected.

Versatile and Controllable Beam

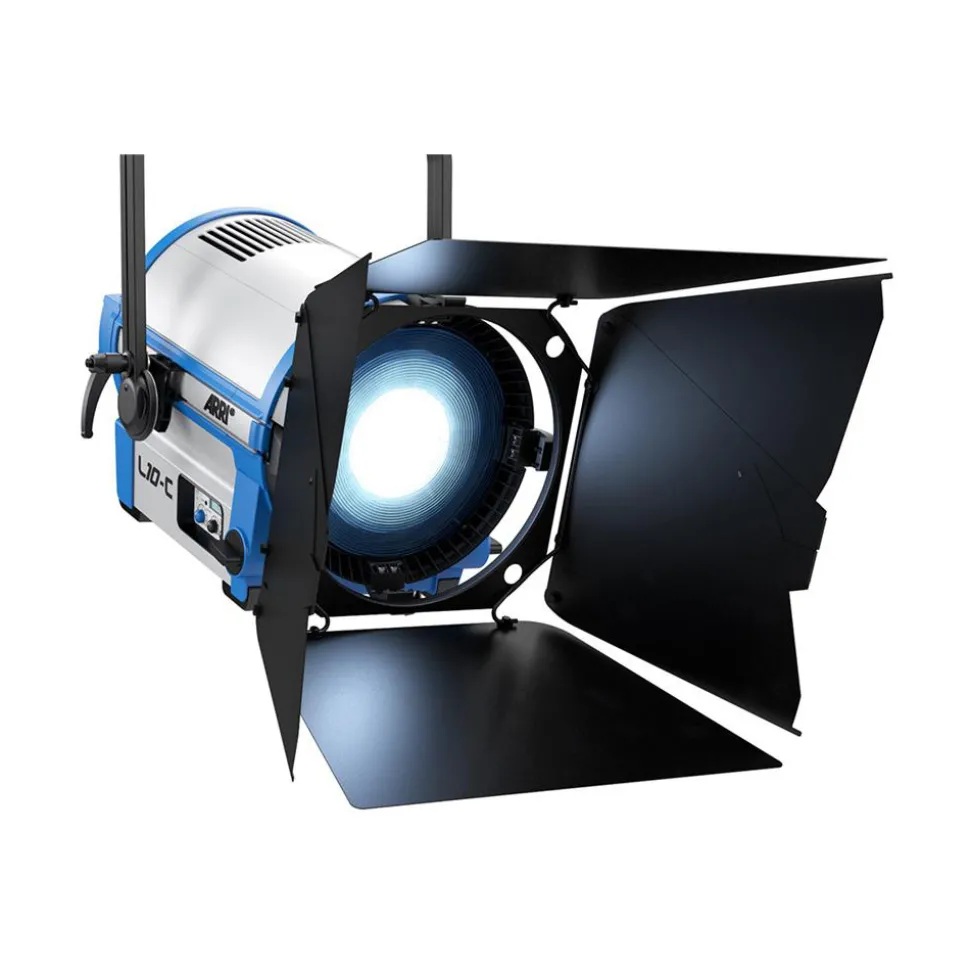

Shaping the beam to isolate talent and set elements. Cutting the field to eliminate spill light. Controllability is crucial to lighting, and the L7 provides the same ability as conventional Fresnels to cut and shape with barndoors and flags. The only part missing is the heat: the L7 features a completely cool light beam, keeping talent comfortable and air conditioning costs low.

Even Light Field
Clear, defined shadows have traditionally been a trait only of single source tungsten and daylight fixtures. ARRI L7 Fresnels provide the same single shadow properties designers expect, delivering natural results.

The L10 is the brightest and largest L-Series lamphead to date. Its substantial 10″ Fresnel lens and powerful output allow for more distant fixture placement and the wrapping of light around objects in a natural and pleasing way. At more than twice the brightness of the L7, the L10 is also one of the brightest LED Fresnels on the market.

Tuneability is the cornerstone of all ARRI LED fixtures and much like the L7 and L5, its smaller counterparts, the L10 is fully color tuneable. With the ability to adjust the color temperature from 2,800 K to 10,000 K, as well as the green/magenta point, users have complete control over the color output of the fixture.

In a robust housing that combines aluminum with high-strength, fiberglass-reinforced thermoplastics, the L10 is designed to withstand the stresses of diverse professional environments, from motion picture sets to television studios and everything in-between. This robust construction allows the L10 to live up to the benchmark of rugged durability set by other ARRI lighting fixtures.

STAND-MOUNT
versions include the following base configuration: 28 mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.

Optical System: Focusable Fresnel
Lens Diameter: 274 mm / 10.8″
Beam angle: 15° to 50° (Half Peak Angle)
Mounting: 28 mm Spigot (Junior Pin)
Tilt Angle: +/- 90°
Power Supply Range: 100 to 250 V AC, 50/60 Hz
Power Consumption: 400 W (Nominal), 510 W (Maximum)
White Light: 2,800 K to 10,000 K Continuously Variable Correlated Color Temperature
Colored Light: Full RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition: CRI Average > 95 (3,200 K to 6,500 K), TLCI Average > 91
Green-Magenta Adjustment: Continuously Adjustable (Full Minusgreen to Full Plusgreen)
Dimming: 0 to 100 % Continuous
Control: 5-Pin DMX In and Through, On-Board Controller, Mini-USB
Remote Device Management (RDM): DMX Setup, Hour Counter and Standard RDM Commands
Mini-USB Interface: DMX Setup, Fixture Status and Firmware Upgrade Through PC Software
Housing Color: Blue/Silver, Black
Ambient Temperature Operation: -20 to +45º C (-4 to +113º F)
Protection Class / IP Rating: I / IP20
Estimated LED Lifetime (L70): 50,000 hours
Estimated Color Shift Over Lifetime: +/- 5 %
