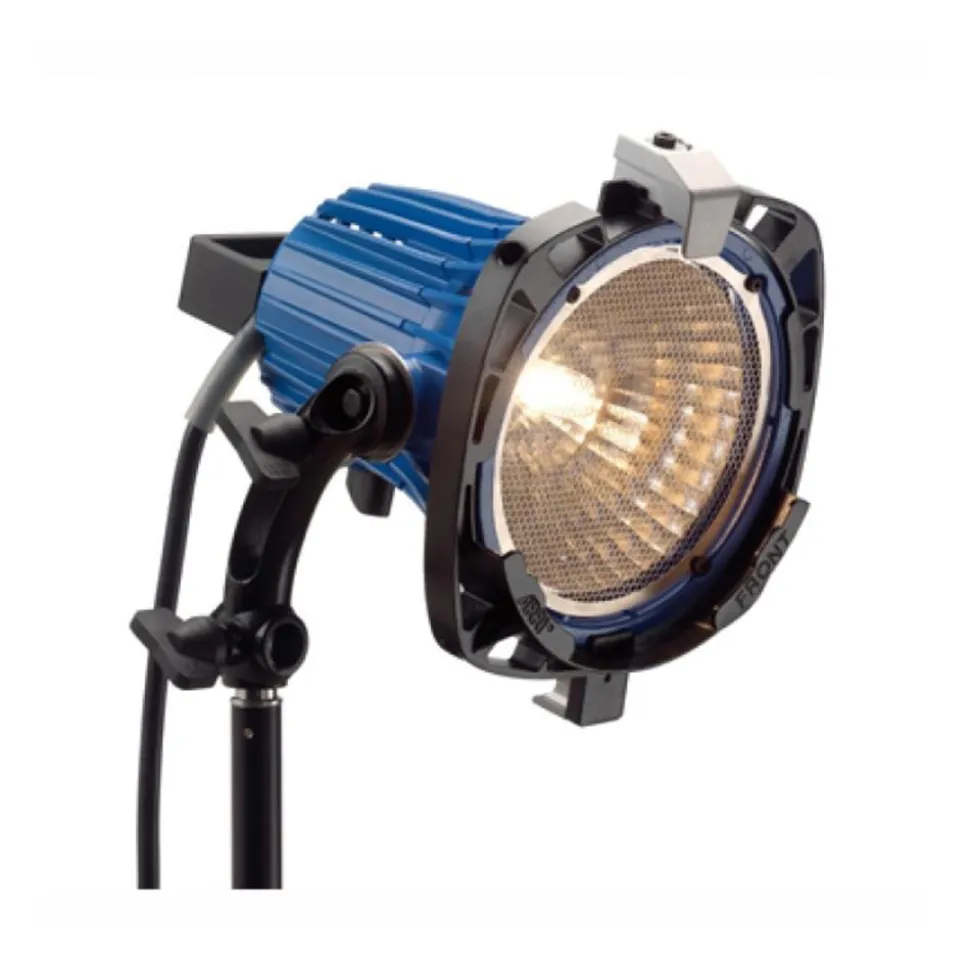

ARRI Junior 750 Plus Spotlight (Schuko Plug)

The ARRILITE 750 Plus is a new and improved incarnation of ARRIs traditional, open-faced light, the ARRILITE 800/1000. By optimizing the ARRIMAX reflector for usage with an HPL* 750 W lamp, the ARRILITE 750 Plus offers 21 % higher light efficiency than the previous ARRILITE 800 W, while the ARRIMAX optical system improves distribution of the light. A detachable and fully rotatable accessory holder accommodates scrims and barndoors, and incorporates fittings that permit the Chimera Video Pro Plus S to be fitted directly, without an additional speedring.

The one-arm stirrup allows for plenty of pan-and-tilt options and a heat-proof handle at the rear of the lamphead enables easy maneuvering. No tools are required for changing bulbs as the housing consists simply of two detachable parts that open and close through bayonet cap locks. The smaller and lighter aluminum housing of the ARRILITE 750 Plus makes it an ideal lamphead for lighting kits and therefore also suitable for electronic newsgathering, field production and fast turnaround location use.

MAX Technology reflector enables better light distribution
Compatible with 375 W, 573 W and 750 W HPL* bulbs
21% increase in light efficiency compared to the previous ARRILITE 800 model
New accessory holder permits the Chimera Video Pro Plus to be fitted directly,
without an additional speedring
One-arm stirrup allows a variety of pan-and-tilt possibilities
No tools required to change the bulb
Compact design; smaller and lighter housing than the previous ARRILITE 800 model
Aluminum housing enables heat dissipation
Heat-proof handle at rear of housing enables easy maneuvering
Compatible with ARRI 650 Plus accessories

Lamphead Type Open Face with parabolic facetted reflector, 750 W
Reflector Type MAX reflector made of high purity aluminium
Lamp Type HPL* 750 W, 575 W
Power Consumption 800 W, 750 W, 650 W, 600 W, 575 W, 375 W
Voltage Range 100 to 240 V~
Lamp Base G9,5
Dimmability Yes, 0 to 100 % via external dimming system
Correlated Color Temperature 3,200 K
Beam Angle 21 to 73°
Lens Diameter 150 mm / 5.91″
Accessory Diameter 168 mm / 6.61″ (Scrim)
Barndoor 168 mm / 6.61″
Mounting Socket 16 mm / 5/8″ (0.63″)
Protection Class / IP Rating I / IP20
