3 Legged Thing Ellie Short L Bracket Grey & ARCA Swiss Base

The 3 Legged Thing Ellie PD Short For Peak Design Capture And Arca-Swiss in slate grey is a universal L-Bracket designed for smaller camera systems like Fujifilm X-series and Lumix or Olympus MFT.

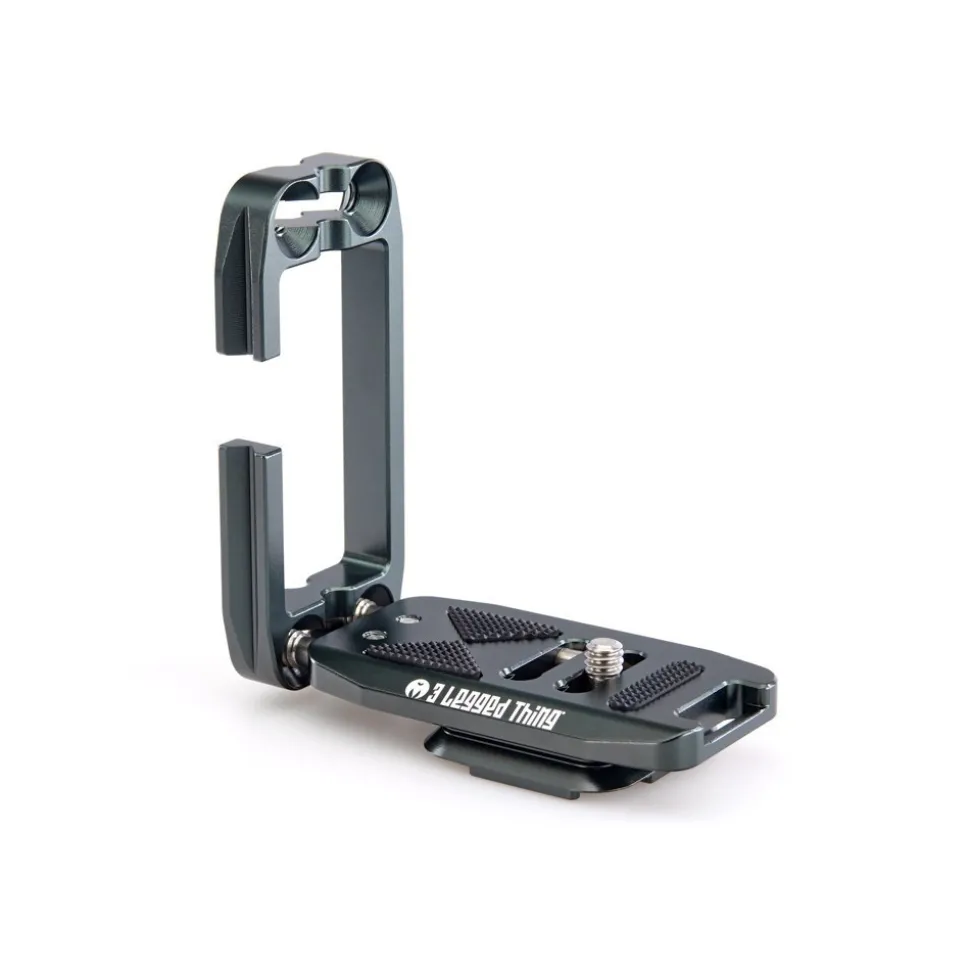

3 Legged Thing Ellie PD Short For Peak Design Capture And Arca-Swiss Grey

The Ellie PD Short in metallic slate grey is the short version of the universal L bracket which is compatible with smaller APS-C sized cameras such as Fujifilm X series, Lumix and Olympus micro four thirds camera bodies. It is versatile with both Arca-Swiss and  compatibility. A  is also available for larger cameras including full frame mirrorless and DSLR’s.

L-Brackets are used to allow users to easily switch from landscape to portrait mode when shooting on a tripod. Take a look at all of our  for heaps of clever supports, including spiked feet, ball heads and much more.

Compatible with standard Arca-Swiss clamps, Ellie PD Short features two different 2 screw mount slots in the base. This allows users to position the L-Bracket in the optimal position for their camera. The length of the bracket base can be adjusted thanks to two rigid stainless steel sliding bars which are then fixed into position by the user with the supplied tool. The rear edge of the base is sloped to better enable screen access. Ellie’s vertical aspect has an opening in one side, allowing users with L-shaped cable pins to connect accessories. This opening can be placed in one of four positions by inverting or reversing the vertical aspect.

Features

• Universal Peak Design Capture-compatible• L-Bracket for smaller mirrorless and DSLR cameras
• Choice of two screw mount slots for optimal positioning of the camera
• Adjustable base length thanks to rigid stainless steel rods held in place with stainless steel screws
• Opening in vertical aspect can be set in one of four positions for better cable and accessory connections
• Dual 1/4-20 screw mounts on vertical aspect for adding accessories (monitors, microphones etc)
• Precision engineered plate profiles for secure connection to your tripod head
• Vertical aspect can be mounted downward to create a rocker mount for your tripod
• Rear of base plate is sloped to better enable screen access
• Detachable release plate base can be used in isolation
• Base slot for strap attachment
• *Peak Design Capture v3 only

3 Legged Thing Ellie PD Short Specifications

• Base Length – 85 mm
• Working Base Length – 95 – 128 mm
• Upright – 85mm
• Shoe – 38 mm Arca Swiss and Peak Design Capture v3 Compatible
• Weight – 94 g

What’s included

• Ellie PD Short Arca-Swiss and Peak Design Capture-compatible* quick release L-Bracket with 70mm base
• Stagsden Stainless Steel camera screw
• Dual-ended mini tool with two hex keys for adjustment of vertical aspect and to secure stainless steel sliding rods into place
