3 Legged Thing Ellie Short L Bracket Grey

3 Legged Thing Ellie Short L Bracket in metallic slate grey is an ultra versatile universal Arca-Swiss compatible bracket with 70 mm base for smaller APS-C sized mirrorless and DSLR cameras.

Key Features

• Universal L-Bracket for smaller mirrorless and DSLR cameras
• Choice of two screw mount slots for optimal positioning of the camera
• Adjustable base length thanks to rigid stainless steel rods held in place with stainless steel screws
• Opening in vertical aspect can be set in one of four positions for better cable and accessory connections
• Dual 1/4-20 screw mounts on vertical aspect for adding accessories (monitors, microphones etc)
• Precision engineered plate profiles for secure connection to your tripod head
• Vertical aspect can be mounted downward to create a rocker mount for your tripod
• Rear of base plate is sloped to better enable screen access
• Detachable release plate base can be used in isolation
• Base slot for strap attachment

3 Legged Thing Ellie Short L Bracket Metallic Slate Grey Summary

Ellie Short in Slate Grey from  is a universal L-bracket which has a shorter 70mm base designed to give access to the battery door on smaller APS-C sized DLSR and mirrorless cameras from any of the main manufacturers. These include Fujifilm X-Series cameras, Olympus and Panasonic Lumix Micro Four Thirds and smaller Canon or Nikon DSLR’s. The bracket can extend from 80 – 113 mm which gives plenty of room for different sized compact cameras as well as enabling the connection of accessories such as HD monitors, HDMI cables, audio cables, remote triggers and more.

3 Legged Thing Ellie Short Grey is compatible with standard Arca-Swiss clamps and features two different 2 screw mount slots in the base. This allows users to position the L-Bracket in the optimal position for their camera. The length of the bracket base can be adjusted thanks to two rigid stainless steel sliding bars which are then fixed into position by the user with the supplied tool, making it extra versatile. The rear edge of the base is sloped to better enable screen access.

3 Legged Thing Ellie Short L Bracket Metallic Slate Grey Specifications

• Base Length – 70 mm
• Working Base Length – 80 – 113 mm
• Upright – 85mm
• Shoe – 38 mm Standard Arca-Swiss
• Weight – 88 g

3 Legged Thing Ellie modular L-Bracket System are available in the following options

Universal standard size Ellie L-Brackets for most full frame cameras

• and an optional
• and an optional

Universal Short size Ellie L-Brackets for most compact APS-C size cameras

• and an optional
• Ellie Short Grey (this bracket) and an optional

Ellie PD for Peak Design Capture And Arca-Swiss

• and an optional
• and an optional
• and an optional

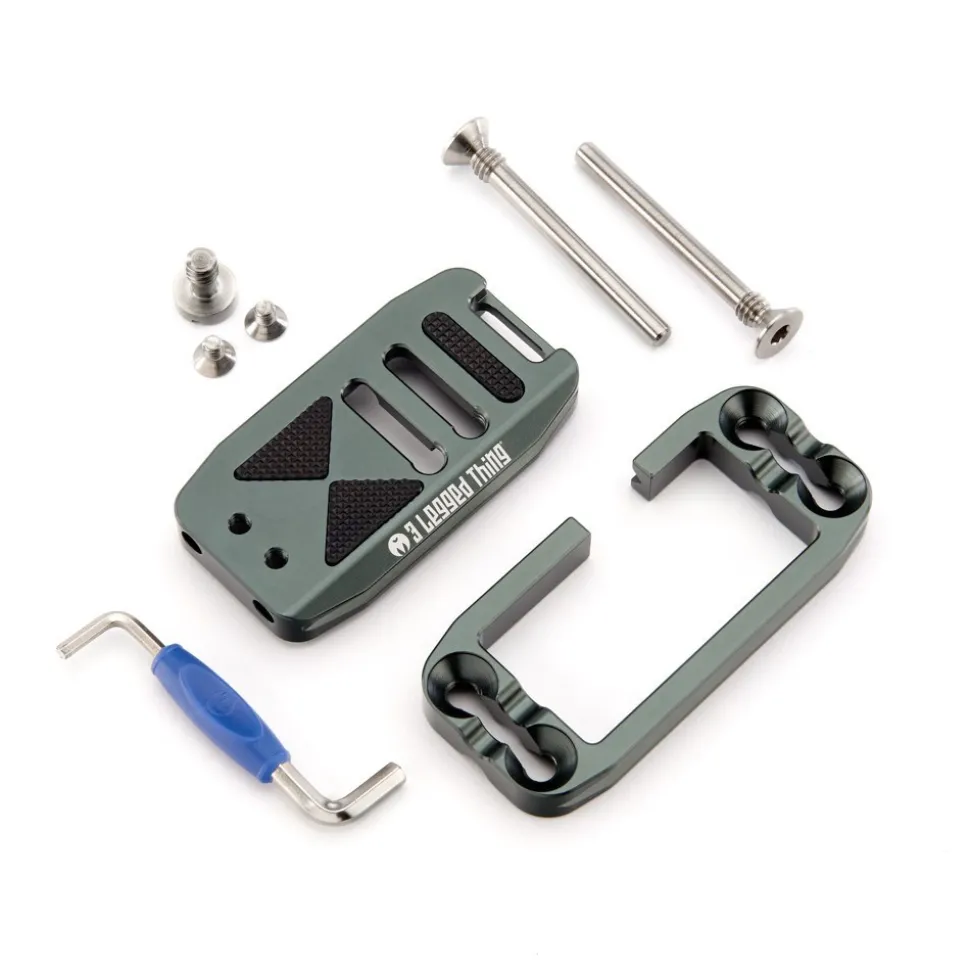

What’s in the Box

• Ellie Short Arca-Swiss compatible quick release L-Bracket with 70mm base
• Stagsden Stainless Steel camera screw
• Retaining bolts (2.5mm hex) for horizontal axis security
• Dual-ended mini tool with two hex keys for adjustment of vertical aspect and to secure stainless steel sliding rods into place
