3 Legged Thing Ellie Short L Bracket Cop

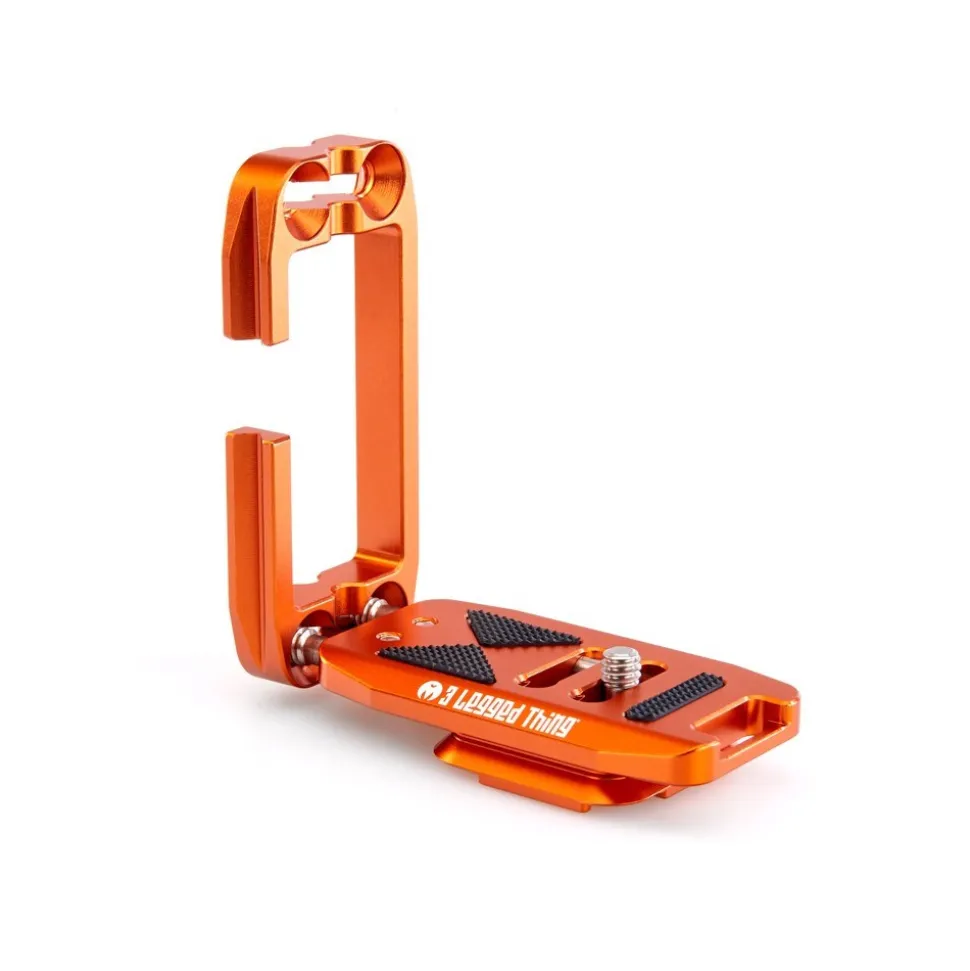

Ellie is a new evolution of universal L-Bracket, bringing users increased compatibility with a wider range of cameras, and advanced functionality.

L-Brackets are primarily used to switch from landscape to portrait on a tripod whilst maintaining the focal plane and horizon.

Ellie PD Short is specifically designed to work with Peak Design’s Capture Clip system*. It features a standard Arca Swiss compatible footing that clips securely into the Capture. It has a shorter 70mm base plate which is designed to give access to the battery door on smaller DLSR and mirrorless cameras from Fujifilm, Olympus, and Canon.

Compatible with standard Arca-Swiss clamps, Ellie features two different 2 screw mount slots in the base. This allows users to position the L-Bracket in the optimal position for their camera. The length of the bracket base can be adjusted thanks to two rigid stainless steel sliding bars which are then fixed into position by the user with the supplied tool. The rear edge of the base is sloped to better enable screen access. Ellie’s vertical aspect has an opening in one side, allowing users with L-shaped cable pins to connect accessories. This opening can be placed in one of four positions by inverting or reversing the vertical aspect.

FEATURES

• Universal Peak Design Capture-compatible• L-Bracket for smaller mirrorless and DSLR cameras
• Choice of two screw mount slots for optimal positioning of the camera
• Adjustable base length thanks to rigid stainless steel rods held in place with stainless steel screws
• Opening in vertical aspect can be set in one of four positions for better cable and accessory connections
• Dual 1/4-20 screw mounts on vertical aspect for adding accessories (monitors, microphones etc)
• Precision engineered plate profiles for secure connection to your tripod head
• Vertical aspect can be mounted downward to create a rocker mount for your tripod
• Rear of base plate is sloped to better enable screen access
• Detachable release plate base can be used in isolation
• Base slot for strap attachment
• *Peak Design Capture v3 only

PRODUCT SPECIFICATIONS

• Base Length – 70 mm / 2.75 “
• Working Base Length – 80 – 113 mm / 3.15 – 4.45 “
• Upright – 85mm / 3.35 “
• Shoe – 38 mm / 1.5 ” Arca Swiss and Peak Design Capture v3 Compatible
• Weight – 90 g / 0.19 lb

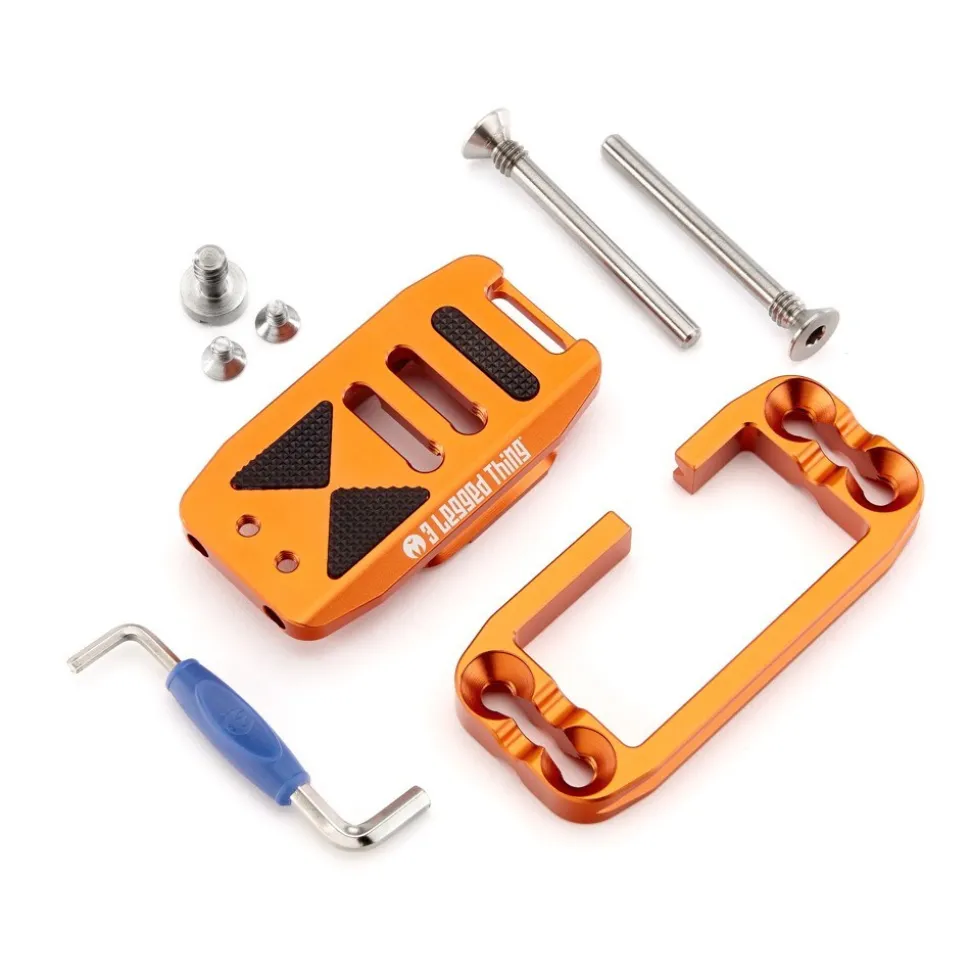

SO, WHAT’S IN THE KIT?

• Ellie PD Short Arca-Swiss and Peak Design Capture-compatible* quick release L-Bracket with 70mm base
• Stagsden Stainless Steel camera screw
• Dual-ended mini tool with two hex keys for adjustment of vertical aspect and to secure stainless steel sliding rods into place
