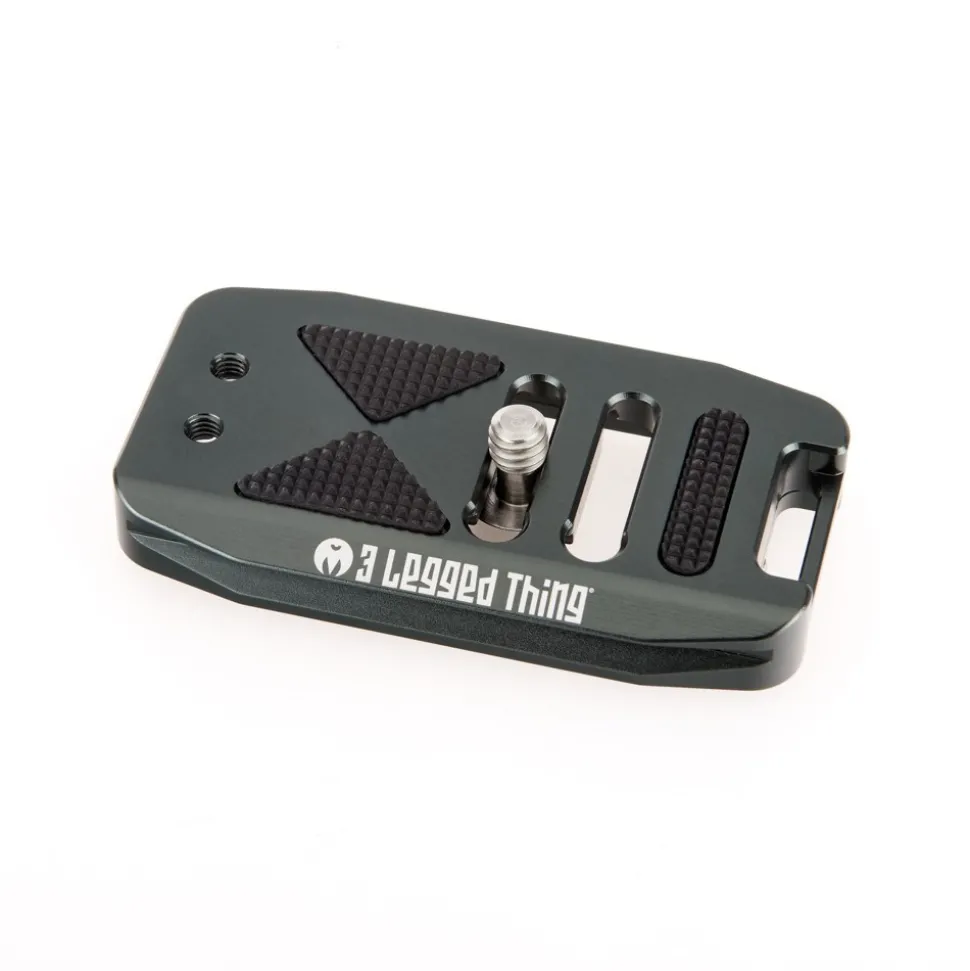

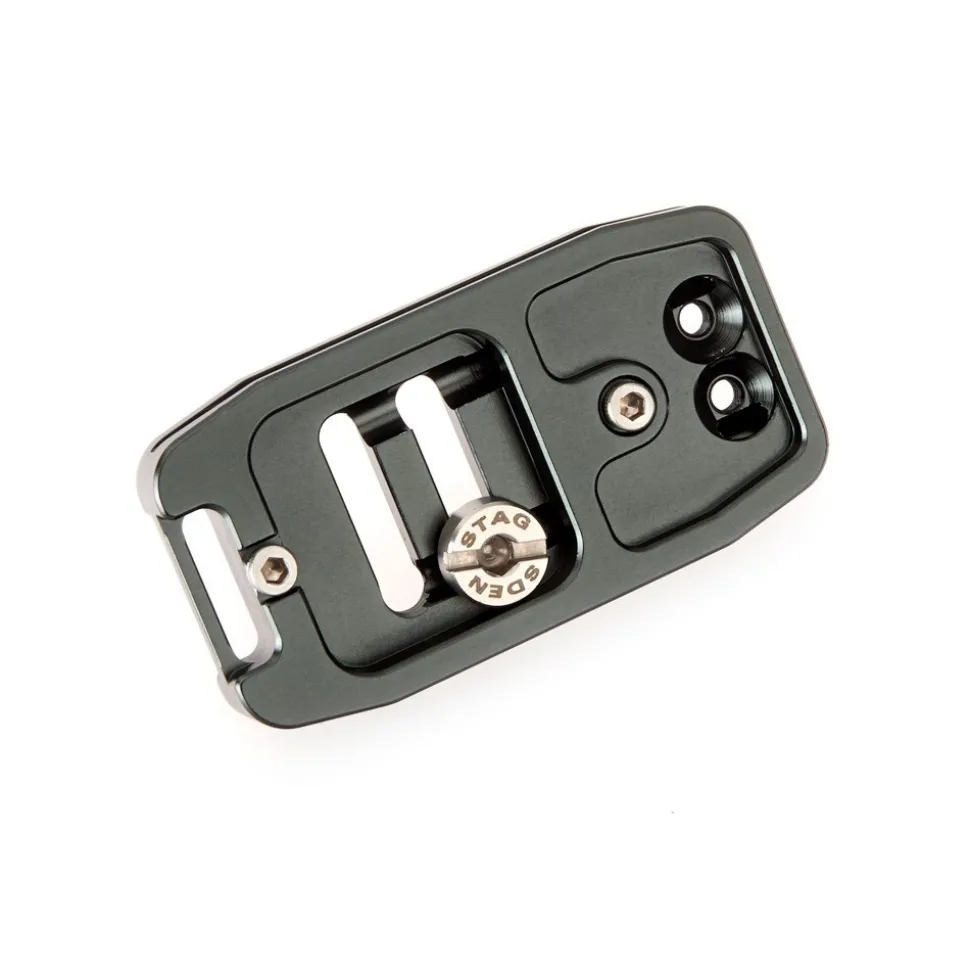

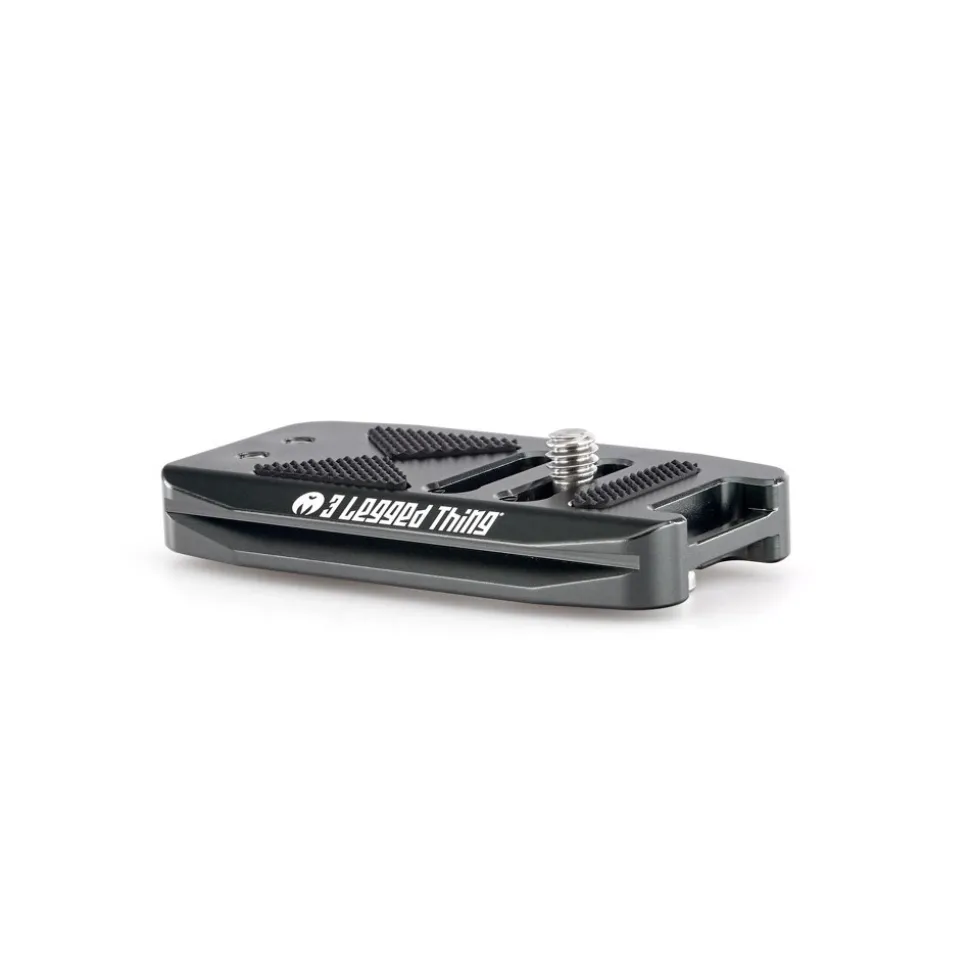

3 Legged Thing Ellie 70mm Base Plate Grey ARCA-Swiss

BASE70 is an Arca Swiss compatible replacement base plate for 3 Legged Thing’s Ellie L-bracket system. 70mm in length, the plate is formed from anodised magnesium alloy, includes a Stainless Steel 1/4″-20 camera mount screw and rubberised pads to ensure a secure fit on your camera. The plate features a sloped rear edge for ease of use with rear flip screens, and includes a choice of two screw mount slots which allow you to choose the best position for your camera and enable the plate to be adjusted towards the front or rear of the camera as required.

Base70 can also be used on its own as a wide quick release plate for any camera requiring a larger, stable base.

Base70 is compatible with the majority of standard sized DLSR and mirrorless cameras.

FEATURES

• Universal Arca Swiss-compatible Quick Release Plate for mirrorless and DSLR cameras
• Choice of two screw mount slots for optimal positioning of the camera
• 70mm base length
• Precision engineered plate profiles for secure connection to your tripod head
• Rear of base plate is sloped to better enable screen access
• Base slot for strap attachment
• Retaining bolts (2.5mm hex) for additional horizontal axis security

PRODUCT SPECIFICATIONS

• Length – 70mm / 2.75 “
• Shoe – 38 mm / 1.5 ” Standard Arca-Swiss
• Weight – 47 g / 0.1 lb

SO, WHAT’S IN THE KIT?

• BASE70 Arca-Swiss compatible 70mm wide quick release plate
• Stagsden Stainless Steel camera screw
• Retaining bolts (2.5mm hex) for horizontal axis security
• Dual-ended mini tool with two hex keys for adjustment of camera screw or retaining bolts
